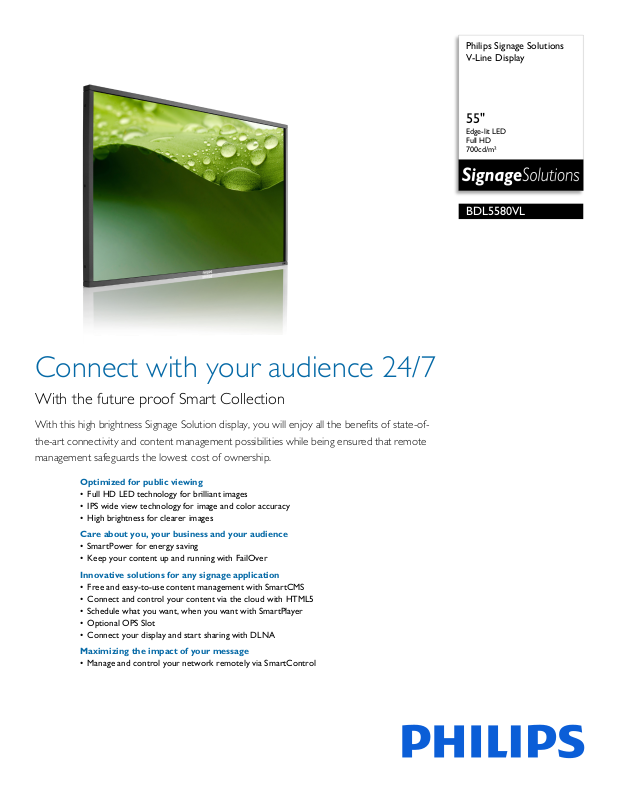

Page 1
Philips Signage Solutions
V-Line Display
55"
Edge-lit LED
Full HD
700cd/m²
BDL5580VL
Connect with your audience 24/7
With the future proof Smart Collection
With this high brightness Signage Solution display, you will enjoy all the benefits of state-ofthe-art connectivity and content management possibilities while being ensured that remote
management safeguards the lowest cost of ownership.
Optimized for public viewing
• Full HD LED technology for brilliant images
• IPS wide view technology for image and color accuracy
• High brightness for clearer images
Care about you, your business and your audience
• SmartPower for energy saving
• Keep your content up and running with FailOver
Innovative solutions for any signage application
• Free and easy-to-use content management with SmartCMS
• Connect and control your content via the cloud with HTML5
• Schedule what you want, when you want with SmartPlayer
• Optional OPS Slot
• Connect your display and start sharing with DLNA
Maximizing the impact of your message
• Manage and control your network remotely via SmartControl
Page 2
V-Line Display
55" Edge-lit LED, Full HD, 700cd/m²
Highlights
BDL5580VL/00
Full HD LED technology
White LED's are solid state devices which light
up to full
startup time. LED's are free from mercury
content which allows for eco-friendly recycling
and disposal process. LED's allow for better
dimming control of LCD backlight, resulting in
super high contrast ratio. It also gives superior
color reproduction thanks to consistent
brightness across the screen.
IPS Display Technology
Philips IPS displays uses an advanced technology
w
178/178 degree, making it possible to view the
display from almost any angle - even in portrait
mode. IPS displays gives you remarkably crisp
images with vivid colors, especially suitable for
professional video wall and menuboard
applications which demand color accuracy and
consistent brightness at all times.
SmartControl
SmartControl software suite lets you remotely
control and man
RJ45 and RS232C. Easy identify your displays and
fine-tune all display settings including resolution,
brightness, contrast, video wall configurations
and cloning of your settings over your complete
network.
SmartCMS
, consistent brightness faster saving
hich gives you extra wide viewing angles of
age your network of displays via
Solutions displays to manage your digital signage
content. With SmartCMS you can create and
schedule your own content over 24 hours every
day. Simply create your network, design your
content, schedule your playlist and you are
ready to play!
FailOver
Keeping your content up and running is critical
for dem
anding commercial applications. While it
is unlikely you will face a content disaster,
FailOver provides 24/7 protection with a
revolutionary technology that plays back-up
content on screen in the event of a media player
failure. FailOver automatically kicks in when the
primary input fails. Simply select a primary input
connection and a FailOver connection and your
ready for instant protection.
Integrated HTML5 browser
Connect and control your content via the cloud
with the integrated HTML5 browser. Design
your signage content online and connect it with
a display or with your complete network. Simply
plug in a RJ45 internet cable for network
connection, connect the display with the
dedicated url-address and you are ready to play
your cloud based content.
SmartPlayer
Turn your USB into a true cost effective digital
signage device. Simply save your content (video,
audio, pictures) on your USB and plug into your
display.Create your playlist and schedule your
content via the on screen menu, and enjoy your
own created playlists anytime, anywhere.
Optional OPS Slot
Open Pluggable Specification is an industry
standard
compatible media player. This gives you the
ability to upgrade or change your hardware
whenever you need. Turning your display in to
an all-in-one digital signage solution has become
simplicity personified.
SmartPower
The backlight intensity can be controlled and
pre
consumption by up to 50%, which saves
substantially on energy costs.
Share & Stream with DLNA
Simply share & stream content from your
mob
with all DLNA compliant media devices.
Connect each display with an ethernet cable and
manage your content real time within your local
network. Simply connect your display and start
sharing.
slot in to which you can add an OPS-
-set by the system to reduce the power
ile device or media player to your display
Free and easy-to-use content management
system that works exclusively with Philips Sigage
Page 3
V-Line Display
55" Edge-lit LED, Full HD, 700cd/m²
Specifications
BDL5580VL/00
Picture/Display
• Diagonal screen size: 54.6 inch / 139 cm
• Panel resolution: 1920x1080p
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Brightness: 700 cd/m²
• Contrast ratio (typical): 1300:1
• Dynamic contrast ratio: 500,000:1
• Aspect ratio: 16:9
• Response time (typical): 12 ms
• Pixel pitch: 0.21 x 0.63 mm
• Display colors: 1.07 billion
• Viewing angle (H / V): 178 / 178 degree
• Picture enhancement: 3/2 - 2/2 motion pull down,
mbfilter, Motion compens. deinterlacing,
3D Co
Progressive scan, 3D MA deinterlacing, Dynamic
contrast enhancement
Connectivity
• Video input: DisplayPort (1.2), HDMI (x2), DVI-D,
VGA (Analog D-Sub), USB, Component (RCA),
Composite (RCA)
• Video output: DisplayPort, DVI-I, VGA (Analog D-
Sub)
• Audio input: 3.5 mm jack, Audio Left/Right (RCA)
• Audio output: Audio Left/R
speaker connector
• Other connections: OPS
• External control: RJ45, RS232C
IR (in/out) 3.5 mm jack
ight (RCA), External
(in/out) 2.5 mm jack,
Supported Display Resolution
• Computer formats
Resolution Refresh rate
1920 x 1200 60Hz
1920 x 1080 60Hz
1440 x 900 60Hz
1366 x 768 60Hz
1360 x 768 60Hz
1280 x 800 60Hz
1280 x 768 60Hz
1024 x 768 60Hz
800 x 600 56, 60, 72, 75Hz
640 x 480 60, 67, 72, 75Hz
deo formats
• Vi
Resolution Refresh rate
1080p 50, 60Hz
1080i 50, 60Hz
720p 50, 60Hz
576i 50Hz
576p 50Hz
480p 60Hz
480i 60Hz
Dimensions
• Set dimensions (W x H x D):
1244.4 x 715.2 x 69 mm
• Bezel width: 15.8 mm
• Product weight: 30.2 kg
• VESA Mount: 400 x 400 mm, 400 x 200 mm, 200 x
mm
200
• Smart Insert mount: 100 x 100 mm, 100 x 200 mm
Convenience
• Placement: Landscape, Portrait
• Tiled Matrix: Up to 10 x 10
• Keyboard control: Hidden, Lockable
• Signal Loop Through: RS232, DVI, IR Loopthrough,
, DisplayPort
VGA
• Network controllable: RJ45, RS232, One Wire
DMI-CEC), Card OPS RS232, HDMI (One Wire)
(H
• Energy saving functions: Smart Power
• Ease of installation: Smart Insert, AC Out
• Screen saving functions: Pixel Shift, Low Bright
• Other convenience: Carrying handles
Power
• Consumption (On mode): 110W (EnergyStar 6.0
test method)
• Standby power consumption: <0.5 W
• Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz
Operating conditions
• Temperature range (operation): 0 - 40 °C
• Relative humidity: 5 - 90 %
• MTBF: 60,000 hour(s)
• Altitude: 0 ~ 3000 m
• Temperature range (storage): -20 ~ 60 °C
Sound
• Built-in speakers: 2 x 10 W RMS
Multimedia Applications
• USB Playback Video: M2TS, M4V, MK3D, MKV, MP4,
MPEG, MPG, MTS, TS, TTS, VOB, WMV
• USB Playback Picture: BMP, GIF, JPEG, JPG
• USB Playback Audio: AAC, AIF, AIFF
WAV, WMA, ASF, LPCM, M3U, MP4
, M4A, MP3,
Accessories
• Included accessories: Remote Control, Batteries for
remote control, AC Power Cord, VGA cable, User
manual on CD-ROM, Quick start guide, RS232 cable
• Stand: BM05462 (Optional)
• Optional accessories: Co
(CCK4601), HDBaseT OPS Receiver (CRD25)
lourCalibrationKit
Miscellaneous
• On-Screen Display Languages: English, French,
German, Italian, Polish, Turkish, Russian, Spanish,
Simplified Chinese, Traditional Chinese, Arabic,
Japanese
• Regulatory approvals: CE, FCC, Class B, CCC,
oHS, UL/cUL, C-Tick, BSMI, CB, GOST, J-Moss,
R
PSE, VCCI
• Warranty: 3 year warranty
•
Issue date 2014-11-28
Version: 4.1.2
12 NC: 8670 001 21286
EAN: 87 12581 72951 6
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject t
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
o change without notice.
