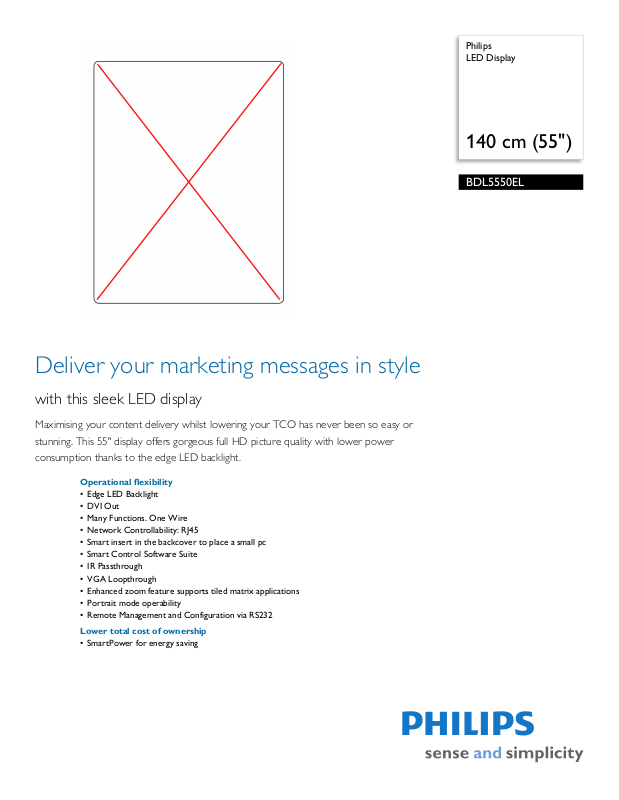

Page 1
Philips
LED Display
140 cm (55")
BDL5550EL
Deliver your marketing messages in style
with this sleek LED display
Maximising your content delivery whilst lowering your TCO has never been so easy or
stunning. This 55" display offers gorgeous full HD picture quality with lower power
consumption thanks to the edge LED backlight.
Operational flexibility
• Edge LED Backlight
•DVI Out
• Many Functions. One Wire
• Network Controllability: RJ45
• Smart insert in the backcover to place a small pc
• Smart Control Software Suite
• IR Passthrough
• VGA Loopthrough
• Enhanced zoom feature supports tiled matrix applications
• Portrait mode operability
• Remote Management and Configuration via RS232
Lower total cost of ownership
• SmartPower for energy saving
Page 2
LED Display
140 cm (55")
Highlights
BDL5550EL/00
Edge LED Backlight
Experience an even dispersion of light with
cutting edge
emitting diodes) are positioned around the rim
of the panel to give a more even spread of light.
This results in even lower power consumption,
less heat to dissipate, and a true, uniform color
range.
DVI Out
Create a digital video wall of up to 25 displays in
a
5 x 5 configuration with a DVI daisy chain.
Simply connect the DVI Out port to a DVI in of
another display to create the most stunning
video wall experience around.
One Wire
Take full control of your display by running all
operational
signal through just one single HDMI cable. This
unique feature makes it so much easier and
more convenient to ensure the smooth running
and maintenance of your display. Consumer
Electronics Control (CEC) commands make
finding out vital information about your display
absolute childsplay.
Smart Control
Control and manage all of the signage displays on
your net
LED technology. White LED's (light
commands as well as your video
work with this powerful software tool
which allows you to change the settings of your
display centrally via an RJ45 or RS232
connection. Smart Control allows you to set the
video input, modify the color settings, set the
display's ID when creating video walls and even
diagnose each display's status, giving you all the
power you need to manage your displays from
one central location.
Smart insert
Professional PC's are part of most public signage
i
nstallations. Quite often they increase the
overall depth to the display and cause a lot of
cable clutter. So we have designed this display
with Smart insert in the backcoverwhich is ideal
for the integration of a professional small form
factor PC. On top of that, the cable management
system offers a great solution to keep your
cables neat and professional looking.
VGA Loopthrough
Connect multiple displays to create a video wall
o
f up to 150 displays via a VGA daisy chain thus
enhancing your visual experience. With no
additional hardware required, they are as simple
to installl as they are captivating to your
audience.
SmartPower
The backlight intensity can be controlled and
pre
-set by the system to reduce the power
consumption by up to 50%, which saves
substantially on energy costs.
RJ45
Simple management of your display is available
thanks
to the introduction of a LAN (RJ45) port.
You can configure each display or find out the
status of each device quickly and conveniently
via an RJ45 connection.
Zoom function for tiled matrix
The internal zoom function enables easy
impl
ementation of a video wall matrix, without
the need for expensive external equipment.
Capable of many different configurations,
creating a stunning video wall has become
simplicity itself.
IR Passthrough
Control all displays in your signage network
thro
ugh one single remote control, via the
primary display. Simple and convenient, this
means you don't have to worry about other
displays changing configuration settings when
using your remote control unit.
Slim Bezel
Page 3
LED Display
140 cm (55")
Specifications
BDL5550EL/00
Picture/Display
• Panel resolution: 1920x1080p
• Brightness: 450 cd/m²
• Response time (typical): 6.5 ms
• Contrast ratio (typical): 4000:1
• Aspect ratio: 16:9
• Pixel pitch: 0.21 x 0.63 mm
• Display colors: 1.07 billion
• Picture enhancement: 3/2 - 2/2 motion pull down,
mbfilter, 3D MA deinterlacing, Dynamic
3D Co
contrast enhancement, Motion compens.
deinterlacing
• Viewing angle (H / V): 178 / 178 degree
Supported Display Resolution
• Computer formats
Resolution Refresh rate
1920 x 1200 60Hz
1920 x 1080 60Hz
1600 x 1200 60Hz
1440 x 900 60Hz
1366 x 768 60Hz
1360 x 768 60Hz
1280 x 1024 60Hz
1280 x 800 60Hz
1280 x 768 60Hz
1024 x 768 60Hz
800 x 600 60, 72, 75Hz
640 x 480 60, 67, 72, 75Hz
deo formats
• Vi
Resolution Refresh rate
1080i 50, 60Hz
1080p 50, 60Hz
480i 60Hz
480p 60Hz
576i 50Hz
576p 50Hz
720p 50, 60Hz
Connectivity
• PC: RJ45, VGA-in D-Sub 15HD, VGA-out D-Sub
15HD, RS232 D-Sub9, RS232 D-sub9 output, 3.5
mm PC audio input x1
• AV input: Audio (L/R) x1, Component
DVI-D x1
• Other connections: Display Port, DVI Out, HDMI,
ut
AC-o
(BNC) x1,
Dimensions
• Set dimensions (W x H x D):
1244.4 x 715.2 x 69 mm
• Set dimensions with stand (W x H x D):
4.4 x 770.6 x 400 mm
124
• Bezel thickness: 15.8 mm
• Set weight: 30.6 kg
• VESA Mount: 400 x 400, 400 x 200, 200 x 200
• MTBF: 60,000 hrs
Power
• Consumption (On mode): TBD
• Power supply: 90-264 VAC, 50/60 Hz
• Standby power consumption: <0.5W
Convenience
• Placement: Landscape, Portrait
• Picture in picture: PBP, PIP, POP
• Network controllable: RJ45, RS232, HDMI (One
Wire)
• Signal Loop Through: DVI, VGA, RS232, IR
opthrough
Lo
• Energy saving functions: Smart Power
• Ease of installation: AC Out, Carrying Handles,
Smart Ins
• Keyboard control: Hidden, Lockable
• Other convenience: Carrying handles
• Packaging: Reusable box
• OSD Languages: Dutch, English, French, German,
I
Chinese, Spanish, Swedish, Turkish
• Tiled Matrix: Up to 5 x 5
ert
talian, Polish, Portuguese, Russian, Simplified
Sound
• Built-in speakers: 2 x 10W RMS
Operating conditions
• Relative humidity: 5 - 90 %
• Temperature range (operation): 0 - 40 °C
Accessories
• Included accessories: AC Power Cord, Batteries for
remote control, Quick start guide, Remote Control,
User manual on CD-ROM, VGA cable
• Stand: BM05462 Optional
Miscellaneous
• On-Screen Display Languages: English, French,
German, Polish, Russian, Simplified Chinese, Spanish,
Turkish
• Regulatory approvals: CE, FCC, Class B, UL/cUL,
CC, C-Tick, RoHS, CSA, GOST, BSMI, EPEAT
C
• Warranty: 3 year warranty
Packaging dimensions
• EAN: 87 12581 64633 2
• Number of products included: 1
• Packaging type: Carton
•
Issue date 2013-04-25
Version: 1.2.1
12 NC: 8670 000 90645
EAN: 87 12581 64633 2
© 2013 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject t
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
o change without notice.
