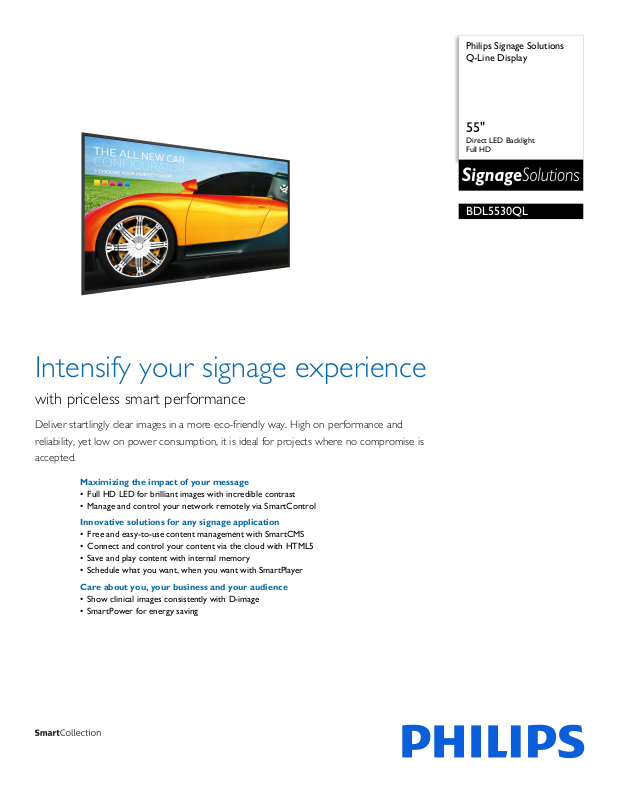

Page 1

Philips Signage Solutions Q-Line Display

55"

Direct LED Backlight Full HD

BDL5530QL

Intensify your signage experience

with priceless smart performance

Deliver startlingly clear images in a more eco-friendly way. High on performance and reliability, yet low on power consumption, it is ideal for projects where no compromise is accepted.

Maximizing the impact of your message

• Full HD LED for brilliant images with incredible contrast

• Manage and control your network remotely via SmartControl

Innovative solutions for any signage application

• Free and easy-to-use content management with SmartCMS

• Connect and control your content via the cloud with HTML5

• Save and play content with internal memory

• Schedule what you want, when you want with SmartPlayer

Care about you, your business and your audience

• Show clinical images consistently with D-image

• SmartPower for energy saving

Page 2

BDL5530QL/00

Q-Line Display

D-Image

Clinical

55" Direct LED Backlight, Full HD

Highlights

Full HD LED technology

Picture Quality matters. Regular displays deliver qual

ity, but you expect more. Imagine crisp detail paired with high brightness, incredible contrast and realistic colors for a true to life picture.

SmartControl

SmartControl lets you remotely control and manage your network of displays via RJ45 and RS232C. Easily fine-tune all display settings including resolution, brightness, contrast and cloning of your settings over your complete network.

SmartCMS

Free and easy-to-use content management system that works exclusively with Philips Sigage Solutions displays to manage your digital signage content. With SmartCMS you can create and schedule your own content over 24 hours every day. Simply create your network, design your

content, schedule your playlist and you are ready to play!

Integrated HTML5 browser

Connect and control your content via the cloud with the integrated HTML5 browser. Design your signage content online and connect it with a display or with your complete network. Simply plug in a RJ45 internet cable for network connection, connect the display with the dedicated url-address and you are ready to play your cloud based content.

Internal Memory

Save and play content with internal memory. Upl

oad your media into the display and playback content immediately. Working in conjunction with the internal browser, it also serves as a memory cache when streaming online content. If the network ever fails, the internal memory keeps content streaming by playing a cached version of the content, ensuring that your media is up even when there is no network connection.

SmartPlayer

Turn your USB into a true cost effective digital s

ignage device. Simply save your content (video, audio, pictures) on your USB and plug into your display.Create your playlist and schedule your content via the on screen menu, and enjoy your own created playlists anytime, anywhere.

Clinical D-image

D-image helps you to review and diagnose clinical images with consistent and accurate display performance. To achieve reliable clinical interpretations our professional displays are factory calibrated to give optimized greyscale standard display performance. D-image helps you to excel in every aspect of patient care.

SmartCollection

SmartCollection offers you customizable solut

ions to meet your specific requirements. Both integrators and solution providers are

offered the latest innovations, while the audience can enjoy impactful solutions. When developing smart innovations we focus on Caring, Innovative and Impactful solutions.

Page 3

BDL5530QL/00

Q-Line Display

55" Direct LED Backlight, Full HD

Specifications

Picture/Display

• Diagonal screen size: 54.6 inch / 138.7 cm

• Panel resolution: 1920x1080p

• Optimum resolution: 1920 x 1080 @ 60 Hz

• Brightness: 350 cd/m²

• Contrast ratio (typical): 1200:1

• Dynamic contrast ratio: 500,000:1

• Response time (typical): 6.5 ms

• Aspect ratio: 16:9

• Viewing angle (H / V): 178 / 178 degree

• Pixel pitch: 0.63 x 0.63 mm

• Display colors: 16.7 Million

• DICOM: Clinical D-image

Supported Display Resolution

• Computer formats Resolution Refresh rate 640 x 480 60, 67, 72, 75Hz 800 x 600 56, 60, 72, 75Hz 1024 x 768 60Hz 1280 x 768 60Hz 1280 x 800 60Hz 1360 x 768 60Hz 1366 x 768 60Hz 1440 x 900 60Hz 1600 x 1200 60Hz 1920 x 1080 60Hz 1920 x 1200 60Hz

deo formats

• Vi Resolution Refresh rate 480i 60Hz 480p 60Hz 576p 50Hz 576i 50Hz 720p 50, 60Hz 1080i 50, 60Hz 1080p 50, 60Hz

Convenience

• Memory: Internal memory access, 8GB eMMC

• Screen saving functions: Pixel Shift

• Energy saving functions: Smart Power

• Tiled Matrix: Up to 15 x 15

• Start-up: Wake up on LAN, Switch on delay, Switch tatus

on s

• Start-up window: enable / disable Philips logo

• Keyboard control: Lockable, Hidden

• Network controllable: RS232, RJ45, One Wire

DMI-CEC)

• Signal Loop Through: RS232, IR Loopthrough

Dimensions

• Bezel width: 12.6 (TLR) / 14.5 (B) mm

• Set dimensions (W x H x D):

8.6 x 711.1 x 59.9 mm

123

• Set dimensions in inch (W x H x D):

48.76 x 28.0 x 2.36 inch

• VESA Mount: 400 x 400 mm, 400x200 mm, M6

• Product weight: 16.00 kg

• Product weight (lb): 35.27

Operating conditions

• Temperature range (operation): 5 ~ 40 °C

• Temperature range (storage): -20 ~ 60 °C

• Relative humidity: 20 ~ 80 %

• MTBF: 50,000 hour(s)

Power

• Consumption (On mode): 141 W (EnergyStar 6.0

test method)

• Mains power: 100 ~ 240 VAC

• Standby power consumption: <0.5 W

Sound

• Built-in speakers: 2 x 10W RMS

Accessories

• Included accessories: AC Power Cord, RS232 cable, VGA cable, Remote Control, Batteries for remote control, User manual on CD-ROM, Quick start guide

Miscellaneous

• Warranty: 3 year warranty

• On-Screen Display Languages: English, French, German, I Chinese, Spanish, Traditional Chinese

• Regulatory approvals: CE, CCC, UL/cUL, C-Tick, BSMI, C

•

talian, Polish, Turkish, Russian, Simplified

B, GOST, CECP, EPA

Connectivity

• Video input: DVI-D, HDMI, Component (RCA), Composite (RCA), VGA (Analog D-Sub)

• Audio input: 3.5 mm jack, Audio Left/Right (RCA)

• Audio output: Audio Left/Right (RCA), 3.5mm jack

• External control: RJ45, RS232C IR (in/out) 3.5 mm jack

• Other connections: USB

(in/out) 2.5 mm jack,

Issue date 2015-07-15

Version: 1.1.1

12 NC: 8670 001 22322 EAN: 87 12581 73032 1

Multimedia Applications

• USB Playback Video: 3G2, 3GP, ASF, ASX, AVI, DAT, DivX, F4V, FLV, M2TS, M4V, MK3D, MKV, MOV, MP4, MPE, MPEG, MPG, MTS, QT, TRP, TS, TTS, VOB, WEBM, WMV, Xvid

• USB Playback Picture: BMP, GIF, JPEG, JPG

• USB Playback Audio: AAC, AC3, AIF, AIFF EC3, M4A, MP3, OGA, OGG, WAV, WMA

Specifications are subject t Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

www.philips.com

o change without notice.
