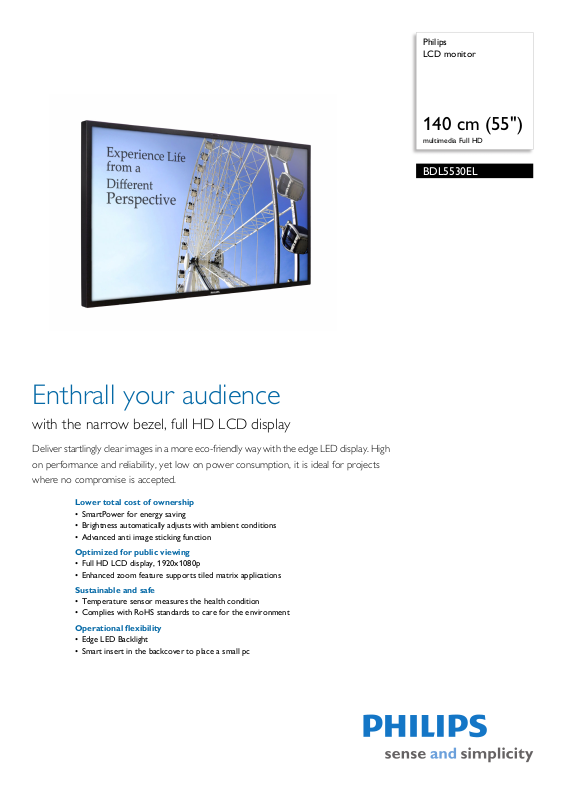

Page 1

Philips LCD monitor

140 cm (55")

multimedia Full HD

BDL5530EL

Enthrall your audience

with the narrow bezel, full HD LCD display

Deliver startlingly clear images in a more eco-friendly way with the edge LED display. High on performance and reliability, yet low on power consumption, it is ideal for projects where no compromise is accepted.

Lower total cost of ownership

• SmartPower for energy saving

• Brightness automatically adjusts with ambient conditions

• Advanced anti image sticking function

Optimized for public viewing

• Full HD LCD display, 1920x1080p

• Enhanced zoom feature supports tiled matrix applications

Sustainable and safe

• Temperature sensor measures the health condition

• Complies with RoHS standards to care for the environment

Operational flexibility

• Edge LED Backlight

• Smart insert in the backcover to place a small pc

Page 2

LCD monitor

VIDIWALL

P O R T R A I T

140 cm (55") multimedia Full HD

Highlights

BDL5530EL/01

Edge LED Backlight

Experience an even dispersion of light with c

utting edge LED technology. White LED's (light emitting diodes) are positioned around the rim of the panel to give a more even spread of light. This results in even lower power consumption, less heat to dissipate, and a true, uniform color range.

SmartPower

The backlight intensity can be controlled and pre-se

t by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

Full HD LCD display 1920x1080p

This display has a resolution that is referred to as

Full HD. The state-of-the-art LCD screen technology has the full high-definition widescreen resolution of 1080 progressive lines, each with 1920 pixels. This allows the best possible picture quality for HD input

signals with up to 1080 lines. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colors. This vibrant and sharp image will provide you with an enhanced viewing experience.

Zoom function for tiled matrix

The internal zoom function enables easy i

mplementation of a video wall matrix, without the need for expensive external equipment. Capable of a vidiwall of 25 displays by dividing up to 5 displays each horizontally and vertically.

Advanced anti image sticking

Static images left on-screen for extended pe

riods of time may leave a "ghost image" or image sticking effect on LCD displays. Although image sticking in LCD displays is not permanent, you want to prevent this to happen, especially in locations where content is shown 24/7.

Automatic brightness control

The adjustment of display settings to corre

spond with ambient light without user

intervention.

Compliant with RoHS standards

Philips designs and produces display products i

n compliance with strict Restriction of Hazardous Substances (RoHS) standards that restrict lead and other toxic substances that can harm the environment.

Temperature sensor

This public dispay contains a temperature s

ensor to monitor the internal health condition. In case the internal temperature surpasses the preset threshold, automatically two internal fans will be activated to cool down the display to normal conditions.

Page 3

LCD monitor

140 cm (55") multimedia Full HD

Specifications

BDL5530EL/01

Picture/Display

• Diagonal screen size: 54.6 inch / 138.6 cm

• Panel resolution: 1920x1080p

• Optimum resolution: 1920 x 1080 @ 60 Hz

• Brightness: 400 cd/m²

• Contrast ratio (typical): 4000:1

• Response time (ty

• Aspect ratio: 16:9

• Viewing angle (H / V): 178 / 178 degree

• Pixel pitch: 0.21 x 0.63 mm

• Display colors: 1.07 Billlion

• Picture enhancement: 3/2 - 2/2 motion pull down, mbfi

3D Co Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement

ical): 6.5 ms

lter, Motion compens. deinterlacing,

Supported Display Resolution

• Computer formats

Resolution Refresh rate 640 x 480 60, 67, 72, 75Hz 800 x 600 56, 60, 72, 75Hz 1024 x 768 60Hz 1280 x 768 60Hz 1280 x 800 60Hz 1360 x 768 60Hz 1366 x 768 60Hz 1440 x 900 60 1600 x 1200 60Hz 1920 x 1080 60Hz 1920 x 1200 60Hz

deo formats

• Vi

Res

olution Refresh rate 480i 60Hz 480p 60Hz 576p 50Hz 576i 50Hz 720p 50, 60Hz 1080i 50, 60Hz 1080p 50, 60Hz

• Tiled Matrix: Up to 5 x 5

• Picture in picture:: PIP

• Screen saving functions: Pixel Shift, Low Brightness

• Signal Loop Through:: RS232, VGA

• Keyboard control:: Hidden, Lockable

• Remote control signal:: Lockable

• Ease of installation: AC Out, Carrying Handles, Smart Insert

• Energy saving functions:: Ambient light sensor, Smart Pow

• Safety control functions:: Heat Control, Temper

• Packaging:: Reusable box

• Network controllable: RS232

ature Sensor

Dimensions

• Bezel thickness: 24.6mm / 0.95"

•Set dimensions (W x H x D):

x 732.1 x 59 mm

1259.8

• Set dimensions in inch (W x H x D):

x 28.8 x 2.2 inch

49.6

• VESA Mount: 200 x 400 mm

Operating conditions

• Temperature range (operation): 0 - 40 °C

• Relative humidity: 5 - 90 %

• MTBF: 60,000 hour(s)

Power

• Mains power: 90 - 264 V/AC, 50/60Hz

• Standby power consumption: <1W

Sound

• Built-in speakers: 2 x 12W RMS

Accessories

• Included accessories: Remote Control, Batteries for remote control, AC Power Cord, VGA cable, User manual on CD-ROM, Quick start guide

Connectivity

• PC: VGA-in D-Sub 15HD, VGA-out D-Sub 15HD, DVI-D x1, RS232 D-Sub9, RS232 D-sub9 output,

3.5 mm PC audio input x1

• AV input: HDMI x1, Audio (L/R) x2, Composite

) x1, S-v

(BNC

• Other connections: Component RCA x1

ideo x1

Convenience

• Placement: Portrait, Landscape

Issue date 2012-03-02

Version: 1.0.1

12 NC: 8670 000 80524 EAN: 87 12581 61656 4

Miscellaneous

• Bezel: Metallic Anthracite

• Warranty: Europe/North America: 3 years

• On-Screen Display Languages: English, French, erman, Italian, Polish, Turkish, Russian, Simplified

G Chinese

• Regulatory approvals: CE, FCC, Class B, CCC,

HS, U

L/cUL

•

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
