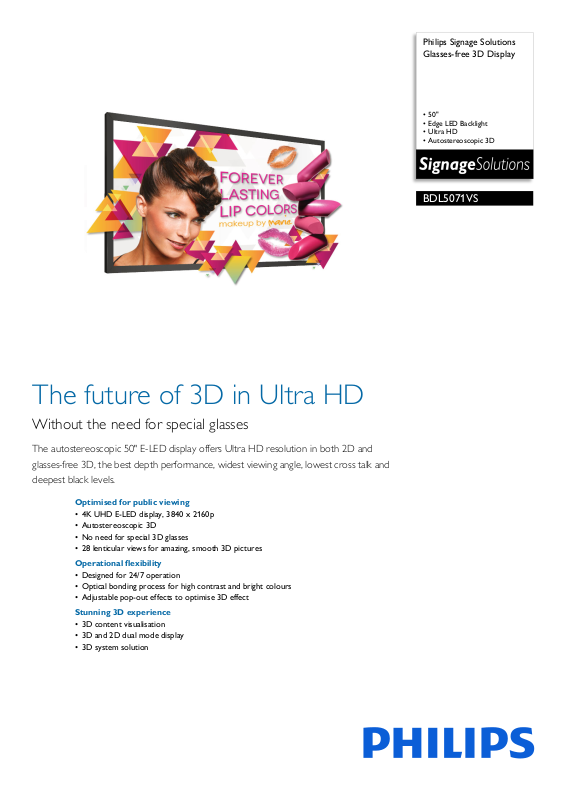

Philips Signage Solutions
Glasses-free 3D Display
•50"
•Edge LED Backlight
• Ultra HD
• Autostereoscopic 3D
BDL5071VS
The future of 3D in Ultra HD
Without the need for special glasses
The autostereoscopic 50" E-LED display offers Ultra HD resolution in both 2D and
glasses-free 3D, the best depth performance, widest viewing angle, lowest cross talk and
deepest black levels.
Optimised for public viewing
• 4K UHD E-LED display, 3840 x 2160p
• Autostereoscopic 3D
• No need for special 3D glasses
• 28 lenticular views for amazing, smooth 3D pictures
Operational flexibility
• Designed for 24/7 operation
• Optical bonding process for high contrast and bright colours
• Adjustable pop-out effects to optimise 3D effect
Stunning 3D experience
• 3D content visualisation
• 3D and 2D dual mode display
• 3D system solution
Page 2
Glasses-free 3D Display
50" Edge LED Backlight, Ultra HD, Autostereoscopic 3D
BDL5071VS/00
Specifications
Picture/Display
• Diagonal screen size (inch): 50 inch
• Optimum resolution: 3840 x 2160 @ 30Hz
• 3D Technology: Fixed Lenticular 3D Technology,
Autostereo
• Brightness: 400 cd/m²
• Contrast ratio (typical): 5000:1
• Aspect ratio: 16:9
• Response time (ty
• Pixel pitch: 0.2865 x 0.2865 mm
• Display colours: 1.07 billion
• Viewing Angle (H / V): 150 / 150 degree
• Input format: 2D-plus-Depth in 3D mode
• Optimal viewing distance: Adjustable
Connectivity
• AV input: DVI-D x 1
Supported Display Resolution
• Computer formats
Resolution Refresh rate
3840 x 2160 30Hz
Dimensions
• Set dimensions (W x H x D):
1160 x 680 x 100 mm
scopic 3D display
pical): 6.5 ms
• Product weight: 45 kg
• VESA Mount: 400 x 400 mm
Convenience
• Placement: Landscape
• Packaging: Reusable box
Power
• Consumption (Typical): 130 W
• Standby power consumption: <0.5 W
• Mains power: 90 ~ 253 VAC, 50 ~ 60 Hz
Operating conditions
• Temperature range (operation): 0 ~ 50 °C
• Temperature range (storage): -20 ~ 60 °C
• Relative humidity: 20 ~ 90 %
• MTBF: 50,000 hour(s)
Accessories
• Included accessories: 3D software, 3D display
control tool, 3D video player (2D-plus-Depth),
Quick start guide, AC Power Cord, DVI-D cable
• Optional accessories: 3D content enabling
ftware, Tabletop stand
so
Miscellaneous
• Warranty: 1-year warranty
•
Highlights
4K UHD E-LED display
Crystal-clear ultra-high definition picture quality to
give your audience unprecedented levels of realism
and viewer enjoyment. Your viewers will be treated
to unsurpassed video, with amazing colour fidelity
and the sharpest pictures around.
Autostereoscopic 3D
Enjoy a stunning 3D experience with no need for
special glasses thanks to the autostereoscopic 3D
effect. Using lenticular technology, it gives excellent
clarity and depth, making your 3D experience even
more lifelike and enjoyable.
28 lenticular views
With 28 lenticular views, you can "peek" around
virtual objects on the 3D display, giving you the most
stunning 3D visual effects around.
3D and 2D dual mode display
The display can be used for a broad range of
applications since it can be operated in both 2D and
3D mode. The 4K UHD resolution panel enables
great picture quality and true colour representation
in 2D and 3D mode. The integrated rendering core
offers content creators and end users full control
over the quality and depth-effect characteristics of
the picture.
Issue date 2013-09-13
Version: 1.0.1
12 NC: 8670 001 08425
EAN: 87 12581 70180 2
© 2013 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
Adjustable pop-out effects
Immersive out-of-screen pop-out effects can be
adjusted to optimise the 3D effect for any
application.
Designed for 24/7 operation
Because business never sleeps, our signage displays
are designed for 24/7 use. Taking advantage of
superior components to ensure a higher level of
quality, you can count on this range of models for
complete around-the-clock reliability.
Optical bonding
Optical bonding refers to a protective glass that is
glued in front of a display. A bonded display increases
the contrast ratio by reducing the amount of
reflected ambient light. Optical bonding improves
the durability and increases the ruggedness of the
display.
3D system solution
The system solution is designed for maximum reuse
of content/concepts from the 2D signage industry.
The key enabler for this is the flexible 2D-plus-Depth
format, which allows decoupling of content creation
and content visualisation. The rendering core
integrated in the autostereoscopic 3D displays
supports the unique Declipse image format, which
enables a true look-around 3D effect.
3D content visualisation
Software tools are provided with the display to play
out 3D content and control the 3D and 2D
visualisation parameters. The actual 3D content can
be created via plug-ins available for popular 3D
animation software packages. Existing 2D or stereo
content can be converted into 2D-plus-Depth
format. The 2D-plus-Depth format is compatible
with existing compression tools, as the additional
bandwidth of the depth is small.
