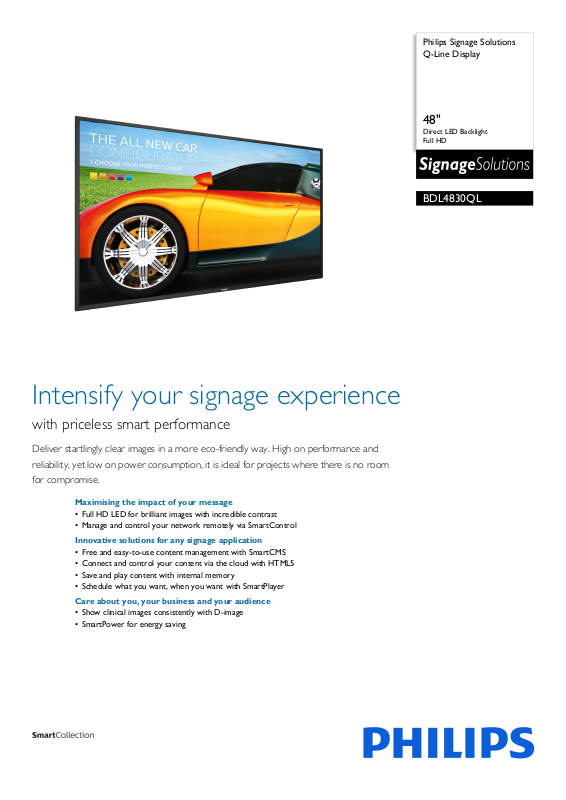

Page 1

Philips Signage Solutions Q-Line Display

48"

Direct LED Backlight Full HD

BDL4830QL

Intensify your signage experience

with priceless smart performance

Deliver startlingly clear images in a more eco-friendly way. High on performance and reliability, yet low on power consumption, it is ideal for projects where there is no room for compromise.

Maximising the impact of your message

• Full HD LED for brilliant images with incredible contrast

• Manage and control your network remotely via SmartControl

Innovative solutions for any signage application

• Free and easy-to-use content management with SmartCMS

• Connect and control your content via the cloud with HTML5

• Save and play content with internal memory

• Schedule what you want, when you want with SmartPlayer

Care about you, your business and your audience

• Show clinical images consistently with D-image

• SmartPower for energy saving

Page 2

BDL4830QL/00

Q-Line Display

48" Direct LED Backlight, Full HD

Highlights

Full HD LED technology

Picture Quality matters. Standard displays deli

ver quality, but you expect more. Imagine crisp detail paired with high brightness, incredible contrast and realistic colours for a true-to-life picture.

SmartControl

SmartControl software suite lets you remotely control and manage your network of displays via RJ45 and RS232C. Easily identify your displays and fine-tune all display settings including resolution, brightness, contrast, video wall configurations and cloning of your settings over your complete network.

SmartCMS

Free and easy-to-use content management system that works exclusively with Philips Signage Solutions displays to manage your digital signage content. With SmartCMS you can create and schedule your own content over 24 hours every day. Simply create your ne

twork, design your content and schedule

your playlist, and you are ready to play!

Integrated HTML5 browser

Connect and control your content via the cloud with the integrated HTML5 browser. Design your signage content online and connect it with a display or with your entire network. Simply plug in a RJ45 Internet cable for network connection and connect the display with the dedicated URL address, and you are ready to play your cloud-based content.

Internal Memory

Save and play content with internal memory. Upl

oad your media into the display and play back content immediately. Working in conjunction with the internal browser, it also serves as a memory cache when streaming online content. If the network ever fails, the internal memory keeps content streaming by playing a cached version of the content, ensuring that your media is up even when there is no network connection.

SmartPlayer

Turn your USB into a true cost-effective digital s

ignage device. Simply save your content (video, audio, pictures) on your USB and plug into your display. Create your playlist and schedule your content via the on-screen menu, and enjoy your own playlists anytime, anywhere.

Clinical D-image

D-image helps you to review and diagnose clinical images with consistent and accurate display performance. To achieve reliable clinical interpretations, our professional displays are factory calibrated to give optimised greyscale standard display performance. D-image helps you to excel in every aspect of patient care.

SmartPower

The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

Clinical

D-Image

SmartCollection

SmartCollection offers you customisable sol

utions to meet your specific requirements. Both integrators and solution providers are

offered the latest innovations, while the audience can enjoy impactful solutions. When developing smart innovations we focus on Caring, Innovative and Impactful solutions.

Page 3

BDL4830QL/00

Q-Line Display

48" Direct LED Backlight, Full HD

Specifications

Picture/Display

• Diagonal screen size: 47.6 inch / 120.9 cm

• Panel resolution: 1920 x 1080p

• Optimum resolution: 1920 x 1080 @ 60 Hz

• Brightness: 350 cd/m²

• Contrast ratio (typical): 4000:1

• Dynamic contrast ratio: 500,000:1

• Response time (typical): 8 ms

• Aspect ratio: 16:9

• Viewing Angle (H / V): 178 / 178 degree

• Pixel pitch: 0.549 x 0.549 mm

• Display colours: 16.7 Million

• DICOM: Clinical D-image

Supported Display Resolution

mputer formats

• Co Res

olution Refresh rate 640 x 480 60, 67, 72, 75 Hz 800 x 600 10

24 x 768 60 Hz 1280 x 768 60 Hz 1280 x 800 60 Hz 1360 x 768 60 Hz 1366 x 768 60 Hz 1440 x 900 60 Hz 1600 x 1200 60 Hz 1920 x 1080 60 Hz 1920 x 1200 60 Hz

deo formats

• Vi Res

olution Refresh rate 480i 60 Hz 480p 60 Hz 576p 50 Hz 576i 50 Hz 720p 50, 60 Hz 1080i 50, 60 Hz 1080p 50, 60 Hz

56, 60, 72, 75 Hz

Connectivity

• Video input: DVI-D, HDMI, Component (RCA), Composite (RCA), VGA (Analogue D-Sub)

• Audio input: 3.5-mm jack, Audio Left/Right (RCA)

• Audio output: Audio Left/Right (RCA), 3.5 mm jack

• External control: RJ45, RS232C (in/out) 2.5 mm

k, IR (in/out) 3.5 mm jack

• Other connections: USB

Convenience

• Memory: Internal memory access, 8 GB eMMC

• Screen-saving functions: Pixel Shift

• Energy-saving functions: Smart Power

• Tiled Matrix: Up to 15 x 15

• Start-up: Wake up on LAN, Switch on status

• Start-up window: enable/d

• Keyboard control: Lockable, Hidden

• Network controllable: RS232, RJ45, One Wire (HDMI-CEC) Signal Loop Through: RS232, IR Loop through

•

Switch o

isable Philips logo

n delay,

Dimensions

•Bezel width: 11.9 (TLR)/14.7 (B) mm

•Set dimensions (W x H x D):

x 623.4 x 59.9 mm

1081.8

• Set dimensions in inch (W x H x D):

9 x 24.54 x 2.36 inch

42.5

• VESA Mount: 400 x 400 mm, 200 x 200 mm, M6

• Product weight: 11.52 kg

• Product weight (lb): 25.4

Operating conditions

• Temperature range (operation): 5 ~ 40 °C

• Temperature range (storage): -20 ~ 60 °C

• Relative humidity: 20 ~ 80 %

• MTBF: 50,000 hour(s)

Power

• Consumption (On mode): 115 W (EnergyStar 6.0 test method)

• Mains power: 100 ~ 240 VAC

• Standby power consumption: <0.5 W

Sound

• Built-in speakers: 2 x 10 W RMS

Multimedia Applications

• USB Playback Video: 3G2, 3GP, ASF, ASX, AVI, DAT, DivX, F4V, FLV, M2TS, M4V, MK3D, MKV, MOV, MP4, MPE, MPEG, MPG, MTS, QT, TRP, TS, TTS, VOB, WEBM, WMV, Xvid

• USB Playback Picture: BMP, GIF, JPEG, JPG

• USB Playback Audio: AAC, AC3, AIF EC3, M4A, MP3, OGA, OGG, WAV, WMA

AIFF, AMR,

Accessories

• Included accessories: AC Power Cord, RS232 cable, VGA cable, Remote Control, Batteries for remote control, User manual on CD-ROM, Quick start guide

Miscellaneous

• Warranty: Global: 3 years

• On-Screen Display Languages: English, French, erman, Italian, Polish, Russian, Spanish, Turkish,

G Simplified Chinese, Traditional Chinese

• Regulatory approvals: CE, CCC, UL/cUL, C-Tick,

, CB, G

•

BSMI

OST, CECP, EPA

Issue date 2015-06-08

Version: 1.2.1

12 NC: 8670 001 22321 EAN: 87 12581 73031 4

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
