Philips BDL4777XH/00 leaflet

Download

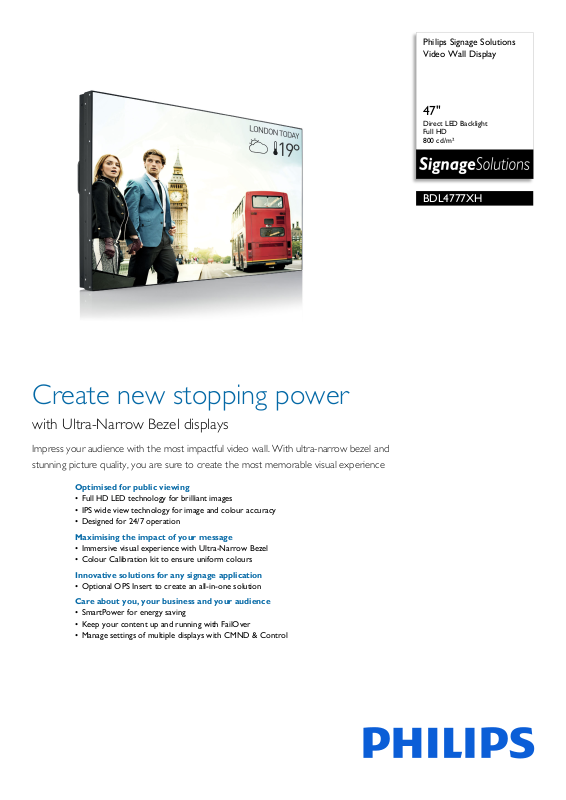

Page 1

Philips Signage Solutions Video Wall Display

47"

Direct LED Backlight Full HD 800 cd/m²

BDL4777XH

Create new stopping power

with Ultra-Narrow Bezel displays

Impress your audience with the most impactful video wall. With ultra-narrow bezel and stunning picture quality, you are sure to create the most memorable visual experience

Optimised for public viewing

• Full HD LED technology for brilliant images

• IPS wide view technology for image and colour accuracy

• Designed for 24/7 operation

Maximising the impact of your message

• Immersive visual experience with Ultra-Narrow Bezel

• Colour Calibration kit to ensure uniform colours

Innovative solutions for any signage application

• Optional OPS Insert to create an all-in-one solution

Care about you, your business and your audience

• SmartPower for energy saving

• Keep your content up and running with FailOver

• Manage settings of multiple displays with CMND & Control

Page 2

BDL4777XH/00

Video Wall Display

UltraNarrow

Bezel

FailOver

47" Direct LED Backlight, Full HD, 800 cd/m²

Highlights

Ultra-Narrow Bezel

The next generation of video wall displays is designed with the industry's narrowest bezels and advanced alignment solutions. Fully exploit your impactful signage content with ultranarrow bezel displays, and make sure your message does not get lost in thick bezels. With the ultra-narrow bezels you can create seamless video wall configurations of virtually any size.

IPS Display Technology

Philips IPS displays uses an advanced te

chnology, which gives you extra-wide viewing angles of 178/178 degrees, making it possible to view the display from almost any angle — even in portrait mode. IPS displays give you remarkably crisp images with vivid colours, particularly suitable for professional video wall and menu board applications, which demand colour accuracy and consistent brightness at all times.

Advanced Colour Calibration

The Advanced Colour Calibration kit controls the luminance of the backlight, standardises the gamma curve and calibrates the greyscale of your display network. Whether you have an impressive video wall, a catchy mosaic layout, a menu board installation or a control room, each display can be adjusted to the same colour values. With this optional kit you can ensure consistent colour performance over all displays in your network.

Full HD LED technology

White LED's are solid state devices which light up

to full, consistent brightness faster saving startup time. LED's are free from mercury content, which allows for eco-friendly recycling and disposal process. LED's allow for better dimming control of the LCD backlight, resulting in a super high contrast ratio. It also gives superior colour reproduction thanks to consistent brightness across the screen.

FailOver

Keeping your content up and running is critical for dem

anding commercial applications. While it is unlikely you will face a content disaster, FailOver provides 24/7 protection with a revolutionary technology that plays back-up content on screen in the event of a media

player failure. FailOver automatically kicks in when the primary input fails. Simply select a primary input connection and a FailOver connection and you're ready for instant protection.

SmartPower

The backlight intensity can be controlled and p

re-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

OPS Insert

Turn your display into an all-in-one digital signage solution and create a display network that is connected, intelligent and secure. Open Pluggable Specification (OPS) is an industrystandard slot into which you can add an OPSstandardised media player. This cable-free solution gives you the ability to install, use or maintain your hardware whenever you need to.

Designed for 24/7 operation

Because business never sleeps, our signage dis

plays are designed for 24/7 use. Taking advantage of superior components to ensure a higher level of quality, you can count on this range of models for complete around-theclock reliability.

Page 3

BDL4777XH/00

Video Wall Display

47" Direct LED Backlight, Full HD, 800 cd/m²

Specifications

Picture/Display

• Diagonal screen size: 46.9 inch / 119.2 cm

• Panel resolution: 1920 x 1080p

• Optimum resolution: 1920 x 1080 @ 60 Hz

• Brightness: 800 cd/m²

• Contrast ratio (typical): 1400:1

• Dynamic contrast ratio: 500,000:1

• Response time (typical): 12 ms

• Aspect ratio: 16:9

• Viewing Angle (H / V): 178 / 178 degree

• Pixel pitch: 0.54 x 0.54 mm

• Display colours: 1.06 Billion

• Picture enhancement: 3/2 - 2/2 motion pull down, mbfi

3D Co Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement

• Panel technology: IPS

lter, Motion compens. deinterlacing,

Supported Display Resolution

• Computer formats

Res

olution Refresh rate 640 x 480 60, 67, 72, 75 Hz 1024 x 768 60 Hz 1280 x 768 60 Hz 1280 x 800 60 Hz 1280 x 1024 60 Hz 1360 x 768 60 Hz 1366 x 768 60 Hz 1600 x 1200 60 Hz 1920 x 1080 60 Hz 1280 x 960 60 Hz 720 x 400 70 Hz 800 x 600 60, 72, 75 Hz

deo formats

• Vi Res

olution Refresh rate 720p 50, 60 Hz 1080p 50, 60 Hz 1080i 25, 30 Hz 480i 30, 60 Hz 480p 60 Hz 576i 25, 50 Hz 576p 50 Hz

Connectivity

• Video input: DVI-D, HDMI, VGA (Analogue DSub), Component (RCA), Composite (RCA), DisplayPort

• Video output: DVI-I, VGA (via DVI-I)

• Audio input: 3.5-mm jack, Audio Left/Right (RCA)

• Audio output: Audio Left/Right (RCA), External speake

• External control: IR (in/out) 3.5 mm jack, RJ45, RS232C (in/

• Other connections: OPS

r co

nnector

out) D-Sub9

Convenience

• Signal Loop Through: RS232, VGA, DVI, IR Passthrough

• Ease of installation: Carrying Handles,

• Energy-saving functions: Ambient light sensor, Smart Powe

• Network controllable: RS232, RJ45, Card OPS RS2

• Placement: Landscape (24/7), Portrait (24/7)

• Screen-saving functions: Pixel Shift, Low Bright

• Tiled Matrix: Up to 10 x 15

• Other convenience: Carrying handles, K lock

• Picture in picture: PBP, PIP, POP

• Picture performance: Advanced colour control

• Remote control signal: Lockable

• Safety control functions: Failover, Heat Control,

mper

32, One Wire (HDMI-CEC)

ature Sensor

Smart Insert

nsington

Dimensions

• Bezel thickness: 4.9 mm

• Bezel width: Top/Left: 3.20 mm, Bottom/Right:

1.70 mm

•Set dimensions (W x H x D):

44.9

x 590.0 x 108.8 mm

• Product weight: 25.5 kg

• VESA Mount: 400 x 400, 400 x 200, 200 x 200 mm, M6

• Smart Insert mount: 200 x 100, 100 x 100 mm, M4

• Bezel width (L/T, R/B): 3.2 mm, 1.7 mm

• Product weight (lb): 56.2 lb

• Set dimensions in inch (W x H x D):

4 x 23.23 x 4.28 inch

Operating conditions

• Temperature range (operation): 0 ~ 40 °C

• Temperature range (storage): -20 ~ 60 °C

• Altitude: 0 ~ 3000 m

• Relative humidity: 20 ~ 80 %

• MTBF: 50,000

hour(s)

Power

• Standby power consumption: <0.5 W

Consumption (On mode): 110 W

•

• Mains power: 100 ~ 240 VAC, 50 - 60 Hz

• Power Saving Features: Smart Power

Sound

• Built-in speakers: 2 x 10 W (RMS)

Accessories

• Included accessories: Remote Control, Batteries for remote control, AC Power Cord, VGA cable, RS232 cable, IR sensor cable (1.8 M), User manual

OM, Quick start guide, Edge alignment

on CD-R pins, Edge alignment plates

• Optional accessories: Edge finishing kit,

urCalibrationKit (CCK4601), HDBaseT OPS

Co Receiver (CRD25), Tabletop stand

Miscellaneous

• On-Screen Display Languages: Arabic, Simplified Chinese, Traditional Chinese, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Turkish

• Regulatory approvals: CE, FCC, Class B, UL/cUL,

GOST

CB,

• Warranty: 3-year warranty

•

, EPEAT

Issue date 2016-06-09

Version: 1.0.1

12 NC: 8670 001 36014 EAN: 87 12581 73817 4

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
