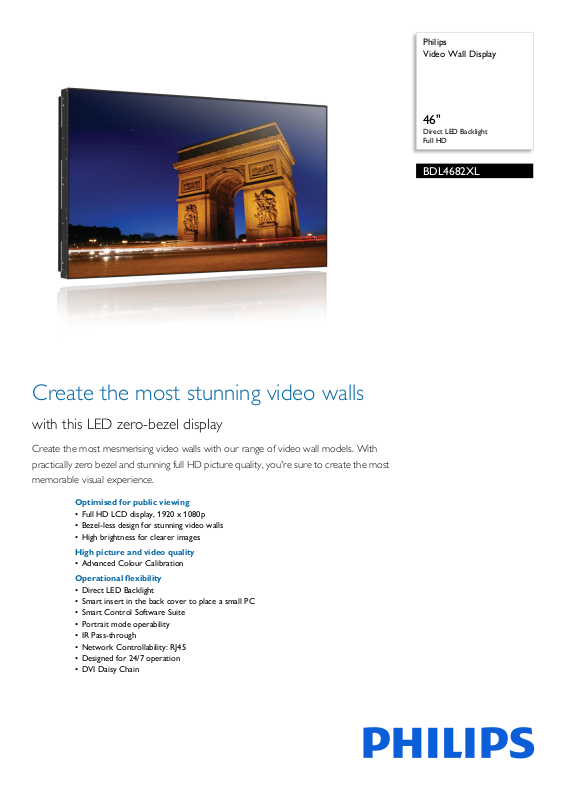

Page 1
Philips
Video Wall Display
46"
Direct LED Backlight
Full HD
BDL4682XL
Create the most stunning video walls
with this LED zero-bezel display
Create the most mesmerising video walls with our range of video wall models. With
practically zero bezel and stunning full HD picture quality, you're sure to create the most
memorable visual experience.
Optimised for public viewing
• Full HD LCD display, 1920 x 1080p
• Bezel-less design for stunning video walls
• High brightness for clearer images
High picture and video quality
• Advanced Colour Calibration
Operational flexibility
• Direct LED Backlight
• Smart insert in the back cover to place a small PC
• Smart Control Software Suite
• Portrait mode operability
• IR Pass-through
• Network Controllability: RJ45
• Designed for 24/7 operation
•DVI Daisy Chain
Page 2
Video Wall Display
46" Direct LED Backlight, Full HD
Highlights
BDL4682XL/00
Direct LED Backlight
Enjoy superior light uniformity with a direct
LED backlight,
contrast ratios. Purer whites bring an even
wider colour gamut, enhancing the colour
rendering and making your viewing experience
more enjoyable than ever before. And with
substantially lower power consumption, your
overall TCO is lower too.
Bezel-less design
Create the most stunning video walls with zero
be
zel displays. Configurable in a formation of
up to 15 x 10 displays, and with some of the
narrowest mullions in the industry, you will
hardly notice the gap between the pictures,
giving you the most incredible and memorable
visual experience.
High brightness
Enjoy a clearer image in areas with greater
ambient
Your audience can enjoy better image quality
in locations that are away from direct sunlight,
yet still brighter than average, optimizing the
viewing experience.
Advanced Colour Calibration
Ensure a uniform colour
installed in your network thanks to our
advanced colour calibration tool. This tool will
automatically adjust all displays in your signage
application to ensure the ultimate in colour
consistency to give your audience the most
memorable visual experience.
which gives you even greater
brightness thanks to the 700 nit panel.
across all displays
Smart Insert
Professional PCs are part of most public
s
ignage installations. Quite often they increase
the overall depth of the display and cause a lot
of cable clutter. So we have designed this
display with Smart insert in the back cover,
which is ideal for the integration of a
professional small form factor PC. On top of
that, the cable management system offers a
great solution to keep your cables neat and
professional-looking.
Smart Control
Control and manage all of the signage displays
o
n your network with this powerful software
tool, which allows you to change the settings of
your display centrally via an RJ45 or RS232
connection. Smart Control allows you to set
the video input, modify the colour settings, set
the display's ID when creating video walls and
even diagnose each display's status, giving you
all the power you need to manage your
displays from one central location.
FailOver
Keeping your content up and running is critical
for dem
anding commercial applications. While
it is unlikely you will face a content disaster,
FailOver provides 24/7 protection with a
revolutionary technology that plays back-up
content on screen in the event of a media
player failure. FailOver automatically kicks in
when the primary input fails. Simply select a
primary input connection and a FailOver
connection and you're ready for instant
protection.
DVI Daisy Chain
Create a digital video wall of up to 150 displays
i
n a 15 x 10 configuration with a DVI daisy
chain. Simply connect the DVI Out port to a
DVI in of another display to create the most
stunning video wall experience around.
IR Pass-through
Control all displays in your signage network
t
hrough one single remote control, via the
primary display. Simple and convenient, this
means you don't have to worry about other
displays changing configuration settings when
using your remote control unit.
RJ45
Simple management of your display is available
t
hanks to the introduction of a LAN (RJ45)
port. You can configure each display or find
out the status of each device quickly and
conveniently via an RJ45 connection.
Portrait mounting possible
This display can also be safely and reliably
mount
ed in portrait position.
Designed for 24/7 operation
Because business never sleeps, our signage
dis
plays are designed for 24/7 use. Taking
advantage of superior components to ensure a
higher level of quality, you can count on this
range of models for complete around-theclock reliability.
Energy Star 5.0
Energy Star certification ensures that you
are
buying a product that meets the latest
power efficiency standards and operates
with maximum power efficiency at all
operational levels. Philips Signage Displays
are certified for Energy Star 5.0
specifications and meet or exceed the
standard.
Page 3
Video Wall Display
46" Direct LED Backlight, Full HD
Specifications
BDL4682XL/00
Picture/Display
• Diagonal screen size: 46 inch / 117 cm
• Panel resolution: 1920 x 1080p
• Optimum resolution: 1920 x 1080p @ 60 Hz
• Brightness: 700 cd/m²
• Contrast ratio (typical): 4000:1
• Response time (ty
• Aspect ratio: 16:9
• Viewing Angle (H / V): 178 / 178 degree
• Pixel pitch: 0.53 x 0.53 mm
• Display colours: 1.07 billion
• Picture enhancement: 3/2 - 2/2 motion pull down,
mbfi
3D Co
Progressive scan, 3D MA deinterlacing, Dynamic
contrast enhancement
p
ical): 6.5 ms
lter, Motion compens. deinterlacing,
Connectivity
• PC: VGA-in D-Sub 15HD, VGA-out D-Sub 15HD,
DVI-D x 1, RJ45, RS232 D-Sub9, RS232 D-sub9
output, 3.5 mm PC audio input x 1
• AV input: HDMI x 1, Component (BNC) x 1, IR in,
(
L/R) x 1
Audio
• Other connections: Display Port, DVI Out, USB,
AC-out, IR
• AV output: Audio (L/R) x 1
out, External loudspeaker connector
Dimensions
• Set dimensions (W x H x D):
1023.68 x 578.27 x 106.71 mm
• Bezel width (L/T, R/B): 3.2 mm, 1.8 mm
• Bezel width (A to A): 5 mm
• Product weight: 24 kg
• Smart Insert mount: 100 x 100 mm, 100 x 200 mm
• VESA Mount: 400 x 400 mm
• MTBF: 60,000 hrs
Power
• Consumption (Typical): 135 W
• Standby power consumption: <0.5 W
• Power supply: 90-240 VAC, 50/60 Hz
Operating conditions
• Temperature range (operation): 0 - 40 °C
• Relative humidity: 10-90 %
Supported Display Resolution
• Computer formats
Resolution Refresh rate
640 x 480 60, 67, 72, 75 Hz
800 x 600 56, 60, 72, 75 Hz
1024 x 768 60 Hz
1280 x 768 60
1280 x 800 60 Hz
1280 x 1024 60 Hz
1360 x 768 60 Hz
Hz
1366 x 768 60 Hz
1440 x 900 60 Hz
1600 x 1200 60 Hz
1920 x 1080 60 Hz
1920 x 1200 60 Hz
deo formats
• Vi
Re
solution Refresh rate
480i 60 Hz
480p 60 Hz
576p 50 Hz
576i 50 Hz
720p 50, 60 Hz
1080i 50, 60 Hz
1080p 50, 60 Hz
Convenience
• Placement: Portrait, Landscape
• Signal Loop Through: RS232, VGA, DVI, IR Loop
ugh
thro
• Tiled Matrix: up to 15 x 10
• Picture in picture: PIP
• Keyboard control: Hidden, Lockable
• Screen-saving functions: Pixel shift, Low bright
• Network controllable: RS232, HDMI (One Wire),
45
RJ
Remote control signal: Lockable
•
• Ease of installation: Smart Insert, AC Out, Carrying
Handles
• Energy-saving functions: Smart Power
• Safety control functions: Heat Control,
• Picture performance: Advanced colour control
• Packaging: Reusable box
• OSD Languages: Dutch, English, F
ature Sensor
mper
Te
r
Italian, Polish, Russian, Simplified Chinese, Spanish,
Turkish
ench, German,
Sound
• Built-in speakers: 2 x 12 W
Accessories
• Included accessories: Remote Control, Batteries
for remote control, AC Power Cord, VGA cable,
User manual on CD-ROM, Quick start guide
• Stand: BM05611 (Optional)
Miscellaneous
• On-Screen Display Languages: English, French,
German, Italian, Polish, Turkish, Russian, Simplified
Chinese, Spanish
• Regulatory approvals: CE, FCC, Class B, CCC,
o
HS, UL/cUL, BSMI, CB, C-Tick, EPEAT, GOST
R
• Warranty: 3-year warranty
•
Issue date 2015-02-15
Version: 2.1.1
12 NC: 8670 000 98311
EAN: 87 12581 66959 1
