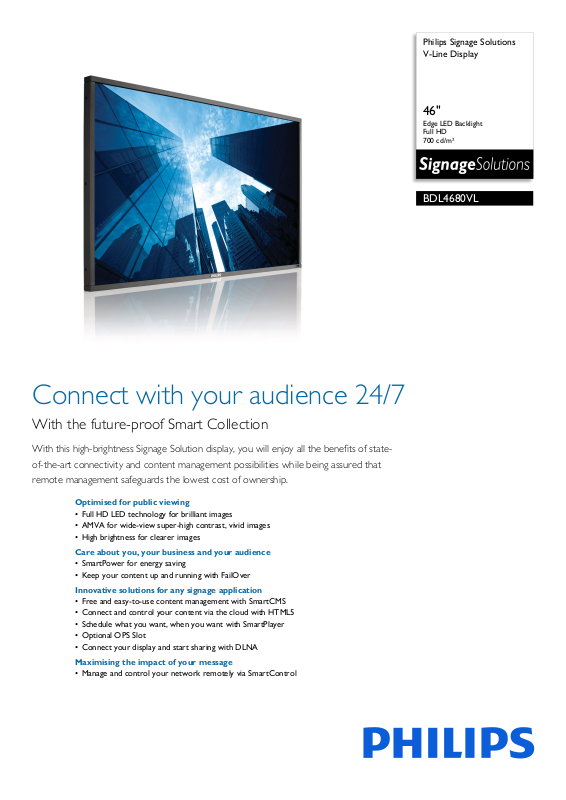

Page 1

Philips Signage Solutions V-Line Display

46"

Edge LED Backlight Full HD 700 cd/m²

BDL4680VL

Connect with your audience 24/7

With the future-proof Smart Collection

With this high-brightness Signage Solution display, you will enjoy all the benefits of stateof-the-art connectivity and content management possibilities while being assured that remote management safeguards the lowest cost of ownership.

Optimised for public viewing

• Full HD LED technology for brilliant images

• AMVA for wide-view super-high contrast, vivid images

• High brightness for clearer images

Care about you, your business and your audience

• SmartPower for energy saving

• Keep your content up and running with FailOver

Innovative solutions for any signage application

• Free and easy-to-use content management with SmartCMS

• Connect and control your content via the cloud with HTML5

• Schedule what you want, when you want with SmartPlayer

• Optional OPS Slot

• Connect your display and start sharing with DLNA

Maximising the impact of your message

• Manage and control your network remotely via SmartControl

Page 2

BDL4680VL/00

V-Line Display

46" Edge LED Backlight, Full HD, 700 cd/m²

Highlights

Full HD LED technology

White LED's are solid state devices which light up

to full, consistent brightness faster saving startup time. LED's are free from mercury content, which allows for eco-friendly recycling and disposal process. LED's allow for better dimming control of the LCD backlight, resulting in a super high contrast ratio. It also gives superior colour reproduction thanks to consistent brightness across the screen.

SmartControl

SmartControl lets you remotely control and manage

your network of displays via RJ45 and RS232C. Easily fine-tune all display settings including resolution, brightness, contrast and cloning of your settings over your complete network.

SmartCMS

Free and easy-to-use content management system that works exclusively with Philips Signage Solutions displays to manage your digital signage content. With SmartCMS you can create and schedule your own content over 24 hours every day. Simply create your ne

twork, design your content and schedule

your playlist, and you are ready to play!

Integrated HTML5 browser

Connect and control your content via the cloud with the integrated HTML5 browser. Design your signage content online and connect it with a display or with your entire network. Simply plug in a RJ45 Internet cable for network connection and connect the display with the dedicated URL address, and you are ready to play your cloud-based content.

FailOver

Keeping your content up and running is critical for dem

anding commercial applications. While it is unlikely you will face a content disaster, FailOver provides 24/7 protection with a revolutionary technology that plays back-up content on screen in the event of a media player failure. FailOver automatically kicks in when the primary input fails. Simply select a primary input connection and a FailOver connection and you're ready for instant protection.

SmartPlayer

Turn your USB into a true cost-effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug into your display. Create your playlist and schedule your content via the on-screen menu, and enjoy your own playlists anytime, anywhere.

Optional OPS Slot

Open Pluggable Specification is an industrys

tandard slot into which you can add an OPScompatible media player. This gives you the ability to upgrade or change your hardware whenever you need to. Turning your display into an all-in-one digital signage solution has become simplicity itself.

SmartPower

The backlight intensity can be controlled and p

re-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

Share and Stream with DLNA

Simply share and stream cont mobile device or media player to your display with all DLNA compliant media devices. Connect each display with an ethernet cable and manage your content in real time within your local network. Simply connect your display and start sharing.

ent from your

Page 3

BDL4680VL/00

V-Line Display

46" Edge LED Backlight, Full HD, 700 cd/m²

Specifications

Picture/Display

• Diagonal screen size: 46 inch / 116.8 cm

• Panel resolution: 1920 x 1080p

• Optimum resolution: 1920 x 1080 @ 60 Hz

• Brightness: 700 cd/m²

• Contrast ratio (typical): 4000:1

• Dynamic contrast ratio: 500,000:1

• Aspect ratio: 16:9

• Response time (ty

• Pixel pitch: 0.177 x 0.53mm

• Display colours: 1073.3 million

• Viewing Angle (H / V): 178 / 178 degree

• Picture enhancement: 3/2 - 2/2 motion pull down, tio

n compens. deinterlacing, Progressive scan,

Mo Dynamic contrast enhancement

ical): 6.5 ms

Connectivity

• Video input: DisplayPort (1.2), HDMI (x 2), DVI-D,

VGA (Analogue D-Sub), USB, Component (RCA), Composite (RCA)

• Video output: DisplayPort, DVI-I, VGA (Analogue

)

D-Sub

•

Audio input: 3.5-mm jack, Audio Left/Right (RCA)

• Audio output: Audio Left/Right (RCA), External

eaker

connector

• Other connections: OPS

• External control: RJ45, RS232C (in/out) 2.5 mm

k, IR (in/out) 3.5 mm jack

Supported Display Resolution

• Computer formats

Resolution Refresh rate 1920 x 1200 60 Hz 1920 x 1080 60 1600 x 1200 60 Hz 1440 x 900 60 Hz 1366 x 768 60 Hz 1360 x 768 60 Hz 1280 x 1024 60 Hz 1280 x 800 60 Hz 1280 x 768 60 Hz 1024 x 768 60 Hz 800 x 600 56, 60, 72, 75 Hz 640 x 480 60, 67, 72, 75 Hz

deo formats

• Vi

Res

olution Refresh rate 1080p 50, 60 Hz 1080i 50, 60 Hz 720p 50, 60 Hz 576i 50 Hz 576p 50 Hz 480p 60 Hz 480i 60 Hz

Dimensions

• Set dimensions (W x H x D):

1052.7 x 607.3 x 69 mm

• Bezel width: 15.8 mm

• Product weight: 21.3 kg

• VESA Mount: 400 x 400 mm, 400 x 200 mm, 200 x 200 mm Smart Insert mount: 100 x 100 mm, 100 x 200 mm

•

Convenience

• Placement: Portrait, Landscape

• Tiled Matrix: Up to 10 x 10

• Keyboard control: Hidden, Lockable

• Signal Loop Through: DVI, VGA, RS232, IR Loop

ugh, DisplayPort

• Network controllable: RJ45, RS232, HDMI (One Wire), Card OPS RS

• Energy-saving functions: Smart Power

• Ease of installation: Smart Insert, AC Out

• Screen-saving functions: Pixel Shift, Low Bright

• Other convenience: Carrying handles

232, One Wire (HDMI-CEC)

Power

• Standby power consumption: <0.3 W

• Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz

•Consumption (On mo

6.0 test method)

de): 92.41 W (EnergyStar

Operating conditions

• Temperature range (operation): 5 ~ 40 °C

• Temperature range (storage): -20 ~ 60 °C

• Relative humidity: 20 ~ 80 %

• Altitude: 0 ~ 3000 m

• MTBF: 60,000 hour(s)

Sound

• Built-in speakers: 2 x 10 W

Multimedia Applications

• USB Playback Audio: AAC, AIF, AIFF, ASF, LPCM, M3U, M4A, MP3, MP4, WAV, WMA

• USB Playback Picture: BMP, GIF, JPEG, JPG

• USB Playback Video: M2TS, M4V, MK3D, MKV, MP4, MPEG,

MPG, M

TS, TS, TTS, VOB, WMV

Accessories

• Included accessories: Remote Control, Batteries for remote control, AC Power Cord, VGA cable, User manual on CD-ROM, Quick start guide, RS232 cable

• Stand: BM04642 (Optional)

• Optional accessories: ColourCalibrationKit

460

(CCK

1), HDBaseT OPS Receiver (CRD25)

Miscellaneous

• On-Screen Display Languages: English, French, German, Italian, Polish, Russian, Simplified Chinese, Spanish, Turkish, Arabic, Japanese, Traditional Chinese

• Regulatory approvals: CE, FCC, Class B, UL/cUL,

C, R

oHS, C-Tick, GOST, BSMI, CB, J-Moss,

CC PSE, VCCI

• Warranty: 3-year warranty

•

Issue date 2022-04-21

Version: 6.1.2

12 NC: 8670 001 13716 EAN: 87 12581 71782 7
