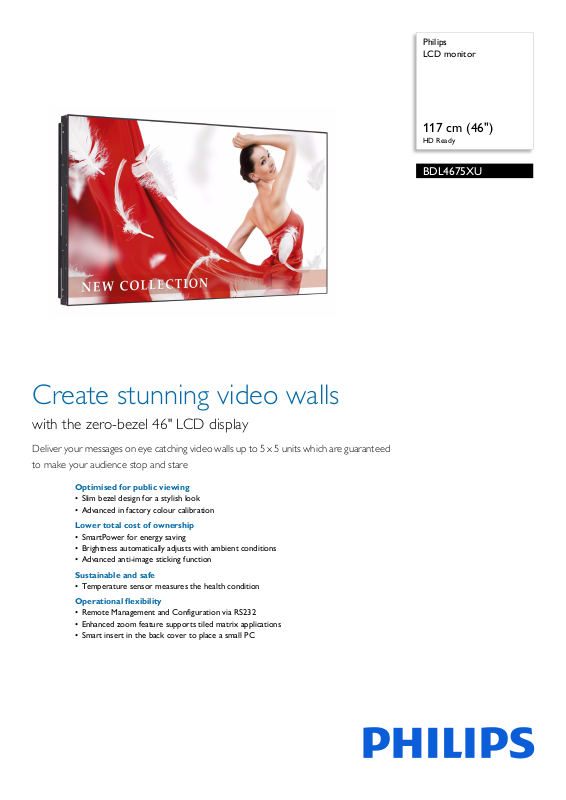

Page 1

Philips LCD monitor

117 cm (46")

HD Ready

BDL4675XU

Create stunning video walls

with the zero-bezel 46" LCD display

Deliver your messages on eye catching video walls up to 5 x 5 units which are guaranteed to make your audience stop and stare

Optimised for public viewing

• Slim bezel design for a stylish look

• Advanced in factory colour calibration

Lower total cost of ownership

• SmartPower for energy saving

• Brightness automatically adjusts with ambient conditions

• Advanced anti-image sticking function

Sustainable and safe

• Temperature sensor measures the health condition

Operational flexibility

• Remote Management and Configuration via RS232

• Enhanced zoom feature supports tiled matrix applications

• Smart insert in the back cover to place a small PC

Page 2

BDL4675XU/00

LCD monitor

Slim Bezel

117 cm (46") HD Ready

Highlights

Slim bezel

A slim bezel design adds a stylish look to a pu

blic display to blend in nicely in just about any environment. Furthermore, this design makes the display ideal for tiled matrix video walls.

Advanced colour calibration

Whether installing a video wall in a 3 x 3, 2 x 4 o

r 5 x 5 set up, you want the colour performance of each image to be consistent in each display used. Therefore, each display is specially calibrated in the factory to meet the highest standard of advanced video walls.

SmartPower

The backlight intensity can be controlled and pre-se

t by the system to reduce the power

consumption by up to 50%, which saves substantially on energy costs.

Automatic brightness control

The adjustment of display settings to corre

spond with ambient light without user

intervention.

Temperature sensor

This public display contains a temperature s

ensor to monitor the internal health condition. If the internal temperature exceeds the pre-set threshold, two internal fans will be automatically activated to cool down the display to normal conditions.

Advanced anti-image sticking

Static images left on-screen for extended pe

riods of time may leave a "ghost image" or

image sticking effect on LCD displays. Although image sticking on LCD displays is not permanent, you want to prevent this happening, especially in locations where content is shown 24/7.

Smart insert

Professional PC's are part of most public s

ignage installations. Quite often they increase the overall depth to the display and cause a lot of cable clutter. So we have designed this display with Smart insert in the back cover, which is ideal for the integration of a professional small form factor PC. On top of that, the cable management system offers a great solution to keep your cables neat and professional looking.

Page 3

BDL4675XU/00

LCD monitor

117 cm (46") HD Ready

Specifications

Picture/Display

• Diagonal screen size: 46 inch / 117 cm

• Panel resolution: 1366 x 768p

• Optimum resolution: 1360 x 768 @ 60 Hz

• Brightness: 450 cd/m²

• Contrast ratio (typical): 3000:1

• Response time (typical): 8 ms

• Aspect ratio: 16:9

• Viewing Angle (H / V): 178 / 178 degree

• Pixel pitch: 0.63 x 0.63

• Display colours: 16.7 million colours

• Picture enhancement: 3/2 - 2/2 motion pull down, mbfi

3D Co Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement

lter, Motion compens. deinterlacing,

Supported Display Resolution

• Computer formats

Res

olution Refresh rate 640 x 480 60, 67, 72, 75 Hz 800 x 600 56, 60, 72, 75 Hz 1024 x 768 60 Hz 1280 x 768 60 Hz 1280 x 800 60 Hz 1280 x 1024 60 Hz 1360 x 768 60 Hz 1366 x 768 60 Hz 1440 x 900 60 Hz 1600 x 1200 60 Hz 1920 x 1080 60 Hz 1920 x 1200 60 Hz

deo formats

• Vi Res

olution Refresh rate 480i 60 Hz 480p 60 Hz 576p 50 Hz 576i 50 Hz 720p 50, 60 Hz 1080i 50, 60 Hz 1080p 50, 60 Hz

• AV output: Composite (BNC) x 1, Audio (L/R) x 1

• Other connections: External loudspeaker conn

ector

Convenience

• Placement: Portrait, Landscape

• Tiled Matrix: 5 x 5

• Picture in picture:: PBP, PIP, POP

• Screen-saving functions: Pixel shift, Low bright

• Signal Loop Through:: RS232, VGA

• Keyboard control:: Hidden, Lockable

• Ease of installation: Carrying Handles

•

Energy-saving functions:: Ambient light sensor, Smart Powe

• Safety control functions:: Heat Control, Temper

• Picture performance: Advanced colour control

• Packaging:: Reusable box

• Network controllable: RS232

• Remote control signal:: Lockable

ature Sensor

Smart Insert

Dimensions

• Bezel thickness: 2.4 mm bottom/right, 4.3 mm top/ left

• Smart insert (WxHxD): 200 x 280 x 55 mm

• Smart insert in inch (WxHxD): 7.9 x 11.0 x 2.17 inches

•Set dimensions (W x H x D):

x 578 x 133 mm

• Set dimensions in inch (W x H x D):

x 22.8 x 5.2 inch

40.4

• VESA Mount: 400 x 200 mm (Set), 100 x 100 mm (Smart insert)

• Product weight: 27.5 kg

• Product weight (lb): 60.6

Operating conditions

• Temperature range (operation): 0 - 40 °C

• Relative humidity: 5 - 90 %

• MTBF: 50,000 hour(s)

Accessories

• Included accessories: Remote Control, Batteries for remote control, AC Power Cord, VGA cable, User manual on CD-ROM, Quick start guide

• Optional accessories: Fixed wall mount, Flexible wall mo

unt, C

eiling mount, Tabletop stand

Miscellaneous

• On-Screen Display Languages: English, French, German, Italian, Polish, Turkish, Russian, Simplified Chinese

• Regulatory approvals: CE, FCC, Class B, CCC,

HS, U

L/cUL

• Warranty: Europe/North America: 3 years

•

Connectivity

• PC: VGA-in D-Sub 15HD, VGA-out D-Sub 15HD, DVI-D x 1, RS232 D-Sub9, RS232 D-sub9 output,

3.5 mm PC audio input x 1

• AV input: HDMI x 1, Component (BNC) x 1,

osite (RCA) x 1, Composite (BNC) x 1, S-

Co video x 1,

Audio (L/R) x 2

Issue date 2017-07-07

Version: 3.1.1

12 NC: 8670 000 69869 EAN: 87 12581 57311 9

Power

• Consumption (On mode): Typ. 165.5 W

• Standby power consumption: < 1 W

Sound

• Built-in speakers: 2 x 12 W (8 ohm)

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
