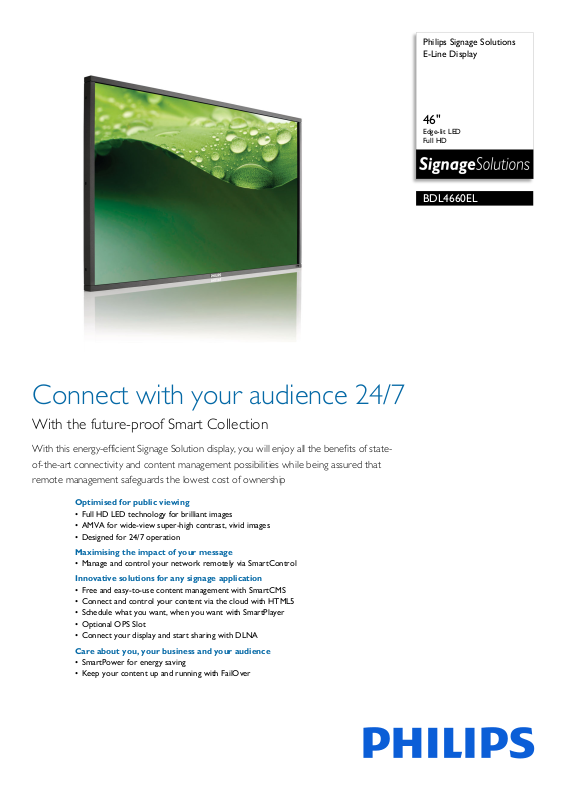

Page 1
Philips Signage Solutions
E-Line Display
46"
Edge-lit LED
Full HD
BDL4660EL
Connect with your audience 24/7
With the future-proof Smart Collection
With this energy-efficient Signage Solution display, you will enjoy all the benefits of stateof-the-art connectivity and content management possibilities while being assured that
remote management safeguards the lowest cost of ownership
Optimised for public viewing
• Full HD LED technology for brilliant images
• AMVA for wide-view super-high contrast, vivid images
• Designed for 24/7 operation
Maximising the impact of your message
• Manage and control your network remotely via SmartControl
Innovative solutions for any signage application
• Free and easy-to-use content management with SmartCMS
• Connect and control your content via the cloud with HTML5
• Schedule what you want, when you want with SmartPlayer
• Optional OPS Slot
• Connect your display and start sharing with DLNA
Care about you, your business and your audience
• SmartPower for energy saving
• Keep your content up and running with FailOver
Page 2
BDL4660EL/00
E-Line Display
46" Edge-lit LED, Full HD
Highlights
Full HD LED technology
White LED's are solid state devices which light
up
to full, consistent brightness faster saving
startup time. LED's are free from mercury
content, which allows for eco-friendly
recycling and disposal process. LED's allow for
better dimming control of the LCD backlight,
resulting in a super high contrast ratio. It also
gives superior colour reproduction thanks to
consistent brightness across the screen.
AMVA Display Technology
Philips AMVA LED display uses an advanced
m
ulti-domain vertical alignment technology
which gives you super-high static contrast
ratios for extra vivid and bright images. While
standard applications are handled with ease, it
is especially suitable for graphical demanding
applications. Its optimised pixel management
technology gives you a 178/178 degree extra
wide viewing angle, resulting in crisp images.
SmartControl
when the primary input fails. Simply select a
primary input connection and a FailOver
connection and you're ready for instant
protection.
Integrated HTML5 browser
Connect and control your content via the
cloud with the integrated HTML5 browser.
Design your signage content online and
connect it with a display or with your entire
network. Simply plug in a RJ45 Internet cable
for network connection and connect the
display with the dedicated URL address, and
you are ready to play your cloud-based
content.
SmartCMS
(video, audio, pictures) on your USB and plug
into your display. Create your playlist and
schedule your content via the on-screen menu,
and enjoy your own playlists anytime,
anywhere.
Optional OPS Slot
Open Pluggable Specification is an industrys
tandard slot into which you can add an OPScompatible media player. This gives you the
ability to upgrade or change your hardware
whenever you need to. Turning your display
into an all-in-one digital signage solution has
become simplicity itself.
SmartPower
The backlight intensity can be controlled and
pre-set by the system to reduce the power
consumption by up to 50%, which saves
substantially on energy costs.
SmartControl lets you remotely control and
manage your network of displays via RJ45 and
RS232C. Easily fine-tune all display settings
including resolution, brightness, contrast and
cloning of your settings over your complete
network.
FailOver
Keeping your content up and running is critical
for demandi
it is unlikely you will face a content disaster,
FailOver provides 24/7 protection with a
revolutionary technology that plays back-up
content on screen in the event of a media
player failure. FailOver automatically kicks in
ng commercial applications. While
Free and easy-to-use content management
system that works exclusively with Philips
Signage Solutions displays to manage your
digital signage content. With SmartCMS you
can create and schedule your own content
over 24 hours every day. Simply create your
ne
twork, design your content and schedule
your playlist, and you are ready to play!
SmartPlayer
Turn your USB into a true cost-effective digital
signage device. Simply save your content
Designed for 24/7 operation
Because business never sleeps, our signage
dis
plays are designed for 24/7 use. Taking
advantage of superior components to ensure a
higher level of quality, you can count on this
range of models for complete around-theclock reliability.
Share and Stream with DLNA
Simply share and stream cont
mobile device or media player to your display
with all DLNA compliant media devices.
Connect each display with an ethernet cable
and manage your content in real time within
your local network. Simply connect your
display and start sharing.
ent from your
Page 3
BDL4660EL/00
E-Line Display
46" Edge-lit LED, Full HD
Specifications
Picture/Display
• Diagonal screen size: 46 inch / 117 cm
• Panel resolution: 1920 x 1080p
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Brightness: 500 cd/m²
• Contrast ratio (typical): 4000:1
• Dynamic contrast ratio: 500,000:1
• Aspect ratio: 16:9
• Response time (ty
• Pixel pitch: 0.53025 x 0.53025 mm
• Display colours: 1073.7 million
• Viewing Angle (H / V): 178 / 178 degree
• Picture enhancement: 3/2 - 2/2 motion pull down,
mbfi
3D Co
MA deinterlacing, Dynamic contrast enhancement,
Progressive scan
ical): 6.5 ms
p
lter, Motion compens. deinterlacing, 3D
Connectivity
• Video input: DisplayPort (1.2), HDMI (x 2), DVI-D,
VGA (Analogue D-Sub), USB, Component (RCA),
Composite (RCA)
• Video output: DisplayPort, DVI-I, VGA (Analogue
)
D-Sub
•
Audio input: 3.5-mm jack, Audio Left/Right (RCA)
• Audio output: Audio Left/Right (RCA), External
eaker
connector
sp
• Other connections: OPS
• External control: RJ45, RS232C (in/out) 2.5 mm
c
k, IR (in/out) 3.5 mm jack
ja
Supported Display Resolution
• Computer formats
Resolution Refresh rate
1920 x 1200 60 Hz
1920 x 1080 60
1440 x 900 60 Hz
1366 x 768 60 Hz
1360 x 768 60 Hz
1280 x 800 60 Hz
1280 x 768 60 Hz
1024 x 768 60 Hz
800 x 600 56, 60, 72, 75 Hz
640 x 480 60, 67, 72, 75 Hz
deo formats
• Vi
Res
olution Refresh rate
1080p 50, 60 Hz
1080i 50, 60 Hz
720p 50, 60 Hz
576i 50 Hz
576p 50 Hz
480p 60 Hz
480i 60 Hz
Hz
Dimensions
• Set dimensions (W x H x D):
1052.7 x 607.3 x 69 mm
• Bezel width: 15.8 mm
• Product weight: 21.3 kg
• VESA Mount: 400 x 400 mm, 400 x 200 mm, 200 x
0 mm
20
•
Smart Insert mount: 100 x 100 mm, 100 x 200 mm
Convenience
• Placement: Landscape, Portrait
• Tiled Matrix: Up to 10 x 10
• Keyboard control: Hidden, Lockable
• Signal Loop Through: DVI, VGA, RS232, IR Loop
ro
ugh, DisplayPort
th
• Network controllable: RJ45, RS232, One Wire
(HDMI-CEC), Card OPS RS2
Wire)
• Energy-saving functions: Smart Power
• Ease of installation: Smart Insert, AC Out
• Screen-saving functions: Pixel Shift, Low Bright
• Other convenience: Carrying handles
32, HDMI (One
Power
• Consumption (On mode): 93.26 W (EnergyStar
6.0 test method)
• Standby power consumption: <0.3 W
• Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz
Operating conditions
• Temperature range (operation): 0 ~ 40 °C
• Temperature range (storage): -20 ~ 60 °C
• Relative humidity: 20 ~ 80 %
• Altitude: 0 ~ 3000 m
• MTBF: 60,000 hour(s)
Sound
• Built-in speakers: 2 x 10 W RMS
Multimedia Applications
• USB Playback Audio: AAC, AIF, AIFF, M4A, MP3,
WAV, WMA, ASF, LPCM, M3U, MP4
• USB Playback Picture: BMP, GIF, JPEG, JPG
• USB Playback Video: M2TS, M4V, MK3D, MKV,
MP4, MPEG,
MPG, M
TS, TS, TTS, VOB, WMV
Accessories
• Included accessories: Remote Control, Batteries
for remote control, AC Power Cord, VGA cable,
User manual on CD-ROM, Quick start guide,
RS232 cable
• Stand: BM04642 (Optional)
• Optional accessories: ColourCalibrationKit
460
(CCK
1), HDBaseT OPS Receiver (CRD25)
Miscellaneous
• On-Screen Display Languages: English, French,
German, Spanish, Polish, Turkish, Russian, Italian,
Simplified Chinese, Traditional Chinese, Arabic,
Japanese
• Regulatory approvals: CE, FCC, Class B, UL/cUL,
C, C
-Tick, RoHS, GOST, BSMI, CB, J-Moss,
CC
PSE, VCCI
• Warranty: 3-year warranty
•
Issue date 2022-04-21
Version: 4.1.1
12 NC: 8670 001 13703
EAN: 87 12581 71773 5
© 2022 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
