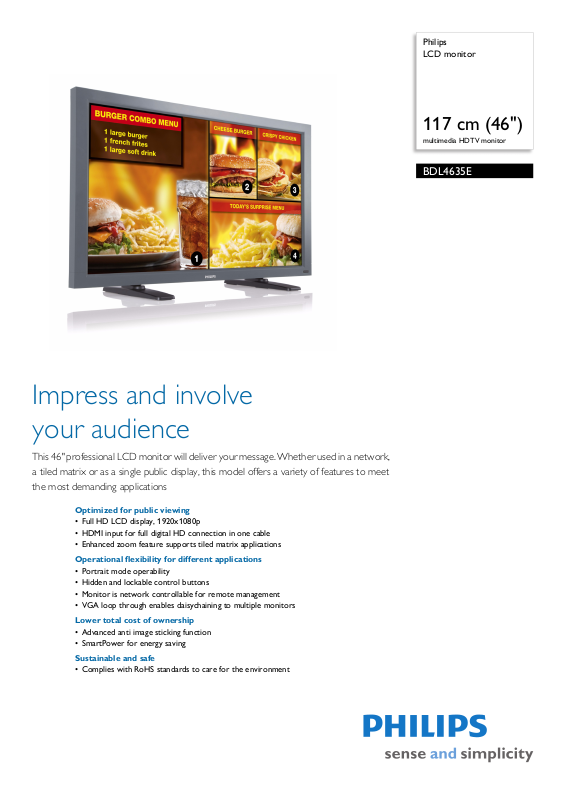

Page 1

Philips LCD monitor

117 cm (46")

multimedia HDTV monitor

BDL4635E

Impress and involve your audience

This 46" professional LCD monitor will deliver your message. Whether used in a network, a tiled matrix or as a single public display, this model offers a variety of features to meet the most demanding applications

Optimized for public viewing

• Full HD LCD display, 1920x1080p

• HDMI input for full digital HD connection in one cable

• Enhanced zoom feature supports tiled matrix applications

Operational flexibility for different applications

• Portrait mode operability

• Hidden and lockable control buttons

• Monitor is network controllable for remote management

• VGA loop through enables daisychaining to multiple monitors

Lower total cost of ownership

• Advanced anti image sticking function

• SmartPower for energy saving

Sustainable and safe

• Complies with RoHS standards to care for the environment

Page 2

LCD monitor

VIDIWALL

P O R T R A I T

117 cm (46") multimedia HDTV monitor

Highlights

BDL4635E/01

Full HD LCD display 1920x1080p

This display has a resolution that is referred to as

Full HD. The state-of-the-art LCD screen technology has the full high-definition widescreen resolution of 1080 progressive lines, each with 1920 pixels. This allows the best possible picture quality for HD input signals with up to 1080 lines. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colors. This vibrant and sharp image will provide you with an enhanced viewing experience.

HDMI input

HDMI makes an uncompressed digital RGB connection

from the source to the screen. By eliminating conversion to an analog signal, it delivers an unblemished image. The nondegraded signal reduces flicker and leads to a clearer picture. HDMI intelligently communicates the highest output resolution with the source device. The HDMI input is fully backward compatible with DVI sources but includes digital audio. HDMI uses HDCP copy protection.

Hidden and control buttons

The local control buttons of the display are pl

aced in such a way that they are less visible for immediate access. Furthermore the remote control sensor as well as the local control buttons can be disabled via RS232 to prevent unauthorized control of the display when placed in a public space.

Network controllability: RS232

Network controllability allows user to control and adjust monito

rs remotely through RS232

protocol.

Signal loop through

Multiple screen daisy chain effectively dist

ributes control and visual content from a single source to an array of monitors in various locations within a site.

Advanced anti image sticking

Static images left on-screen for extended pe

riods of time may leave a "ghost image" or image sticking effect on LCD displays. Although image sticking in LCD displays is not

permanent, you want to prevent this to happen, especially in locations where content is shown 24/7.

Compliant with RoHS standards

Philips designs and produces display products i

n compliance with strict Restriction of Hazardous Substances (RoHS) standards that restrict lead and other toxic substances that can harm the environment.

Zoom function for tiled matrix

The internal zoom function enables easy i

mplementation of a video wall matrix, without the need for expensive external equipment. Capable of a vidiwall of 25 displays by dividing up to 5 displays each horizontally and vertically.

SmartPower

The backlight intensity can be controlled and p

re-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

Page 3

LCD monitor

117 cm (46") multimedia HDTV monitor

Specifications

BDL4635E/01

Picture/Display

• Display screen type: LCD Full HD W-UXGA Act. matrix

• Diagonal screen size: 46 inch / 116.8 cm

• Aspect ratio: 16:9

• Pixel pitch: 0.53025 x 0.53025 mm

• Optimum resolution: 1920 x 1080 @ 60Hz

• Brightness: 450 cd/m²

• Contrast ratio (typical): 3500:1

• Display colors: 16.7 Million colors

• Viewing angle (H / V): 178 / 178 degree

• Response time (typical): 8 ms

• Horizontal Scanning Frequency: 31.5 - 91.1 kHz

• Vertical Scanning Frequency: 58 - 85 Hz

• Picture enhancement: 3/2 - 2/2 motion pull down, 3D Co Picture in Picture, Progressive scan, 3D MA deinterlacing

lter, Motion compens. deinterlacing,

mbfi

Supported Display Resolution

• Computer formats Resolution Refresh rate 640 x 480 60, 75Hz 720 x 400 70Hz 800 x 600 60Hz 1024 x 768 60Hz 1280 x 720 60Hz 1280 x 768 60Hz 1360 x 768 60Hz 1600 x 1200 60Hz 1920 x 1080 50, 60Hz

deo formats

• Vi Res

olution Refresh rate 480i 60Hz 480p 60Hz 576i 50Hz 720p 50, 60Hz 1080i 50, 60Hz 1080p 60Hz

Connectivity

• PC: VGA-in D-Sub 15HD, VGA-out D-Sub 15HD, RS232 D-Sub9, RS232 D-sub9 output, 3.5 mm PC audio input x1

• AV input: HDMI x2, Componen Audio (L/R) for YPbPr x1, Composite (CVBS) x 2, S-video x1, Audio (L/R)x2 for CVBS & S-Vid

• AV output: Composite (CVBS) x1, Audio (L/R) x1

• Connectivity Enhancements: External Loudspeaker

ector

t (YPbPr) x

• Network controllable: RS232

• Placement: Portrait, Landscape

• VESA Mount: 400 x 200 mm

• Regulatory approvals: CE Mark, RoHS, FCC Class , CCC

A, U

Tuner/Reception/Transmission

• Video Playback: NTSC, PAL, SECAM

Power

• Consumption (On mode): Typ. 162W

• Mains power: 90-264 VAC, 50/60 Hz

• Standby power consumption: < 5W

Dimensions

•Set dimensions (W x H x D):

1122 x 663 x 138 mm

• Set dimensions in inch (W x H x D):

x 26.1 x 5.4 inch

44.2

• Set dimensions with stand (H x D): 705 x 406 mm

•Set dimensions with st

27.8 x 16.0 inch

• MTBF: 50,000 (excl. CCFL 60,000) hrs

• Bezel thickness: 4.5 cm / 1.77 inch

• Product weight: 32.6 kg

• Product weight (lb): 71.9

• VESA Mount: 200x200mm, 400x200mm

and in inch (H x

D):

Technical specifications

• Operating temperature range: 0 - 40 °C

• Relative humidity range: 5% - 90%

Accessories

• Included accessories: HDMI-DVI adapter cable,

VGA cable, Remote Control, Batteries for remote control, User manual on CD-ROM, AC Power Cord, Quick start guide

• Optional accessories: Speakers BAL4631S1,

ling mo

Cei mount

• Stand: BM05211

unt, Fixed wall mount, Flexible wall

Miscellaneous

• Warranty: Europe/North America: 3 years

• Bezel: metallic anthracite

• On-Screen Display Languages: English, French,

erman, Italian, Polish, Russian, Simplified Chinese,

G Turkish

• Regulatory approvals: CCC, CE, FCC, Class B,

HS, U

L/cUL

Convenience

• OSD Languages: English, French, German, Italian, Spanish, Polish, Turkish, Russian, Simplified Chinese

• Detachable Audio: 2 x 7 Watts (optional) speakers

Issue date 2011-10-18

Version: 1.0.1

12 NC: 8670 000 80549 EAN: 87 12581 61658 8

Operating conditions

• MTBF: 50,000 hour(s)

• Relative humidity: 5 - 90 %

• Temperature range (operation): 0 - 40 °C

•

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
