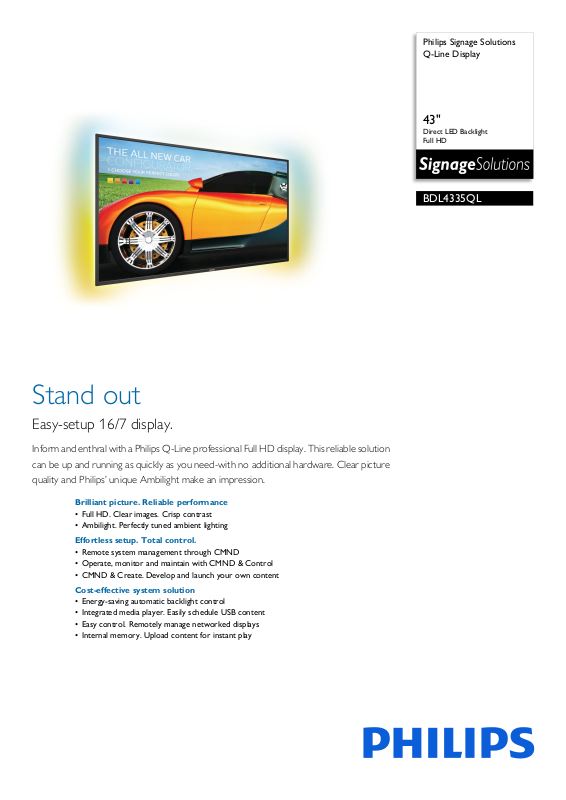

Philips Signage Solutions Q-Line Display

43"

Direct LED Backlight Full HD

BDL4335QL

Stand out

Easy-setup 16/7 display.

Inform and enthral with a Philips Q-Line professional Full HD display. This reliable solution can be up and running as quickly as you need-with no additional hardware. Clear picture quality and Philips’ unique Ambilight make an impression.

Brilliant picture. Reliable performance

• Full HD. Clear images. Crisp contrast

• Ambilight. Perfectly tuned ambient lighting

Effortless setup. Total control.

• Remote system management through CMND

• Operate, monitor and maintain with CMND & Control

• CMND & Create. Develop and launch your own content

Cost-effective system solution

• Energy-saving automatic backlight control

• Integrated media player. Easily schedule USB content

• Easy control. Remotely manage networked displays

• Internal memory. Upload content for instant play

Page 2

BDL4335QL/00

Q-Line Display

43" Direct LED Backlight, Full HD

Highlights

CMND

Take control of your Philips Professional Disp

lay network. CMND lets you manage, update, maintain, and play via one easy-to-use interface. From installation to daily operation.

CMND & Control

Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs

and monitoring display status. Whether you're in charge of one screen or 100.

CMND & Create

Take control of your content with CMND & Create. A drag-and-drop interface makes it simple to publish your own content-whether it's a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure your stills, text, and video will be up and running in no time.

Integrated media player

Easily schedule content to play from USB. Your Phil

ips Professional Display will wake from standby to play the content you want, and then return to standby once playback is done.

Internal memory

Save and play content without the need for a p

ermanent external player. Your Philips professional display has an internal memory, which allows you to upload media into the display for instant playback. The internal memory also functions as a cache for online streaming.

SmartCollection

SmartCollection offers you customizable sol

utions to meet your specific requirements. Both integrators and solution providers are

offered the latest innovations, while the audience can enjoy impactful solutions. When developing smart innovations we focus on Caring, Innovative and Impactful solutions.

Page 3

BDL4335QL/00

Q-Line Display

43" Direct LED Backlight, Full HD

Specifications

Picture/Display

• Diagonal screen size: 42.5 inch / 108 cm

• Panel resolution: 1920x1080p

• Optimum resolution: 1920 x 1080 @ 60 Hz

• Brightness: 350 cd/m²

• Contrast ratio (typical): 3000:1

• Dynamic contrast ratio: 500,000:1

• Response time (ty

• Aspect ratio: 16:9

• Viewing angle (H / V): 178 / 178 degree

• Pixel pitch: 0.49 x 0.49 mm

• Display colors: 16.7 Million

• Ambilight: 2-sided

• DICOM: Clinical D-image

ical): 6.5 ms

Supported Display Resolution

mputer formats

• Co Res

olution Refresh rate 640 x 480 60, 67, 72, 75Hz 800 x 600 56, 60, 72, 75Hz 1024 x 768 60Hz 1280 x 768 60 1280 x 800 60Hz 1360 x 768 60Hz 1366 x 768 60Hz 1440 x 900 60Hz 1920 x 1080 60Hz

deo formats

• Vi olution Refresh rate

Res 480i 60Hz 480p 60Hz 576p 50Hz 576i 50Hz 720p 50, 60Hz 1080i 50, 60Hz 1080p 50, 60Hz

Connectivity

• Video input: DVI-D, HDMI, Component (RCA),

Composite (RCA), VGA (Analog D-Sub)

• Audio input: 3.5 mm jack, Audio Left/Right (RCA)

• Audio output: Audio Left/

• External control: RJ45, RS232C (in/out) 2.5 mm

k, IR (in/out) 3.5 mm jack

jac

• Other connections: USB

ight (RCA), 3.5mm jack

Convenience

• Memory: Internal memory access, 8GB eMMC

• Screen saving functions: Pixel Shift

• Energy saving functions: Smart Power

• Tiled Matrix: Up to 15 x 15

• Start-up: Wake up on LAN, Switch on status

• Start-up window: enable / disable Philips logo

• Keyboard control: Lockable, Hidden

• Network controllable: RS232, RJ45, One Wire

-CEC)

(HDMI

•

Signal loop through: RS232, IR Loopthrough

Switch o

n delay,

Dimensions

•Set dimensions (W x H x D):

968.2 x 559.4 x 59.9 mm

• Bezel width: 11.9 (TLR) / 14.9 (B) mm

• Set dimensions in inch (W x H x D):

2 x 22.02 x 2.36 inch

• VESA Mount: 400 x 400mm, 200x200 mm,M6

• Product weight: 8.70 kg

• Product weight (lb): 19.18 lb

Operating conditions

• Temperature range (operation): 5 ~ 40 °C

• Temperature range (storage): -20 ~ 60 °C

• Relative humidity: 20 ~ 80 %

• MTBF: 50,000 hour(s)

Power

• Consumption (On mode): 87 W (EnergyStar 6.0 test method)

• Mains power: 100 ~ 240 VAC

• Standby power consumption: <0.5 W

Sound

• Built-in speakers: 2 x 10W RMS

Multimedia Applications

• USB Playback Video: 3G2, 3GP, ASF, ASX, AVI, DAT, F4V, FLV, M2TS, M4V, MK3D, MKV, MOV, MP4, MPE, MPEG, MPG, MTS, QT, TRP, TS, TTS, VOB, WEBM, WMV, Xvid

• USB Playback Picture: BMP, GIF, JPEG, JPG

• USB Playback Audio: AAC, AC3, AIF EC3, M4A, MP3, OGA, OGG, WAV, WMA

AIFF, AMR,

Accessories

• Included accessories: AC Power Cord, RS232 cable, VGA cable, Remote Control, Batteries for remote control, User manual on CD-ROM, Quick start guide

Miscellaneous

• Warranty: 3 year warranty

• On-Screen Display Languages: English, French, erman, Italian, Polish, Russian, Spanish, Turkish,

G Simplified Chinese, Traditional Chinese

• Regulatory approvals: CE, CCC, UL/cUL, C-Tick,

, CB, G

•

BSMI

OST, CECP, EPA

Issue date 2021-12-14

Version: 3.1.1

12 NC: 8670 001 26175 EAN: 87 12581 73400 8
