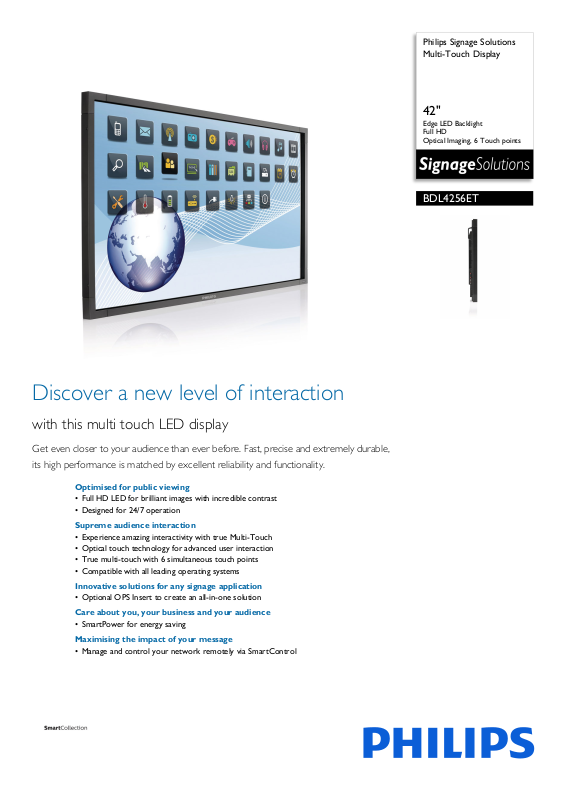

Page 1

Philips Signage Solutions Multi-Touch Display

42"

Edge LED Backlight Full HD Optical Imaging, 6 Touch points

BDL4256ET

Discover a new level of interaction

with this multi touch LED display

Get even closer to your audience than ever before. Fast, precise and extremely durable, its high performance is matched by excellent reliability and functionality.

Optimised for public viewing

• Full HD LED for brilliant images with incredible contrast

• Designed for 24/7 operation

Supreme audience interaction

• Experience amazing interactivity with true Multi-Touch

• Optical touch technology for advanced user interaction

• True multi-touch with 6 simultaneous touch points

• Compatible with all leading operating systems

Innovative solutions for any signage application

• Optional OPS Insert to create an all-in-one solution

Care about you, your business and your audience

• SmartPower for energy saving

Maximising the impact of your message

• Manage and control your network remotely via SmartControl

Page 2

BDL4256ET/00

Multi-Touch Display

42" Edge LED Backlight, Full HD, Optical Imaging, 6 Touch points

Highlights

Full HD LED technology

Picture Quality matters. Standard displays deli

ver quality, but you expect more. Imagine crisp detail paired with high brightness, incredible contrast and realistic colours for a true-to-life picture.

Plug-and-Play Multi-Touch

A brand new level of interactivity is now available thanks to integrated touch technology. More flexibility and optimum simultaneous touch performance coupled with excellent operability opportunities give you the ultimate in user interaction. Multi-Touch displays are equipped with automatic touch recognition. The USB connector is HIDcompliant, providing true plug-and-play operation.

Optical multi-touch

The sensors on the edge of the screen give you pe

rfect clarity whilst at the same time offering multi-touch interaction, opening up all kinds of possibilities for new interactive applications.

6 simultaneous touch points

Enjoy a more interactive experience with up to 6 touch

points at the same time. Ideal for when you have more than one user interacting with your application simultaneously, the 6 touch points offer an extremely cost-effective solution.

Software compatibility

Our touch displays are software-independent and support XP, Mac OS and Linux.

OPS Insert

Turn your display into an all-in-one digital signage sol that is connected, intelligent and secure. Open Pluggable Specification (OPS) is an industrystandard slot into which you can add an OPSstandardised media player. This cable-free solution gives you the ability to install, use or

Windows 8, Windows 7, Vista,

ution and create a display network

maintain your hardware whenever you need to.

SmartPower

The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

SmartControl

SmartControl lets you remotely control and manage yo RS232C. Easily fine-tune all display settings including resolution, brightness, contrast and cloning of your settings over your complete network.

Designed for 24/7 operation

Because business never sleeps, our signage dis advantage of superior components to ensure a higher level of quality, you can count on this range of models for complete around-theclock reliability.

ur network of displays via RJ45 and

plays are designed for 24/7 use. Taking

SmartCollection

SmartCollection offers you customisable sol

utions to meet your specific requirements. Both integrators and solution providers are

offered the latest innovations, while the audience can enjoy impactful solutions. When developing smart innovations we focus on Caring, Innovative and Impactful solutions.

Page 3

BDL4256ET/00

Multi-Touch Display

42" Edge LED Backlight, Full HD, Optical Imaging, 6 Touch points

Specifications

Picture/Display

• Diagonal screen size: 42 inch / 106.7 cm

• Panel resolution: 1920 x 1080p

• Optimum resolution: 1920 x 1080 @ 60 Hz

• Brightness: 450 cd/m²

• Contrast ratio (typical): 1300:1

• Dynamic contrast ratio: 500,000:1

• Response time (typical): 12 ms

• Aspect ratio: 16:9

• Viewing Angle (H / V): 178 / 178 degree

• Display colours: 1.06 Billion

• Pixel pitch: 0.485 x 0.485 mm

• Surface treatment: Anti-Glare coating

• Picture enhancement: 3/2 - 2/2 motion pull down, 3D Co Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement

lter, Motion compens. deinterlacing,

mbfi

Interactivity

• Multi-touch technology: Optical sensing

• Touch points: 6 simultaneous touch points

• Plug and play: HID compliant

• Protection glass: 4 mm tempe

ed safety glass

Connectivity

• Video input: DisplayPort (1.1a), HDMI, DVI-D, VGA (Analogue D-Sub), Component (RCA), Composite (RCA)

• Video output: DVI-I, VGA (via DVI-D)

• Audio input: Audio Left/Right (RCA), 3.5-mm jack

• Audio output: Audio Left/Right (RCA), External

eaker

connector

• External control: RJ45, RS232C (in/out) D-Sub9

• Other connections: USB, AC-out, OPS

Supported Display Resolution

• Computer formats

olution Refresh rate

Res 640 x 480 60, 67, 72, 75 Hz 800 x 600 56, 60, 72, 75 Hz 1024 x 768 60 Hz 1280 x 768 60 Hz 1280 x 800 60 Hz 1280 x 1024 60 Hz 1360 x 768 60 Hz 1366 x 768 60 1440 x 900 60 Hz 1600 x 1200 60 Hz 1920 x 1080 60 Hz 1920 x 1200 60 Hz

deo formats

• Vi Res

olution Refresh rate

480i 60 Hz

480p 60 Hz 576p 50 Hz 576i 50 Hz 720p 50, 60 Hz 1080i 50, 60 Hz 1080p 50, 60 Hz

Convenience

• Placement: Landscape, Portrait

• Signal Loop Through: DVI, RS232, VGA

• Network controllable: RS232, RJ45

• Picture performance: Advanced colour control

• Picture in picture: PIP

• Screen-saving functions: Pixel Shift, Low Brightness

• Keyboard control: Hidden, Lockable

• Remote control signal: Lockable

• Ease of installation: AC Out, Smart Insert

• Energy-saving functions: Smart Power

• Packaging: Reusable box

• Other convenience: Carrying handles

Dimensions

•Set dimensions (W x H x D):

976.16 x 569.50 x 79.80 mm

• Bezel width: 19.5 mm

• Product weight: 24.75 kg

• VESA Mount: 400 x 200 mm, 200 x 200 mm

• Smart Insert mount: 100 x 200 mm, 100 x 100 mm

Sound

• Built-in speakers: 2 x 10 W

Operating conditions

• Temperature range (operation): 5 ~ 40 °C

• Relative humidity: 20 ~ 80 %

• MTBF: 50,000 hour(s)

Power

• Mains power: 90 ~ 240 VAC, 50/60Hz

• Consumption (On mode): 120 W (Typ.)

• Standby power consumption: <0.5 W

Accessories

• Included accessories: AC Power Cord, VGA cable, RS232 cable, USB cable, Remote Control, Batteries for remote control, Quick start guide, User manual on CD-ROM

• Stand: BM05462 (Optional)

Miscellaneous

• On-Screen Display Languages: English, French, German, Italian, Polish, Turkish, Spanish, Russian, Simplified Chinese, Traditional Chinese, Arabic,

Japanese

• Regulatory approvals: CE, CCC, FCC, Class B, UL/ oHS, EPA, CB, C-Tick, EAC, EMF, KUCAS,

L, R

cU SASO

• Warranty: 3-year warranty

•

Issue date 2022-04-21

Version: 1.0.1

12 NC: 8670 001 19731 EAN: 87 12581 72807 6
