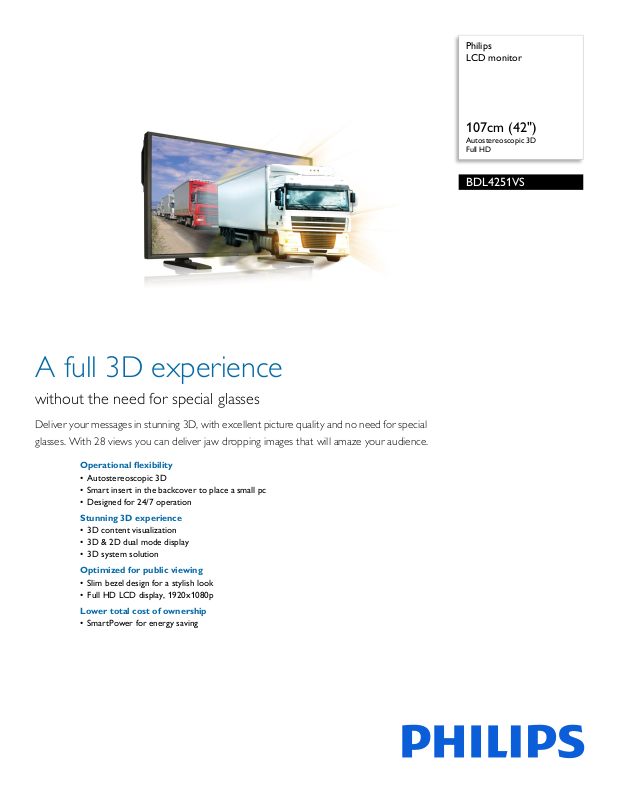

Page 1
Philips
LCD monitor
107cm (42")
Autostereoscopic 3D
Full HD
BDL4251VS
A full 3D experience
without the need for special glasses
Deliver your messages in stunning 3D, with excellent picture quality and no need for special
glasses. With 28 views you can deliver jaw dropping images that will amaze your audience.
Operational flexibility
• Autostereoscopic 3D
• Smart insert in the backcover to place a small pc
• Designed for 24/7 operation
Stunning 3D experience
• 3D content visualization
• 3D & 2D dual mode display
• 3D system solution
Optimized for public viewing
• Slim bezel design for a stylish look
• Full HD LCD display, 1920x1080p
Lower total cost of ownership
• SmartPower for energy saving
Page 2
BDL4251VS/00
LCD monitor
107cm (42") Autostereoscopic 3D, Full HD
Highlights
Autostereoscopic 3D
Enjoy a stunning 3D experience with no need for
specia
l glasses thanks to the autostereoscopic
3D effect. Using lenticular technology, it gives
excellent clarity and depth, making your 3D
experience even more lifelike and enjoyable.
3D content visualization
Software tools are provided with the display to
pl
ay-out 3D content and control the 3D and 2D
visualization parameters. The actual 3D content
can be created via plug-ins available for popular
3D animation software packages. Existing 2D or
stereo content can be converted into 2D-plusDepth format. The 2D-plus-Depth format is
compatible with existing compression tools, as
the additional bandwidth of the depth is small.
3D system solution
The system solution is designed for maximum
reuse o
f content / concepts from the 2D signage
industry. The key enabler for this is the flexible
2D-plus-Depth format that allows decoupling of
content creation and content visualization. The
rendering core integrated in the
autostereoscopic 3D displays supports the
unique Declipse image format which enables a
true look-around 3D effect.
3D & 2D dual mode display
The display can be applied in a broad range of
ap
plications since it can be operated in in both
2D and 3D mode. The 4K UHD resolution panel
enables great picture quality and true color
representation in 2D and 3D mode. The
integrated rendering core offers content
creators and end-users full control over the
quality and depth-effect characteristics of the
picture.
Smart Insert
Professional PC's are part of most public signage
i
nstallations. Quite often they increase the
overall depth to the display and cause a lot of
cable clutter. So we have designed this display
with Smart insert in the back cover which is ideal
for the integration of a professional small form
factor PC. On top of that, the cable management
system offers a great solution to keep your
cables neat and professional looking.
Slim bezel
A slim bezel design adds a stylish look to a public
dis
play to nicely blend in just about any
environment. Furthermore this design makes
the display ideal for tiled matrix video walls.
SmartPower
The backlight intensity can be controlled and
pre
-set by the system to reduce the power
consumption by up to 50%, which saves
substantially on energy costs.
Full HD LCD display 1920x1080p
This display has a resolution that is referred to
as Full
HD. The state-of-the-art LCD screen
technology has the full high-definition
widescreen resolution of 1080 progressive lines,
each with 1920 pixels. This allows the best
possible picture quality for HD input signals with
up to 1080 lines. It produces brilliant flicker-free
progressive scan pictures with optimum
brightness and superb colors. This vibrant and
sharp image will provide you with an enhanced
viewing experience.
Designed for 24/7 operation
Because business never sleeps, our signage
displays are designed for 24/7
advantage of superior components to ensure a
higher level of quality, you can count on this
range of models for complete around-the-clock
reliability.
use. Taking
Page 3
BDL4251VS/00
LCD monitor
107cm (42") Autostereoscopic 3D, Full HD
Specifications
Picture/Display
• Diagonal screen size: 42 inch / 107 cm
• Panel resolution: 1920x1080p
• Optimum resolution: 1920 x 1080 @ 60Hz
• Brightness: 700 cd/m²
• Contrast ratio (typical): 1100:1
• Response time (typical): 9 ms
• Aspect ratio: 16:9
• Viewing angle (H / V): 150 / 150 degree
• Pixel pitch: 0.485 x 0.485
• Display colors: 1.06 Billion colors
• 3D Technology: Autostereoscop
Lenticular 3D Technology, Input Format: 2D plus
depth
• Picture enhancement: 3/2 - 2/2 motion pull down,
mbfilter, Motion compens. deinterlacing,
3D Co
Progressive scan, 3D MA deinterlacing, Dynamic
contrast enhancement
ic 3D display, Fixed
Supported Display Resolution
• Computer formats
Resolution Refresh rate
640 x 480 60, 67, 72, 75Hz
800 x 600 56, 60, 72, 75Hz
1024 x 768 60Hz
1280 x 768 60Hz
1280 x 800 60Hz
1360 x 768 60Hz
1366 x 768 60Hz
1440 x 900 60Hz
1600 x 1200 60Hz
1920 x 1080 60Hz
1920 x 1200 60Hz
deo formats
• Vi
Resolution Refresh rate
480i 60Hz
480p 60Hz
576p 50Hz
576i 50Hz
720p 50, 60Hz
1080i 50, 60Hz
1080p 50, 60Hz
Connectivity
• PC: VGA-in D-Sub 15HD, VGA-out D-Sub 15HD,
DVI-D x1, RS232 D-Sub9, RS232 D-sub9 output, 3.5
mm PC audio input x1
• AV input: HDMI x1, Composite (RCA) x1,
omposite (BNC) x1, S-video x1, Audio (L/R) x2,
C
Component (YPbPr) x1
• AV output: Composite (BNC) x1, Audio (L/R) x1
• Other connections: AC-out, External loudspeaker
nnector
co
Convenience
•Placement: Landscape
• Picture in picture: PBP, PIP, POP
• Screen saving functions: Pixel shift, Low bright
• Signal Loop Through: RS232, VGA
• Keyboard control: Hidden, Lockable
• Remote control signal: Lockable
• Ease of installation: AC Out, Carrying Handles,
Smart Ins
• Energy saving functions: Amb
Power
• Safety control functions: Heat Control,
Temp
• Picture performance: Advanced color control
• Packaging: Reusable box
• Network controllable: RS232
ert
ient light sensor, Smart
erature Sensor
Dimensions
• Bezel thickness: 1.6 cm / 0.63 inch
• Smart Insert mount: 160 x 300 x 55 mm
• Smart insert in inch (WxHxD): 6.30 x 11.81 x 2.17
ch
in
• Set dimensions (W x H x D): 968 x 559 x 132 mm
• Set dimensions in inch (W x H x D):
38.1 x 22 x
• Set dimensions with stand (H x D): 606 x 405 mm
• Set dimensions with stand in inch (H x D):
23.9 x 15.9 inch
• Product weight: 37 kg
• Product weight (lb): 81.6
• VESA Mount: 200x200mm, 400x200mm (Set),
100
5.1 inch
x100mm (Smart insert)
Operating conditions
• Temperature range (operation): 0 - 40 °C
• Relative humidity: 5 - 90 %
• MTBF: 50.000 hour(s)
Power
• Mains power: 90-264 VAC, 50/60 Hz
• Consumption (On mode): Typ. 133W
• Standby power consumption: < 1W
Sound
• Built-in speakers: 2 x 5 W (8 ohm)
Accessories
• Included accessories: Remote Control, Batteries for
remote control, AC Power Cord, VGA cable, User
manual on CD-ROM, Quick start guide
• Optional accessories: Fixed wall mount, Flexible wall
unt, Ceiling mount
mo
• Stand: BM05211
Miscellaneous
• Bezel: metallic anthracite
• Warranty: Europe/North America: 1 year
• On-Screen Display Languages: English, French,
German, I
Chinese
• Regulatory approvals: CE, RoHS
•
talian, Polish, Turkish, Russian, Simplified
Issue date 2022-04-21
Version: 3.2.2
12 NC: 8670 000 85188
EAN: 87 12581 62670 9
© 2022 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject t
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
o change without notice.
