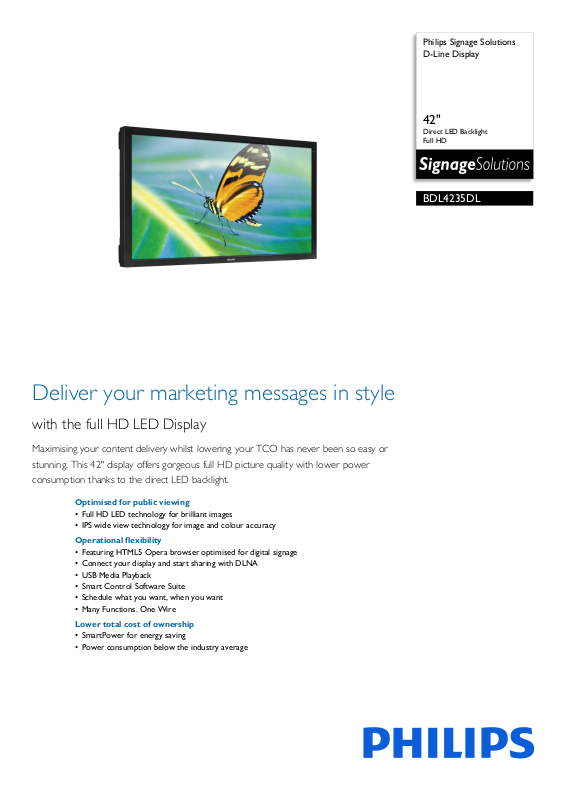

Philips Signage Solutions D-Line Display

42"

Direct LED Backlight Full HD

BDL4235DL

Deliver your marketing messages in style

with the full HD LED Display

Maximising your content delivery whilst lowering your TCO has never been so easy or stunning. This 42" display offers gorgeous full HD picture quality with lower power consumption thanks to the direct LED backlight.

Optimised for public viewing

• Full HD LED technology for brilliant images

• IPS wide view technology for image and colour accuracy

Operational flexibility

• Featuring HTML5 Opera browser optimised for digital signage

• Connect your display and start sharing with DLNA

• USB Media Playback

• Smart Control Software Suite

• Schedule what you want, when you want

•Many Functions. One Wire

Lower total cost of ownership

• SmartPower for energy saving

• Power consumption below the industry average

Page 2

BDL4235DL/00

D-Line Display

42" Direct LED Backlight, Full HD

Highlights

Full HD LED technology

White LED's are solid state devices which light up

to full, consistent brightness faster saving startup time. LED's are free from mercury content, which allows for eco-friendly recycling and disposal process. LED's allow for better dimming control of the LCD backlight, resulting in a super high contrast ratio. It also gives superior colour reproduction thanks to consistent brightness across the screen.

IPS Display Technology

Philips IPS displays uses an advanced te

chnology, which gives you extra-wide viewing angles of 178/178 degrees, making it possible to view the display from almost any angle — even in portrait mode. IPS displays give you remarkably crisp images with vivid colours, particularly suitable for professional video wall and menu board applications, which demand colour accuracy and consistent brightness at all times.

Smart Control

Control and manage all of the signage displays o

n your network with this powerful software

tool, which allows you to change the settings of your display centrally via an RJ45 or RS232 connection. Smart Control allows you to set the video input, modify the colour settings, set the display's ID when creating video walls and even diagnose each display's status, giving you all the power you need to manage your displays from one central location.

Share and Stream with DLNA

Simply share and stream content from your mobil

e device or media player to your display with all DLNA compliant media devices. Connect each display with an ethernet cable and manage your content in real time within your local network. Simply connect your display and start sharing.

USB Playback

Enjoy your own media playback via the USB po

rt. Simply plug in a USB drive and create your own signage content to convey the marketing messages you want, when you want them. With a wide range of media formats supported, this powerful media player offers an excellent picture and true flexibility.

24-hour scheduling function

You can freely schedule the right content at t

he right time to satisfy your customer information needs. Mix and manage your content over multiple video input signals such as USB, VGA, DVI and HDMI. Simply create one or more playlists with the scheduling function to be in control of your content 24 hours a day, 7 days a week.

SmartPower

The backlight intensity can be controlled and p

re-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

One Wire

Take full control of your display by running all o

perational commands, as well as your video signal, through just one single HDMI cable. This unique feature makes it so much easier and more convenient to ensure the smooth running and maintenance of your display. Consumer Electronics Control (CEC) commands make finding out vital information about your display absolute child's play.

Page 3

BDL4235DL/00

D-Line Display

42" Direct LED Backlight, Full HD

Specifications

Picture/Display

• Diagonal screen size: 41.92 inch / 106.47 cm

• Panel resolution: 1920 x 1080p

• Optimum resolution: 1920 x 1080 @ 60 Hz

• Brightness: 400 cd/m²

• Contrast ratio (typical): 1000:1

• Dynamic contrast ratio: 500,000:1

• Response time (typical): 6 ms

• Aspect ratio: 16:9

• Viewing Angle (H / V): 178 / 178 degree

• Pixel pitch: 0.4833 x 0.4833 mm

• Display colours: 16.7 million

• Surface treatment: Anti-Glare coating

• Picture enhancement: 3/2 - 2/2 motion pull down, 3D Co MA deinterlacing, Dynamic contrast enhancement

lter, Motion compens. deinterlacing, 3D

mbfi

Supported Display Resolution

• Computer formats Resolution Refresh rate 1920 x 1200 60 Hz 1920 x 1080 60 16

00 x 1200 60 Hz 1440 x 900 60 Hz 1366 x 768 60 Hz 1360 x 768 60 Hz 1280 x 1024 60 Hz 1280 x 800 60 Hz 1280 x 768 60 Hz 1024 x 768 60 Hz 800 x 600 60, 72, 75 Hz 640 x 480 60, 67, 72, 75 Hz

deo formats

• Vi Res

olution Refresh rate 480i 60 Hz 480p 60 Hz 576p 50 Hz 576i 50 Hz 720p 50, 60 Hz 1080i 50, 60 Hz 1080p 50, 60 Hz

Connectivity

• Video input: DVI-D, HDMI, VGA (Analogue DSub), USB, Component (RCA), Composite (RCA)

• Audio input: 3.5-mm jack, Audio Left/Right (RCA)

• Audio output: SPDIF, Audio Left/Right (RCA)

• External control: RJ45, RS232C (in/out) 2.5 mm

k, IR (in/out) 3.5 mm jack

Convenience

• Placement: Landscape, Portrait

• Signal Loop Through: RS232, IR Loop through

• Network controllable: RJ45, RS232, HDMI (One Wire)

• Energy-saving functions: Smart Power

• Keyboard control: Hidden, Lockable

• Other convenience: Carrying handles

• Packaging: Reusable box

Dimensions

•Set dimensions (W x H x D):

991.6 x 584.0 x 113.9 mm

•Bezel width: 28.5 mm

• Product weight: 15.21 kg

• VESA Mount: 200 x 200 mm, 400 x 200 mm

Operating conditions

• Temperature range (operation): 5 ~ 40 °C

• Temperature range (storage): -20 ~ 60 °C

• Relative humidity: 20 ~ 80 %

• MTBF: 50,000 hour(s)

Power

• Mains power: 100 ~ 240 VAC, 50/60 Hz

• Consumption (On mode): 51.5 W (EnergyStar 6.0

method)

test

• Standby power consumption: <0.5 W

Sound

• Built-in speakers: 2 x 7 W RMS

Multimedia Applications

• USB Playback Video: 3G2, 3GP, ASF, ASX, AVI, DAT, DivX, F4V, FLV, M2TS, M4V, MK3D, MKV, MOV, MP4, MPE, MPEG, MPG, MTS, QT, TRP, TS, TTS, VOB, WEBM, WMV, Xvid

• USB Playback Picture: BMP, GIF, JPEG, JPG

• USB Playback Audio: AAC, AC3, AIF EC3, M4A, MP3, OGA, OGG, WAV, WMA

AIFF, AMR,

Accessories

• Included accessories: Remote Control, Batteries for remote control, AC Power Cord, VGA cable, User manual on CD-ROM, Quick start guide, RS232 cable

• Stand: BM04642 (Optional)

Miscellaneous

• On-Screen Display Languages: English, French, German, Spanish, Polish, Turkish, Russian, Simplified Chinese, Italian, Traditional Chinese

• Regulatory approvals: CE, FCC, Class B, UL/cUL,

C, C

-Tick, RoHS, GOST, BSMI, CB

• Warranty: 3-year warranty

•

Issue date 2022-04-21

Version: 1.1.1

12 NC: 8670 001 11424 EAN: 87 12581 70994 5

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
