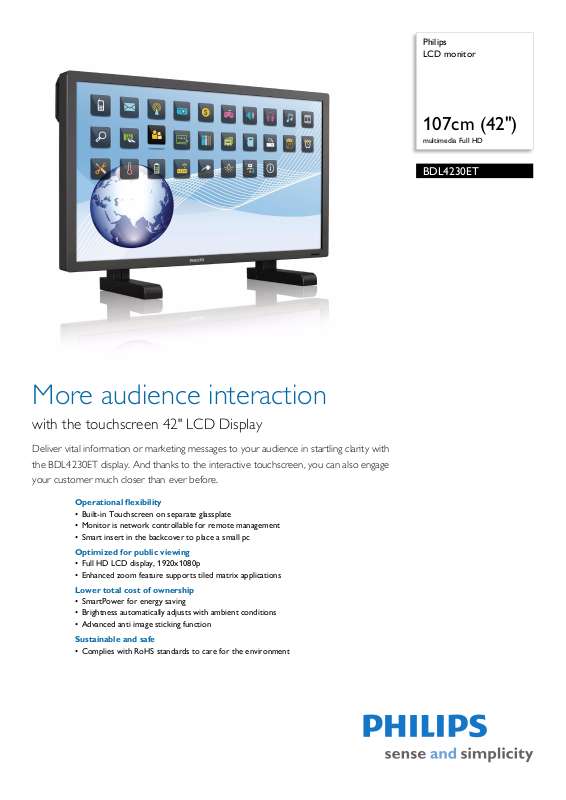

Page 1

Philips LCD monitor

107cm (42")

multimedia Full HD

BDL4230ET

More audience interaction

with the touchscreen 42" LCD Display

Deliver vital information or marketing messages to your audience in startling clarity with the BDL4230ET display. And thanks to the interactive touchscreen, you can also engage your customer much closer than ever before.

Operational flexibility

• Built-in Touchscreen on separate glassplate

• Monitor is network controllable for remote management

• Smart insert in the backcover to place a small pc

Optimized for public viewing

• Full HD LCD display, 1920x1080p

• Enhanced zoom feature supports tiled matrix applications

Lower total cost of ownership

• SmartPower for energy saving

• Brightness automatically adjusts with ambient conditions

• Advanced anti image sticking function

Sustainable and safe

• Complies with RoHS standards to care for the environment

Page 2

LCD monitor

VIDIWALL

P O R T R A I T

107cm (42") multimedia Full HD

Highlights

BDL4230ET/01

Advanced anti image sticking

Static images left on-screen for extended pe

riods of time may leave a "ghost image" or image sticking effect on LCD displays. Although image sticking in LCD displays is not permanent, you want to prevent this to happen, especially in locations where content is shown 24/7.

Automatic brightness control

The adjustment of display settings to corre

spond with ambient light without user

intervention.

Built-in Touchscreen

A 5 wire resistive touchscreen is mounted on top of a

sturdy glass plate that is separated from the LCD monitor screen. This way the product is more rugged because direct contact with the LCD panel is not possible.

Compliant with RoHS standards

Philips designs and produces display products i

n compliance with strict Restriction of Hazardous Substances (RoHS) standards that restrict lead and other toxic substances that can harm the environment.

Full HD LCD display 1920x1080p

This display has a resolution that is referred to as

Full HD. The state-of-the-art LCD screen technology has the full high-definition widescreen resolution of 1080 progressive lines, each with 1920 pixels. This allows the best possible picture quality for HD input signals with up to 1080 lines. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colors. This vibrant and sharp image will provide you with an enhanced viewing experience.

Network controllability: RS232

Network controllability allows user to control an

d adjust monitors remotely through RS232

protocol.

SmartPower

The backlight intensity can be controlled and p

re-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

Smart insert

Professional PC's are part of most public signage

installations. Quite often they add additional depth to the public display and a lot of cable clutter. This public display contains a Smart insert in the backcover that will fit many professional small form factor PC's. In addition it offers provisions for efficient cable management.

Page 3

LCD monitor

107cm (42") multimedia Full HD

Specifications

BDL4230ET/01

Picture/Display

• Diagonal screen size: 42 inch / 107 cm

• Panel resolution: 1920x1080p

• Optimum resolution: 1920 x 1080 @ 60Hz

• Brightness: 500 cd/m²

• Contrast ratio (typical): 1400:1

• Response time (typical): 5 ms

• Aspect ratio: 16:9

• Viewing angle (H / V): 178 / 178 degree

• Display colors: 1.06 billion colors

• Picture enhancement: 3/2 - 2/2 motion pull down, mbfi

3D Co Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement

• Pixel pitch: 0.48mm x 0.48mm

lter, Motion compens. deinterlacing,

Supported Display Resolution

• Computer formats

Resolution Refresh rate 640 x 480 60, 67, 72, 75Hz 800 x 600 56, 60, 72, 75Hz 1024 x 768 60Hz 1280 x 768 60Hz 1280 x 800 60Hz 1280 x 1024 60Hz 1360 x 768 60Hz 1366 x 768 60Hz 1440 x 900 60Hz 1600 x 1200 60Hz 1920 x 1080 60Hz 1920 x 1200 60Hz

deo formats

• Vi

Res

olution Refresh rate 480i 60Hz 480p 60Hz 576p 50Hz 576i 50Hz 720p 50, 60Hz 1080i 50, 60Hz 1080p 50, 60Hz

Connectivity

• PC: VGA-in D-Sub 15HD, VGA-out D-Sub 15HD, DVI-D x1, RS232 D-Sub9, RS232 D-sub9 output,

3.5 mm PC audio input x1

• AV input: HDMI x1, Composite (BNC) x1, S-video

Audio (L/R) x2

x1,

•

AV output: Composite (BNC) x1, Audio (L/R) x1

• Other connections: AC-out, External loudspeaker

ector, Component RCA x1

Convenience

• Placement: Portrait, Landscape

• Tiled Matrix: Up to 5x5

• Picture in picture:: PIP

• Screen saving functions: ixel Shift, Low Brightness

• Signal Loop Through:: RS232, VGA

• Keyboard control:: Hidden, Lockable

• Remote control signal:: Lockable

• Ease of installation: AC Out, Carrying Handles, Smart Insert

• Energy saving functions:: Ambient light sensor, Smart Pow

• Picture performance: Advanced color control

• Packaging:: Reusable box

• Network controllable: RS232

• Monitor Controls: Touch screen

Dimensions

• Smart insert (WxHxD): 160 x 300 x 55 mm

• Smart insert in inch (WxHxD): 6.3 x 11.81 x 2.17"

• Set dimensions (W x H x D): 993 x 586 x 120 mm

• Set dimensions in inch (W x H x D):

x 23.1 x 4.7 inch

• Set dimensions with stand (H x D): 666 x 319 mm

•Set dimensions with st

26.2 x 12.6 inch

• Product weight: 27 kg

• Product weight (lb): 59.4

• VESA Mount: 200 x 200 mm/200 x 400 mm

• Bezel thickness: 30 mm/1.2"

and in inch (H x

D):

Operating conditions

• Temperature range (operation): 0 - 40 °C

• Relative humidity: 5 - 90 %

• MTBF: 60,000 hour(s)

Power

• Mains power: 90-264V AC, 50/60Hz

• Consumption (On mode): Typ 165W

• Standby power consumption: <1W

Sound

• Built-in speakers: 2 x 12 W (8 Ohm)

Accessories

• Included accessories: Remote Control, Batteries for remote control, AC Power Cord, VGA cable, User manual on CD-ROM, Quick start guide

• Stand: BM05211

Miscellaneous

• Bezel: Metallic Anthracite

• Warranty: Europe/North America 3 years

• On-Screen Display Languages: English, French,

erman, Italian, Polish, Turkish, Russian, Simplified

G Chinese

• Regulatory approvals: CE, FCC, Class B, CCC,

•

Issue date 2012-03-02

Version: 1.0.2

12 NC: 8670 000 81321 EAN: 87 12581 61882 7
