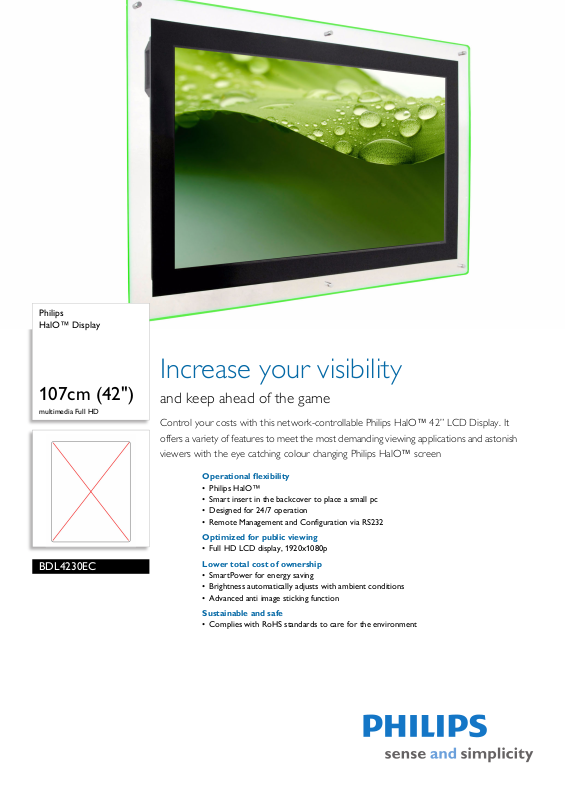

Page 1

Philips HalO™ Display

Increase your visibility

107cm (42")

multimedia Full HD

BDL4230EC

and keep ahead of the game

Control your costs with this network-controllable Philips HalO™ 42” LCD Display. It offers a variety of features to meet the most demanding viewing applications and astonish viewers with the eye catching colour changing Philips HalO™ screen

Operational flexibility

• Philips HalO™

• Smart insert in the backcover to place a small pc

• Designed for 24/7 operation

• Remote Management and Configuration via RS232

Optimized for public viewing

• Full HD LCD display, 1920x1080p

Lower total cost of ownership

• SmartPower for energy saving

• Brightness automatically adjusts with ambient conditions

• Advanced anti image sticking function

Sustainable and safe

• Complies with RoHS standards to care for the environment

Page 2

HalO™ Display

107cm (42") multimedia Full HD

Highlights

BDL4230EC/00

Philips HalO™

The eye-catching HalO™ feature is a unique and pa

tented design. HalO™ creates a frame around your advertising content which can be set to a user defined color, or even change color automatically, helping your messages to stand out from the crowd. Ideal for leisure, retail, gaming, hotels, health clubs and a host of different applications, HalO™ is aimed at users who are looking to add that something special to their digital signage projects.

Smart insert

Professional PC's are part of most public signage

installations. Quite often they add additional depth to the public display and a lot of cable clutter. This public display contains a Smart insert in the backcover that will fit many professional small form factor PC's. In addition it offers provisions for efficient cable management.

SmartPower

The backlight intensity can be controlled and pre-se

t by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

Full HD LCD display 1920x1080p

This display has a resolution that is referred to as

Full HD. The state-of-the-art LCD screen technology has the full high-definition widescreen resolution of 1080 progressive lines, each with 1920 pixels. This allows the best possible picture quality for HD input signals with up to 1080 lines. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colors. This vibrant and sharp image will provide you with an enhanced viewing experience.

Designed for 24/7 operation

Because business never sleeps, our signage disp

lays are designed for 24/7 use. Taking advantage of superior components to ensure a higher level of quality, you can count on this range of models for complete around-theclock reliability.

Automatic brightness control

The adjustment of display settings to corre

spond with ambient light without user

intervention.

Advanced anti image sticking

Static images left on-screen for extended p

eriods of time may leave a "ghost image" or image sticking effect on LCD displays. Although image sticking in LCD displays is not permanent, you want to prevent this to happen, especially in locations where content is shown 24/7.

Remote Management:: RS232

Remote Management allows the user to control

and adjust the displays remotely via the RS232 protocol. Using CEC commands, you are able to have full control over all the displays in your signage network at any time.

Compliant with RoHS standards

Philips designs and produces display products i

n compliance with strict Restriction of Hazardous Substances (RoHS) standards that restrict lead and other toxic substances that can harm the environment.

Page 3

HalO™ Display

107cm (42") multimedia Full HD

Specifications

BDL4230EC/00

Picture/Display

• Diagonal screen size: 42 inch / 107 cm

• Panel resolution: 1920x1080p

• Optimum resolution: 1920 x 1080 @ 60Hz

• Brightness: 500 cd/m²

• Contrast ratio (typical): 1400:1

• Response time (typical): 5 ms

• Aspect ratio: 16:9

• Viewing angle (H / V): 178 / 178 degree

• Pixel pitch: 0.485 x 0.485

• Display colors: 1.06 Billion colors

• Picture enhancement: 3/2 - 2/2 motion pull down, mbfi

3D Co Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement

lter, Motion compens. deinterlacing,

Supported Display Resolution

• Computer formats

Resolution Refresh rate 640 x 480 60, 67, 72, 75Hz 800 x 600 56, 60, 72, 75Hz 1024 x 768 60Hz 1280 x 768 60 1280 x 800 60Hz 1280 x 1024 60Hz 1360 x 768 60Hz 1366 x 768 60Hz 1440 x 900 60Hz 1600 x 1200 60Hz 1920 x 1080 60Hz 1920 x 1200 60Hz

deo formats

• Vi

Res

olution Refresh rate 480i 60Hz 480p 60Hz 576p 50Hz 576i 50Hz 720p 50, 60Hz 1080i 50, 60Hz 1080p 50, 60Hz

Connectivity

• PC: VGA-in D-Sub 15HD, VGA-out D-Sub 15HD, DVI-D x1, RS232 D-Sub9, RS232 D-sub9 output,

3.5 mm PC audio input x1

• AV input: HDMI x1, Component (BNC) x1,

osite (RCA) x1, Composite (BNC) x1, S-

Co video x1, Audio (L/R) x2

• AV output: Composite (BNC) x1, Audio (L/R) x1

• Other connections: AC-out, External loudspeaker

ector

Convenience

• Placement: Portrait, Landscape

• Picture in picture:: PBP, PIP, POP

• Screen saving functions: Pixel shift, Low bright

• Signal Loop Through:: RS232, VGA

• Keyboard control:: Hidden, Lockable

• Remote control signal:: Lockable

• Ease of installation: AC Out, Carrying Handles, Smart Insert

• Energy saving functions:: Ambient light sensor, Smart Pow

• Picture performance: Advanced color control

• Packaging:: Reusable box

• Network controllable: RS232

Dimensions

• Bezel thickness: 2.9 cm / 1.14 inch

• Smart insert (WxHxD): 160 x 300 x 55 mm

• Smart insert in inch (WxHxD): 6.30 x 11.81 x 2.17 inch

•Set dimensions (W x H x D):

x 745 x 130 mm

• Set dimensions in inch (W x H x D):

x 29.3 x 5.2 inch

45.3

• Product weight: 31.3 kg

• Product weight (lb): 68.9

• VESA Mount: 200x200mm, 400x200mm (Set),

0x1

00mm (Smart insert)

Operating conditions

• Temperature range (operation): 0 - 40 °C

• Relative humidity: 5 - 90 %

• MTBF: 50.000 hour(s)

Power

• Mains power: 90-264 VAC, 50/60 Hz

• Consumption (On mode): Typ. 120W

• Standby power consumption: <1W

Sound

• Built-in speakers: 2 x 12 W (8 ohm)

Accessories

• Included accessories: Remote Control, Batteries for remote control, AC Power Cord, VGA cable, User manual on CD-ROM, Quick start guide, LED Color Changing RC

• Optional accessories: Fixed wall mount, Flexible

• Stand: BM05411

wall mo

unt, C

eiling mount

Miscellaneous

• Warranty: Europe/North America: 3 years

• On-Screen Display Languages: English, French,

erman, Italian, Polish, Turkish, Russian, Simplified

G Chinese

• Regulatory approvals: CE, FCC, Class B, CCC,

HS, U

L/cUL

•

Issue date 2012-06-18

Version: 1.2.1

12 NC: 8670 000 81888 EAN: 87 12581 62034 9

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
