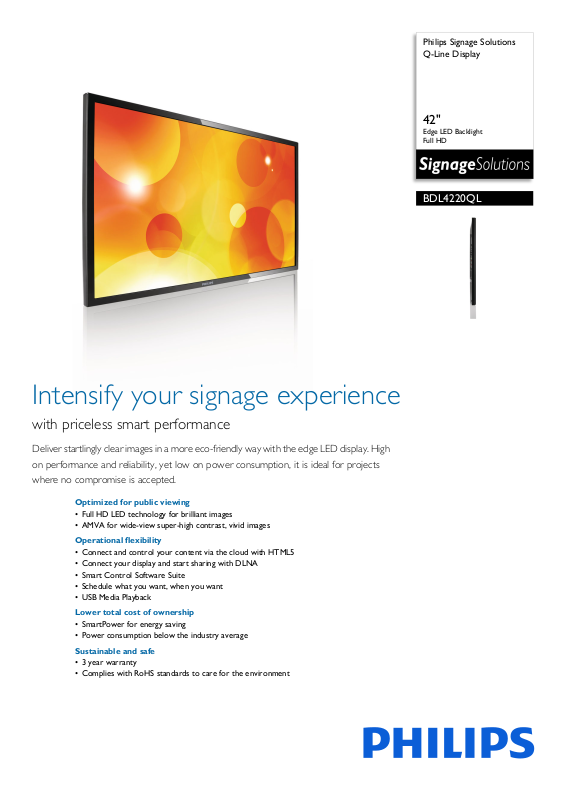

Page 1
Philips Signage Solutions
Q-Line Display
42"
Edge LED Backlight
Full HD
BDL4220QL
Intensify your signage experience
with priceless smart performance
Deliver startlingly clear images in a more eco-friendly way with the edge LED display. High
on performance and reliability, yet low on power consumption, it is ideal for projects
where no compromise is accepted.
Optimized for public viewing
• Full HD LED technology for brilliant images
• AMVA for wide-view super-high contrast, vivid images
Operational flexibility
• Connect and control your content via the cloud with HTML5
• Connect your display and start sharing with DLNA
• Smart Control Software Suite
• Schedule what you want, when you want
• USB Media Playback
Lower total cost of ownership
• SmartPower for energy saving
• Power consumption below the industry average
Sustainable and safe
• 3 year warranty
• Complies with RoHS standards to care for the environment
Page 2
BDL4220QL/00
Q-Line Display
42" Edge LED Backlight, Full HD
Highlights
AMVA Display Technology
Philips AMVA LED display uses an advanced
m
ulti-domain vertical alignment technology
which gives you super-high static contrast
ratios for extra vivid and bright images. While
standard applications are handled with ease, it
is especially suitable for graphical demanding
applications. It's optimized pixel management
technology gives you 178/178 degree extra
wide viewing angle, resulting in crisp images.
Smart Control
Control and manage all of the signage displays
o
n your network with this powerful software
tool which allows you to change the settings of
your display centrally via an RJ45 or RS232
connection. Smart Control allows you to set
the video input, modify the color settings, set
the display's ID when creating video walls and
even diagnose each display's status, giving you
all the power you need to manage your
displays from one central location.
Share & Stream with DLNA
Simply share & stream content from your
mobil
e device or media player to your display
with all DLNA compliant media devices.
Connect each display with an ethernet cable
and manage your content real time within your
local network. Simply connect your display and
start sharing.
USB Playback
Enjoy your own media playback via the USB
po
rt. Simply plug in a USB drive, and create
your own signage content to convey the
marketing messages you want, when you want
them. With a wide range of media formats
supported, this powerful media player offers an
excellent picture and true flexibility.
24 hour scheduling function
You can freely schedule the right content at
t
he right time to satisfy your customer
information needs. Mix and manage your
content over multiple video input signals as
USB, VGA, DVI and HDMI. Simply create one
or more play lists with the scheduling function
to be in control of your content 24 hours a
day, 7 days a week.
SmartPower
The backlight intensity can be controlled and
p
re-set by the system to reduce the power
consumption by up to 50%, which saves
substantially on energy costs.
Page 3
BDL4220QL/00
Q-Line Display
42" Edge LED Backlight, Full HD
Specifications
Picture/Display
• Diagonal screen size: 42 inch / 106.7 cm
• Panel resolution: 1920x1080p
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Brightness: 350 cd/m²
• Contrast ratio (typical): 3000:1
• Response time (ty
• Aspect ratio: 16:9
• Viewing angle (H / V): 178 / 178 degree
• Pixel pitch: 0.16 x 0.48mm
• Display colors: 16.7 Million
• Surface treatment: Anti-Glare coating
• Picture enhancement: 3/2 - 2/2 motion pull down,
mbfi
3D Co
Progressive scan, 3D MA deinterlacing, Dynamic
contrast enhancement
p
ical): 6.5 ms
lter, Motion compens. deinterlacing,
Supported Display Resolution
• Computer formats
Resolution Refresh rate
640 x 480 60, 67, 72, 75Hz
800 x 600 56, 60, 72, 75Hz
1024 x 768 60Hz
1280 x 768
12
80 x 800 60Hz
1360 x 768 60Hz
1366 x 768 60Hz
1440 x 900 60Hz
1920 x 1080 60Hz
deo formats
• Vi
olution Refresh rate
Res
480i 60Hz
480p 60Hz
576p 50Hz
576i 50Hz
720p 50, 60Hz
1080i 50, 60Hz
1080p 50, 60Hz
60Hz
Connectivity
• Video input: DVI-D, HDMI, VGA (Analog D-Sub),
USB, Component (RCA), Composite (RCA)
• Audio input: 3.5 mm jack, Audio Left/Right (RCA)
• Audio output: SPDIF, Audio Left/Right (RCA)
• External control: RJ45, RS232C (in/out) 2.5 mm
c
k, IR (in/out) 3.5 mm jack
ja
Convenience
• Screen saving functions: Pixel Shift, Low Brightness
• Keyboard control: Hidden
• Network controllable: RS232
• Signal loop through: RS232
Dimensions
•Set dimensions (W x H x D):
980.4 x 572.9 x 38.5 mm
• Bezel width: 19.7 mm
• Product weight: 11.9 kg
• VESA Mount: 400 x 400mm
•Box dimensions (W x H x D):
70.0
x 727.0 x 148.0 mm
10
• Weight incl. Packaging: 15.3 kg
Operating conditions
• Temperature range (operation): 0 ~ 40 °C
• Temperature range (storage): -20 ~ 60 °C
• Relative humidity: 20 ~ 80 %
• MTBF: 50,000 hour(s)
Power
• Mains power: 100 ~ 240 VAC
• Consumption (On mode): 55 W
test method)
• Standby power consumption: <0.5 W
(EnergyStar 6.0
Sound
• Built-in speakers: 2 x 7W RMS
Accessories
• Included accessories: AC Power Cord, RS232
cable, VGA cable, Remote Control, Batteries for
remote control, User manual on CD-ROM, Quick
start guide
• Stand: BM02542
Multimedia Applications
• USB Playback Video: 3G2, 3GP, ASF, ASX, AVI,
DAT, F4V, FLV, M2TS, M4V, MK3D, MKV, MOV,
MP4, MPE, MPEG, MPG, MTS, QT, TRP, TS, TTS,
VOB, WEBM, WMV, Xvid
• USB Playback Picture: BMP, GIF, JPEG, JPG
• USB Playback Audio: AAC, AC3, AIF
EC3, M4A, MP3, OGA, OGG, WAV, WMA
,
AIFF, AMR,
Miscellaneous
• Warranty: 3 year warranty
• On-Screen Display Languages: English, French,
erman, Italian, Polish, Russian, Spanish, Turkish,
G
Simplified Chinese, Traditional Chinese
• Regulatory approvals: CE, FCC, Class B, CCC,
o
HS, UL/cUL, C-Tick, BSMI, CB, GOST
R
•
Issue date 2021-12-14
Version: 4.0.1
12 NC: 8670 001 07131
EAN: 87 12581 69858 4
© 2021 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
