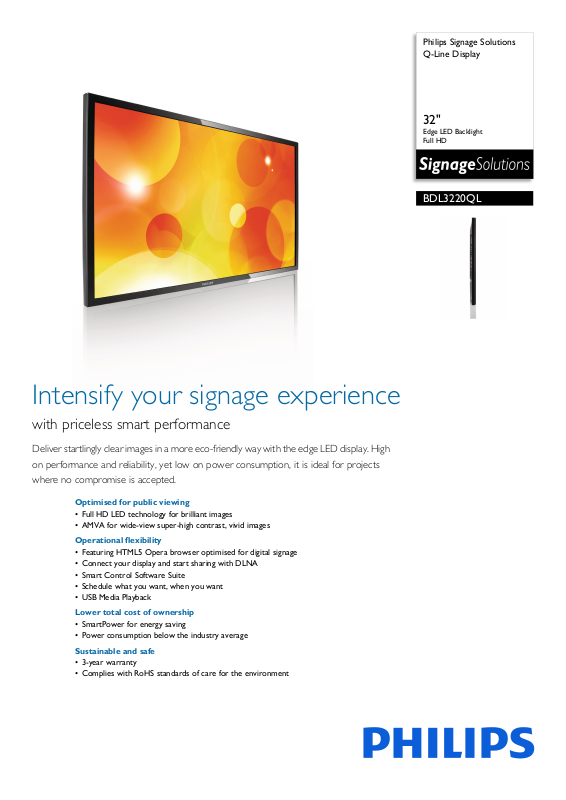

Philips Signage Solutions Q-Line Display

32"

Edge LED Backlight Full HD

BDL3220QL

Intensify your signage experience

with priceless smart performance

Deliver startlingly clear images in a more eco-friendly way with the edge LED display. High on performance and reliability, yet low on power consumption, it is ideal for projects where no compromise is accepted.

Optimised for public viewing

• Full HD LED technology for brilliant images

• AMVA for wide-view super-high contrast, vivid images

Operational flexibility

• Featuring HTML5 Opera browser optimised for digital signage

• Connect your display and start sharing with DLNA

• Smart Control Software Suite

• Schedule what you want, when you want

• USB Media Playback

Lower total cost of ownership

• SmartPower for energy saving

• Power consumption below the industry average

Sustainable and safe

• 3-year warranty

• Complies with RoHS standards of care for the environment

Page 2

Q-Line Display

32" Edge LED Backlight, Full HD

Highlights

BDL3220QL/00

AMVA Display Technology

Philips AMVA LED display uses an advanced m

ulti-domain vertical alignment technology which gives you super-high static contrast ratios for extra vivid and bright images. While standard applications are handled with ease, it is especially suitable for graphical demanding applications. Its optimised pixel management technology gives you a 178/178 degree extra wide viewing angle, resulting in crisp images.

Smart Control

Control and manage all of the signage displays o

n your network with this powerful software tool, which allows you to change the settings of your display centrally via an RJ45 or RS232 connection. Smart Control allows you to set the video input, modify the colour settings, set the display's ID when creating video walls and even diagnose each display's status, giving you all the power you need to manage your displays from one central location.

Share and Stream with DLNA

Simply share and stream content from your mobile

device or media player to your display

with all DLNA compliant media devices. Connect each display with an ethernet cable and manage your content in real time within your local network. Simply connect your display and start sharing.

USB Playback

Enjoy your own media playback via the USB po

rt. Simply plug in a USB drive and create your own signage content to convey the marketing messages you want, when you want them. With a wide range of media formats supported, this powerful media player offers an excellent picture and true flexibility.

24-hour scheduling function

You can freely schedule the right content at th

e right time to satisfy your customer information needs. Mix and manage your content over multiple video input signals such as USB, VGA, DVI and HDMI. Simply create one or more playlists with the scheduling function to be in control of your content 24 hours a day, 7 days a week.

SmartPower

The backlight intensity can be controlled and p

re-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

Compliant with RoHS standards

Philips designs and produces display products i

n compliance with strict Restriction of Hazardous Substances (RoHS) standards that restrict lead and other toxic substances that can harm the environment.

Energy

For many years Philips has pro-actively been w

orking on energy efficiency. As a result, most Philips products have achieved green energy labels. The greener the label, the lower the energy consumption, the lower your energy bill and the friendlier for the environment.

Page 3

Q-Line Display

32" Edge LED Backlight, Full HD

Specifications

BDL3220QL/00

Picture/Display

• Diagonal screen size: 31.5 inch / 80 cm

• Panel resolution: 1920 x 1080p

• Optimum resolution: 1920 x 1080 @ 60 Hz

• Brightness: 350 cd/m²

• Contrast ratio (typical): 3000:1

• Response time (ty

• Aspect ratio: 16:9

• Viewing Angle (H / V): 178 / 178 degree

• Pixel pitch: 0.12125 x 0.36375 mm

• Display colours: 16.7 Million

• Surface treatment: Anti-Glare coating

• Picture enhancement: 3/2 - 2/2 motion pull down, mbfi

3D Co Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement

ical): 6.5 ms

lter, Motion compens. deinterlacing,

Supported Display Resolution

• Computer formats

Resolution Refresh rate 640 x 480 60, 67, 72, 75 Hz 800 x 600 56, 60, 72, 75 Hz 1024 x 768 60 Hz 1280 x 768 60 Hz 1280 x 800 60 1360 x 768 60 Hz 1366 x 768 60 Hz 1440 x 900 60 Hz 1600 x 1200 60 Hz 1920 x 1080 60 Hz 1920 x 1200 60 Hz

deo formats

• Vi

olution Refresh rate

Res 480i 60 Hz 480p 60 Hz 576p 50 Hz 576i 50 Hz 720p 50, 60 Hz 1080i 50, 60 Hz 1080p 50, 60 Hz

Connectivity

• Video input: DVI-D, HDMI, VGA (Analogue D-

Sub), USB, Component (RCA), Composite (RCA)

• Audio input: 3.5-mm jack, Audio Left/Right (RCA)

• Audio output: SPDIF, Audio Left/Right (RCA)

• External control: RJ45, RS232C (in/out) 2.5 mm

k, IR (in/out) 3.5 mm jack

Convenience

• Screen-saving functions: Pixel Shift, Low Brightness

• Keyboard control: Hidden

• Network controllable: RS232

• Signal Loop Through: RS232

Dimensions

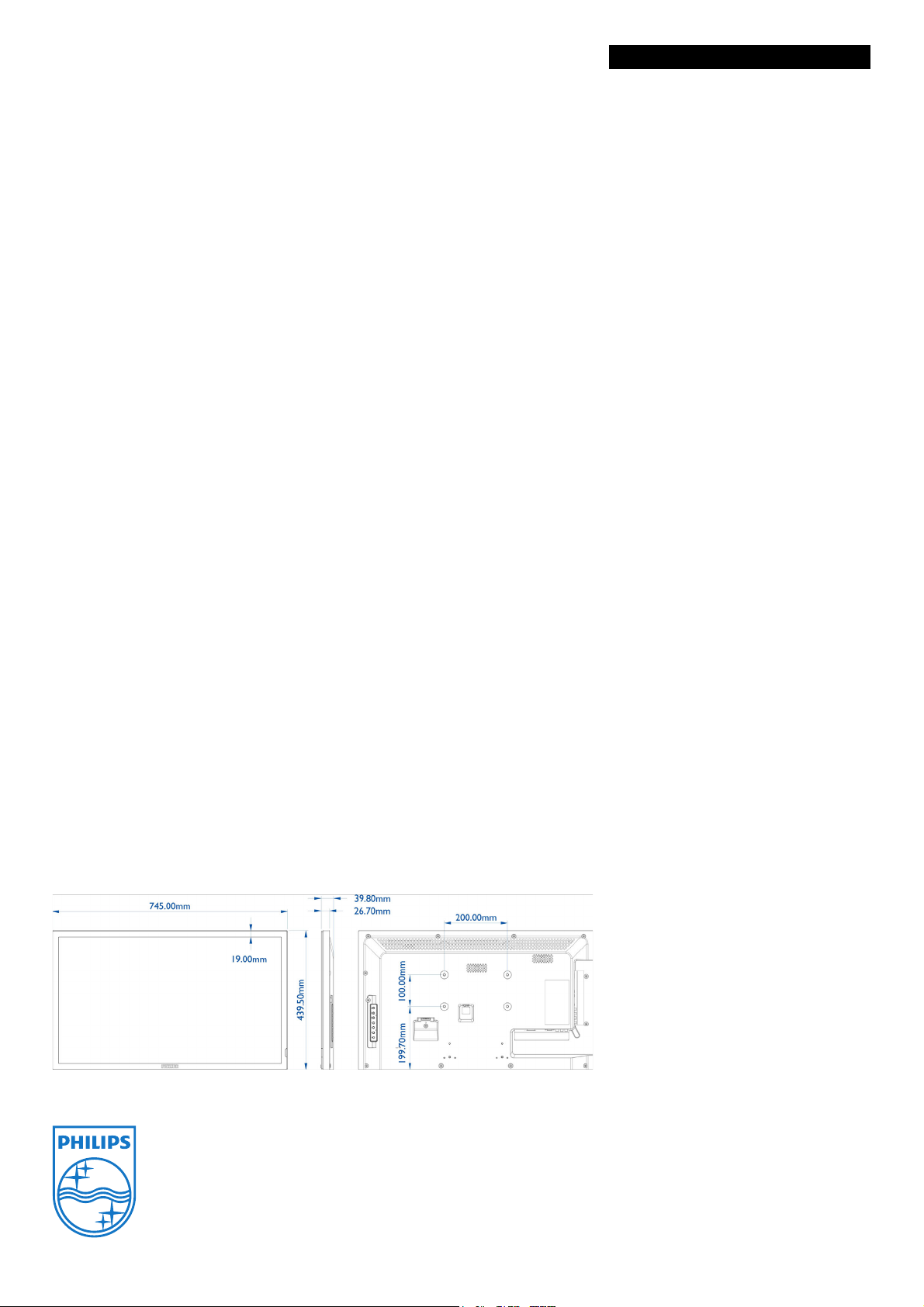

•Set dimensions (W x H x D):

745.0 x 439.5 x 39.8 mm

• Bezel width: 19 mm

• Product weight: 6.5 kg

• VESA Mount: 200 x 100 mm

•Box dimensions (W x H x D):

1.0

x 557.0 x 119.0 mm

• Weight incl. Packaging: 9.0 kg

Operating conditions

• Temperature range (operation): 0 ~ 40 °C

• Relative humidity: 5 ~ 90 %

• MTBF: 60,000 hour(s)

Power

• Consumption (On mode): 36 W (EnergyStar 6.0 test method)

• Standby power consumption: <0.5 W

Sound

• Built-in speakers: 2 x 10 W RMS

Accessories

• Included accessories: AC Power Cord, RS232 cable, VGA cable, Remote Control, Batteries for remote control, User manual on CD-ROM, Quick start guide

Multimedia Applications

• USB Playback Video: 3G2, 3GP, ASF, ASX, AVI, DAT, DivX, F4V, FLV, M2TS, M4V, MK3D, MKV, MOV, MP4, MPE, MPEG, MPG, MTS, QT, TRP, TS, TTS, VOB, WEBM, WMV, Xvid

• USB Playback Picture: BMP, GIF, JPEG, JPG

• USB Playback Audio: AAC, AC3, AIF EC3, M4A, MP3, OGA, OGG, WAV, WMA

AIFF, AMR,

Miscellaneous

• Warranty: 3-year warranty

• On-Screen Display Languages: English, French,

erman, Italian, Polish, Turkish, Russian, Simplified

G Chinese, Spanish, Traditional Chinese

• Regulatory approvals: CE, FCC, Class B, CCC,

HS, UL/cUL, C-Tick, BSMI, CB, GOST

•

Issue date 2013-12-12

Version: 2.0.1

12 NC: 8670 000 95108 EAN: 87 12581 65983 7

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
