Philips BDL3215E/00 leaflet

Download

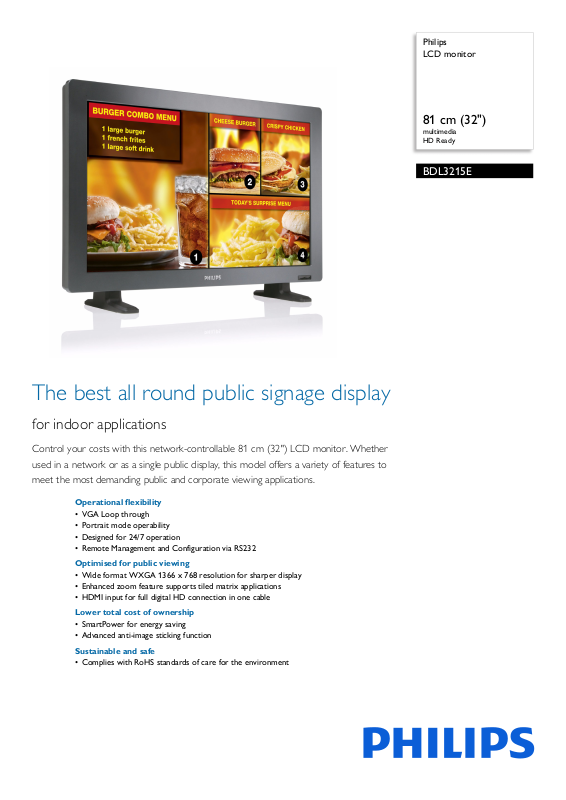

Page 1

Philips LCD monitor

81 cm (32")

multimedia HD Ready

BDL3215E

The best all round public signage display

for indoor applications

Control your costs with this network-controllable 81 cm (32") LCD monitor. Whether used in a network or as a single public display, this model offers a variety of features to meet the most demanding public and corporate viewing applications.

Operational flexibility

• VGA Loop through

• Portrait mode operability

• Designed for 24/7 operation

• Remote Management and Configuration via RS232

Optimised for public viewing

• Wide format WXGA 1366 x 768 resolution for sharper display

• Enhanced zoom feature supports tiled matrix applications

• HDMI input for full digital HD connection in one cable

Lower total cost of ownership

• SmartPower for energy saving

• Advanced anti-image sticking function

Sustainable and safe

• Complies with RoHS standards of care for the environment

Page 2

BDL3215E/00

LCD monitor

81 cm (32") multimedia, HD Ready

Highlights

WXGA 1366 x 768 resolution

The wide format of XGA resolution LCD pan

el is capable of displaying 1366 x 768 pixels; WXGA allows monitors to be non-interlaced to ensure a better display performance and accurate colour display effect.

Zoom function for t

The internal zoom function enables easy im

plementation of a video wall matrix, without the need for expensive external equipment. Capable of a vidiwall of 25 displays by dividing up to 5 displays each horizontally and vertically.

HDMI input

HDMI makes an uncompressed digital RGB connection eliminating conversion to an analogue signal, it delivers an unblemished image. The nondegraded signal reduces flicker and leads to a

from the source to the screen. By

iled matrix

clearer picture. HDMI intelligently communicates the highest output resolution with the source device. The HDMI input is fully backwards-compatible with DVI sources but includes digital audio. HDMI uses HDCP copy protection.

SmartPower

The backlight intensity can be controlled and pre-se

t by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

Advanced anti-image sticking

Static images left on-screen for extended pe

riods of time may leave a "ghost image" or image sticking effect on LCD displays. Although image sticking on LCD displays is not permanent, you want to prevent this happening, especially in locations where content is shown 24/7.

Compliant with RoHS standards

Philips designs and produces display products i

n compliance with strict Restriction of Hazardous Substances (RoHS) standards that restrict lead and other toxic substances that can harm the environment.

Designed for 24/7 operation

Because business never sleeps, our signage dis

plays are designed for 24/7 use. Taking advantage of superior components to ensure a higher level of quality, you can count on this range of models for complete around-theclock reliability.

Remote Management: RS232

Remote Management allows the user to control

and adjust the displays remotely via the RS232 protocol. Using CEC commands, you are able to have full control over all the displays in your signage network at any time.

Page 3

BDL3215E/00

LCD monitor

81 cm (32") multimedia, HD Ready

Specifications

Picture/Display

• Diagonal screen size: 32 inch / 81 cm

• Panel resolution: 1366 x 768p

• Optimum resolution: 1360 x 768 @ 60 Hz

• Brightness: 450 cd/m²

• Contrast ratio (typical): 3000:1

• Response time (typical): 8 ms

• Aspect ratio: 16:9

• Viewing Angle (H / V): 178 / 178 degree

• Pixel pitch: 0.511 x 0.511

• Display colours: 16.7 million colours

• Picture enhancement: 3/2 - 2/2 motion pull down, mbfi

3D Co Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement

lter, Motion compens. deinterlacing,

Supported Display Resolution

mputer formats

• Co

Res

olution Refresh rate 640 x 480 60, 67, 72, 75 Hz 800 x 600 56, 60, 72, 75 Hz 1024 x 768 60 Hz 1280 x 768 60 Hz 1280 x 800 60 Hz 1280 x 1024 60 Hz 1360 x 768 60 Hz 1366 x 768 60 Hz 1440 x 900 60 Hz 1600 x 1200 60 Hz 1920 x 1080 60 Hz 1920 x 1200 60 Hz

deo formats

• Vi Res

olution Refresh rate 480i 60 Hz 480p 60 Hz 576p 50 Hz 576i 50 Hz 720p 50, 60 Hz 1080i 50, 60 Hz 1080p 50, 60 Hz

Connectivity

• PC: VGA-in D-Sub 15HD, VGA-out D-Sub 15HD, DVI-D x 1, RS232 D-Sub9, RS232 D-sub9 output,

3.5 mm PC audio input x 1

• AV input: HDMI x 1, Component (BNC) x 1,

osite (RCA) x 1, Composite (BNC) x 1, S-

Co video x 1,

• AV output: Composite (BNC) x 1, Audio (L/R) x 1

Audio (L/R) x 2

Convenience

• Placement: Portrait, Landscape

• Tiled Matrix: 5 x 5

• Picture in picture: PBP, PIP, POP

• Screen-saving functions: Pixel shift, Low bright

• Signal Loop Through: RS232, VGA

• Keyboard control: Hidden, Lockable

• Remote control signal:: Lockable Ease of installation: Carrying Handles

•

• Energy-saving functions: Smart Power

• Picture performance: Advanced colour control

• Network controllable: RS232

Dimensions

• Bezel thickness: 4.6 cm/1.81 inch

• Set dimensions (W x H x D): 792 x 487 x 115 mm

• Set dimensions in inch (W x H x D):

x 19.2 x 4.5 inch

31.2

• Set dimensions with stand (H x D): 531 x 205 mm

•Set dimensions with st

20.9 x 8.1 inch

• Product weight: 11.95 kg

• Product weight (lb): 26.35

• VESA Mount: 200

and in inch (H x

x 200 mm, 400 x 200 mm

D):

Operating conditions

• Temperature range (operation): 0 - 40 °C

• Relative humidity: 5 - 90 %

• MTBF: 50,000 hour(s)

Power

• Mains power: 90-264 VAC, 50/60 Hz

• Consumption (On mode): Typ. 67 W

• Standby power consumption: <1 W

Sound

• Built-in speakers: 2 x 7 W (8 ohm)

Accessories

• Included accessories: Remote Control, Batteries for remote control, AC Power Cord, VGA cable, User manual on CD-ROM, Quick start guide, Tabletop stand

• Optional accessories: Fixed wall mount, Flexible wall mo

unt, C

eiling mount

Miscellaneous

• Bezel: metallic anthracite

• Warranty: Europe/North America: 3 years

On-Screen Display Languages: En

• erman, Italian, Polish, Turkish, Russian, Simplified

G Chinese

• Regulatory approvals: CE, FCC, Class B, UL/cUL,

C, R

oHS

•

glish, French,

Issue date 2017-08-08

Version: 5.4.3

12 NC: 8670 000 58235 EAN: 87 12581 51555 3

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
