DISCRETE SEMICONDUCTORS
lfpage
M3D049
BB134
UHF variable capacitance diode
Product specification |
1996 May 03 |
Supersedes data of November 1993
File under Discrete Semiconductors, SC01
Philips Semiconductors |
Product specification |
|
|
UHF variable capacitance diode |
BB134 |
|
|
|
|
FEATURES
∙Excellent linearity
∙Excellent matching to 0.5% DMA
∙Very small plastic SMD package
∙C28: 1.9 pF; ratio: 10
∙Low series resistance.
APPLICATIONS
∙Electronic tuning in UHF television tuners
∙VCO.
DESCRIPTION
handbook, 4 columns |
k |
a |
|
|
MAM130 |
Marking code: P4.
Cathode side indicated by a white bar.
Fig.1 Simplified outline (SOD323) and symbol.
The BB134 is a variable capacitance diode, fabricated in planar technology, and encapsulated in the SOD323 very small plastic SMD package.
The excellent matching performance is achieved by a direct matching assembly procedure. The unmatched type, BB135 has the same specification.
ELECTRICAL CHARACTERISTICS
Tj = 25 °C; unless otherwise specified.
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL |
PARAMETER |
MIN. |
MAX. |
UNIT |
|
|
|
|
|
VR |
continuous reverse voltage |
− |
30 |
V |
IF |
continuous forward current |
− |
20 |
mA |
Tstg |
storage temperature |
−55 |
+150 |
°C |
Tj |
operating junction temperature |
−55 |
+125 |
°C |
SYMBOL |
PARAMETER |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
|
|
|
|
|
|
IR |
reverse current |
VR = 30 V; see Fig.3 |
− |
− |
10 |
nA |
|
|
VR = 30 V; Tj = 85 °C; see Fig.3 |
− |
− |
200 |
nA |
rs |
diode series resistance |
f = 470 MHz; note 1 |
− |
− |
0.75 |
Ω |
Cd |
diode capacitance |

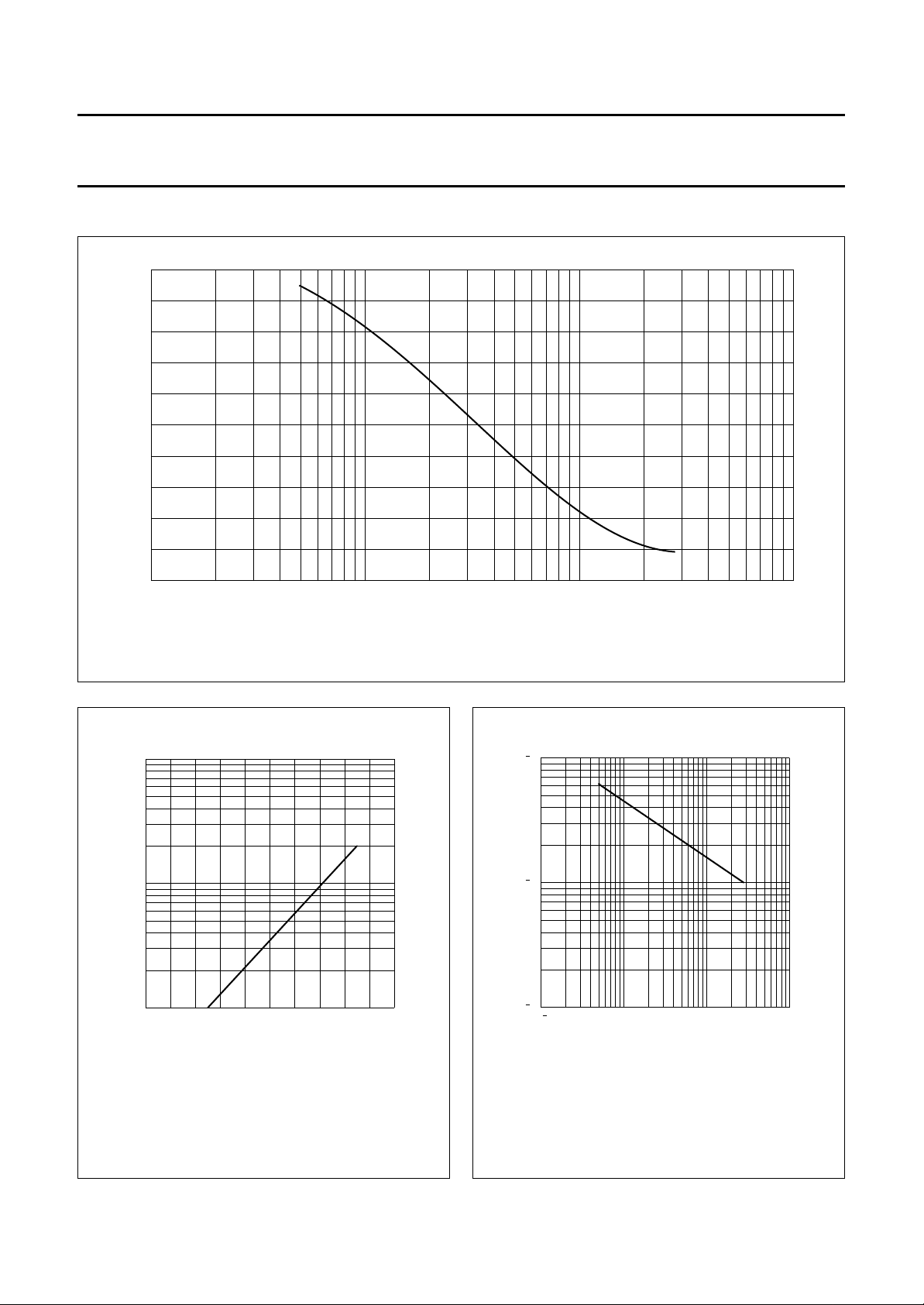

VR = 0.5 V; f = 1 MHz; see Figs 2 and 4 |
17.5 |
− |
21 |
pF |
|
|
VR = 28 V; f = 1 MHz; see Figs 2 and 4 |
1.7 |
− |
2.1 |
pF |
Cd (0.5V) |
capacitance ratio |
f = 1 MHz |
8.9 |
− |
12 |
|
|
|
|
|
|
|
|
--------------------- |
|
|
|
|
|
|
Cd (28V) |
|
|
|
|
|
|
Cd |
capacitance matching |
VR = 0.5 to 28 V; in a sequence of 4 diodes |
− |
− |
0.5 |
% |
---------- |
|
(gliding) |
|
|
|
|
Cd |
|
|
|
|
|
|
|
VR = 0.5 to 28 V; in a sequence of 15 diodes |
− |
− |
2 |
% |
|
|
|
|||||
|
|
(gliding) |
|
|
|
|
|
|
|
|
|
|
|
Note |
|
|
|
|
|
|
1. VR is the value at which Cd = 9 pF.
