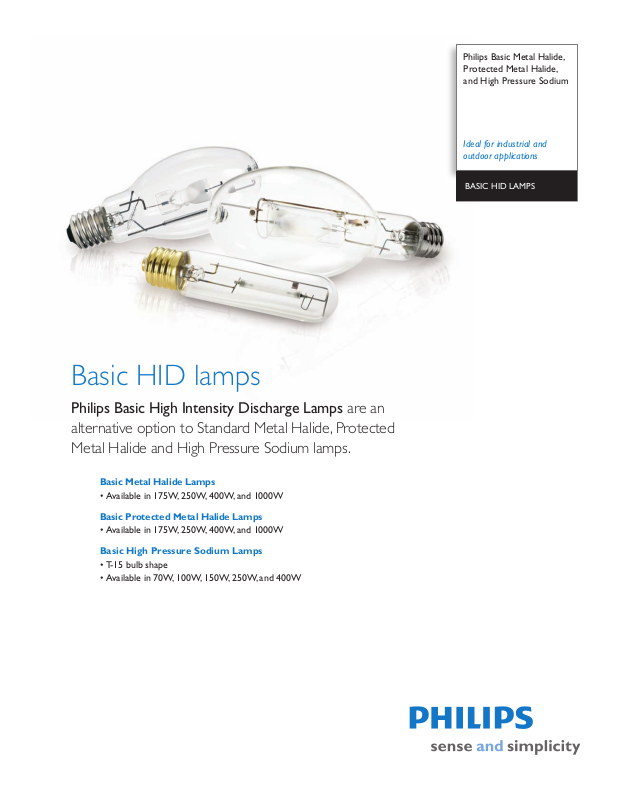

BASIC HID LAMPS

Basic HID lamps

Philips Basic High Intensity Discharge Lamps are an alternative option to Standard Metal Halide, Protected Metal Halide and High Pressure Sodium lamps.

Basic Metal Halide Lamps

• Available in 175W, 250W, 400W, and 1000W

Basic Protected Metal Halide Lamps

• Available in 175W, 250W, 400W, and 1000W

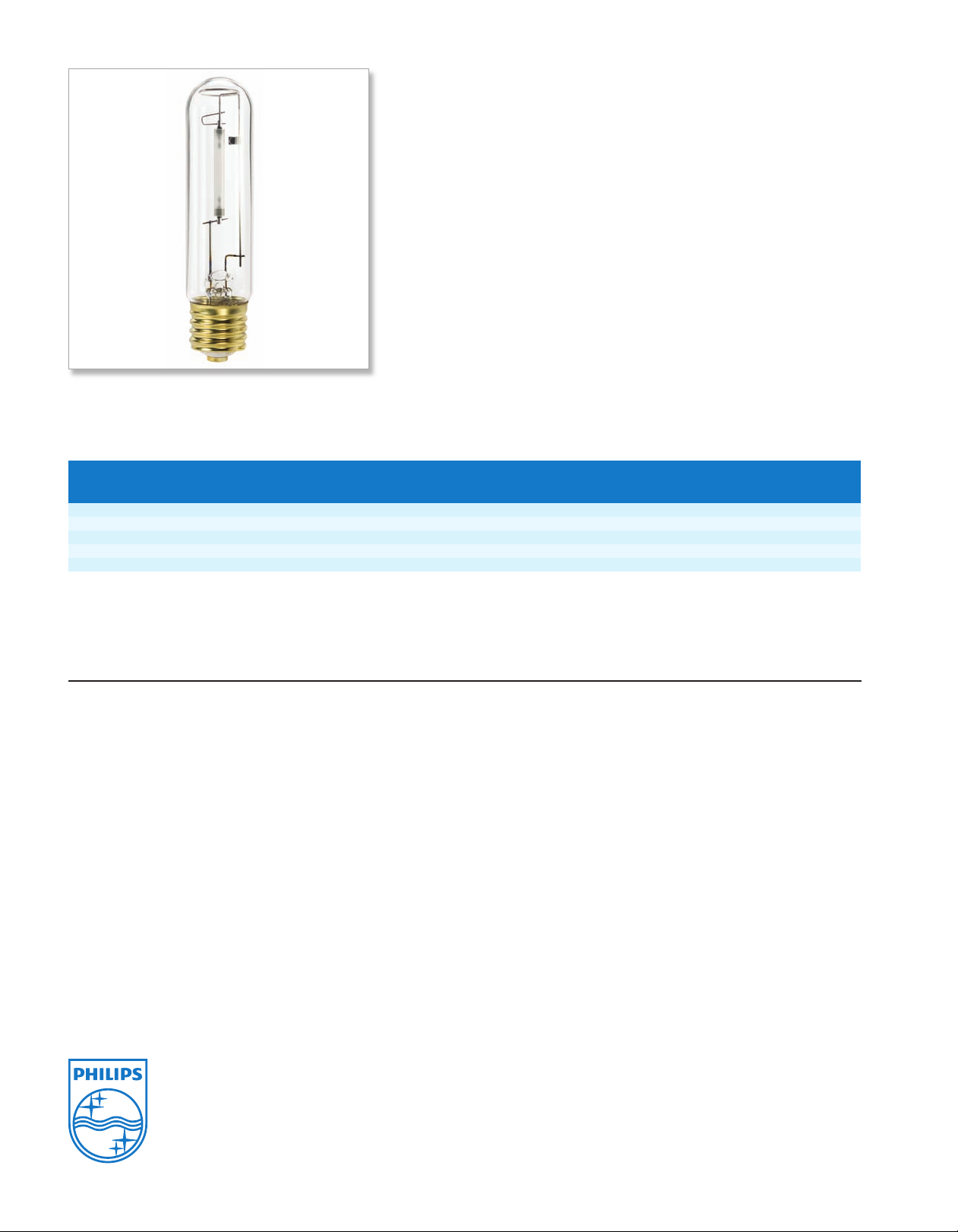

Basic High Pressure Sodium Lamps

• T-15 bulb shape

• Available in 70W, 100W, 150W, 250W, and 400W

Philips Basic Metal Halide Lamps

Ordering, Electrical andTechnical Data

Product Pkg Bulb ANSI MOL LCL Avg.Life Initial Mean Temp. Number Description Watts Qty Bulb Finish Base Code (In.) (In.) (Hrs.)

15104-3 MH175/U BASIC 175 12 ED-28 Clear Mogul M57/E 85⁄16 5 7500 12,000 10,000 4300 15105-0 MH250/U BASIC 250 12 ED-28 Clear Mogul M58/E 85⁄16 5 7500 18,000 14,000 4300 15106-8 MH400/U BASIC 400 6 ED-37 Clear Mogul M59/E 111⁄2 7 15,000 32,000 22,000 4300 15107-6 MH1000/U BASIC 1000 6 BT-56 Clear Mogul M47/E 15

1) Rated average life is the life obtained, on the average, from large representative groups of lamps in laboratory tests under controlled conditions at 10 or more operating hours per start. It is based on survival of at least 50% of the lamps and allows for individual lamps or groups of lamps to vary considerably from the average. For HPS lamps with a rated average life of 18,000 hours, life is based on survival of 67% of the lamps.

2) Measured at 100 hours of life in ver tical operating position.

3) Approximate mean lumen output at 40% of lamp rated average life. Measured in ver tical operating position.

4) Approximate color temperature in Kelvin degrees.

Above specifications subject to change without notice.

⁄8 91⁄2 9000 95,000 75,000 4300

Rated Approx. Approx. Color

Lumens2Lumens3(K)

WARNINGS, CAUTIONS AND OPERATING INSTRUCTIONS for Basic Metal Halide Lamps (Enclosed Fixtures Only Unless Otherwise Noted)

Warnings,Cautions and Operating Instructions

“WARNING: These lamps can cause serious skin

burn and eye inﬂammation from short wave ultraviolet radiation if outer envelope of the lamp is broken or punctured. Do not use where people will remain for more than a few minutes unless adequate shielding or other safety precautions are used. Certain lamps that will automatically extinguish when the outer envelope is broken or punctured are commercially available.”This lamp complies with FDA radiation performance standard 21 CFR subchapter J. (USA: 21CFR 1040.30 Canada:SOR/DORS/80-381)

If the outer bulb is broken or punctured, turn off at once and replace the lamp to avoid possible injury from hazardous short wave ultraviolet radiation. Do not scratch the outer bulb or subject it to pressure as this could cause the outer bulb to crack or shatter.A partial vacuum in the outer bulb may cause glass to ﬂy if the envelope is struck.

WARNING:The arc-tube of metal halide lamps are

designed to operate under high pressure and at temperatures up to 1000º C and can unexpectedly rupture due to internal or external factor s such as a ballast failure or misapplication. If the arc-tube ruptures for any reason, the outer bulb may break and pieces of extremely hot glass might be discharged into the surrounding environment. If such a rupture were to happen, THERE IS A RISK OF

PERSONAL INJURY, PROPERTY DAMAGE, BURNS AND FIRE.

Certain lamps that will retain all the glass particles should inner arc-tube rupture occur are commercially available from Philips Lighting Company.

RELAMP FIXTURES AT OR BEFORETHE END OF RATED LIFE.Allowing lamps to operate until they fail is not advised and may increase the possibility of inner arc tube rupture.

CAUTION:TO REDUCETHE RISK OF PERSONAL

INJURY, PROPERTY DAMAGE, BURNS AND FIRE RESULTING FROM AN ARC-TUBE RUPTURETHE FOLLOWING LAMP OPERATING INSTRUCTIONS MUST BE FOLLOWED:

LAMP OPERATING INSTRUCTIONS:

1. Turn off lamps at least once a week for at least 15 minutes in systems which are operating on a continuous basis (24 hours/day-7days/week). FAILURE TOTURN OFF LAMPS FOR THE MINIMUM RECOMMENDED TIME MAY INCREASE THE POSSIBILITY OF AN INNER ARC-TUBE RUPTURE.

2. RELAMP FIXTURES AT OR BEFORETHE END OF RATED LIFE. Allowing lamps to operate until they fail is not advised and may increase the possibility of inner arc tube rupture.

3. Use only in an enclosed ﬁxture capable of withstanding particles of glass having temperatures up to 1000ºC.

4. Before lamp installation/replacement, shut power off and allow lamp and ﬁxture to cool to avoid electrical shock and potential burn hazards.

5. Use only auxiliar y equipment meeting Philips and/or ANSI standards. Use within voltage limits recommended by ballast manufacturer.

A. Operate lamp only within speciﬁed limits of operation. B. For total supply load refer to ballast manufacturers

electrical data.

6. Periodically inspect the outer envelope. Replace any lamps that show scratches, cracks or damage.

7. If a lamp bulb support is used, be sure to insulate the support electrically to avoid possible decomposition of the bulb glass.

8. Protect lamp base, socket and wiring against moisture, corrosive atmospheres and excessive heat.

9. Time should be allowed for lamps to stabilize in color when turned on for the ﬁrst time.This may require several hours of operation, with more than one start. Lamp color is also subject to change under conditions of excess vibration or shock and color appearance may vary between individual lamps.

10. Lamps may require 10 to 20 minutes to re-light if

there is a power interruption.

11. Take care in handling and disposing of lamps. If an arc

tube is broken, avoid skin contact with any of the contents or fragments.

12. Do not use this lamp:

A. In a ﬁxture that contains a Pulse Start metal

halide ballast.

B. In a ﬁxture that is speciﬁcally designed for use with

Pulse Start metal halide lamps.

Operation of these lamps on Pulse Start Metal Halide systems may increase the chance of an outer bulb rupture and pieces of extremely hot glass might be discharged into the surrounding environment. If such a rupture were to happen, THERE IS A RISK OF PERSONAL INJURY, PROPERTY DAMAGE, BURNS AND FIRE.
