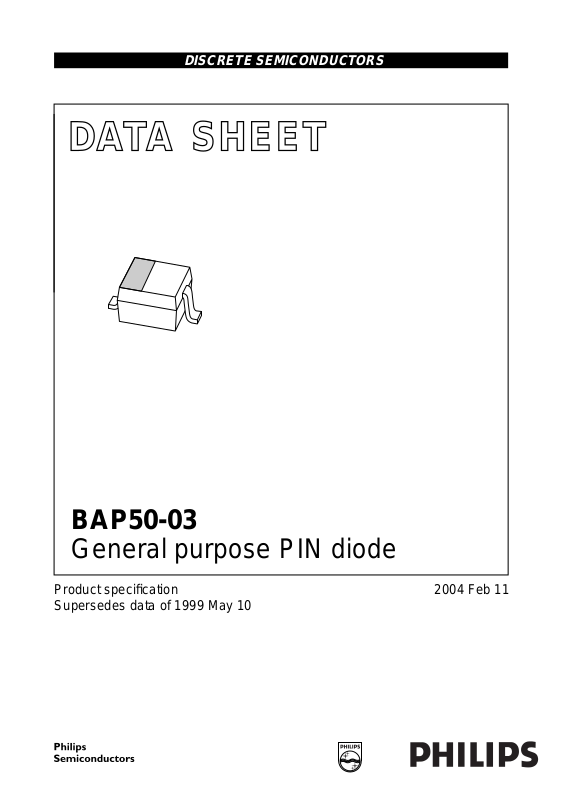

DISCRETE SEMICONDUCTORS
DATA SH EET
BAP50-03
General purpose PIN diode
Product specification Supersedes data of 1999 May 10
2004 Feb 11
Page 2
General purpose PIN diode BAP50-03

FEATURES

Low diode capacitance
Low diode forward resistance.

PINNING

PIN DESCRIPTION
1 cathode 2 anode

APPLICATIONS

General RF applications.

DESCRIPTION

General purpose PIN diode in a SOD323 small plastic
21
SMD package.
Top view
Marking code: A8. The marking bar indicates the cathode.
sym006
Fig.1 Simplified outline (SOD323) and symbol.

ORDERING INFORMATION

TYPE
NUMBER
NAME DESCRIPTION VERSION
PACKAGE
BAP50-03 plastic surface mounted package; 2 leads SOD323

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 60134).
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
V
R
I
F
P
tot
T
stg
T
j
continuous reverse voltage 50 V continuous forward current 50 mA total power dissipation Ts=90°C 500 mW storage temperature 65 +150 °C junction temperature 65 +150 °C
2004 Feb 11 2
Page 3
Philips Semiconductors Product specification
General purpose PIN diode BAP50-03

ELECTRICAL CHARACTERISTICS

Tj= 25°C unless otherwise specified.
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
V
F
V
R
I
R
C
d
r
D
Note
1. Guaranteed on AQL basis: inspection level S4, AQL 1.0.
forward voltage IF=50mA 0.95 1.1 V reverse voltage IR=10µA50−−V reverse current VR=50V −−100 nA diode capacitance VR= 0; f = 1 MHz 0.4 pF
VR= 1 V; f = 1 MHz 0.3 0.55 pF VR= 5 V; f = 1 MHz 0.2 0.35 pF
diode forward resistance IF= 0.5 mA; f = 100 MHz; note 1 25 40
IF= 1 mA; f = 100 MHz; note 1 14 25 IF= 10 mA; f = 100 MHz; note 1 35

THERMAL CHARACTERISTICS

SYMBOL PARAMETER VALUE UNIT
R
th(j-s)
thermal resistance from junction to soldering point 85 K/W
2004 Feb 11 3
Page 4
Philips Semiconductors Product specification
General purpose PIN diode BAP50-03

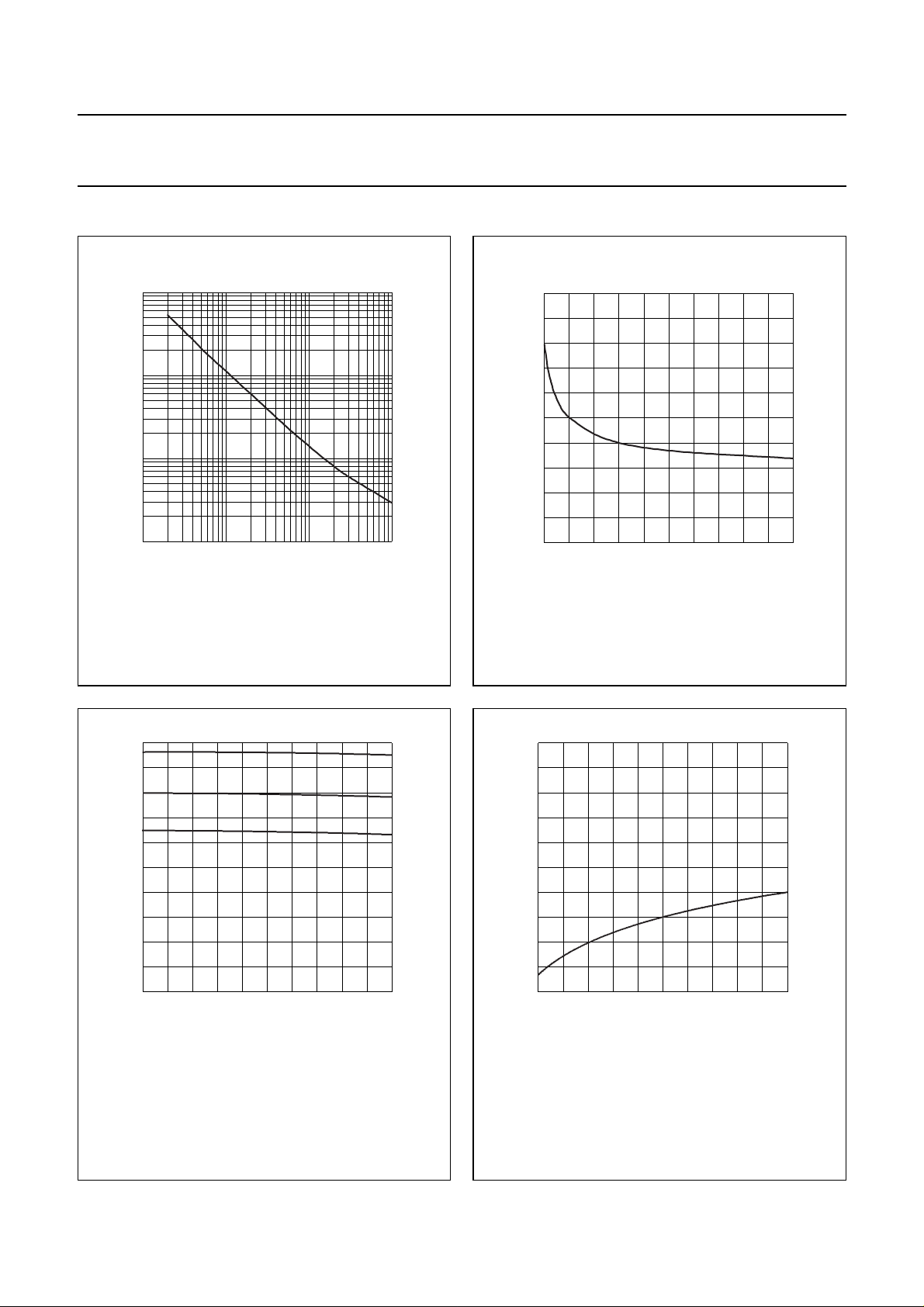

GRAPHICAL DATA

3
10
handbook, halfpage
r
D
()
2
10
10
1
2
10
Tj=25°C; f = 100 MHz.
1
10
110
MGS317
IF (mA)
Fig.2 Forward resistanceas a function of forward
current; typical values.
500
handbook, halfpage
C
d
(fF)
400
300
200
100
0
020
Tj=25°C; f = 1 MHz.
4 8 12 16
MGS323
VR (V)
Fig.3 Diode capacitance as a function of reverse
voltage; typical values.
handbook, halfpage
0
2
|S21|
(dB)
1
2
3
4
5
0.5 3
(1) IF= 10 mA. (2) IF= 1 mA. (3) IF= 0.5 mA. Diodeinserted in series with a 50 stripline circuit and biased via the
analyzer Tee network.
=25°C.
T
amb
1
1.5 2 2.5
(1)
(2)
(3)
MGS319
f (GHz)
Fig.4 Insertion loss (|S21|2) of the diode as a
function of frequency; typical values.
handbook, halfpage
0
2
|S21|
(dB)
5
10
15
20
25
0.5 3
Diode zero biased and inserted in series with a 50 stripline circuit. T
=25°C.
amb
1 1.5 2 2.5
MGS316
f (GHz)
Fig.5 Isolation(|S21|2)of the diode as a functionof
frequency; typical values.
2004 Feb 11 4
Page 5
Philips Semiconductors Product specification
General purpose PIN diode BAP50-03

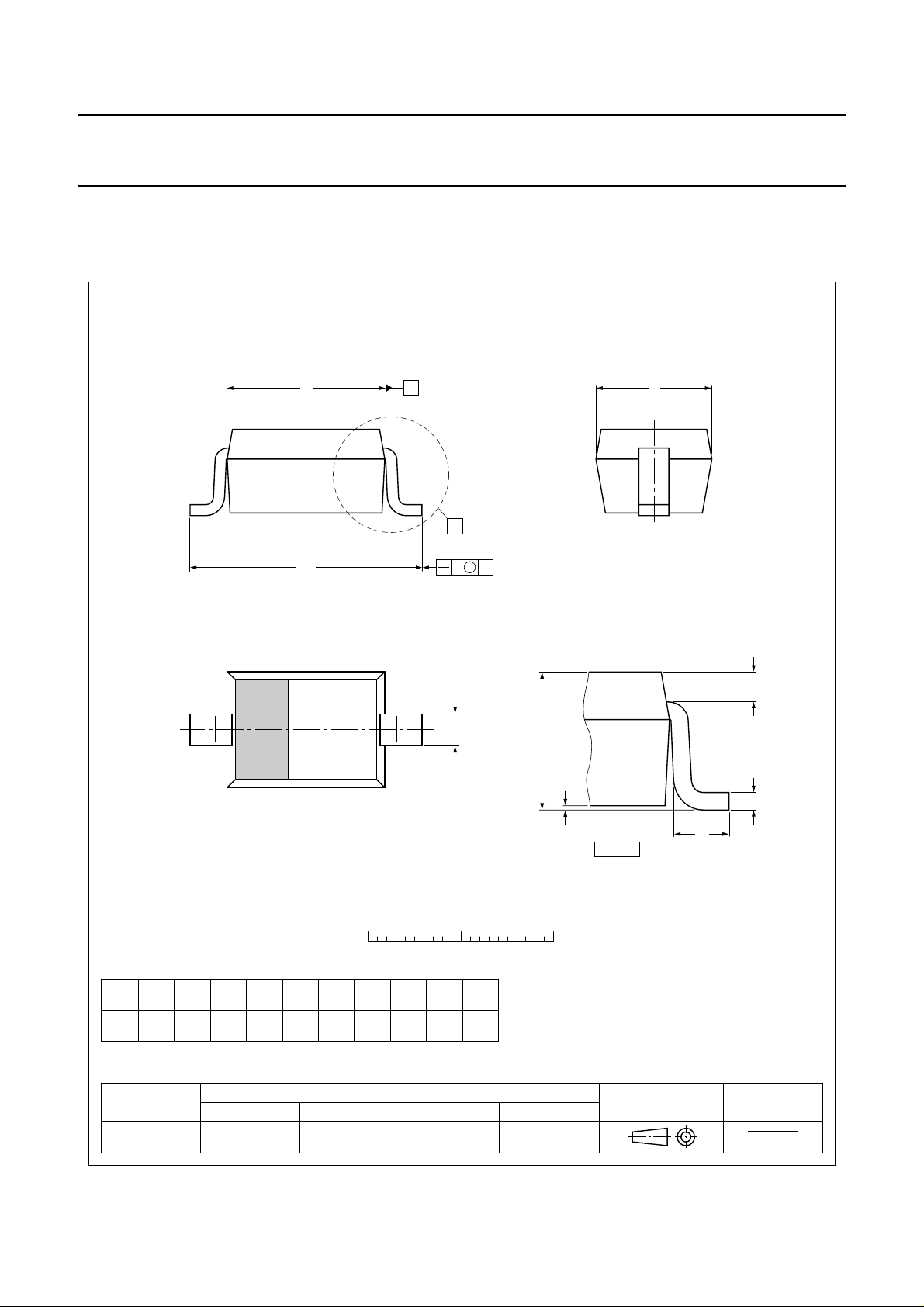

PACKAGE OUTLINE

Plastic surface mounted package; 2 leads
D
H
D
SOD323
A
X
M
vA
E
Q
21
(1)
01
DIMENSIONS (mm are the original dimensions)
A
1.1
0.8
1
b
A
max
c D E H
p
0.40
0.25
1.8
0.25
0.10
IEC JEDEC JEITA
1.6
1.35
1.15
D
2.7
2.3
REFERENCES
UNIT
mm 0.05
Note
1. The marking bar indicates the cathode
OUTLINE
VERSION
SOD323 SC-76
L
0.45
0.15
b
p
scale
Q
0.25
0.15
v
0.2
p
A
A
2 mm
1
L
detail X
EUROPEAN
PROJECTION
p
c
ISSUE DATE
99-09-13 03-12-17
2004 Feb 11 5
Page 6
Philips Semiconductors Product specification
General purpose PIN diode BAP50-03

DATA SHEET STATUS

LEVEL
DATA SHEET
STATUS
(1)
PRODUCT
STATUS
(2)(3)
DEFINITION
I Objective data Development This data sheet contains data from the objective specification for product
development. Philips Semiconductors reserves the right to change the specification in any manner without notice.
II Preliminary data Qualification This data sheet contains data from the preliminary specification.
Supplementary data will be published at a later date. Philips Semiconductors reserves the right to change the specification without notice, in order to improve the design and supply the best possible product.
III Product data Production This data sheet contains data from the product specification. Philips
Semiconductors reserves the right to make changes at any time in order to improve the design, manufacturing and supply. Relevant changes will be communicated via a Customer Product/Process Change Notification (CPCN).
Notes
1. Please consult the most recently issued data sheet before initiating or completing a design.
2. The product status of the device(s) described in this data sheet may have changed since this data sheet was published. The latest information is available on the Internet at URL http://www.semiconductors.philips.com.
3. For data sheets describing multiple type numbers, the highest-level product status determines the data sheet status.

DEFINITIONS

DISCLAIMERS

Short-form specification The data in a short-form
specification is extracted from a full data sheet with the same type number and title. For detailed information see the relevant data sheet or data handbook.
Limiting values definition  Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 60134). Stress above one or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device attheseor at any other conditionsabove thosegiveninthe Characteristics sections of the specification is not implied. Exposure to limiting values for extended periods may affect device reliability.
Application information  Applications that are described herein for any of these products are for illustrative purposes only. Philips Semiconductors make norepresentationorwarrantythatsuch applications will be suitable for the specified use without further testing or modification.
Life support applications  These products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personalinjury. Philips Semiconductorscustomersusingorsellingtheseproducts for use in such applications do so at their own risk and agree to fully indemnify Philips Semiconductors for any damages resulting from such application.
Right to make changes  Philips Semiconductors reserves the right to make changes in the products ­including circuits, standard cells, and/or software ­described or contained herein in order to improve design and/or performance. When the product is in full production (status ‘Production’), relevant changes will be communicated via a Customer Product/Process Change Notification (CPCN). Philips Semiconductors assumes no responsibility or liability for the use of any of these products, conveys no licence or title under any patent, copyright, or mask work right to these products, and makes no representations or warranties that these products are free from patent, copyright, or mask work right infringement, unless otherwise specified.
