Philips AZT3202/10 Leaflet

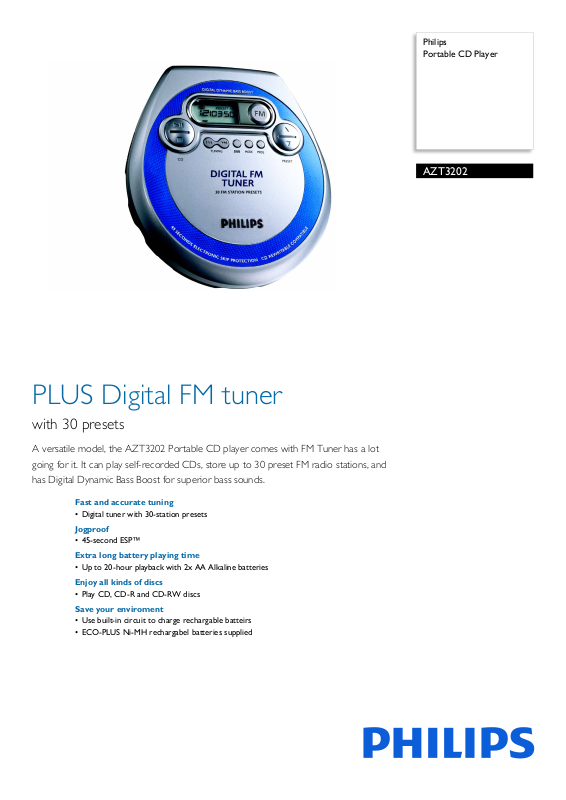

Page 1

Philips Portable CD Player

AZT3202

PLUS Digital FM tuner

with 30 presets

A versatile model, the AZT3202 Portable CD player comes with FM Tuner has a lot going for it. It can play self-recorded CDs, store up to 30 preset FM radio stations, and has Digital Dynamic Bass Boost for superior bass sounds.

Fast and accurate tuning

• Digital tuner with 30-station presets

Jogproof

• 45-second ESP™

Extra long battery playing time

• Up to 20-hour playback with 2x AA Alkaline batteries

Enjoy all kinds of discs

• Play CD, CD-R and CD-RW discs

Save your enviroment

• Use built-in circuit to charge rechargable batteirs

• ECO-PLUS Ni-MH rechargabel batteries supplied

Page 2

Portable CD Player

AZT3202/10

Specifications

Sound

• Acoustic Feedback

• D/A converter: 1-bit

• Frequency response: 20 - 20 000 Hz

• Output Power: 2 x 2.5mW RMS

• Signal to noise ratio: > 84dB

• Sound Enhancement: Digital Dynamic Bass Boost

• Volume Control: Analogue Volume Control

Audio Playback

• Playback Media: CD, CD-R, CD-RW

• Disc Playback Modes: 30-Track Programmable, ast Forward/Backward, Hold, Introscan, Repeat

F Play, Resume Playback from stop, Shuffle Play

• Electronic Skip Protection(CD): 45

Tuner/Reception/Transmission

• Frequency range: 87.5 - 108 MHz

• Station presets: 30

• Tuner Bands: FM

Connectivity

• DC in: 4.0 mm, 4.5V, centre +

• Headphone: 3.5 mm

•Line-out: 3,5 mm

Convenience

• Display Type: LCD

• Indications: battery status, Cd functions, DBB, ESP,

equency, pre-set station, time, track

Accessories

• AC/DC Adaptor: AY3170(300mA)

• Batteries: AY3362(Ni-MH rechargable)

• Headphones: SBC HE205

• Included accessories: User Manual

Dimensions

• Ebox dimensions (W x H x D): 0 x 0 x 0 mm

• Housing: Heat Resistant Body

• Master carton dimensions: 159 x 156 x 255 mm

• Master carton weight: 4.3 kg

• Master carton quantity: 6

• Packaging dimensions (W x H x D): 5 x 49 x 140 mm

• Packaging type: D-box

• Product dimension (WxDxH) inch: 5x135x30mm

• Product weight: 0.22 kg

Power

• Battery Playing Time CD: 20

• Battery type: AA, LR6, UM3

• Kind of Battery: Rechargeable

• Rechargeable

•

Highlights

30-presets digital tuner

Digital tuner with 30-station presets

45-second ESP™

Electronic Skip Protection is a convenient feature that ensures skip-free music even when your CD player is subjected to knocks and jolts while you're jogging or on the move. Devices with Electronic Skip Protection have an intelligent electronic buffer that adjusts both its contents and laser spin speeds automatically to guarantee uninterrupted music listening.

Up to 20-hour playack

Up to 20-hour playback with 2x AA Alkaline batteries

Play CDs, CD-R and CD-RW

Philips is known for making products which are compatible with many discs available in the market. This audio system lets you enjoy music from CD,CD-R and CD-RW. CD-RW (CD-Rewritable Compatible) means that your audio system can play both CD-Recordable (CD-R) and CD-Rewritable (CD-RW) discs. CD-R discs are recordable once and can be played on any audio CD player while CD-RW discs can be recorded and rewritten multiple times and can only be played back on compatible audio CD players.

Built-in recharge capability

Use built-in circuit to charge rechargable batteirs

ECO-PLUS rechargable batteries

ECO-PLUS Ni-MH rechargabel batteries supplied

Issue date 2014-02-10

Version: 1.0.2

12 NC: 9073 101 00729 EAN: 87 10895 77083 5

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

www.philips.com
