Philips AZ7900/17, AZ7900/00, AZ7900/00Z Specifications

CD portable

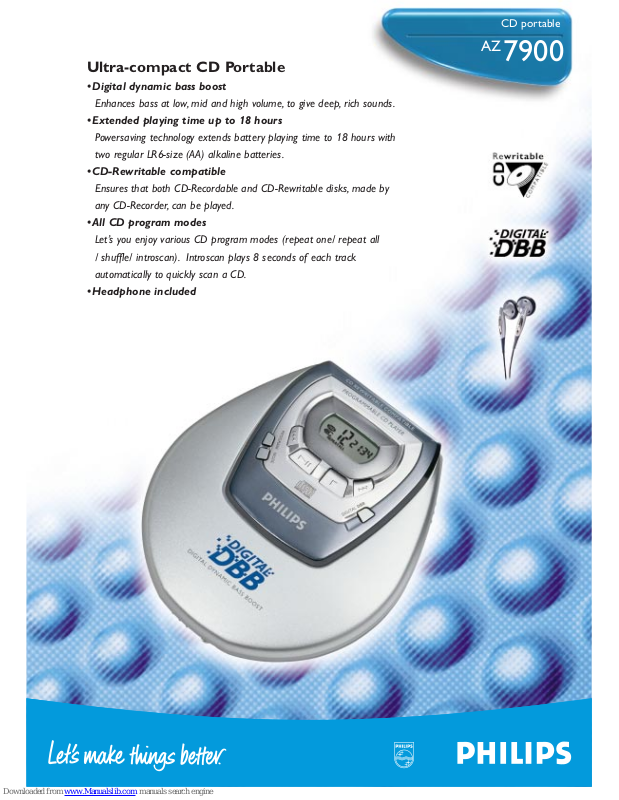

Ultra-compact CD Portable

• Digital dynamic bass boost

Enhances bass at low, mid and high volume, to give deep, rich sounds.

• Extended playing time up to 18 hours

Powersaving technology extends battery playing time to 18 hours with

two regular LR6-size (AA) alkaline batteries.

• CD-Rewritable compatible

Ensures that both CD-Recordable and CD-Rewritable disks, made by

any CD-Recorder, can be played.

• All CD program modes

Let’s you enjoy various CD program modes (repeat one/ repeat all

/ shuffle/ introscan). Introscan plays 8 seconds of each track

automatically to quickly scan a CD.

• Headphone included

7900

AZ

CD portable

Standard product information

http://www.philips.com

1999-09-20
Printed in Hong Kong
Subject to modification without notice

© 1999 Royal Philips Electronics
All Rights Reserved.

Product highlights

• Compact disc audio player

Compact Disc technology that provides uncompressed superb digital sound
quality.

• Heat resistant body

Unique composite material enables the CD player to withstand very high
temperatures for in-car use.

• D/A converter

Advanced digital conversion technology ensures crystal-clear sound.

• Hold

Locks all buttons electronically to prevent interruption of play or change of
program settings.

• Resume

Ensures the CD starts precisely from the point it was stopped.

• Automatic power off

Automatically switches off the CD player at the end of a compact disc.

• CD next/ previous

Plays the next or previous track at the touch of a button

• CD music search

Searches the CD at high speed while still producing low-volume sound so you
know exactly when to stop

• Repeat one/ all

Repeat the current track or the total CD

• Shuffle

Plays disc selection randomly, giving you each time a new sequence of tracks

• 15-track programmable

Stores up to 15 of your favourite tracks for playing back in your order of
preference

• Acoustic feedback

Confirms any key-push with friendly beep to acknowledges that a command
has been given.

Amplifier/ system

• Output power (in-ear headphone) 2 x 3mW RMS

• 1-Bit D/A convertor for pure sound reproduction

• Digital dynamic bass boost

• Rotary volume control

• S/N ratio (A weighted) : >100 dB

• Frequency response : 20 Hz - 20 kHz

• Acoustic feedback

CD player

• 15-Track programmable, shuffle, repeat 1/ all and introscan

• Search forward/ backward with sound

• Resume and hold

LCD display

• Indications for track, time, DBB, CD functions and battery status

Connections

• Headphone/ line out : stereo, 3.5 mm

• DC in : 4.0 mm, 4.5V, centre ‘+’

Power supply

• Batteries : 2 x 1.5V, type AA/LR6/UM3 cell

• Battery playing time : 18 hours (regular AA size, alkaline batteries)

• Automatic power switch-off

General

• Material : High temperature resistant plastic

• Weight : 230 g (excluding batteries)

• Product dimensions : 128 mm W x 28 mm H x 138 mm D

• D-box dimensions
/00, /09, /10, /13 : 245 mm L x 146 mm W x 49 mm H

• D-box dimensions
/01, /05, /11, /16 : 256 mm L x 145 mm W x 54 mm H

• Master carton dimensions
/00, /09, /10, /13 : 350 mm L x 299 mm W x 199 mm H

• Master carton dimensions
/01, /05, /11, /16 : 381 mm L x 303 mm W x 199 mm H

• Master carton quantity : 6

Accessories

• Stereo in-ear headphone

Optional accessories (contact your dealer or
service center)

• AY3501 Car cassette adapter

• AY3545 4.5V Car cigarette lighter DC/DC adapter

Power supply adapter

/00 : 230V/50Hz to 4.5V DC

7900

AZ
