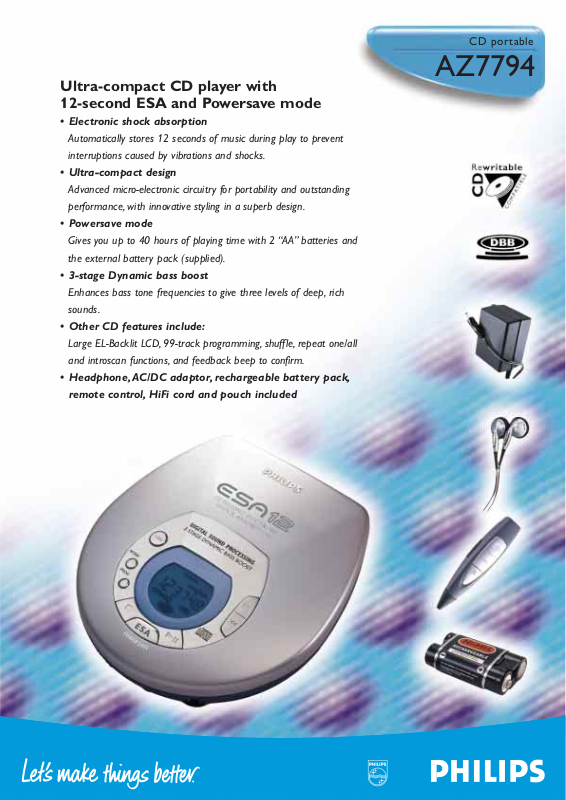

CD portable

AZ7794

Ultra-compact CD player with 12-second ESA and Powersave mode

• Electronic shock absorption

Automatically stores 12 seconds of music during play to prevent

interruptions caused by vibrations and shocks.

• Ultra-compact design

Advanced micro-electronic circuitry for portability and outstanding

performance, with innovative styling in a superb design.

• Powersave mode

Gives you up to 40 hours of playing time with 2 “AA” batteries and

the external battery pack (supplied).

• 3-stage Dynamic bass boost

Enhances bass tone frequencies to give three levels of deep, rich

sounds.

• Other CD features include:

Large EL-Backlit LCD, 99-track programming, shuffle, repeat one/all

and introscan functions, and feedback beep to confirm.

• Headphone, AC/DC adaptor, rechargeable battery pack,

remote control, HiFi cord and pouch included

CD portable

AZ7794

Standard product information

http://www.philips.com

1999-03-18 Printed in Hong Kong Subject to modification without notice

Product highlights

• Large EL-Backlit LCD

Provides an easy-to-read display even in low light. track, time and other functions are all visible at the same time and are bigger and brighter.

• Feedback tone

Confirms any key-push with friendly beep.

• Play mode

Let’s you enjoy various track repeat modes (one/all/shuffle) or a combination of each. Introscan plays 8 seconds of each track automatically.

• Next/previous track search

Two-button control that puts you immediately at the start of the previous track or next track.

• Search with sound

Produces audible “bits” of sound while you search backwards or forwards within a CD track.

• Hold

Prevents accidental interruption of play or changing of the setting.

• Resume

Ensures the CD starts precisely from the point it was stopped.

• Automatic power-off

Automatically switches off the CD player at the end of a compact disc.

• Heat resistant body

Unique plastic composition enables the CD player to withstand very high temperatures while protecting the internal components.

• 1-Bit D/A converter

Advanced digital conversion technology ensures crystal-clear sounds for pure listening pleasure.

• Adaptive ESA

Automatically stores 12 seconds of music during play to prevent interruptions caused by vibrations and shocks even during Powersave mode.

• Stereo in-ear headphone

Stylish, ergonomically designed in-ear headphone for exceptionally snug fit and outstanding sound quality.

• Scratch resistant

Advanced in-mould foil technology provides the CD player with a durable, scratch-resistant surface.

Amplifier/system

• Output power (headphone) 2 x 12 mW RMS

• 3-stage Dynamic bass boost

• Automatic power switch-off

• Rotary volume control

• Built-in battery recharge function for NiCad or NiMH pack

• Acoustic feedback

CD player

• Electronic shock absorption (ESA) with 12-second memory

• 99-track programmable, shuffle, repeat 1/all and introscan

• Search forward/backward with sound

• 1-Bit D/A convertor for pure sound reproduction

• S/N ratio (A weighted) : > 95 dB

• Frequency response : 20 Hz - 20 kHz.

• Resume and hold

Display

• 6-digit LCD

• Blue EL-backlit

• Indications for track, time, DBB, CD functions, battery and ESA

Remote control

• 3-key

• Volume control and hold

Connections

• Headphone/CD out : stereo, 3.5 mm

• DC in : 3.4 mm, 4.5 V, centre ‘+’

Power Supply

• Batteries : 2 x 1.5 V , type AA/LR6/UM3 cell

• Typical playing time : up to 40 hours with external battery pack

• External supply /00 : 230 V AC to 4.5 V DC /01,/11 : 120/230 V AC (switchable) to 4.5 V DC

General

• Material : High temperature resistant plastic

• Weight : 230 g ( excluding batteries)

• Dimensions : 128 mm W x 27 mm H x 136.5 mm D

• Quantity/mastercarton : 3

Accessories

• AC/DC adaptor

• Stereo in-ear headphone

• Remote control

• Rechargeable battery pack

• HiFi cord

• External battery pack

• Pouch

Optional Accessories (contact your dealer or service centre)

• AY 3501 Car cassette adaptor

• AY 3545 Cigarette lighter adaptor

• AY 3361 Rechargeable NiCad battery pack
