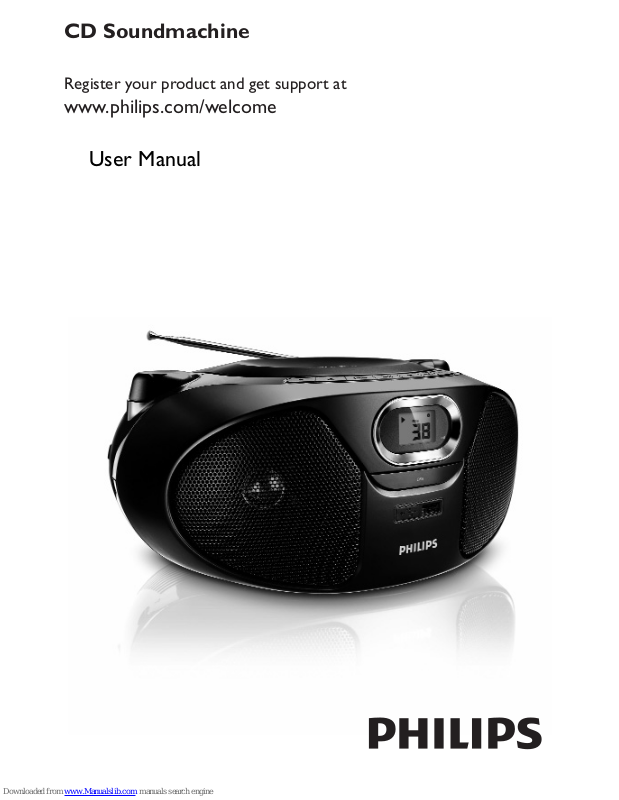

CD Soundmachine

Register your product and get support at

www.philips.com/welcome

User Manual

1

$

2

5

4

6

7

3

@

DBB

MP3/WMA-USB/CD PLAYBAC K

9
0

8

6 x R14 • UM-2 • C-CELLS

L

IN

E

-

IN

!

$

%

#

^

FM MW

RADIO USB

2

ALL

X

PROG

4

5

6

8

Congratulations on your purchase and
welcome to Philips!

To fully benefit from the support that
Philips offers, register your product at
www.philips.com/welcome.

Supplied Accessories

– AC power cord

Top/front panels (See 1)

1

VOLUME–adjusts volume level.

2 43

– For MP3-CD/USB only: select albums.

3 MODE

– selects different play modes:

e.g. REPEAT or SHUFFLE (random
order)

.

4

2 ; –starts or pause CD/USB playback

§ ∞

–

selects the next/previous track

– searches forwards/backwards (press

and hold the button) within the cur­rent track

9–stops disc/USB playback;

–

erases a program

5 PROG – programs tracks and reviews the

program

6 LIFT TO OPEN – opens/closes the CD

door.

7 TUNING

– tunes to radio stations

8

Display–shows the CD/USB functions

9

DBB– turns the bass enhancement on/off.

0 USB port – connects an external USB mass

storage device

.

Back/bottom panels (

See 1

and

2)

!

Source selector: CD, USB, RADIO, OFF
–

selects CD, USB or radio source of sound

–

power off switch

@ Telescopic antenna

– improves FM reception.

# AC MAINS~ – inlet for power cord.

$

Band selector– selects wavebands: MW or

FM.

%

LINE-IN

– inlet for external audio source.

^ Battery door –

Press on the arrow and

push to

insert 6 x 1.5V R-14/ UM-2/ C-

cells.

CAUTION
– Visible and invisible laser radia-

tion. If the cover is open, do not
look at the beam.

– High voltage! Do not open.You

run the risk of getting an elec­tric shock.The machine does
not contain any user-servicea­ble parts.

– Modification of the product

could result in hazardous radia­tion of EMC or other unsafe
operation.

Notes for battery disposal

Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed of with normal household
waste.

Please inform yourself about the local rules
on separate collection o f batteries. The cor­rect disposal of batteries helps prevent poten­tially negative consequences on the environ­ment and human health.

Power Supply

Whenever convenient, use the power supply
cord if you want to conserve battery life.
Make sure you remove the plug from the set
and wall outlet before inserting batteries.

Batteries (not included)

1 Open the battery door and insert 6 batteries,

type R-14, UM-2 or C-cells, (preferably
alkaline) with the correct polarity as indicated by
the "+" and "–" symbols inside the compartment.

2 Replace the battery door, making sure the

batteries are firmly and correctly in place.The
set is now ready to operate.

Batteries contain chemical substances, so
they should be disposed of properly.

• Incorrect use of batteries can cause electrolyte
leakage and will corrode the compartment or
cause the batteries to burst:

• Do not mix battery types: e.g. alkaline with
carbon zinc. Only use batteries of the same type
for the set.

• When inserting new batteries, do not try to mix
old batteries with the new ones.

• Remove the batteries if the set is not to be used
for a long time.

Using AC power

WARNING:Always check you have
completely switched off the set, before
you change or disconnect power supply.

1 Check if the power voltage, as shown on

the type plate located on the bottom
of the set, corresponds to your local power

supply. If it does not, consult your dealer or
service center.

2 Connect the power cord to the AC

MAINS~ inlet and the wall socket.The set is

now connected and ready for use.

3 To switch the set off completely, withdraw the

power cord from the wall socket.

4 Install the unit near the AC outlet and where

the AC power plug can be easily reached.

• Disconnect the power cord from the wall
socket to protect your set during heavy

thunderstorms. Children could seriously injure
themselves as the free end of the cable may
still be live if only the connector is removed
from the MAINS socket at the back of the
unit.

The type plate is located on the bottom
of the set.

Helpful hints:

– To avoid unnecessary energy consumption,

always adjust the

Source selectortoOFF

after using the set.

General operation

Switching on and off and selecting the
function

1 To select your sound source, adjust the

Source selector to: CD, USB or

RADIO.

2 To switch off the set, adjust the Source

selector to

OFF

position.

3 To switch to LINE IN mode, connect an

external audio source to the LINE-IN inlet.

Helpful hints:

• The set switches to LINE IN mode
automatically when an external audio source
is connected, no matter the set is in CD,

USB or

RADIO

mode.

• The LINE-IN inlet is not for earphones.

Adjusting volume and sound

Adjust the sound with the VOLUME and
DBB controls.

Radio reception

1 Adjust the Source selector to RADIO.

2 Adjust the

band selector

to select your

desired waveband: MW or FM.

3 Tu rn TUNING to tune to a station.

Helpful hints:

To improve radio reception

• For FM, extend, incline and turn the
telescopic antenna for best reception. Reduce
its length if the signal is too strong.

• For MW, the set uses a built-in antenna.
Direct this antenna for best reception by
turning the whole set.

About MP3

The music compression technology MP3
(MPEG1 Audio Layer 3) significantly reduce
the digital data of an audio CD while
maintaining CD quality sound.

• Getting MP3 files: you can either download
legal music files from the internet to your
computer hard disc, or create such files by
converting audio CD files in your computer
through appropriate encoder software.
(128kbps bit rate or higher is recommended
for MP3 files.)

• Creating an MP3 CD: burn the music files
from your computer hard disc on a CDR or
CDRW using your CD burner.

Helpful Hints:

– Make sure that the file names of the MP3 files

end with .mp3 .

–

Total number of music files and albums: around
400 (with a typical file name length of 20
characters)

– The length of file names affects the number of

tracks for playback.With shorter file names, more
files can be burned on a disc.

Playing a disc

• This CD player plays Audio Discs including
CD-Recordables (CD-R), CD-Rewritables
(CD-RW) and MP3/WMA CD.

• CD-ROM, CD-I, CDV,VCD, DVD or
computer CDs are not possible for playback.

IMPORTANT!

• CDs encoded with copyright protection

technologies by some record companies may

be unplayable by this product.

• DRM-protected WMA disc is not support.

1 Adjust the Source selector to CD.

2 Open the CD door, and insert a CD with

the printed side facing up, then press the CD
door gently to close.

➜ Display shows ---, and later the total

number of tracks. (See 3)

3 Press

2;

to start playback.

4 To pause playback, press

2;

.

➜

Display: 2 flashes.

(See 4)

5 To resume, press

2;

again.

6 To stop playback, press9.

Helpful hints:

CD play will also stop when:

– you open the CD door ;

– you select

USB,RADIO

or

OFF

;

– the CD has reached the end.

Selecting a different track

• Press

∞/ §

once or repeatedly until the
desired track number appears in the display.
For MP3/WMA-CD: First press

43

once

or more to select your album.

• In the pause/stop position, press 2; to star t

playback.

Finding a passage within a
track

1 During playback, press and hold ∞ or § .

➜ The CD is played at high speed and with

reduced volume.

2 When you recognize the passage you want,

release ∞ or § to resume normal playback.

Helpful hints:

– When your searching reaches the end of the

last track, the CD goes to stop mode.

Programming track
numbers

You may store up to 20 tracks in the desired
sequence. If you like, store any track more
than once.

1 In the stop position, press PROG to

activate programming.

➜ Display: PROG and P01 flash. (See 5)

2 Press

∞

or §to select your desired track

number.

For MP3/WMA-CD: first press

43

once

or more to select your album.

3 Press PROG to store the desired track

number.
➜ Display: PROG and P02 flash for you

to program the next track.

4 Repeat steps 2 to 3 to select and store all

desired tracks in this way.
➜ If you attempt to store more than 20

tracks, no track can be selected and the
display shows

------

.

5 To play your program, press2/;.

Helpful hints :

– When playback of your program comes

to the stop position, your set will return
to normal playback.To re-enter program
mode, press PROG in the stop position.

Reviewing the program

In the stop position, press PROG repeatedly
to see your stored tracks.

Erasing a program

You can erase the contents of the memory
by:

– in the stop position, press PROG to enter

program mode, and then press

9.

– selecting

USB,RADIOorOFF

;

– opening the CD door;

Different play modes:
REPEAT. and SHUFFLE
(See 6

, 7)

You can select and change the various play
modes before or during playback, and
combine REPEAT modes with PROG (PRO-
GRAM).

– plays the current track continuously.

For MP3:

ALB –plays all tracks of current album

repeatedly.

– repeats the entire CD/program.

– plays all tracks in random order.

1 To select play mode, press MODE once or

more.
➜ The display shows the related icon.

2 Press 2; to start playback if in the stop/pause

position.

3 To return to normal playback, press MODE

repeatedly until the modes are no longer
displayed.
– You can also press 9 to cancel your play

mode.

Using USB connectivity

• AZ382 is fitted with a USB port in the front
panel, offering a plug and play feature which
allows you to play, from your AZ382, digital
music and spoken contents stored on a USB
mass storage device.

• Using a USB mass storage device, you can
also enjoy all the features offered by AZ382
which are explained and instructed in the sec­tions of disc operation.

Compatible USB mass storage devices

With the AZ382, you can use

– USB flash memory (USB 2.0 or USB 1.1)
– USB flash player (USB 2.0 or USB 1.1)

• USB device which requires driver
installation under Windows XP is not
supported.

Note:

In some USB flash players (or memory devices),
the stored contents are recorded using copyright
protection technology. Such protected contents
will be unplayable on any other devices (such as
AZ382 device).

Supported formats:

– USB or memory file format FAT12, FAT16,

FAT32 (sector size: 512 - 65,536 bytes)

– MP3 bit rate (data rate): 32-320 kbps and

variable bit rate

– WMA v9 or earlier
– Directory nesting up to a maximum of 8

levels

– Number of albums: maximum 99
– Number of tracks: maximum 511
– ID3 tag v2.0 or later
– File name in Uicode UTF8 (maximum

length: 128 bytes

The system will not play or support
the following:

• Empty albums: an empty album is an album
that does not contain MP3/WMA files, and
will not be shown in the display.

• Non-supported file formats are skipped.
This means that e.g.: Word documents .doc
or MP3 files with extension. dlf are ignored
and will not be played.

• AAC, WAV, PCM. NTFS audio files

• DRM protected WMA files

• WMA files in Lossless format

Playing a USB mass storage device

1 Make sure that your AZ382 is being pow-

ered by AC mains or specified batteries.

2 Adjust the source selector to USB.

➜ Display shows - - - (see 2).

3 Plug a compatible USB mass storage device

to AZ382’s USB port marked . If needed,
use a suitable USB cable to connect
between the device and AZ382’s USB port.
➜ The device will automatically power on.

• If the device is not powered on, turn on the
power manually, then re-connnect it.
➜ AZ382’s display shows - - - and then the

total number of playable audio files (Max.
displayed track number is 511) stored on
the device.

4 Press

2; on your

AZ382

to start play.

➜ AZ382’s display will show the current

track number.

Helpful hints:

– Up to 511 playable audio files stored on a
USB mass storage device can be played on
AZ382.

– Up to 99 playable albums stored on a USB
mass storage device can be selected and
displayed on AZ382.
– Make sure that file names of MP3 files end
with .mp3. and the file names of WMA files end
with .wma.
– For DRM protected WMA files, use Windows
Media Player 10 (or later) for conversion. Visit
www.microsoft.com for details about Windows
Media Player and WM DRM (Windows Media
Digital Rights Management).

– For USB device playing, if the display shows
"OL", it means that the USB device is electrically
overloading AZ382.You need to change a USB
device.

CD player and CD handling

• If the CD player cannot read CDs correctly,
use a cleaning CD to clean the lens before
taking the set to repair.

• The lens of the CD player should never be
touched!

• Sudden changes in the surrounding
temperature can cause condensation on the
lens of your CD player. Playing a CD is then
not possible. Do not attempt to clean the
lens but leave the set in a warm environment
until the moisture evaporates.

•Always close the CD door to avoid dust on
the lens.

•To clean the CD, wipe in a straight line from
the center towards the edge using a soft,
lint-free cloth. Do not use cleaning agents as
they may damage the disc.

• Never write on a CD or attach any stickers to it.

Safety information

• Place the set on a flat, hard and stable surface
so that the system does not tilt.

• Where the MAINS plug or an appliance cou­pler is used as the disconnect device, the dis­connect device shall remain readily operable.

• Do not expose the set, batteries, CDs to

humidity, rain, sand or excessive heat caused
by heating equipment or direct sunlight.

• The apparatus shall not be exposed to drip­ping or splashing.

• Adequate ventilation with a minimum gap of
15cm (6 inches) between the ventilation
holes and surrounding surfaces is necessary
to prevent heat build-up.

• Do not cover the ventilation openings with
items such as newspapers, table-cloths, cur­tains, etc.

• No objects filled with liquids, such as vases,
shall be placed on the apparatus.

• No naked flame sources, such as lighted can­dles, should be placed on the apparatus.

• The mechanical par ts of the set contain self­lubricating bearings and must not be oiled or
lubricated.

•To clean the set, use a dry cloth. Do not use
any cleaning agents containing alcohol, ammo­nia, benzene or abrasives as these may harm
the housing.

Problem

– Possible cause

• Remedy

No sound /power

– Volume not adjusted

• Adjust the VOLUME
– Power cord not securely connected

• Connect the AC power cord properly
– Batteries dead/ incorrectly inserted

• Insert (fresh) batteries correctly
– CD contains non-audio files

• Press

∞ , §

once or more to skip to a CD audio

track, instead of the data file.

Display does not function properly / No reac­tion to operation of any of the controls

– Electrostatic discharge

• Switch off and unplug the set. Reconnect after a
few seconds

---, Er

or

no indication

– No CD inserted

•

Insert a CD

– CD badly scratched or dirty

•

Replace/ clean CD, see Maintenance

– Laser lens steamed up

•Wait until lens has cleared

– CD-R/CD-RW is blank or not finalized

•

Use a finalized CD-R/CD-RW or suitable CD
Audio disc only

Note:
Make sure the CD is not encoded with copy­right protection technologies, as some do not
conform to the Compact Disc standard.

The CD skips tracks

– CD damaged or dirty

• Replace or clean CD
– Program/shuffle is active

• Quit program/shuffle mode

Note: A CD badly scratch or dirty may result in
improper operation.

Sound skips during MP3 playback

– MP3 file made at compression level exceeding

320kbps

• Use a lower compression level to record CD
tracks into MP3 format

– Disc damaged or dirty

• Replace or clean disc

The USB device doesn’t play on my
AZ382

– It is not set in the USB mode.

•

Adjust the source selector to USB.

– The device is not securely connected to AZ382’s USB

port.

• Re-connect the device, and make sure that the
device is powered on.

– The device is not supported by AZ382, or the audio

file format stored on the device is not supported by
AZ382.

• Use a compatible device/ playable audio file
format.

If a fault occurs, first check the points listed below before taking the set for repair.
If you are unable to remedy a problem by following these hints, consult your dealer or service centre.

WARNING: Do not open the set as there is a risk of electric shock. Under no

circumstances should you try to repair the set yourself, as this will
invalidate the guarantee.

Environmental information

All unnecessary packaging material has been omitted.The packaging can be easily separated
into three materials: cardboard, polystyrene and plastic.

Yo ur set consists of materials which can be recycled if disassembled by a
specialized company. Please observe the local regulations regarding the
disposal of packaging, dead batteries and old equipment.

Disposal of your old product

Your product is designed and manufactured with high quality materi­als and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to
a product it means the product is covered by the
European Directive 2002/96/EC.

Please inform yourself about the local separate collection system for electrical
and electronic products.

Please act according to your local rules and do not dispose of your old products
with your normal household waste.The correct disposal of your old product will
help prevent potential negative consequences for the environment and human
health.

Specifications

Power Consumption............15W

Dimensions (w x h x d)....... 261 x 121 x 245 (mm)

Weight.................................. 1.63 kg

Important notes for users in the U.K.

Mains plug

This apparatus is fitted with an approved 13 Amp plug. To change a fuse in this type of
plug proceed as follows:

1. Remove fuse cover and fuse.

2. Fix new fuse which should be a BS1362 3 Amp, A.S.T.A. or BSI approved type.

3. Refit the fuse cover.

If the fitted plug is not suitable for your socket outlets, it should be cut off and an
appropriate plug fitted in its place. If the mains plug contains a fuse, this should have a
value of 3 Amp. If a plug without a fuse is used, the fuse at the distribution board
should not be greater than 3 Amp.

Note:The severed plug must be disposed of to avoid a possible shock hazard should it
be inserted into a 13 Amp socket elsewhere.

How to connect a plug

The wires in the mains lead are coloured with the following code: blue = neutral (N),
brown = live (L). As these colours may not correspond with the colour markings iden­tifying the terminals in your plug, proceed as follows:

• Connect the blue wire to the terminal marked N or coloured black.

• Connect the brown wire to the terminal marked L or coloured red.

• Do not connect either wire to the earth terminal in the plug, marked E (or e) or
coloured green (or green and yellow).
Before replacing the plug cover, make certain that the cord grip is clamped over the
sheath of the lead - not simply over the two wires.

Copyright in the U.K.

Recording and playback of material may require consent. See Copyright Act 1956 and
The Performer’s Protection Acts 1958 to 1972.

Meet Philips at the Internet

http://www.philips.com

W

AZ382
