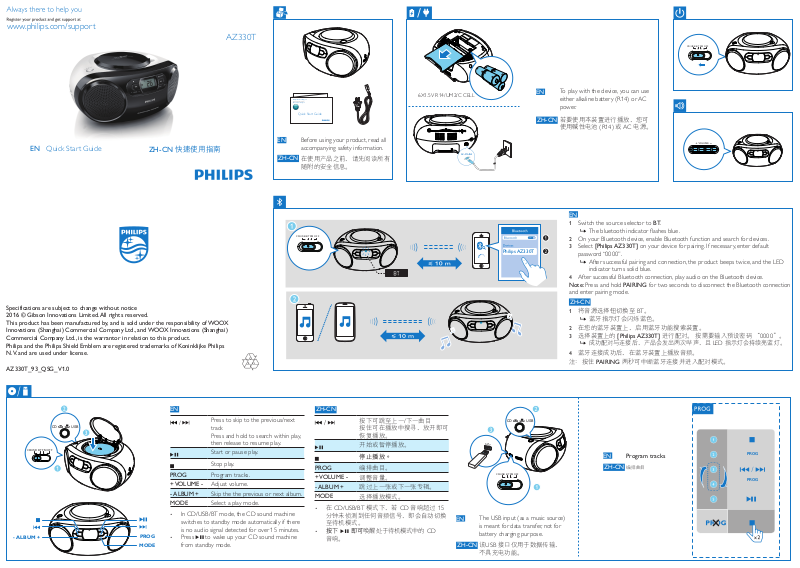

Page 1

www.philips.com/support

EN Quick Start Guide

ZH-CN 快速使用指南

AZ330T

Always there to help you

www.philips.com/support

Question?

Contact Philips

Quick Start Guide

Before using your product, read all

accompanying safety information.

ZH-CN

在使用产品之前，请先阅读所有

随附的安全信息。

6X1.5V R14/UM2/C CELL

AC~MAINS

To play with the device, you can use

either alkaline battery (R14) or AC power.

ZH-CN

若要使用本装置进行播放，您可

使用碱性电池

(R14) 或 AC

电源。

CD/USB

FM OFF

Specifications are subject to change without notice 2016 © Gibson Innovations Limited. All rights reserved. This product has been manufactured by, and is sold under the responsibility of WOOX Innovations (Shanghai) Commercial Company Ltd., and WOOX Innovations (Shanghai) Commercial Company Ltd., is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license.

AZ330T_93_QSG_V1.0

1 Switch the source selector to BT.

BT F M OFFCD/USB

Philips AZ330T

» The bluetooth indicator ashes blue.

2 On your Bluetooth device, enable Bluetooth function and search for devices. 3 Select [Philips AZ330T] on your device for pairing. If necessar y, enter default

password “0000”.

» After successful pairing and connection, the product beeps twice, and the LED

indicator turns solid blue.

4 After successful Bluetooth connection, play audio on the Bluetooth device.

Note: Press and hold PAIRING for two seconds to disconnect the Bluetooth connection

and enter pairing mode.

ZH-CN

1 将音源选择钮切换至

。

» 蓝牙指示灯会闪烁蓝色。

2 在您的蓝牙装置上，启用蓝牙功能搜索装置。 3 选择装置上的

[Philips AZ330T] 进行配对。按需要输入预设密码 “

» 成功配对与连接后，产品会发出两次哔声，且

4 蓝牙连接成功后，在蓝牙装置上播放音频。

LED

指示灯会持续亮蓝灯。

0000

”。

注：按住 PAIRING 两秒可中断蓝牙连接并进入配对模式。

- ALBUM +

USBCD

Press to skip to the previous/next track Press and hold to search within play, then release to resume play.

BT FM OFFCD/USB

Start or pause play.

Stop play.

PROG Program tracks. + VOLUME - Adjust volume.

- ALBUM + Skip the the previous or next album.

ZH-CN

PROG + VOLUME -

- ALBUM + MODE

按下可跳至上一/下一曲目按住可在播放中搜寻，放开即可恢复播放。

开始或暂停播放。

停止播放。

编排曲目。调整音量。跳过上一张或下一张专辑。选择播放模式。

BT F M OFFCD/USB

USBCD

Program tracks

编排曲目

ZH-CN

PROG

MODE Select a play mode.

PROG

MODE

• In CD/USB/BT mode, the CD sound machine

switches to standby mode automatically if there is no audio signal detected for over 15 minutes.

• Press to wake up your CD sound machine

from standby mode.

CD/USB/BT

• 在

模式下，若分钟未侦测到任何音频信号，即会自动切换至待机模式。

• 按下

即可唤醒处于待机模式中的

音响。

音响超过

The USB input (as a music source)

is meant for data transfer, not for battery charging purpose.

USB

ZH-CN

该

接口仅用于数据传输，

不具充电功能。

Page 2

BT FM OFFCD/USB

表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。

Indicates that this hazardous substance contained in a

part is below the limit requirement in GB/T 26572.

表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。

Indicates that this hazardous substance contained in a

used for this part is above the limit requirement in GB/T 26572.

Name of the Parts

Housing

Loudspeakers

喇叭单元

PWBs

电路板组件

Accessories

(Cables)附件（电源线，连接线）

本表格依据SJ/T 11364的规定编制。

The table is compiled according to SJ/T 11364.

Names and Contents of Hazardous Substances

这标志表示的期间（10年）是电子电气产品中有害物质在正常使用的条件下不会发生外泄或突变，

电子电气产品用户使用该电子电气产品不会对环境造成严重污染或对其人身、财产造成严重损害的

This logo refers to the period ( 10 years ) during which the ha

electrical products will not leak or mutate so that the use of

any severe environmental pollution, any bodily injury or damage

CD/USB

BT FM OFF

/USB

BT FM OFF

AUDIO IN

Always there to help you

www.philips.com/support.

To download the

PDF

www.philips.com/welcome

Question? Contact Philips

User Manual

full user manual, visit www.philips.com/support.

ZH-CN

若要下载完整的使用手册，

请访问

www.philips.com/support

。

Safety

• Read these instructions.

• Follow all instructions.

• Do not block any ventilation openings.

Install in accordance with the manufacturer’s instructions.

• Do not install near any heat sources such

as radiators, heat registers, stoves, or

other apparatus (including ampliers) that

produce heat.

• Protect the power cord from being

walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the unit.

• Only use attachments/accessories specied

by the manufacturer.

• Unplug this unit during lightning storms or

when unused for long periods of time.

• Refer all servicing to qualied ser vice

personnel. Servicing is required when the unit has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the unit has been exposed to rain or moisture, does not operate normally, or has been dropped.

• Battery usage CAUTION – To prevent

Gibson Innovations may void the user’s authority to operate the equipment.

Care of the environment

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Do not throw away the product with the normal household waste at the end of its life,

but hand it in at an ofcial collection point or

recycling. By doing this, you help to preserve the environment.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), paper pulp (buffer) and polyethylene (bags, protective foam sheet.) Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Trademark notice

battery leakage which may result in bodily injury, property damage, or damage to the unit:

• Install all batteries correctly, + and - as

marked on the unit.

• Do not mix batteries (old and new or

carbon and alkaline, etc.).

• Remove batteries when the unit is not

used for a long time.

• Batteries (battery pack or batteries

installed) shall not be exposed to excessive

heat such as sunshine, re or the like.

• CAUTION: Danger of explosion if battery

is incorrectly replaced. Replace only with

The USB-IF Logos are trademarks of Universal Serial Bus Implementers Forum, Inc.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Gibson Innovations is under license.

This apparatus includes these labels:

the same or equivalent type.

• The unit shall not be exposed to dripping

or splashing.

• Do not place any sources of danger on

the unit (e.g. liquid lled objects, lighted

candles).

• Where the MAINS plug or an appliance

Class II equipment symbol

coupler is used as the disconnect device, the disconnect device shall remain readily operable.

Warning

• Never remove the casing of this apparatus.

• Never place this apparatus on other electrical

equipment.

• Never look into the laser beam inside this

apparatus.

This symbol indicates that the apparatus has a double insulation system.

• The type plate is located on the bottom of the

apparatus.

Specications

Caution

• Use of controls or adjustments or performance

of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

Notice

Any changes or modications made to this

device that are not expressly approved by

Rated output power (Amplier): 2 X 2W RMS≤10% THD Acoustic frequency response: 125 Hz - 16K Hz Speaker driver: 2 x 3”, 4Ω

Support disc type: CD-DA, CD-R, CDRW, MP3-CD (8/12 cm) Bluetooth version: V3.0 +EDR

Bluetooth supported proles: HFP V1.6, A2DP

V1.2, AVRCP V1.4

Note

Bluetooth frequency band / Output power:

2.400GHz ~ 2.483GHz ISM Band / ≤ 4dBm

(Class 2) USB (for playback): Type A, USB Direct 2.0, 5V /

500mA, MSC le format, FAT 16/32

MP3, 32-320 Kbps and Variable bit rate

Tuner frequency range: FM 87.5-108MHz AUX input level: 650mV RMS

注意

如果用户未经可而擅自对此设备进行更改或修改，则可能导致其无权操作此设备。

保护环境

弃置旧产品

Gibson Innovations

的明确许

类设备符号

此符号表示本装置具有双层绝缘系统。

注

Battery: C size Cell x 6

型号铭牌位于本设备的底部。

Power: AC Input: 220V~ 50 Hz Operation power consumption: 15W Play time in battery mode: Approx. 8 hours, CD-mode, Akaline batteries (when playing

music in CD mode @ 76dBA SPL)

ECO standby power consumption: < 0.5W Product dimensions (W x H x D): Main unit 290 x 130 x 240 mm

Product weight: Main unit 1.26kg

ZH-CN

安全事项

• 阅读这些说明。

• 遵循所有说明。

• 不要堵塞任何通风口。

说明进行安装。

• 不要在任何热源附近安装，如散热器、

蓄热器、炉具或其它发热设备（包括功放器）。

• 防止电源线被踩踏或挤夹，特别是在插

头、电源插座和装置电源线出口位置。

• 仅使用制造商指定的附件

• 在雷电天气期间或长期不用的情况下，

请拔下本装置的电源插头。

• 所有维修均应由合格的维修人员来执

行。本装置有任何损坏时，如电源线或插头损坏，液体泼溅到或物体跌落到装置上，装置淋雨或受潮，无法正常运行，或者跌落，均需要进行维修。

• 电池使用注意事项

按照制造商的

配件。

–

为防止电池泄漏

本产品采用可回收利用的高性能材料和组件制造而成。弃置产品时，请不要将其与一般生活垃圾一同丢弃，应将其交给政府指定的回收中心或回收。这样做有利于环保。

环境信息

为使包装尽量简化，已省去所有不必要的包装材料。包装材料分为三类：纸板（盒）、纸浆（缓冲物）和聚乙烯（袋、保护膜）。本系统的所有材料均可回收和再利用（如果由专业公司拆卸）。请遵守当地有关包装材料、废电池和旧设备的处理的规定。

USB-IF

标志为

Implementers Forum, Inc.

Bluetooth Inc.

的注册商标，

标记的使用均已获得授权。

本装置具有以下标签：

Universal Serial Bus

的商标。

文字标记及标志为

Gibson Innovations

Bluetooth SIG,

对这些

•

规格

额定输出功率（功放）：声频响应：扬声器驱动：

125 Hz - 16K Hz

2 x 3”, 4

支持碟片类型：

蓝牙版本：

V3.0 +EDR

支持蓝牙规范：

蓝牙频段

2.483GHz ISM USB

/ 500mA, MSC

输出功率：

波段

（用于播放）：A 型

文件格式

MP3, 32-320 Kbps

调谐器频率范围：

AUX

输入电平：

电池：2 号电池

x 6

电源：交流电输入：运行功耗：

15W

电池模式下播放时间：使用碱性电池模式下大约

@ 76dBA SPL

ECO

产品尺寸（宽主机

小时（

）

待机功耗：

x 高 x

290 x 130 x 240

产品重量：主机

2 X 2W RMS≤10% THD

CD-DA, CD-R, CDRW, MP3-CD (8/12 cm)

HFP V1.6, A2DP V1.2, AVRCP V1.4

2.400GHz ~

/ ≤ 4dBm (2 级)

, USB Direct 2.0, 5V

, FAT 16/32

及多种比特率

FM 87.5-108MHz

650mV RMS

220V~ 50 Hz

模式下播放音乐

< 0.5W

深）：

毫米

1.26

公斤

而造成人身伤害、财产损失或装置损坏，请：

• 按照装置上标明的

• 请勿混合使用电池（旧电池与新电

• 若打算长期不用本装置，应取出电

• 不可将电池（电池组或安装的电池）置

确安装所有电池。

极和

极，正

池或碳电池与碱性电池，等等）。

池。

(PBDE)

多溴二苯醚

(PBB)

多溴联苯

于高温环境，如阳光直射处、明火或类似环境。

• 切勿将装置暴露在漏水或溅水环境下。

• 不要将任何危险源放在本装置上（例如

装有液体的物体、点燃的蜡烛）。

• 将电源插头或产品耦合器用作断开设备

时，该断开设备应可以随时使用。

有害物质

(VI))

六价铬(Chromium

Hazardous Substances

镉 (Cd,

cadmium)

ll of the homogeneous materials for this

t least one of the homogeneous materials

to any assets.

zardous substances in electronic and

these [substances] will not result in

警告

切勿拆下本产品的外壳。

•

切勿将本装置放在其它电器设备上面。

•

切勿直视本装置内部的激光束。

•

注意

不按此处说明的操作流程来使用控件或进

•

行调整可能导致危险的激光辐射或其它不安全的操作。

产品中有害物质的名称及含量

部件名称

汞 (Hg,

Mercury)

Lead)

铅 (Pb,

O O O O O

外壳

O O O O O

O O O O O O

○：

×：

环保使用期限 Environmental Protection Use Period

期限。
