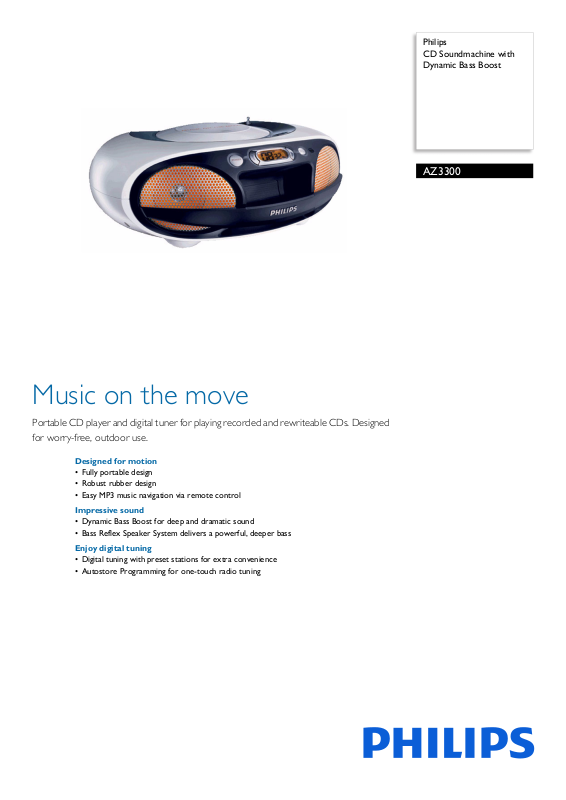

Philips AZ3300-37 User Manual
Philips
CD Soundmachine with
Dynamic Bass Boost
AZ3300
Music on the move
Portable CD player and digital tuner for playing recorded and rewriteable CDs. Designed
for worry-free, outdoor use.
Designed for motion
• Fully portable design
• Robust rubber design
• Easy MP3 music navigation via remote control
Impressive sound
• Dynamic Bass Boost for deep and dramatic sound
• Bass Reflex Speaker System delivers a powerful, deeper bass
Enjoy digital tuning
• Digital tuning with preset stations for extra convenience
• Autostore Programming for one-touch radio tuning
CD Soundmachine with Dynamic Bass Boost
AZ3300/37
Specifications
Sound
• Sound Enhancement: Dynamic Bass Boost
• Sound System: Stereo
• Speaker diameter: 3"
• Output power (RMS): 2X1.6W
• Volume Control: Volume Control up/down
Loudspeakers
• Built-in speakers: 2
• Finishing: Metal
• Loudspeaker types: Loudspeakers
Audio Playback
• Playback Media: CD, CD-R, CD-RW
• Disc Playback Modes: Fas
Next/Previous Track Search, Repeat Play, Shuffle
Play
•Loader Type: Top
• Programmable Tracks: 20
Tuner/Reception/Transmission
• Antenna: AM Antenna, FM Antenna
• Auto digital tuning
• Station presets: 30
• Tuner Bands: FM, AM
t Forward/Backward,
Convenience
• Display Digits: 6
• Display Type: LCD
• Remote control: 14 keys
Accessories
• Included accessories: AC Power Cord, User
Manual, Warranty certificate
•Remote control: 1
Dimensions
• Packaging dimensions (W x H x D):
477 x 200 x 310 mm
• Product dimensions (W x H x D):
8 x 155 x 277 mm
40
•Weight: 2.8 kg
• Weight incl. Packaging: 4.1 kg
Power
•Battery type: LR14
• Battery voltage: 1.5 V
• Mains power
• Number of batteries: 6
•
Highlights
Fully portable design
Fully portable design
Robust rubber design
Robust rubber design
Easy navigation via remote
Easy MP3 music navigation via remote control
Dynamic Bass Boost
Dynamic Bass Boost maximizes your music
enjoyment by emphasizing the bass content of the
music throughout the range of volume settings from low to high – at the touch of a button! Bottomend bass frequencies usually get lost when the
volume is set at a low level. To counteract this,
Dynamic Bass Boost can be switched on to boost
bass levels, so you can enjoy consistent sound even
when you turn down the volume.
Bass Reflex Speaker System
Bass Reflex Speaker System delivers a deep bass
experience from a compact loudspeaker box system.
It differs from a conventional loudspeaker box
system in the addition of a bass pipe that is
acoustically aligned to the woofer to optimize the
low frequency roll-off of the system. The result is
deeper controlled bass and lower distortion. The
system works by resonating the air mass in the bass
pipe to vibrate like a conventional woofer.
Combined with the response of the woofer, the
system extends the overall low frequency sounds to
create a whole new dimension of deep bass.
Digital tuning with presets
Simply tune into the station that you want to preset,
press and hold the preset button to memorize the
frequency. With preset radio stations that can be
stored, you can quickly access your favorite radio
station without having to manually tune the
frequencies each time.
Autostore programming
Autostore Programming is a convenient feature that
allows you to tune in to your favorite stations and
set station presets by simply pressing a button.
Autostore Programming does away with the hassle
of manual radio station tuning and setting of presets.
A built-in electrical circuit automatically scans local
radio station frequencies, locks on to the strongest
radio station signals, and assigns them to specific
presets.
Issue date 2013-05-10
Version: 1.0.2
12 NC: 9073 101 01015
© 2013 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
