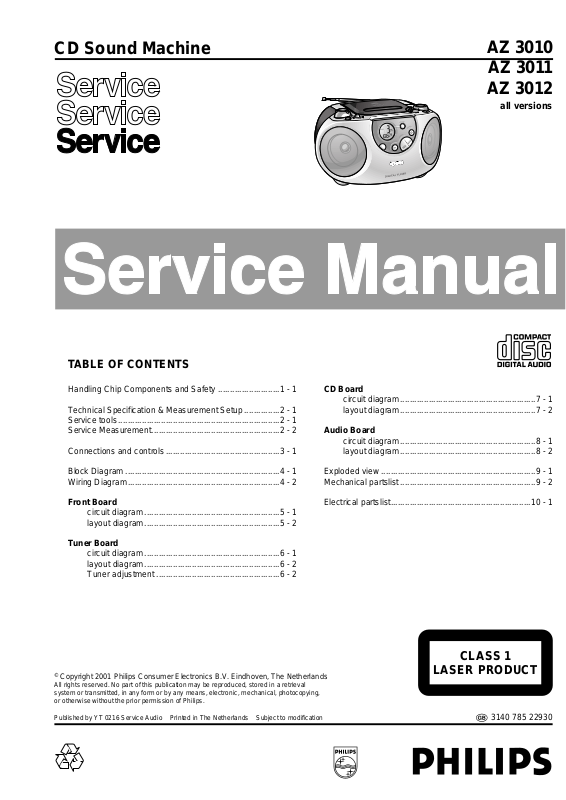

CD Sound Machine

AZ 3010

AZ 3011

AZ 3012

all versions

Handling Chip Components and Safety ..........................1 - 1

Technical Specification & Measurement Setup...............2 - 1

Service tools....................................................................2 - 1

Service Measurement......................................................2 - 2

Connections and controls................................................3 - 1

Block Diagram .................................................................4 - 1

Wiring Diagram................................................................4 - 2

Front Board

circuit diagram.........................................................5 - 1

layout diagram.........................................................5 - 2

Tuner Board

circuit diagram.........................................................6 - 1

layout diagram.........................................................6 - 2

Tuner adjustment ....................................................6 - 2

CD Board

circuit diagram.........................................................7 - 1

layout diagram.........................................................7 - 2

Audio Board

circuit diagram.........................................................8 - 1

layout diagram.........................................................8 - 2

Exploded view .................................................................9 - 1

Mechanical partslist.........................................................9 - 2

Electrical partslist...........................................................10 - 1

Published by YT 0216 Service Audio Printed in The Netherlands Subject to modification

TABLE OF CONTENTS

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without the prior permission of Philips.

CLASS 1

LASER PRODUCT

HANDLING CHIP COMPONENTS

1 - 1

All ICs and many other semiconductors are susceptible to electrostatic discharges (ESD). Careless handling during repair can reduce life drastically. When repairing, make sure that you are connected with the same potential as the mass of the set via a wristband with resistance. Keep components and tools at this potential.

f ATTENTION

Tous les IC et beaucoup d´autres semi-conducteurs sont sensibles aux décharges statiques (ESD). Leur longévite pourrait être considérablement écourtée par le fait qu´aucune précaution nést prise à leur manipulation. Lors de réparations, s´assurer de bien être relié au même potentiel que la masse de l´appareil et enfileer le bracelet serti d´une résistance de sécurité. Veiller à ce que les composants ainsi que les outils que l´on utilise soient également à ce potentiel.

Safety regulations require that the set be restored to its original condition and that parts which are identical with those specified be used. Safety components are marked by the symbol

Les normes de sécurité exigent que l`appareil soit remis à l`état d`origine et que soient utilisées les pièces de rechange identiques à celles spécifiées. Les composants de sécurité sont marqués

d WARNUNG

Alle ICs und viele andere Halbleiter sind empfindlich gegenüber elektrostatischen Entladungen (ESD). Unsorgfältige Behandlung im Reparaturfall kann die Lebensdauer drastisch reduzieren. Sorgen Sie dafür, daß Sie im Reparaturfall über ein Pulsarmband mit Widerstand mit dem Massepotential des Gerätes verbunden sind. Halten Sie Bauteile und Hilfsmittel ebenfalls auf diesem Potential.

Bei jeder Reparatur sind die geltenden Sicherheitsvorschriften zu beachten. Der Originalzustand des Gerätes darf nicht verändert werden. Für Reparaturen sind Originalersatzteile zu verwenden. Sicherheitsbauteile sind durch das Symbol markiert.

ESD

SAFETY

ñ WAARSCHUWING

Alle IC´s en vele andere halfgeleiders zijn gevoelig voor electrostatische ontladingen (ESD). Onzorgvuldig behandelen tijdens reparatie kan de levensduur drastisch doen vermindern. Zorg ervoor dat u tijdens reparatie via een polsband met weerstand verbonden bent met hetzelfde potentiaal als de massa van het apparaat. Houd componenten en hulpmiddelen ook op ditzelfde potentiaal.

i AVVERTIMENTO

Tutti IC e parecchi semi-conduttori sono sensibili alle scariche statiche (ESD). La loro longevità potrebbe essere fortemente ridatta in caso di non osservazione della più grande cauzione alla loro manipolazione. Durante le riparationi occorre quindi essere collegato allo stesso potenziale che quello della massa delápparecchio tramite un braccialetto a resistenza. Assicurarsi che i componenti e anche gli utensili con quali si lavora siano anche a questo potenziale.

Veiligheidsbepalingen vereisen, dat het apparaat in zijn oorspronkeliijke toestand wordt teruggebracht en dat onderdelen, identiek aan de gespecificeerde, worden toegepast. De Veiligheidsonderdelen zijn aangeduid met het symbool

Le norme di sicurezza estigono che l´apparecchio venga rimesso nelle condizioni originali e che siano utilizzati i pezzi di ricambiago identici a quelli specificati. Componenty di sicurezza sono marcati con

DANGER: Invisible laser radiation when open. AVOID DIRECT EXPOSURE TO BEAM.

s Varning !

Osynlig laserstrålning när apparaten är öppnad och spärren är urkopplad. Betrakta ej strålen.

∂ Advarsel !

Usynlig laserstråling ved åbning når sikkerhedsafbrydere er ude af funktion. Undgå udsaettelse for stråling.

CLASS 1

LASER PRODUCT

ß Varoitus !

Avatussa laitteessa ja suojalukituksen ohitettaessa olet alttiina näkymättömälle laserisäteilylle. Älä katso säteeseen !

After servicing and before returning the set to customer perform a leakage current measurement test from all exposed metal parts to earth ground, to assure no shock hazard exists. The leakage current must not exceed 0.5mA.

"Pour votre sécurite, ces documents doivent être utilisés par des spécialistes agréés, seuls habilités à réparer votre appareil en panne".

ECHNICAL SPECIFICATIONS

B P D W

S F

F S C C L L

2 - 1

ENERAL

ains voltage -/00C : 230 V

-/01 : 120 / 230 V

/05/10 : 240V

-/17 : 120 V

ains frequency -/00C/05/10 : 50 Hz

-/01 : 50 / 60 Hz

-/17 : 60 Hz attery main set : 9 V (R14 x 6) ower consumption : < 20 W (max.) imension (W x H x D) : 294 x 145 x 245 mm

eight : 2.4 Kg

MPLIFIER

utput power mains : 2 x 1 W

battery : 2 x 1 W peaker impedance : 2 x 8 o h m requency response : 100 Hz - 10 kHz (–3dB)

TUNER - FM SECTION

Tuning range : 87.5 - 108 MHz IF frequency : 10.7 MHz – 0.2 MHz Sensitivity : 20 dBf at 26dB S/N Selectivity : 30 dB at 300kHz IF rejection : 50 dB Image rejection : 20 dB Crosstalk : 20 dB

TUNER - AM SECTION

Tuning range M W : 531 - 1602 kHz

-/17 : 530 - 1700 kHz IF frequency : 450 kHz – 1 kHz Sensitivity M W : 4500 V/m at 26dB S/N Selectivity MW : 16 dB IF rejection MW : 60 dB Image rejection MW : 28 dB

OMPACT DISC

requency response : 100 Hz - 10 kHz – 2dB /N ratio : 60 dB hannel difference 1 kHz : 2 dB

hannel crosstalk 1 kHz : 40 dB aser wavelength : 780 – 20 nm aser light power : < 0.5 mW

SERVICE TOOLS

Audio signal disc SBC 429.......................................................................4822 397 30184

Playability test disc SBC 444 Test disc 5 (disc without errors ) + Test disc 5A (disc with dropout errors, black spots and fingerprints)

SBC 426/426A.....................................................................4822 397 30096

Burn in test disc (65 min. 1kHz signal at -30 dB level without “pause”)

...................................................................4822 397 30245

.....4822 397 30155

AVAILABLE ESD PROTECTION EQUIPMENT

anti-static table mat

anti-static wristband connection box (3 press stud connections, 1MΩ) 4822 320 11307 extendible cable (2m, 2MΩ, to connect wristband to connection box) 4822 320 11305 connecting cable (3m, 2MΩ, to connect table mat to connection box) 4822 320 11306 earth cable (1MΩ, to connect any product to mat or to connection box) 4822 320 11308 KIT ESD3 (combining all 6 prior products - small table mat) 4822 310 10671 wristband tester 4822 344 13999

large 1200x650x1.25mm 4822 466 10953

small 600x650x1.25m 4822 466 10958

4822 395 10223

2 - 2

SERVICE MEASUREMENT

Tuner SW

RF Generator

e.g. PM5326

Aerial replacement

DUT

Capacitor

Ri=50Ω

R=50Ω

Bandpass

250Hz-15kHz

e.g. 7122 707 48001

LF Voltmeter

e.g. PM2534

S/N and distortion meter

e.g. Sound Technology ST1700B

To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday«s cage. Use a bandpass filter (or at least a high pass filter with 250Hz) to eliminate hum (50Hz, 100Hz).

Tuner AM (MW,LW)

RF Generator

e.g. PM5326

Ri=50Ω

DUT

Frame aerial

e.g. 7122 707 89001

Bandpass

250Hz-15kHz

e.g. 7122 707 48001

LF Voltmeter

e.g. PM2534

S/N and distortion meter

e.g. Sound Technology ST1700B

To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday«s cage.

Use Audio Signal Disc SBC429 4822 397 30184 (replaces test disc 3) L.P.F. = 13

order filter 4822 395 30204

DUT

Low pass filter 22kHz

LEVEL METER

e.g. Sennheiser UPM550

with FF-filter

S/N and distortion meter

e.g. Sound Technology ST1700B

3 - 1

Top and front panels (See 1)

1VOLUME

– adjusts volume level

2DBB (Dynamic Bass Boost)

– enhances bass response

3Source selector

– selects source of sound CD or TUNER. Also the power off switch

4Display

– shows the CD and tuner functions

5FM•MW (AM)

– selects FM/ MW (AM) waveband

6LIFT TO OPEN

– opens/ closes the CD door

7PRESS TO PLAY 2;

– starts or pauses CD play

8STOP 9

– stops CD playback; erases a CD programme

9SEARCH ∞ , §

CD: skips or searches a passage/track backwards or forward

Tuner: tunes to a station (up, down)

0PRESET +, –

– selects a preset station (up, down)

!PROG MODE

CD: – programmes and reviews programmed track numbers;

– plays tracks CD/ programme in random order;

– repeats a track/CD/ programme

Tuner: – programmes preset stations

Back Panel (See 1)

@Telescopic aerial

– to improve FM reception

#Voltage selector (inside battery compartment,

some versions only)

– adjust to match the local voltage 110/220V before plugging in the set

$Battery door

– to open battery compartment

%AC MAINS

– inlet for mains lead

CONNECTIONS AND CONTROLS

For more detail on operation instruction please visit Philips Audio internet site : http://www.audio.philips.com

1 2 3 4 5 6 7 8

! 0 9

@ $# %

3 x 2 R14 • UM2 • C-CELLS
