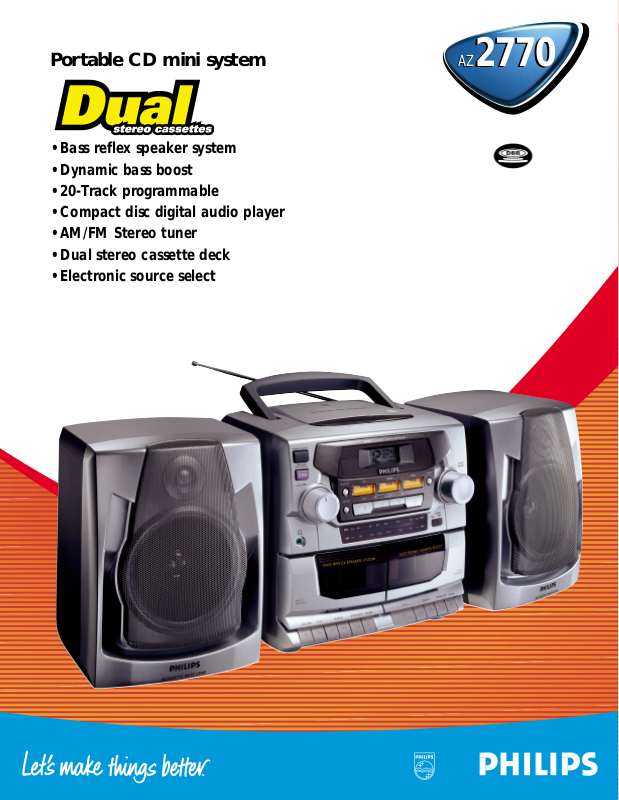

Philips AZ2770 User Manual

Portable CD mini system

• Bass reflex speaker system

• Dynamic bass boost

• 20-Track programmable

• Compact disc digital audio player

• AM/FM Stereo tuner

• Dual stereo cassette deck

• Electronic source select

AZ2770

Portable CD mini system

AZ2770

Standard product information Amplifier

• Output power 2 x 2 W RMS

• Dynamic bass boost

• Rotary volume control

• Electronic source select

Sound system

• 2 x 4" full range speakers

• Metal speaker grills

CD player

• Top loader

• 20 track CD program and repeat

• CD program,shuffle and repeat function

• Cue/ review

• Search/ skip/ review

Cassette deck

• Dual stereo cassette deck

• Normal tape type

• Full automatic stop

• Automatic recording level control

Tuner

• AM/FM Stereo tuner

• Wavebands FM stereo/AM

• Frequency ranges FM 87.5 - 108 MHz AM 530 - 1710 kHz

• Telescopic antenna for FM reception

• Ferroceptor for AM reception

Display

• 6-digit LCD display

Connections

• Headphone jack .14”

Power supply

• AC/DC operation

• AC voltage 120 V, 60 Hz

• Batteries 6 x 1.5V

General

• Material HIPS

• Product dimensions 27" W x 9.4" D x 10.4" H

• Product weight 14.8 lbs

• Package dimensions 29.5" W x 11.8" H x

13.4" D

• Package weight 18.5 lbs

• Quantity/mastercarton 1

Dual stereo cassette deck

Play back recorded tapes on this full-function dual stereo cassette deck, and record from the built-in CD player or tuner.

Dynamic bass boost

Enhances bass tone frequencies to give deep,rich sounds.

20-Track programmable

Stores up to 20 of your favorite CD tracks for playing back in your order of preference.

Compact disc digital audio player

Compact Disc technology that combines superb digital sound quality with the convenience of random track access and CD functions like CD program, Shuffle Play and Repeat.

Shuffle play

Plays disc selection randomly,giving you a new sequence of tracks each time.

Repeat one/ all

Repeats the current track,the total CD,or your pre-selected program.

CD next/previous track search

Plays the next or previous track at the touch of a button.

CD music search

Searches the CD at high speed while still producing low-volume sound so you know exactly when to stop.

AM/FM Stereo tuner

High-quality tuner with sensitive operation for maximum tuning control.

Full auto stop

Automatically shuts off the cassette deck at the end of playback to avoid overstretching the tape.

Automatic recording level control

Electronic circuit that constantly monitors the input signal to ensure accurate,distortion-free recording.

CD synchro start recording

Synchronizes the start of a recording on audio cassette with the start of a CD at the touch of a button.

Bass reflex speaker system

Acoustic system that enhances the upper bass tones to provide a warmer, punchier bass sound.

4" Full-range speakers

For excellent sound performance across the entire audio frequency spectrum.

Metal mesh speaker grills

Perforated,anodized grilles protect the speaker components.

Six-digit multi-functional display

Displays CD player information (track,playing time and play modes).

Stereo headphone jack

Enables stereo headphones to be used for private listening pleasure. Automatically switches off speakers when used.

Built-in handle

Strong,fold-away handle for carrying your music system wherever you go.

AC/DC operation

Operates either on batteries or using the detachable AC power cord.

Electronic source select

UPC: 0 37849 90974 4

http://www.philipsusa.com
