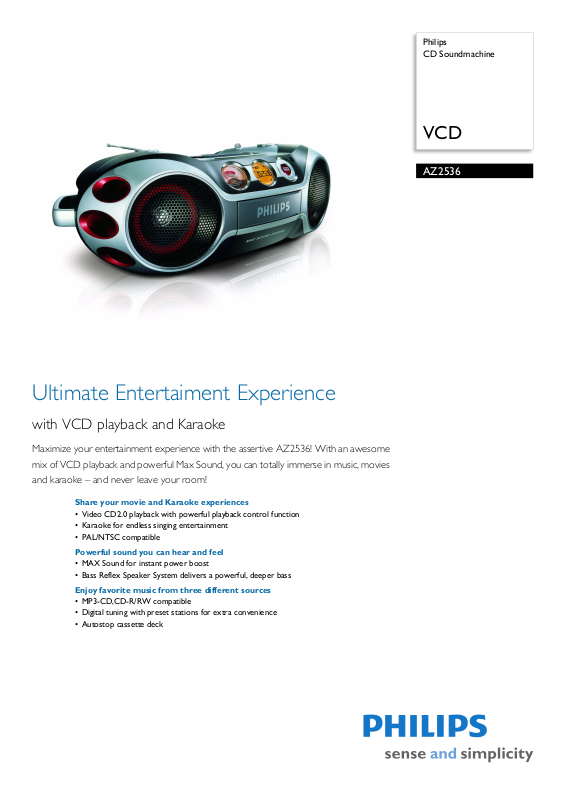

Page 1
Philips
CD Soundmachine
VCD
AZ2536
Ultimate Entertaiment Experience
with VCD playback and Karaoke
Maximize your entertainment experience with the assertive AZ2536! With an awesome
mix of VCD playback and powerful Max Sound, you can totally immerse in music, movies
and karaoke – and never leave your room!
Share your movie and Karaoke experiences
• Video CD2.0 playback with powerful playback control function
• Karaoke for endless singing entertainment
• PAL/NTSC compatible
Powerful sound you can hear and feel
• MAX Sound for instant power boost
• Bass Reflex Speaker System delivers a powerful, deeper bass
Enjoy favorite music from three different sources
• MP3-CD,CD-R/RW compatible
• Digital tuning with preset stations for extra convenience
• Autostop cassette deck
Page 2
CD Soundmachine
VCD
AZ2536/12
Specifications
Sound
• Output power (RMS): 2X4W
• Sound System: Stereo
• Volume Control: rotary
Audio Playback
• Playback Media: CD, CD-R, CD-RW, MP3-CD
•Loader Type: Top
• Programmable Tracks: 20
Tuner/Reception/Transmission
• Antenna: AM Antenna, FM Antenna
• Auto digital tuning
• Tuner Bands: FM, MW
Connectivity
• Audio output: Stereo Audio (3.5 mm jack) 1x
•Aux in: Karaoke
• Headphone: 3.5 mm
• Video Output - Analog: Video (3.5mm jack) 1x
Convenience
• Backlight color: Amber
• Display Digits: 7
• Display Type: LCD
Accessories
• Included accessories: AC Power Cord, Audio/
Video cable, User Manual, Warranty certificate
Dimensions
• Packaging dimensions (W x H x D):
560 x 236 x 348 mm
• Product dimensions (W x H x D):
0 x 178 x 287 mm
52
•Weight: 4.1 kg
• Weight incl. Packaging: 6.1 kg
Power
•Battery type: LR20
• Battery voltage: 1.5 V
• Mains power
• Number of batteries: 8
•
Highlights
Video CD2.0 playback
Video CD2.0 playback with powerful playback
control function
Karaoke
The Karaoke feature on your DVD player provides
endless entertainment and maximum audio and
singing enjoyment.You can enhance your
performance by adding an ‘echo’ effect to your voice.
The key controls allows you to choose the optimal
key for your personal vocal range.
PAL/NTSC compatible
PAL/NTSC compatible
MAX Sound
MAX Sound technology produces an instant boost in
bass, maximizing volume performance and instantly
creating the most impressive listening experience
with just the touch of a button. Its sophisticated
electronic circuitry calibrates existing sound and
volume settings, instantly boosting bass and volume
to maximum levels without distortion. The end
result is a noticeable amplifying of both sound
spectrum and volume and a potent audio boost that
will add mileage to any music.
Bass Reflex Speaker System
Bass Reflex Speaker System delivers a deep bass
experience from a compact loudspeaker box system.
It differs from a conventional loudspeaker box
system in the addition of a bass pipe that is
acoustically aligned to the woofer to optimize the
low frequency roll-off of the system. The result is
deeper controlled bass and lower distortion. The
system works by resonating the air mass in the bass
pipe to vibrate like a conventional woofer.
Combined with the response of the woofer, the
system extends the overall low frequency sounds to
create a whole new dimension of deep bass.
Issue date 2011-04-28
Version: 3.0.4
12 NC: 9073 101 01406
EAN: 87 10895 82981 6
MP3-CD,CD-R/RW compatible
MP3-CD,CD-R/RW compatible
Digital tuning with presets
Simply tune into the station that you want to preset,
press and hold the preset button to memorize the
frequency. With preset radio stations that can be
stored, you can quickly access your favorite radio
station without having to manually tune the
frequencies each time.
Autostop cassette deck
Autostop cassette deck
© 2011 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
