Philips AZ2035 User Manual

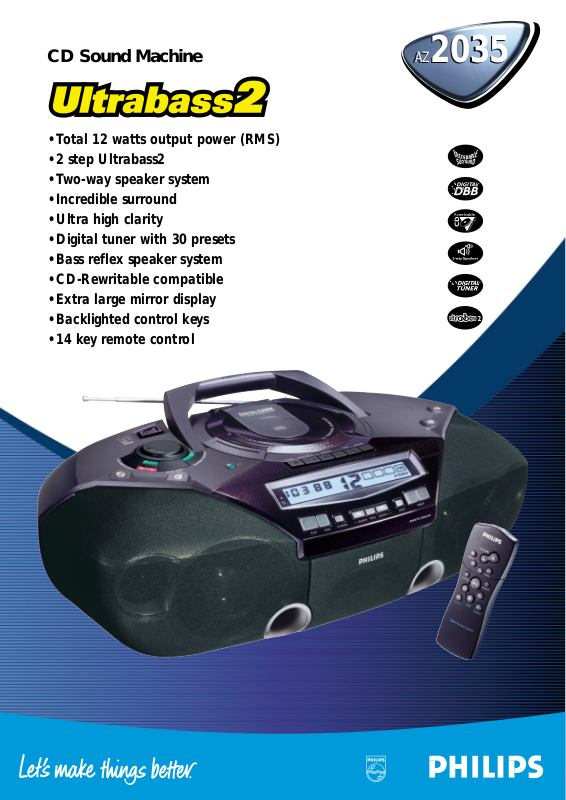

CD Sound Machine
• Total 12 watts output power (RMS)
• 2 step Ultrabass2
• Two-way speaker system
• Incredible surround
• Ultra high clarity
• Digital tuner with 30 presets
• Bass reflex speaker system
• CD-Rewritable compatible
• Extra large mirror display
• Backlighted control keys
• 14 key remote control
AZ2035
AZ2035
Standard product information
Compact disc player
• Top loader
• 20 Track CD programme
• Shuffle and repeat function
• CD next/ previous track search
• CD music search
• CD synchro start recording
• CD-Rewritable compatible
Cassette deck
• Single stereo cassette deck
• Normal tape type
• Full auto stop
• Automatic recording level control
Tuner
• Digital tuning
• 30 Station presets
• Telescopic aerial for FM reception
• Ferroceptor for AM reception
• Wavebands
/00,/05 FM stereo/MW/LW
/17 FM stereo/AM
/01,/11 FM stereo/MW
/14 FM1/FM2/MW/LW
• Frequency ranges FM 87.5 - 108 Mhz
AM 530 - 1710 kHz
(/17)
MW 525 - 1607 kHz
LW 148.5 - 284 kHz
FM 65.8 - 74/87.5 108 Mhz (/14)
Display
• 6-Digit LCD mirror display
Sound system
• Output power 2 x 6.0 W RMS
• Incredible surround
• Ultra High Clarity
• 2 step UltraBass2
• Bass reflex speaker system
• Two way speakers (Woofers & Tweeters)
• Cloth speaker grilles
Power supply
• AC/DC Operation
• Batteries 8 x 1.5V,R20 cells
Connections
• Stereo headphones 3.5 mm
Remote control
• 14 Key Remote control
General
• Dimensions product 540 mm W x 177 mm H
x 280 mm D
• Packaging dimensions 575 mm W x 240 mm H
x 329 mm D
• Weight of product 5.3 Kg
• Weight including
packaging 6.3 Kg
Power supplies
• /00,/05,/14,/13 230V,50Hz
• /17 120 V ,60 Hz
• /01,/11 120/230 V,50 Hz
CD Sound Machine
Compact disc digital audio player
Compact Disc technology that combines superb digital sound
quality with the convenience of random track access and CD
functions like CD programme, Shuffle Play and Repeat.
20-track programmable
Stores up to 20 of your favourite CD tracks for playing back
in your order of preference.
Shuffle play
Plays disc selection randomly,giving you a new sequence of tracks
each time.
Stereo cassette deck
Play back recorded tapes on this full-functional stereo cassette
deck, and record from the built-in CD player or tuner.
4”Woofers
Speakers optimised for low frequencies.
1.5”Tweeters
Speakers optimised for high frequencies.
Metal mesh speaker grilles
Perforated,anodized grilles protect the speaker
components.
Stereo headphone socket
Enables stereo headphones to be used for private listening pleasure.
Automatically switches off speakers when used.
Printed in Hong Kong 2001-02-01
Specifications subject to modification
without notice
© 2001 Koninklijke Philips Electronics N.V.
All rights reserved
http://www.philips.com
