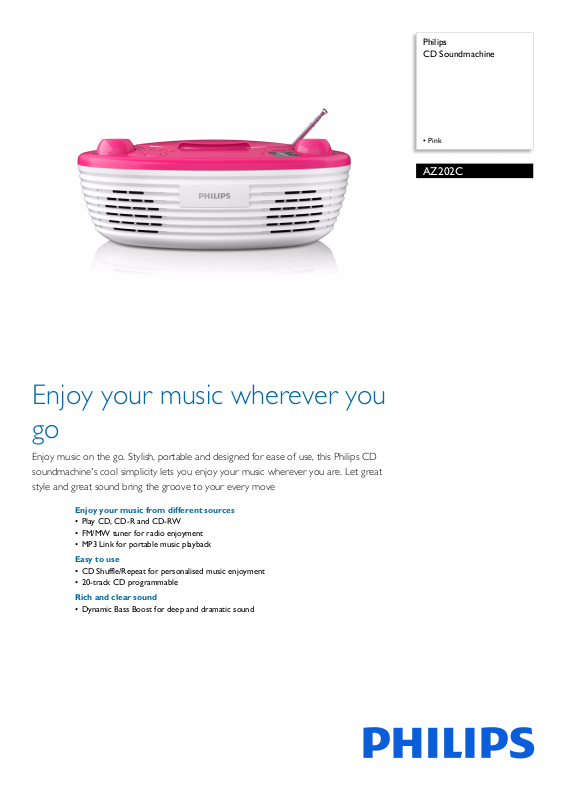

Page 1
Philips
CD Soundmachine
•Pink
AZ202C
Enjoy your music wherever you
go
Enjoy music on the go. Stylish, portable and designed for ease of use, this Philips CD
soundmachine's cool simplicity lets you enjoy your music wherever you are. Let great
style and great sound bring the groove to your every move
Enjoy your music from different sources
• Play CD, CD-R and CD-RW
• FM/MW tuner for radio enjoyment
• MP3 Link for portable music playback
Easy to use
• CD Shuffle/Repeat for personalised music enjoyment
• 20-track CD programmable
Rich and clear sound
• Dynamic Bass Boost for deep and dramatic sound
Page 2
CD Soundmachine
Pink
AZ202C/05
Specifications
Audio Playback
•Loader Type: Top
• Playback Media: CD, CD-R, CD-RW
• Disc Playback Modes: Fast F
Previous Track Search, Repeat Play, Shuffle Play
• Programmable Tracks: 20
Tuner/Reception/Transmission
• Tuner Bands: FM, MW
• Antenna: FM Antenna
Sound
• Output power (RMS): 2 x 1 W
• Sound Enhancement: Dynamic Bass Boost
• Sound System: Stereo
• Speaker diameter: 2.5"
• Volume Control: rotary
Connectivity
• 3.5 mm stereo line in: (MP3 Link)
orward/Reverse, Next/
Power
• Mains power: 220 V - 240 V
•Battery type: LR14
• Battery voltage: 1.5 V
• Number of batteries: 6
Accessories
• Included accessories: AC Power Cord, User
Manual, Warranty certificate
Dimensions
• Packaging dimensions (W x H x D):
324 x 284 x 139 mm
• Product dimensions (W x H x D):
7 x 112 x 264 mm
29
•Weight: 1.7 kg
• Weight incl. Packaging: 2.1 kg
•
Highlights
Dynamic Bass Boost
Dynamic Bass Boost maximises your music
enjoyment by emphasising the bass content of the
music throughout the range of volume settings from low to high – at the touch of a button! Bottomend bass frequencies usually get lost when the
volume is set at a low level. To counteract this,
Dynamic Bass Boost can be switched on to boost
bass levels, so you can enjoy consistent sound even
when you turn down the volume.
CD Shuffle/Repeat
The "Shuffle/Repeat" function helps you to get rid of
the boredom of hearing your music played in the
same order all the time. After loading your favourite
songs to the player, all you have to do is to select one
of the modes - "Shuffle" or "Repeat" for your tunes
to be played in different modes order. Enjoy the
different and unique music experience every time
you hook up to your player.
MP3 Link
The MP3 link connectivity allows direct playback of
MP3 content from portable media players. Besides
the benefit of enjoying your favourite music in the
superior sound quality delivered by the audio
system, the MP3 link is also extremely convenient as
all you have to do is to plug your portable MP3 player
into the audio system.
Issue date 2013-05-10
Version: 1.0.3
12 NC: 8670 000 71967
EAN: 87 12581 58251 7
© 2013 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
