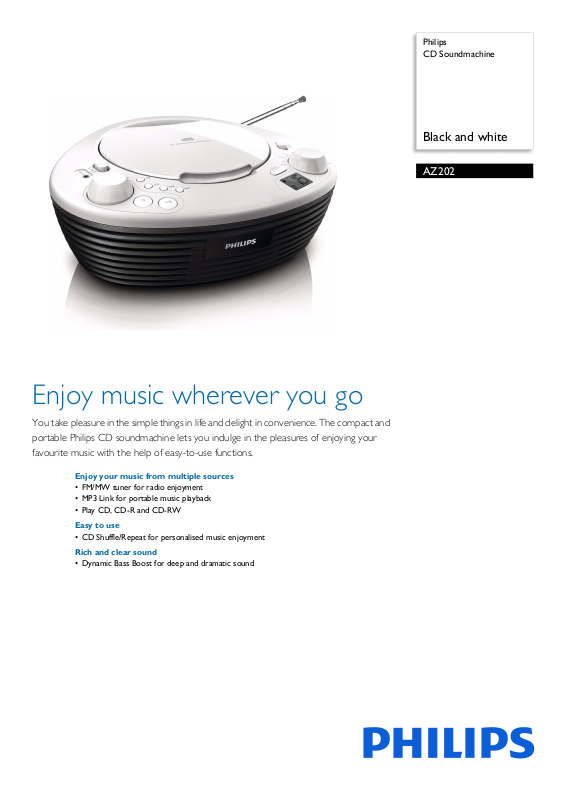

Page 1
Philips
CD Soundmachine
Black and white
AZ202
Enjoy music wherever you go
You take pleasure in the simple things in life and delight in convenience. The compact and
portable Philips CD soundmachine lets you indulge in the pleasures of enjoying your
favourite music with the help of easy-to-use functions.
Enjoy your music from multiple sources
• FM/MW tuner for radio enjoyment
• MP3 Link for portable music playback
• Play CD, CD-R and CD-RW
Easy to use
• CD Shuffle/Repeat for personalised music enjoyment
Rich and clear sound
• Dynamic Bass Boost for deep and dramatic sound
Page 2
CD Soundmachine
Black and white
AZ202/12
Highlights
Dynamic Bass Boost
Dynamic Bass Boost maximises your music
enjoyment by emphasising the bass content of the
music throughout the range of volume settings from low to high – at the touch of a button! Bottomend bass frequencies usually get lost when the
volume is set at a low level. To counteract this,
Dynamic Bass Boost can be switched on to boost
bass levels, so you can enjoy consistent sound even
when you turn down the volume.
CD Shuffle/Repeat
MP3 Link
The MP3 link connectivity allows direct playback of
MP3 content from portable media players. Besides
the benefit of enjoying your favourite music in the
superior sound quality delivered by the audio
system, the MP3 link is also extremely convenient as
all you have to do is to plug your portable MP3 player
into the audio system.
Play CD, CD-R and CD-RW
Specifications
Audio playback
• Playback media: CD, CD-R, CD-RW
• Disc playback modes: fast forward/reverse, next/
vious track search, repeat/shuffle/programme
pre
Tuner/Reception/Transmission
• Tuner bands: FM, MW
• Antenna: FM antenna
Sound
• Sound enhancement: Dynamic Bass Boost
• Sound system: stereo
• Volume control: rotary (analogue)
• Output power: 2 x 1 W RMS
Loudspeakers
• No. of built-in speakers: 2
• Speaker grille finishing: metal
Connectivity
• MP3 Link: 3.5 mm stereo line in
Power
•Battery type: C size (LR14)
• Battery voltage: 1.5 V
• Number of batteries: 6
•Power type: AC Input
Accessories
• Cables/Connection: power cord
• Others: User Manual
• Warranty: Warranty Certificate
The "Shuffle/Repeat" function helps you to get rid of
the boredom of hearing your music played in the
same order all the time. After loading your favourite
songs to the player, all you have to do is to select one
of the modes - "Shuffle" or "Repeat" for your tunes
to be played in different modes order. Enjoy the
different and unique music experience every time
you hook up to your player.
FM/MW tuner
FM/MW (AM) stereo tuner
Philips is known for making products which are
compatible with many discs available in the market.
This audio system lets you enjoy music from CD,
CD-R and CD-RW. A single CD can store up to 10
hours of music. CD-RW (CD-Rewritable
Compatible) means that your audio system can play
both CD-Recordable (CD-R) and CD-Rewritable
(CD-RW) discs. CD-R discs are recordable once and
can be played on any audio CD player while CD-RW
discs can be recorded and rewritten multiple times
and can only be played back on compatible audio CD
players.
Convenience
• Loader type: top
Dimensions
• Gross weight: 2.1 kg
• Packaging depth: 139 mm
• Packaging height: 284 mm
• Packaging width: 324 mm
•Weight: 1.7 kg
• Main unit depth: 264 mm
• Main unit height: 112 mm
• Main unit width: 297 mm
•
Issue date 2015-01-22
Version: 2.0.7
12 NC: 8670 000 63994
EAN: 87 12581 54903 9
© 2015 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
