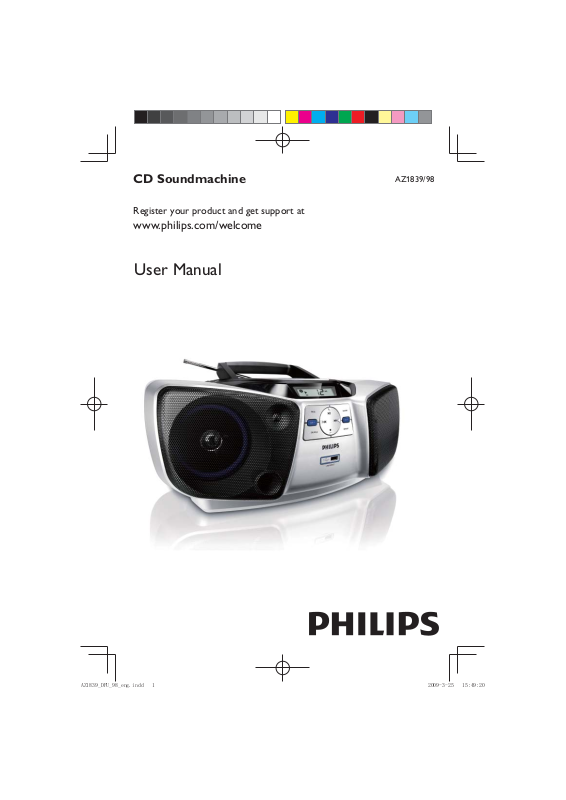

Philips AZ1839-98 User Manual
CD Soundmachine
Register your product and get support at
www.philips.com/welcome
User Manual
AZ1839/98
1
4
5
6
0
!
@
#
&
*
1
2
3
7
8
9
MP3 LINK
$
(
%
^
6 x R20/ UM1/ D-cells
2
6
MP3
TRK
3
4
5
TRK
PROG
TRK
MP3
MP3
MP3
7
X
TRK
ALL
English Controls
Congratulations on your purchase and
welcome to Philips!
To fully benefit from the support that
Philips offers, register your product at
www.philips.com/welcome.
Supplied Accessories
– AC power cord
Top/front panels (See 1)
1
DBB
–
turns the bass enhancement on/off
TUNING
2
3 PUSH TO OPEN
4
Source selector: CD/USB, FM, MW, OFF
–
–
switches off the set
5
VOLUME – adjusts volume level
6
Display – shows the CD/USB functions.
CD/USB – enters disc or USB mode
7
REPEAT – repeats a track / CD program /
8
USB port – connects an external USB mass
9
0
2 ; – starts or pause CD/USB playback
∞ §
9
! PROG – programs tracks and reviews the
ALB +/-
@
albums.
SHUFFLE –
#
– tunes to radio stations
– opens/closes the CD
door
selects CD, USB or radio (FM/MW) source
entire CD.
storage device.
–
selects the next/previous track
– searches forwards/backwards (press
and hold the button) within the current track
–
stops disc/USB playback;
–
erases a program
– For MP3-CD/USB only: select
program
plays all tracks in random order
Back/bottom panel (See 1)
MP3 LINK
$
AC MAINS~ - inlet for power cord.
%
Voltage selector - adjusts to match the
^
local voltage: 110-127V or 220-240V.
& Telescopic antenna - improves FM recep-
p - 3.5 mm stereo headphone socket
*
Helpful hints: The speakers will be muted
when headphones are connected to the set.
Battery door –
(
push to
CAUTION
– Visible and invisible laser radiation. If the cover is open, do not
look at the beam.
– High voltage! Do not open.You
run the risk of getting an electric
shock. The machine does not contain any user-serviceable parts.
– Modification of the product
could result in hazardous radiation
of EMC or other unsafe operation.
.
– inlet for external audio source
tion.
Press on the arrow and
insert 6 x 1.5V R20/ UM1/ D-cells.
.
Power Supply General Operation
Power Supply
Whenever convenient, use the power supply
cord if you want to conserve battery life.
Make sure you remove the plug from the set
and wall outlet before inserting batteries.
Batteries (not included)
1 Open the battery door and inser t 6 batteries,
type R20, UM1 or D-cells, (preferably alkaline)
with the correct polarity as indicated by the "+"
and "–" symbols inside the compartment.
2 Close the battery door, making sure the
batteries are firmly and correctly in place. The
set is now ready to operate.
Batteries contain chemical substances, so
they should be disposed of properly.
• Incorrect use of batteries can cause electrolyte
leakage and will corrode the compartment or
cause the batteries to burst:
• Do not mix battery types: e.g. alkaline with
carbon zinc. Only use batteries of the same
type for the set.
• When inserting new batteries, do not try to
mix old batteries with the new ones.
• Remove the batteries if the set is not to be
used for a long time.
Using AC power
WARNING: Always check you have
completely switched off the set, before
you change or disconnect power supply.
1 Check if the power voltage, as shown on
the type plate located on the bottom
of the set, corresponds to your local power
supply. If it does not, consult your dealer or
service center.
2 Connect the power cord to the AC
MAINS~ inlet and the wall socket. The set is
now connected and ready for use.
3 To switch the set off completely, withdraw the
power cord from the wall socket.
4 Install the unit near the AC outlet and where
the AC power plug can be easily reached.
• Disconnect the power cord from the wall
socket to protect your set during heavy
thunderstorms. Children could seriously injure
themselves as the free end of the cable may
still be live if only the connector is removed
from the MAINS socket at the back of the
unit.
The type plate is located on the bottom
of the set.
Helpful hints:
To avoid unnecessary energy consumption,
–
always adjust the
after using the set.
Source selector
to
OFF
General operation
Switching on and off and selecting the
function
1 To select your sound source, adjust the
Source selector to: CD/USB, FM or
MW.
2 To switch off the set, adjust the Source
selector to
3 To switch to MP3 LINK mode, connect an
external audio source to the MP3
LINK inlet.
Helpful hints:
• The set switches to MP3 LINK mode
automatically when an external audio source
is connected, no matter the set is in CD/
USB, FM or
• The MP3 LINK inlet is not for earphones.
Adjusting volume and sound
Adjust the sound with the VOLUME and
DBB controls.
OFF
MW
position.
mode.
