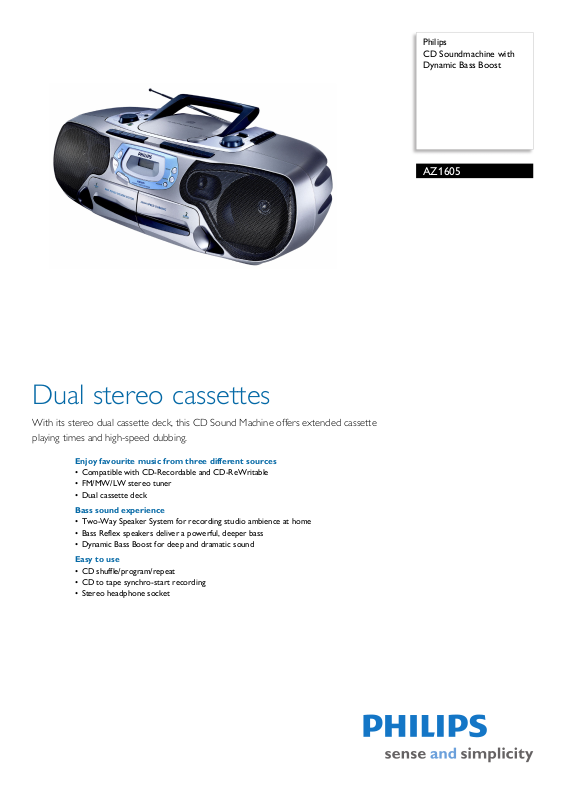

Philips AZ1605/00, AZ1605 Specifications
Philips
CD Soundmachine with
Dynamic Bass Boost
AZ1605
Dual stereo cassettes
With its stereo dual cassette deck, this CD Sound Machine offers extended cassette
playing times and high-speed dubbing.
Enjoy favourite music from three different sources
• Compatible with CD-Recordable and CD-ReWritable
• FM/MW/LW stereo tuner
• Dual cassette deck
Bass sound experience
• Two-Way Speaker System for recording studio ambience at home
• Bass Reflex speakers deliver a powerful, deeper bass
• Dynamic Bass Boost for deep and dramatic sound
Easy to use
• CD shuffle/program/repeat
• CD to tape synchro-start recording
• Stereo headphone socket
CD Soundmachine with Dynamic Bass Boost
AZ1605/00
Specifications
Sound
• Loudspeaker Enhancement: Piezo
• Loudspeaker types: 2 way bass reflex speaker
• Output power (RMS): 2X2W
• Sound Enhancement: Dynamic bass boost 2 steps
• Sound System: Stereo
• Speaker diameter: 4"
• Volume Control: Volume Control rotary/encoder
Loudspeakers
• Built-in speakers: 2
• Finishing: Metal
• Loudspeaker types: Loudspeakers
Audio Playback
• Cassette Deck Technology: Mechanical
• Playback Media: CD, CD-R, CD-RW
• Disc Playback Modes: Fast F
Previous Track Search, Repeat Play, Shuffle Play
•Loader Type: Top
•Number of decks: 1
• Programmable Tracks: 20
Audio Recording
• Recording Media: Tape
• Tape Recording Enhancement: CD Synchro-Start
ording
Rec
orward/Reverse, Next/
Tuner/reception/transmission
• Antenna: AM Antenna, FM Antenna
• Auto digital tuning
• Tuner Bands: FM, LW, MW
Connectivity
• Headphones: 3.5 mm
Convenience
• Display Digits: 7
• Display Type: LCD
Accessories
• Included Accessories: AC Power Lead, User
manual, Warranty certificate
Dimensions
• Packaging dimensions (W x H x D):
604 x 310 x 220 mm
• Product dimensions (W x H x D):
0 x 175 x 220 mm
54
•Weight: 4.5 kg
• Weight incl. Packaging: 5.3 kg
Power
•Battery type: LR20
• Battery voltage: 1.5 V
• Mains power
• Number of batteries: 6
•
Highlights
CD-R/RW Compatible
CD-Rewritable Compatible means that your audio
set can play both CD-Recordable (CD-R) and CDRewritable (CD-RW) discs. CD-R discs are
recordable once and can be played on any audio CD
player while CD-RW discs can be recorded and
rewritten multiple times and can only be played back
on compatible audio CD players. The laser pick-up
and CD decoder circuitry of CD-RW compatible
players are specially designed to read the special
audio CD-RW phase-change recording layer,
ensuring you can always play your home-recorded
discs on your audio CD system.
FM/MW/LW stereo tuner
FM/MW/LW stereo tuner
Dual cassette deck
Dual cassette deck
Two-Way Speaker System
Two-Way Speaker System recreates the ambience
and atmosphere of a recording studio in your living
room through accurate stereo imaging. Simply “You
Are There!”. To reproduce the full audio frequency
band, conventional speakers need large and small
cones to reproduce low and high frequencies
respectively. Often sound quality is compromised in
favour of smaller design. By using a woofer to
reproduce bass to mid frequencies and a tweeter for
mid to high frequencies, the Two-Way Speaker
System seamlessly plays back the full audio frequency
with much less inter-modulation distortion.
Bass Reflex Speaker System
Bass Reflex Speaker System delivers a deep bass
experience from a compact loudspeaker box system.
It differs from a conventional loudspeaker box
system in the addition of a bass pipe that is
acoustically aligned to the woofer to optimise the
low frequency roll-off of the system. The result is
deeper controlled bass and lower distortion. The
system works by causing the air mass in the bass pipe
to vibrate like a conventional woofer. Combined
with the response of the woofer, the system extends
the overall low frequency sounds to create a
completely new dimension of deep bass.
Dynamic Bass Boost
Dynamic Bass Boost maximises your music
enjoyment by emphasising the bass content of the
music throughout the range of volume settings from low to high – at the touch of a button! Bottomend bass frequencies usually get lost when the
volume is set at a low level. To counteract this,
Dynamic Bass Boost can be switched on to boost
bass levels, so you can enjoy consistent sound even
when you turn down the volume.
CD shuffle/program/repeat
CD shuffle/program/repeat
CD synchro-start recording
CD to tape synchro-start recording
Stereo headphone socket
Stereo headphone socket
Issue date 2012-08-21
Version: 2.0.3
12 NC: 9071 816 05009
EAN: 87 10101 36851 1
© 2012 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
