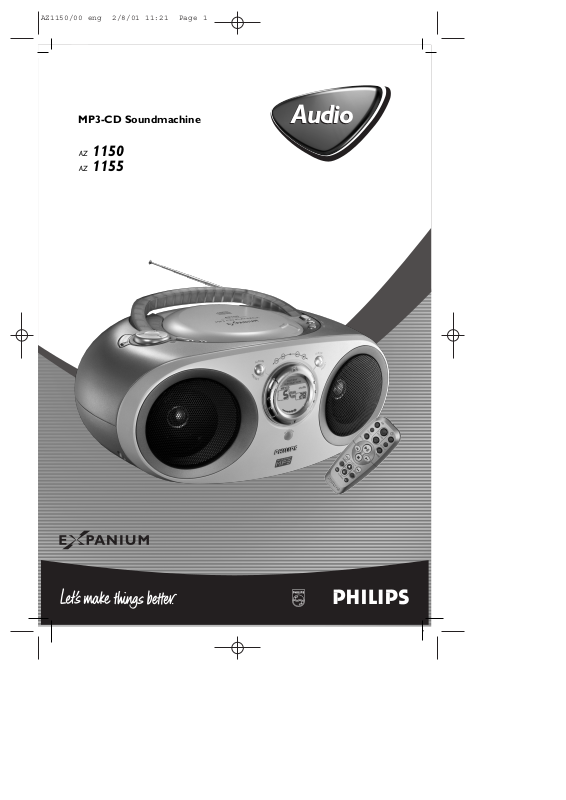

Philips AZ1155/10, AZ1155/01 User Manual
Audio
Audio
MP3-CD Soundmachine
AZ 1150
AZ 1155
Important notes for users in the U.K.
Mains plug
This apparatus is fitted with an approved 13 Amp
plug.To change a fuse in this type of plug proceed
as follows:
1. Remove fuse cover and fuse.
2. Fix new fuse which should be a BS1362
5 Amp,A.S.T.A. or BSI approved type.
3. Refit the fuse cover.
If the fitted plug is not suitable for your socket
outlets, it should be cut off and an appropriate
plug fitted in its place. If the mains plug contains a
fuse, this should have a value of 5 Amp. If a plug
without a fuse is used, the fuse at the distribution
board should not be greater than 5 Amp.
Note:The severed plug must be disposed of to
avoid a possible shock hazard should it be
inserted into a 13 Amp socket elsewhere.
How to connect a plug
The wires in the mains lead are coloured with
the following code: blue = neutral (N), brown =
live (L). As these colours may not correspond
with the colour markings identifying the terminals
in your plug, proceed as follows:
• Connect the blue wire to the terminal marked
N or coloured black.
• Connect the brown wire to the terminal
marked L or coloured red.
• Do not connect either wire to the ear th
terminal in the plug, marked E (or e) or
coloured green (or green and yellow).
Before replacing the plug cover, make certain that
the cord grip is clamped over the sheath of the
lead - not simply over the two wires.
Norge
Typeskilt finnes på apparatens underside.
Observer: Nettbryteren er sekundert
innkoplet. Den innebygde netdelen er derfor
ikke frakoplet nettet så lenge apparatet er
tilsluttet nettkontakten.
For å redusere faren for brann eller elektrisk
støt, skal apparatet ikke utsettes for regn eller
fuktighet.
Italia
DICHIARAZIONE DI CONFORMITA’
Si dichiara che l’apparecchio Lettore CD/Radioregistratore mod. AZ1150, AZ1155 Philips
risponde alle prescrizioni dell’art. 2 comma 1
del D. M. 28 Agosto 1995 n. 548.
Philips Consumer Electronics
Philips, Glaslaan 2, SFF 10
5616 JB Eindhoven,The Netherlands
Copyright in the U.K.
Recording and playback of material may require
consent. See Copyright Act 1956 and The
Performer’s Protection Acts 1958 to 1972.
2
&*
)
(
AC MAINS
12^
3
4
5
6
#
$
%
7
90!
@
8
1
2
3
%
B
CD
V
O
L
U
M
E
S
E
A
R
C
H
P
R
E
S
E
T
T
U
N
IN
G
B
A
N
D
T
U
N
E
R
R
E
P
E
A
T
M
U
T
E
B
A
S
S
S
H
U
F
F
L
E
K
L
$
#
!
0
@
4
5
7
6
8
9
3
Index
English
English 6
Français
Français 18
Español
Español 32
Deutsch
Deutsch 44
Nederlands
Italiano
Svenska
Dansk
4
Nederlands 56
Italiano 68
Svenska 80
Dansk 92
Index
Suomi 104
Português 116
E 128
Suomi
Portugês
E
5
Controls
English
Top and front panels
1 2; – starts or pauses MP3-CD/CD
playback
10 Display – backlit only when using AC
mains supply
– MP3-CD: orange backlight
– TUNER/CD: green backlight
2 OPEN•CLOSE – press to open/close
CD door
3 BAND – selects FM/ MW (AM)/LW
waveband (LW not on all versions)
4 PROGRAM
– MP3-CD/CD: programs/ reviews
programmed tracks;
– TUNER: programs tuner stations
5 CD MODE
– plays MP3-CD tracks/CD/a program in
random order
– repeats a track/MP3-CD/CD/ program
6 + ALBUM, PRESET
– MP3-CD only: selects next album
– TUNER: selects the next preset station
7 ROTARY NAVIGATION 5 , 6
– MP3-CD/CD: fast searches backwards,
forwards within a track
– TUNER: tunes radio (manually: down, up)
¡ , ™
– MP3-CD/CD: skips to previous, next
title/track
– TUNER: automatic search tuning
(down, up)
8 STOP 9 – stops MP3-CD/CD playback;
erases a MP3-CD/CD program
9 IR SENSOR (AZ1155 models only)
– infrared for remote control
6
11 - ALBUM, PRESET
– MP3-CD only: selects previous album
– TUNER: selects previous preset station
12 SOURCE – selects sound source for
MP3-CD/CD or TUNER
13 POWER – switches the set on/ off
14 LOW BATT – indicator lights up if
battery power running low
15 ULTRABASS 2 – enhances bass
response
16 VOLUME – adjusts volume level
Back Panel
17 Telescopic aerial – to improve FM
reception
18 Voltage selector – (inside the battery
compartment, not all versions) adjust to
match the local voltage 110/220V before
plugging in the set
19 AC MAINS – inlet for mains lead
20 Battery door – open to insert 6 x R-14,
UM-2 or C-cells
This set complies with the radio
interference requirements of the
European Community.
