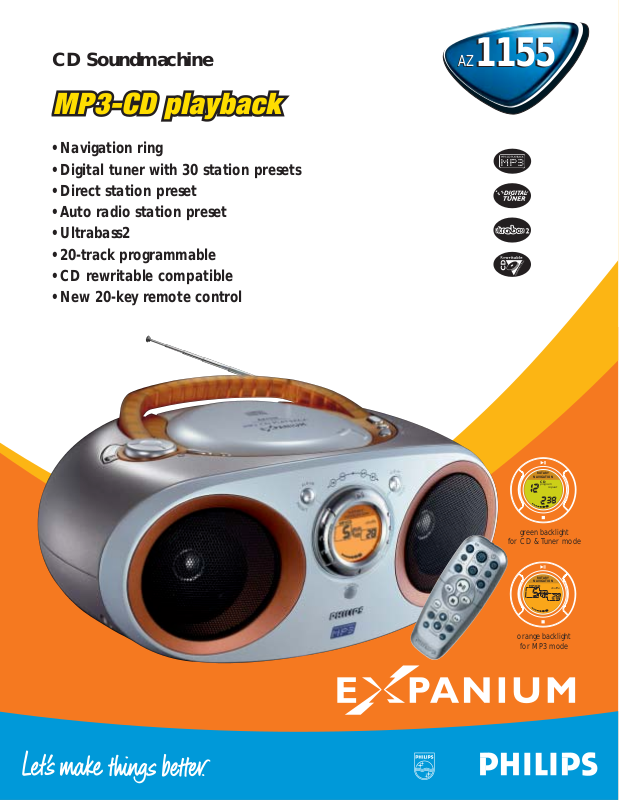

Philips AZ1155 User Manual
CD Soundmachine
• Navigation ring
• Digital tuner with 30 station presets
• Direct station preset
• Auto radio station preset
• Ultrabass2
• 20-track programmable
• CD rewritable compatible
•New 20-key remote control
AZ1155
AZ1155
green backlight
for CD & Tuner mode
ROTARY
NAVIGATION
shuffle
album
title
MP3CD
orange backlight
for MP3 mode
ROTARY
NAVIGATION
CD
program
repeat
CD Soundmachine
AZ1155
AZ1155
Standard product information
Compact disc player
• MP3-CD playback
•Top loader
• 20-track CD programmable
• Shuffle and repeat function
• CD next/ previous track search
• CD music search
• CD rewritable compatible
Tuner
• Digital tuning
• 30 Station presets
• Auto Radio Station preset
•Wavebands FM stereo/AM
•Frequency ranges FM87.5 - 108 Mhz
AM530 - 1710 kHz
•Telescopic aerial for FM reception
•Ferroceptor for AM reception
Display
• 10-Digit LCD display
•2 color backlight
Sound system
• Output power 2 x 1.6 W RMS
• UltraBass II
•2 x 3” Speakers
• Metal speaker grills
•Jog volume control
Power supply
•AC/DC Operation
• Batteries 6 x 1.5V cells
General
• Dimensions product 14.1” W x 10.2” D x
5.8” H
• Packaging dimensions 16.8" W x 13.7" D x
9.6" H
•Weight of product 5.3 lbs.
•Weight including
packaging 7.04 lbs.
• Country of Origin China
•Warranty 12 months
OTC exchange
Power supplies
• 120 V ,60 Hz
MP3-CD playback
Plays back any CD with regular and MP3 audio.
Navigation ring
Easy and fun navigation of songs and radio stations.
Digital tuner with 30 station presets
Provides fast,accurate tuning to your favorite stations.
You can store up to 30 FM and AM stations in memory
for fast,easy access.
Direct station preset
Tuning made easy. Tune to any of your 3 favorite radio
stations at the touch of a button.
Auto radio station preset
Simply press a button and available radio stations are
automatically stored for you.
Ultrabass2
A technology unique to Philips that provides deep bass
sounds previously reproduced only by much bigger loudspeakers.
20-track programmable
Stores up to 20 of your favorite CD tracks for playing
back in your order of preference.
CD rewritable compatible
Capable of playing all music CD’s,including
CD-Recordable and CD-Rewritable discs.
New 20-key remote control
Compact disc digital audio player
Compact Disc technology that combines superb digital
sound quality with the convenience of random track
access and CD functions like CD programmable , Shuffle
Play and Repeat.
Repeat one/ all
Repeats the current track,the total CD,or your preselected program.
Shuffle play
Plays disc selection randomly,giving you a new sequence
of tracks each time.
Six-digit multi-functional display
Displays CD player information (track,playing time and
play modes) and Tuner information (tuned frequency
and stereo reception).
3” Full-range speakers
For excellent sound performance across the entire audio
frequency spectrum.
Metal speaker grills
Grills covered with acoustically neutral cloth to protect
the speaker.
UPC: 0 37849 90973 7
Printed in Hong Kong 2002-08-01
Specifications subject to modification without notice
2002 © Koninklijke Philips Electronics N.V.
All rights reserved
www.philips.com
www.audio.philips.com
