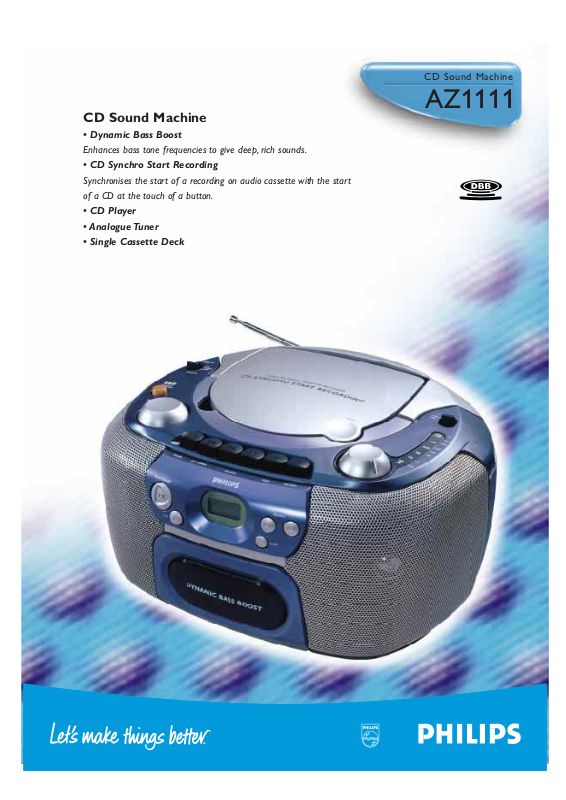

Philips AZ 1111 User Manual
CD Sound Machine
AZ1111
CD Sound Machine
• Dynamic Bass Boost
Enhances bass tone frequencies to give deep, rich sounds.
• CD Synchro Start Recording
Synchronises the start of a recording on audio cassette with the start
of a CD at the touch of a button.
• CD Player
• Analogue Tuner
• Single Cassette Deck
CD Sound Machine
AZ1111
Product Highlights
• Compact Disc Digital Audio Player
Compact Disc technology that combines superb digital sound quality with the
convenience of random track access and CD functions like CD programme,
Shuffle Play and Repeat.
• 20-Track Programmable
Stores up to 20 of your favourite CD tracks for playing back in your order of
preference.
• Shuffle Play
Plays disc selection randomly, giving you a new sequence of tracks each time.
• Repeat One/All
Repeats the current track, the total CD, or your pre-selected programme.
• CD Next/Previous Track Search
Plays the next or previous track at the touch of a button.
• CD Music Search
Searches the CD at high speed while still producing low-volume sound so you
know exactly when to stop.
• Analogue Tuner
High-quality tuner with sensitive operation for maximum tuning control.
• Stereo Cassette Deck
Play back recorded tapes on this full-functional stereo cassette deck, and
record from the built-in CD player or tuner.
• Full Auto Stop
Automatically shuts off the cassette deck at the end of playback to avoid
overstretching the tape.
• Automatic Recording Level Control
Electronic circuit that constantly monitors the input signal to ensure accurate,
distortion-free recording.
• CD Synchro Start Recording
Synchronises the start of a recording on audio cassette with the start of a CD
at the touch of a button.
• 4" Full-Range Speakers
For excellent sound performance across the entire audio frequency spectrum.
• Dynamic Bass Boost
Enhances bass tone frequencies to give deep, rich sounds.
• Two-Digit LCD Display
Displays CD track numbers and play modes like Shuffle, Repeat, and CD
programme.
• Stereo Headphone Socket
Enables stereo headphones to be used for private listening pleasure.
Automatically switches off speakers when used.
• AC/DC Operation
Operates either on batteries or mains supply, using the detachable AC power
cord.
http://www.philips.com
Amplifier
• Output power : 2 x 1.6 W RMS
• Dynamic Bass Boost
• Rotary volume control
Sound System
• 2 x 4" full range speakers
• Metal speaker grilles
CD Player
• Top loader
• 20 track programme, repeat, shuffle
• Cue/review
• CD synchro start recording
Cassette Deck
• Single stereo cassette deck
• Normal tape type
• Automatic recording level control
• Full automatic stop
Tuner
• Analogue tuning
• Wavebands
/00, /05 : FM stereo/MW/LW
/01, /11, /13 : FM stereo/MW
• Frequency ranges : FM 87.5 - 108 MHz
MW 525 - 1607 kHz
LW 148.5 - 284 kHz
• Telescopic antenna for FM reception
• Ferroceptor for AM reception
Display
• 2-digit LCD display
Connections
• Headphone socket : 3.5 mm
Power Supply
• AC/DC operation
• AC voltage /01, /11 : 120/230 V, 50 Hz
/00, /05, /13, /14 : 230 V, 50 Hz
• Batteries : DC 6 x 1.5V, R20 cells
General
• Material : HIPS
• Weight of product : 3.4 Kg
• Dimensions : 300 mm W x 159 mm H x 270 mm D
• Packaging dimensions : 370 mm W x 322 mm H x 210 mm D
• Quantity /mastercarton : 1
Standard product information
98-03-30
Subject to modification without notice
© 1998 Philips Electronics N.V.
All Rights Reserved
CD Sound Machine
AZ1112
CD Sound Machine
• Dynamic Bass Boost
Enhances bass tone frequencies to give deep, rich sounds.
• CD Synchro Start Recording
Synchronises the start of a recording on audio cassette with the start
of a CD at the touch of a button.
• CD Player
• Analogue Tuner
• Single Cassette Deck
