Page 1

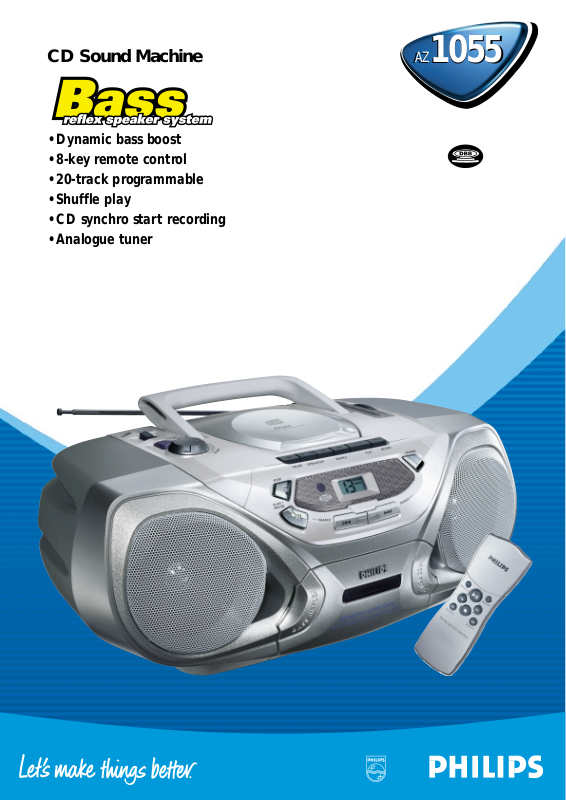

CD Sound Machine

• Dynamic bass boost

• 8-key remote control

• 20-track programmable

• Shuffle play

• CD synchro start recording

• Analogue tuner

AZ1055

Page 2

Standard product information Compact disc player

• Top loader

• 20 Track CD programme

• Shuffle and repeat function

• CD next/ previous track search

• CD music search

• CD synchro start recording

Cassette deck

• Single stereo cassette deck

• Normal tape type

• Full auto stop

• Automatic recording level control

Tuner

• Analogue tuning

• Wavebands /17 FM stereo/AM

• Frequency ranges FM 87.5 - 108 Mhz AM 530 - 1710 kHz (/17)

• Telescopic aerial for FM reception

• Ferroceptor for AM reception

Display

• Large LCD display

Sound system

• Output power 2 x 1.6 W RMS

• Dynamic bass boost

• 2 x 4” Speakers

• Metal speaker grilles

• Rotary volume control

Power supply

• AC/DC Operation

• Batteries 6 x 1.5V, R20 cells

Connections

• Stereo headphones 3.5 mm

Remote control

• 8-Key remote control

General

• Dimensions product 435 mm W x 174 mm H x 262 mm D

• Packaging dimensions 439 mm W x 210 mm H x 314 mm D

• Weight of product 3.3 Kg

• Weight including

packaging 4.4 Kg

Power supplies

• /00,/05,/14 230V, 50Hz

• /17 120 V, 60 Hz

• /01,/11, /16 120/230 V ,50 Hz

Bass reflex speaker system

Acoustic system that enhances the upper bass tones to provide a warmer, punchier bass sound.

Dynamic bass boost

Enhances bass tone frequencies to give deep,rich sounds.

8-key remote control

Slimline system remote for convenient operation of CD controls.

20-track programmable

Stores up to 20 of your favourite CD tracks for playing back in your order of preference.

Shuffle play

Plays disc selection randomly,giving you a new sequence of tracks each time.

CD synchro start recording

Synchronises the start of a recording on audio cassette with the start of a CD at the touch of a button.

Analogue tuner

High-quality tuner with sensitive operation for maximum tuning control.

Compact disc digital audio player

Compact Disc technology that combines superb digital sound quality with the convenience of random track access and CD functions like CD programme , Shuffle Play and Repeat.

Repeat one/ all

Repeats the current track,the total CD, or your pre-selected programme.

Stereo cassette deck

Play back recorded tapes on this full-functional stereo cassette deck, and record from the built-in CD player or tuner.

4” Full-range speakers

For excellent sound performance across the entire audio frequency spectrum.

Metal mesh speaker grilles

Perforated,anodized grilles protect the speaker components.

Stereo headphone socket

Enables stereo headphones to be used for private listening pleasure.Automatically switches off speakers when used.

Two-digit LCD display

Displays CD track numbers and play modes like Shuffle, Repeat, and CD programme.

AC/DC operation

Operates either on batteries or mains supply,using the detachable AC power cord.

Built-in handle

Strong,fold-away handle for carrying your music system wherever you go.

http://www.philips.com

CD Sound Machine

AZ1055
