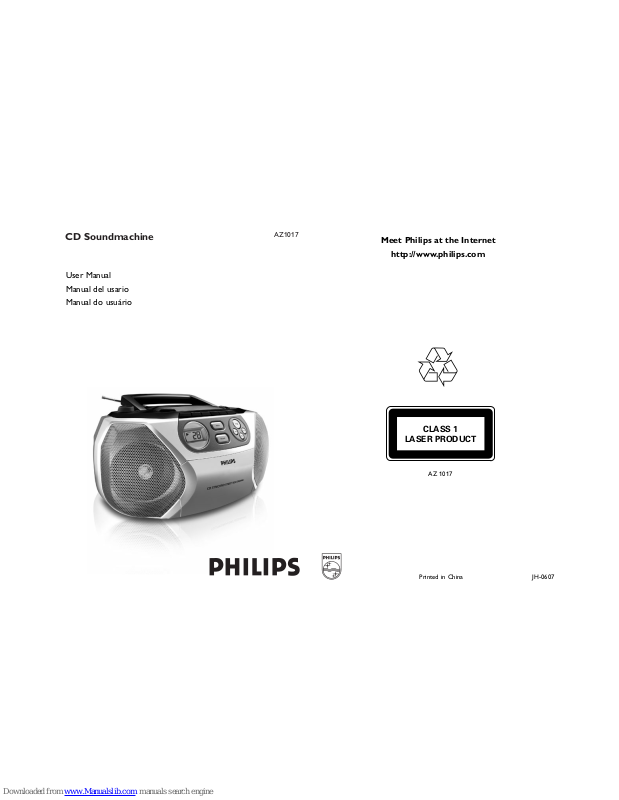

Page 1
AZ1017
CD Soundmachine
User Manual
Manual del usario
Manual do usuário
Meet Philips at the Internet
http://www.philips.com
W
CLASS 1
LASER PRODUCT
AZ 1017
Printed in China JH-0607
Page 2
9
0
8
#
$
1
!
@
2
3
5
4
7
6
6xR14•UM-2•C-CELLS
1
A AB
C
X
7
4
3
2
REPEAT
ALL
6
5
Page 3
Mexico
Es necesario que lea cuidadosamente su instructivo de manejo.
Descripción: Radio MW/FM con reproductor de CD
Modelo: AZ 1017/55
Alimentación: 110–127/220–240 V; ~50–60 Hz
Consumo: 12 W
Importador : Philips Mexicana,S.A. de C.V.
Domicilio: Av. La palma No. 6
Col. San Fernando la Herradura, Huixquilucan
Localidad y Telefono: Edo. de M
é
xico C.P. 52784
Tel. 52 69 90 00
Exportador : Philips Electronics Hong Kong Ltd.
País de Origen: China
Nº de Serie: ______________________________________
LEA CUIDADOSAMENTE ESTE INSTRUCTIVO
ANTES DE USAR SU APARATO.
No abrir, riesgo de choque eléctrico
Verifique que el voltaje de alimentación
sea el requerido para su aparato
ATENCIÓN
Para evitar el riesgo de choque eléctrico, no quite la tapa.
En caso de requerir servicio, dirijase al personal calificado.
PRECAUCIÓN - ADVERTENCIA
AVISO IMPORTANTE
Philips Mexicana, S.A. de C.V.no se hace responsable por daños o
desperfectos causados por:
– Maltrato, descuido o mal uso, presencia de insectos o roedores
(cucarachas, ratones etc.).
– Cuando el aparato no haya sido operarado de acuerdo con el
instructivo del uso, fuera de los valores nominales y tolerancias
de
las tensiones (voltaje), frecuencia (ciclaje) de alimentación
eléctrica y las características que deben reunir las instalaciones
auxiliares.
– Por fenómenos naturales tales como: temblores, inundaciones,
incendios, descargas eléctricas, rayos etc. o delitos causados por
terceros (choques asaltos, riñas, etc.).
Supplied accessories
– A
C power cord
Top and front panels (See 1)
1
Source selector: CD, TUNER,
TAPE/OFF
–
selects CD, tuner (MW or FM) or tape
source of sound
–
switch off the set
2
VOLUME– adjusts volume level
3 LIFT•OPEN
– opens the CD door
4
Cassette recorder keys:
;–pauses playback or recording
9
/ –
stops the tape;
–
opens the cassette holder
5 or 6
–
fast winds/ rewinds tape
1
–
starts playback
0
–
starts recording
5
CD Display–shows the CD functions
6 PROG – programs and reviews
programmed track numbers
7 REPEAT –
repeats a track/
CD program/entire CD
8 BAND
– selects FM or MW waveband
9 TUNING
– tunes to radio stations
02;–
starts or pauses CD playback.
9
–
stop playback;
–
erases a CD program
∞
,§–
skips or searches a passage/track
backwards
Back panel (See 1)
!
Telescopic antenna – improves FM
reception
@ Batter y compartment – open to insert 6
x 1.5V R-14/ UM2/ C-cells
# AC MAINS – inlet for power cord
$ Voltage selector – adjust to match the
local voltage 110/220V before plugging in the
set
CAUTION
- Visible and invisible laser radiation.
If the cover is open, do not look at
the beam.
- High voltage! Do not open.You run
the risk of getting an electric shock.
The machine does not contain any
user-serviceable parts.
- Modification of the product could
result in hazardous radiation of
EMC or other unsafe operation.
Power Supply
Whenever convenient, use the mains supply
cord if you want to conserve battery life .
Make sure you remove the plug from the set
and wall outlet before inserting batteries.
Batteries (not included)
1 Open the battery compar tment and insert
six batteries, type R-14, UM-2 or C-cells,
(preferably alkaline) with the correct polarity
as indicated by the "+" and "–" symbols inside
the compartment. (See 1)
2 Replace the compartment door, making sure
the batteries are firmly and correctly in place.
The set is now ready to operate.
Batteries contain chemical substances, so
they should be disposed of properly.
• Incorrect use of batteries can cause
electrolyte leakage and will corrode the
compartment or cause the batteries to bur st:
• Do not mix battery types: e.g. alkaline with
carbon zinc. Only use batteries of the same
type for the set.
• When inserting new batter ies, do not try to
mix old batteries with the new ones.
English Controls/Power Supply
Page 4
• Remove the batteries if the set is not to be
used for a long time.
Using AC Mains
1 Check if the power/mains voltage, as shown
on the type plate located on the
bottom of the set, corresponds to your
local power supply. If it does not, consult your
dealer or service center.
2 If your set is equipped with a voltage
selector, adjust the selector so that it
matches with the local power supply.
3 Connect the power cord to the AC MAINS
inlet and the wall socket.The mains lead is
now connected and ready for use.
4 To switch the set off completely, withdraw the
power cord from the wall socket.
5 Install the unit near the AC outlet and where
the AC power plug can be easily reached.
• Disconnect the mains lead from the wall
socket to protect your set during heavy
thunderstorms. Children could seriously injure
themselves as the free end of the cable may
still be live if only the connector is removed
from the MAINS socket at the back of the
unit.
The type plate is located on the bottom
of the set.
Helpful hints :
–To avoid unnecessary energy consumption,
always adjust the source selector to
TAPE/OFF
after using the set, and also
check that the tape deck keys are released.
Basic operation
1 To select your sound source, adjust the
source selector to : CD, TUNER or
TAPE/OFF
.
2 To switch off the set, adjust the source
selector to
TAPE/OFF
position and check
the cassette keys are released.
Helpful hints:
– To change from TAPE to TUNER or CD
function, or when you are switching off the set:
first, make sure you press the tape
9
/ key to
end playback and all the cassette keys are
released.
Adjusting volume
Adjust the volume with the VOLUME
control.
Radio reception
1 Adjust the source selector to
TUNER
.
2 Adjust BAND to FM or MW as your
desired band.
3 Tu rn TUNING to tune to a station.
• For FM, extend and turn the telescopic
antenna for best reception. Reduce its length
if the signal is too strong.
• For MW, the set uses a built-in antenna.
Direct this antenna for best reception by
turning the whole set.
4 To switch off the radio, adjust the source
selector to
TAPE/OFF
position and check
the cassette keys are released.
Power Supply Basic operation/Radio
Playing a CD
This CD player plays Audio Discs including
CD-Recordables and CD-Rewritable.
• MP3 CD-ROMs, CD-I, CDV,VCD, DVD or
computer CDs are not possible for playback
on this set.
IMPORTANT!
• CDs encoded with copyright protection
technologies by some record companies may
be unplayable by this product.
1 Adjust the source selector to CD.
2 Open the disc door.
3 Insert a CD with the printed side facing up
and press the CD door gently to close.
➜ Display shows -- and later, the total
number of tracks. (See 2, 3)
4 Press 2;on the set to start playback.
➜Display:2 and the current track number.
(See 4)
5 To pause playback press 2;.To resume
playback, press 2;again.
6 To stop CD play, press 9.
Helpful hints :
CD play will also stop when:
– you open the CD compartment;
– you select
TUNER,
or
TAPE/OFF
sound
source;
– the CD has reached the end of playback.
Selecting a different track
• Press
∞ or §
once or repeatedly until the
desired track number appears in the display.
• In the stop/pause position, press2;to start
playback.
Finding a passage within a
track
1 During playback, press and hold down
∞/ §
.
➜ The CD is played at high speed and low
volume.
2 When you recognize the passage you want
release
∞/ §
.
➜ Normal playback resumes.
Helpful hints :
– When your searching reaches the end of the
last track, the CD goes to stop mode.
CD Player
Page 5
Programming track
numbers
You may store up to 20 tr acks in the desired
sequence. If you like, store any track more
than once.
1 In the stop position, press PROG to activate
programming.
➜ Display: PROG and 00 flash (see 5).
2 Press ∞or §to select your desired track
number.
➜ Display: PROG and your desired track
number flash.
3 Press PROG to store the desired track
number.
➜ Display: PROG and 00 flash for you to
program the next track.
4 Repeat steps 2 to 3 to select and store all
desired tracks in this way.
5 To play your program, press
2;
.
➜ Display: PROG flashes during program
playback. Helpful hints :
– If you tr y to store more than 20 tracks, no
track can be selected and the display will show
flashing --.
To review a program
• In the stop position, press PROG repeatedly
to see your stored track numbers.
Erasing a program
You can er ase the contents of the memory
by:
– in the stop position, press PROG to enter
program mode, and then press
9
;
– Selecting TUNER or
TAPE/OFF
sound
source;
– opening the CD door.
➜Display: PROG disappears.
Different play mode:
REPEAT(see 6):
REPEAT
You can play the cur rent track or the whole
disc repeatedly, and combine REPEAT modes
with PROGRAM.
REPEAT – plays the current track
continuously.
REPEAT ALL– repeats the entire
CD/program.
1To select play mode, press REPEAT once or
more.
➜ The display shows selected mode.
2 Press
2;
to start playback if in the stop/pause
position.
3To return to normal playback, press REPEAT
repeatedly until the modes are no longer
displayed.
– You can also press 9to cancel your play
mode.
CD Player
Cassette Recorder
Cassette playback
1 Adjust the source selector to
TAPE/OFF
.
2 Press 9/ to open the cassette holder, and
insert a cassette and close the deck.
3 Press 1to start playback.
4 To pause playback press ;.
5 To resume, press ;again.
6 To stop the tape, press 9/.
Fast forwarding/rewinding
1 Press
5 or 6
until you reach your desired
passage.
2 Press 9/ to stop rewinding/fast forwarding.
Helpful hints :
– The keys are automatically released at the end
of a tape and the set is switched off (unless
PAUSE mode ;has been activated.)
– During fast forwarding/rewinding, the keys will
not be released at the end of a tape.To switch
off the set, make sure the cassette keys are
also released.
General information on recording
• Recording is permissible insofar as copyright
or. other rights of third parties are not
infringed.
• For recording, use only NORMAL type cassettes (IEC type I) on which the tabs have
not yet been broken.This deck is not suited
for recording on CHROME (IEC II) or
METAL (IEC IV) type cassettes.
• The best recording level is set automatically.
Altering the VOLUME will not affect the
recording.
•To protect a tape from accidental erasure,
break out the tabs. If you wish to record
again, cover the tabs with a piece of adhesive tape.
CD synchro start recording
1 Select CD source.
2 Insert a CD and if desired, program track
numbers.
3 Press
9
/ to open the cassette holder.
Insert a blank tape and close the deck.
4 Press0to start recording.
➜ Playing of the CD program star ts
automatically from the beginning of the
program. It is not necessary to start the
CD player separately.
5 For brief interruptions press ;.To resume
recording, press ;again.
6 To stop recording, press 9/.
Recording from the Radio
1 Adjust the source selector to TUNER.
2 Adjust BAND to FM or MW as your
desired band.
3 Tune to the desired radio station (see
Radio reception).
4 Follow steps 3-6 under CD sychro start
recording.
The making of unauthorized copies of
copy-protected material, including computer programmes, files, broadcasts and
sound recordings, may be an infringement of copyrights and constitute a
criminal offence.This equipment should
not be used for such purposes.
Page 6
Safety information
• Place the set on a hard, flat and stable surface
so that the system does not tilt.
• Do not expose the set, batteries, CDs to
humidity, rain, sand or excessive heat caused
by heating equipment or direct sunlight.
• Do not expose the apparatus to dripping or
splashing.
• Adequate ventilation with a minimum gap of
6 inches between the ventilation holes and
surrounding surfaces is necessary to prevent
heat build-up.
• The ventilation should be impeded by covering the ventilation openings with items, such
as newspapers, table-cloths, curtains, etc..
• No objects filled with liquids, such as vases,
shall be placed on the apparatus.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• The mechanical par ts of the set contain
self-lubricating bearings and must not be oiled
or lubricated.
•To clean the set, use a dry cloth. Do not use
any cleaning agents containing alcohol,
ammonia, benzene or abrasives as these may
harm the housing.
Ta pe deck maintenance
To ensure quality recording and playback of
the tape deck, clean parts A, B and C as
shown, once a month. Use a cotton bud
slightly moistened with alcohol or a special
head cleaning fluid to clean the deck.
1 Open the cassette holder by pressing 9/.
2 Press1and clean the roller C.
3 Press ;and clean the heads A, and the
capstan B.
4 After cleaning, press 9.
➜ Cleaning of the heads can also be done by
playing a cleaning cassette through once.
CD player and CD handling
• If the CD player cannot read CDs correctly,
use a cleaning CD to clean the lens before
taking the set to repair.
• The lens of the CD player should never be
touched!
• Sudden changes in the surrounding
temperature can cause condensation on the
lens of your CD player. Playing a CD is then
not possible. Do not attempt to clean the
lens but leave the set in a warm environment
until the moisture evaporates.
•Always close the CD-tape door to avoid dust
on the lens.
•To clean the CD, wipe in a straight line from
the center towards the edge using a soft,
lint-free cloth. Do not use cleaning agents as
they may damage the disc.
• Never write on a CD or attach any stickers
to it.
Safety & Maintenance
(See 7)
Problem
– Possible cause
• Remedy
No sound /power
– Volume not adjusted
• Adjust the VOLUME
– Power cord not securely connected
• Connect the AC power cord proper ly
– Batteries dead/ incorrectly inserted
• Insert (fresh) batteries correctly
– CD contains non-audio files
• Press
∞ , §
once or more to skip to a CD audio
track, instead of the data file.
Display does not function properly/ No
reaction to operation of any of the controls
– Electrostatic discharge
• Switch off and unplug the set. Reconnect after a
few seconds
The CD skips tracks
– CD damaged or dirty
• Replace or clean CD
– Program is active
• Quit program mode
Note:
Make sure the CD is not encoded with
Copyright protection technologies, as some
do not conform to the Compact
Disc standard.
- - indication
– No CD inserted
•
Insert a CD
– CD badly scratched or dirty
•
Replace/ clean CD, see Maintenance
– Laser lens steamed up
•Wait until lens has cleared
– CD-R(W) is blank or not finalized
•
Use a finalized CD-R(W) or suitable CD Audio
disc only
Poor cassette sound quality
– Dust and dirt on the heads, etc.
• Clean deck parts, see Maintenance
– Use of incompatible cassette types (METAL or
CHROME)
• Only use NORMAL (IEC I) for recording
Recording does not work
– Cassette tab(s) may be broken
• Apply adhesive tape over the missing tab space
Tr oubleshooting
If a fault occurs, first check the points listed below before taking the set for repair.
If you are unable to remedy a problem by following these hints, consult your dealer or service centre.
WARNING: Do not open the set as there is a risk of electric shock. Under no cir-
cumstances should you try to repair the set yourself, as this will
invalidate the guarantee.
Environmental information
All unnecessary packaging material has been omitted. The packaging can be easily separated
into three materials: cardboard, polystyrene and plastic.
Your set consists of materials which can be recycled if disassembled by a
specialized company. Please observe the local regulations regarding the
disposal of packaging, dead batteries and old equipment.
Loading...
