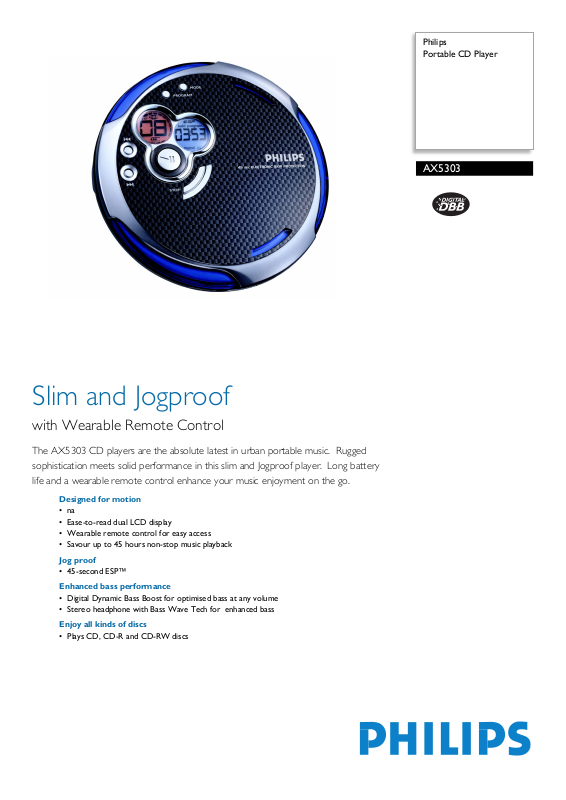

Philips AX5303 BROCHURE

Philips

Portable CD Player

AX5303

Slim and Jogproof

with Wearable Remote Control

The AX5303 CD players are the absolute latest in urban portable music. Rugged sophistication meets solid performance in this slim and Jogproof player. Long battery life and a wearable remote control enhance your music enjoyment on the go.

Designed for motion

•na

•Ease-to-read dual LCD display

•Wearable remote control for easy access

•Savour up to 45 hours non-stop music playback

Jog proof

• 45-second ESP™

Enhanced bass performance

•Digital Dynamic Bass Boost for optimised bass at any volume

•Stereo headphone with Bass Wave Tech for enhanced bass

Enjoy all kinds of discs

• Plays CD, CD-R and CD-RW discs

Portable CD Player

AX5303/05Z

Technical specifications

	Sound		Accessories
	•	Acoustic feedback	•	AC/DC adaptor: AY3170(300mA)
	•	D/A converter: 1-bit	•	Batteries: AY3363(Ni-MH rechargeable)
	• Frequency response: 20 - 20 000 Hz		•	Headphones: SBC HE570/77S
	• Output power: 2 x 5mW RMS		• Included accessories: User manual
	• Signal to noise ratio: > 85dB		•	Pouch: AY3267
	• Sound enhancement: Digital Dynamic Bass Boost		• Remote control: AY3785(6 key incord)
	•	Volume Control: digital	Dimensions
	Audio Playback
			• Ebox dimensions (W x H x D): 0 x 0 x 0 mm
	• Playback Media: CD, CD-R, CD-RW		• Housing: Heat resistant body
	• Disc playback modes: 30 track programmable,		• Master carton dimensions: 168 x 315 x 223 mm
		Fast forward / backward, Hold, Introscan,	•	Master carton quantity: 3
		Repeat play, Resume playback from stop, Shuffle	• Master carton weight: 2.5 kg
		play	• Packaging dimensions (W x H x D):
	• Electronic Skip Protection (CD): 45			203 x 305 x 58 mm
	Connectivity		•	Packaging type: Clamshell
			• Product dimension (WxDxH) inch:
	• DC in: 4.0 mm, 4.5V, centre +			137.5x137.5x23.3mm
	•	Headphone: 3.5 mm	• Product weight: 0.2 kg
	• Line-out: 3,5 mm		Power
	Convenience
			• Battery playing time, CD: 40
	•	Display type: LCD	• Battery type: AA, AAA, LR03, LR6, UM3, UM4
	• Indications: battery status, CD functions, DBB,		•	Battery type: Rechargeable
		ESP, time, track	•	Rechargeable

•Remote control: Wearable incord remote control

	Date of issue 2006-07-07
		Specifications are subject to change without notice.
	Version: 2.0	Trademarks are the property of Koninklijke Philips
		Electronics N.V. or their respective owners.
	12 NC: 9073 101 00991	© 2006 Koninklijke Philips Electronics N.V.
	EAN: 87 10895 79762 7	All Rights reserved.
		www.philips.com

Product highlights

Slim, sturdy and compact

Ease-to-read dual LCD display

Wearable remote control

Up to 45-hour playback

45-second ESP™

Electronic Skip Protection is a convenient feature that ensures skip-free music even when your CD player is subjected to knocks and jolts while you're jogging or on the move. Devices with Electronic Skip Protection have an intelligent electronic buffer that adjusts both its contents and laser spin speeds automatically to guarantee uninterrupted music listening.

Digital Dynamic Bass Boost

Digital Dynamic Bass Boost is an intelligent bass booster that delivers maximum bass enhancement at high volumes without sound distortion and at low volumes without compromising on bottom end bass frequencies. Technologically advanced electronics constantly monitor volume and bass levels, precisely calibrating both to prevent sound distortion, thus producing optimised bass. Digital Dynamic Bass Boost enables the enjoyment of superb bass performance - regardless of the chosen volume level.

Bass enhanced stereo headphone

Plays CDs, CD-R and CD-RW
