English CONTROLS
Controls
( see figure 1 )
1 .
2 .
/
v
o
l
D
B
PRO
POWER SAVE
ESP ON
B
s
h
program
u
ffle
re
p
e
r
a
e
t a
s
u
m
ll
ST
e
OP
G
R
MODE
AM
1 LINE OUT/p........3.5 mm headphone socket, socket to connect the player to
another audio input of an additional appliance, remote
control socket (not on all versions)
2 2;......................switches the player on, starts or pauses CD play
3 MODE.................selects the different playing possibilities: shuffle,
shuffle repeat all, repeat, repeat all and SCAN
4 PROGRAM..........programs tracks and reviews the program
5 ............................display
6 ∞ .......................skips and searches CD tracks backwards
7 § .......................skips and searches CD tracks forwards
8 STOP ..................stops CD play, clears a program or switches the player off
9 DBB.....................switches the bass enhancement on and off. This button also
−−//++
0 VOL
switches acoustic feedback (the beep) on/off when it is
pressed for more than 2 seconds
..............adjusts the volume
! 4.5V DC...............socket for external power supply
@ OPEN 2 ..............opens the CD lid
# ESP ON /
POWER SAVE.......to select between the battery powersave mode and
$ OFF......................switches RESUME and HOLD off
RESUME .............stores the last position of a CD track played
HOLD...................locks all buttons on the set only
Electronic Skip Protection (ESP). ESP ensures continuous
CD playback regardless of vibrations and shocks
% ............................typeplate
^ ............................battery compartment
& ............................AAA battery door
This set complies with the radio interference requirements of the
European Union.
CONTROLS / POWER SUPPLY

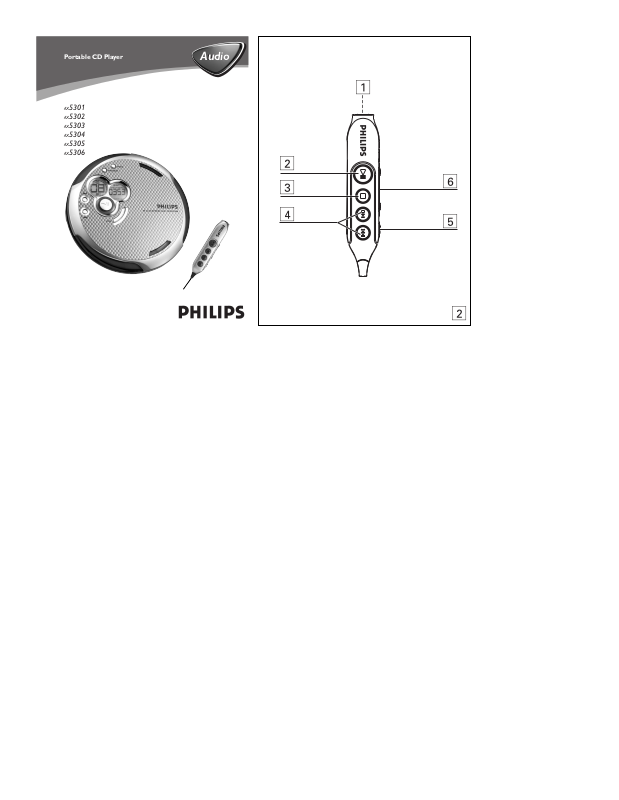

Remote Control
1 p.........................3.5 mm headphone plug to connect to headphones socket
2 2;......................switches the set on, starts playback and interrupts playback
3 9.........................stops playback and switches the set off
4 ∞ / § ...............skips and searches forward / backward tracks
5 HOLD...................locks all buttons (on the remote control only)
6 VOLUME
Connecting the remote control
Use the AY 3785 cord remote control.The buttons
on the remote control have the same functions as
the corresponding buttons on the set.
1 Press 9 twice to switch off the set.
2 Firmly connect the remote control to LINE
OUT/p on the set.
3 Firmly connect the headphones to the plug on
the remote control.
4 On the remote control press 2; to switch on the set and to start playback.
5 Adjust the volume on the CD player or your remote control.
Notes: – Check the HOLD switch on the remote control is adjusted to the off
AY 3785 ( see figure 2 )
−−//++
......adjusts the volume
M
O
D
E
P
R
O
G
R
A
M
v
o
D
l
B
B
p
r
o
g
r
a
m
s
h
uf
fle
re
re
p
s
u
e
a
m
t
e
a
l
l
P
O
T
S
p
+
position if you wish to operate the player using the remote control.
/
Batteries (supplied or optionally available)
For convenience, this model is designed with 2 different detachable battery doors.
This allows you to operate the player using 2 choices of battery size. You can use
the following batteries with this CD-player:
• alkaline batteries type AAA (LR03, UM4) or AA (LR6, UM3) preferably
Philips.
Old and new or different types of batteries should not be combined.
Notes:–
– Remove batteries if they are empty or if the player is not going to be used for
a long time.

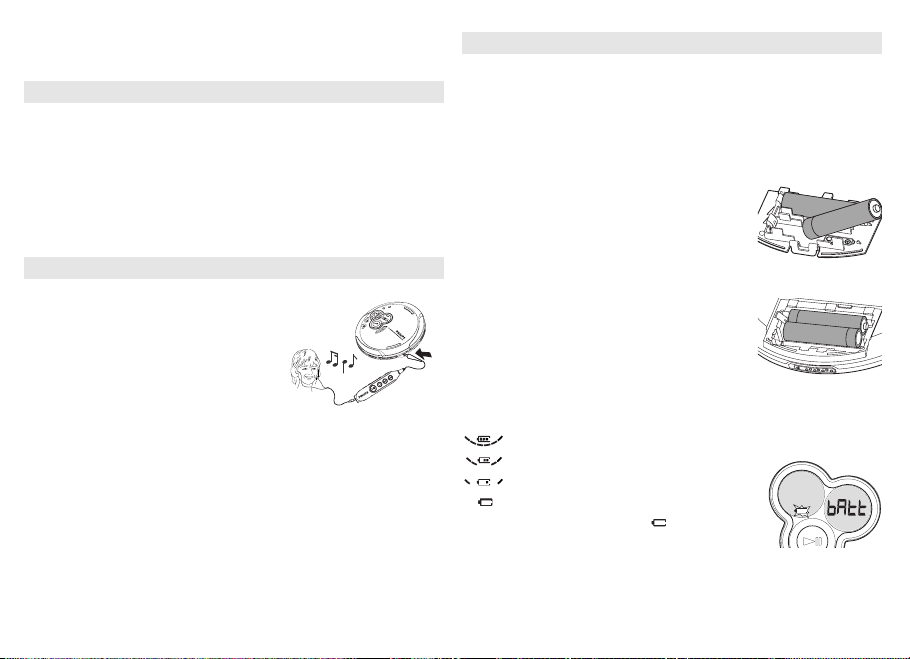

Inserting AAA (LR03, UM4) or AY 3363 batteries
1 Open the AAA battery door.
2 Insert AAA batteries as shown onto the back of the
door.
3 Replace the battery-loaded AAA door back onto the
set.
Inserting AA (LR6, UM3) batteries
To double playback time, insert AA batteries into the battery compartment and use the AA marked battery door.
•Open the battery compartment and insert either 2
normal or alkaline batteries.
+
LR03/AAA /UM4
AAA (LR03, UM4)
-
AA SIZE
+
LR6 / UM3
AA (LR6, UM3)
-
+
-
Battery indication
The approximate power level of your batteries is shown in the display.
Battery full
Battery two-thirds full
Battery one-third full
Battery dead or empty. When the batteries are
dead or empty, the symbol flashes, bAtt
is displayed, and the beep tone sounds
repeatedly.
+
POWER SUPPLY / GENERAL INFORMATION
Average playing time of batteries under normal conditions
Battery type ESP on Power Save
Alkaline AA 24 hours 42 hours
Alkaline AAA 10 hours 16 hours
Rechargeable ECO-PLUS NiMH battery 8.5 hours 13 hours
Batteries contain chemical substances, so they should be disposed
of properly.
ECO-PLUS NiMH battery information (for versions supplied with the
rechargeable ECO-PLUS NiMH battery AY 3363)
Recharging works only on players supplied with the rechargeable ECO-PLUS
NiMH battery AY 3363.

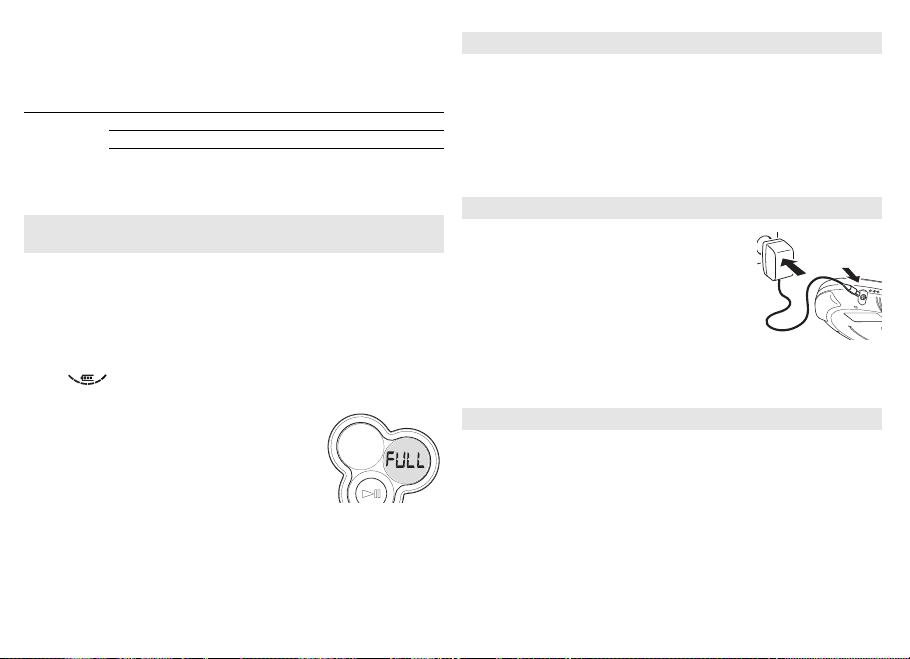

Recharging the ECO-PLUS NiMH battery on board
1 Insert the rechargeable ECO-PLUS NiMH battery AY 3363.
2 Connect the mains adapter to the 4.5V DC socket of
the player and then to the wall socket.
y is pulsing.
• Recharging stops after a maximum of 7 hours, or when you start playback.
3 When the battery is fully recharged, FULL appears
in the display.
Notes: – It is normal for the batteries to become warm
during recharging.
– If the batteries become too warm, recharging
will be interrupted for approximately 30 min-
utes .
– To ensure proper recharging on board, take care that contacts are clean.
– Use only the ECO-PLUS NiMH battery AY 3363.
Handling instructions
• Recharging already charged or half-charged batteries will shorten their
lifetime. We therefore recommend that you let the rechargeable ECO-PLUS
NiMH battery run till it is completely empty before you recharge it.
•To avoid a short circuit, do not let the battery touch any metal object.
•If the battery becomes empty soon after recharging, then either its contacts
are dirty or it has reached the end of its lifetime.
Mains adapter (supplied or optionally available)
Use only the AY 3170 adapter (4.5 V / 300 mA direct
current, positive pole to the center pin). Any other product
may damage the player.
4
.
5
V
D
1 Make sure the local voltage corresponds to the power
C
adapter’s voltage.
2 Connect the power adapter to the 4.5V DC socket of
the player and to the wall socket.
Note: Always disconnect the adapter when you are not using it.
Environmental information
• All redundant packing material has been omitted. We have done our utmost to
make the packaging easily separable into two mono materials: cardboard (box)
and polyethylene (bags, protective foam sheet).
•Your set consists of materials which can be recycled if disassembled by a
specialized company. Please observe the local regulations regarding the
disposal of packing materials, exhausted batteries and old equipment.
GENERAL INFORMATION
CD player and CD handling
• Do not touch the lens A of the CD player.
• Do not expose the unit, batteries or CDs to humidity,
rain, sand or excessive heat (caused by heating
equipment or direct sunlight).
•You can clean the CD player with a soft, slightly
dampened, lint-free cloth. Do not use any cleaning
agents as they may have a corrosive effect.
•To clean the CD, wipe it in a straight line from the
center toward the edge using a soft, lint-free cloth. A
cleaning agent may damage the disc! Never write on a CD or attach a sticker
to it.
• The lens may cloud over when the unit is moved suddenly from cold to warm
surroundings. Playing a CD is not possible then. Leave the CD player in a warm
environment until the moisture has evaporated.
• Active mobile phones in the vicinity of the CD player may cause malfunctions.
•Avoid dropping the unit as this may cause damage.
Headphones HE570
• Connect the supplied headphones to the LINE OUT/p
socket of the player.
Note: LINE OUT/p can also be used for
connecting this set to your HiFi system.To adjust the
sound and volume, use the controls on the connected
audio equipment and on the CD player.
IMPORTANT!
Hearing safety: Do not play your headphones at a high volume. Hearing experts advise
that continuous use at high volume can permanently damage your hearing.
Traffic safety: Do not use headphones while driving a vehicle. It may create a hazard
and it is illegal in many countries. Even if your headphones are an open-air type
designed to let you hear outside sounds, do not turn up the volume so high that you
cannot hear what is going on around you.
+

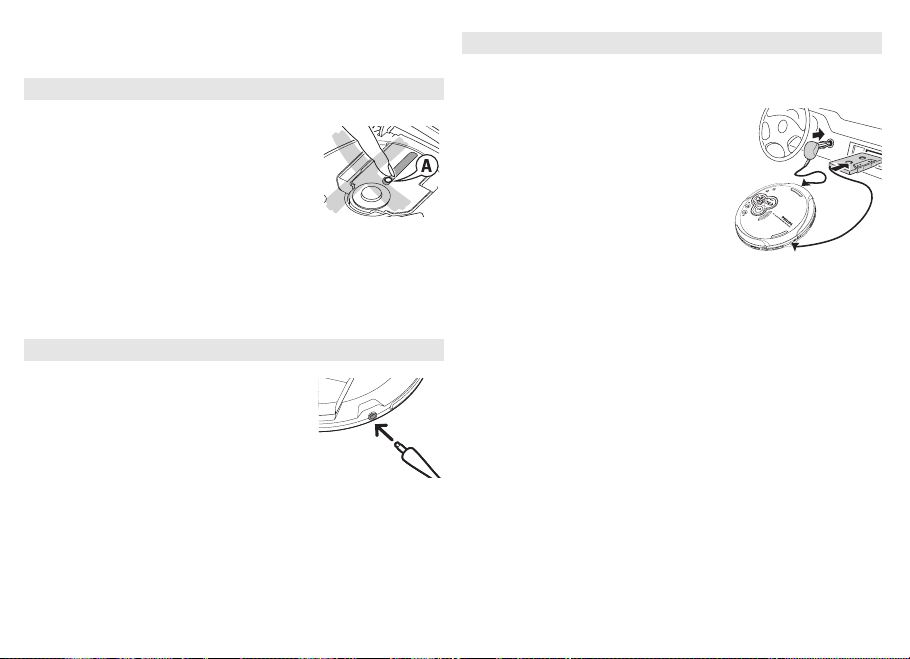

In-car use (connections supplied or optionally available)
Only use the AY 3545 or AY 3548 car voltage converter (4.5 V DC, positive pole to
the centre pin) and the AY 3501 car cassette adapter. Any other product may damage the set.
1 Put the set on a horizontal, vibration-free and
stable surface. Make sure it is in a safe place,
where the set is neither a danger nor an
obstacle to the driver and the passengers.
2 Plug the voltage converter into the
cigarette lighter socket (only for 12 V car
battery, negative grounding), then connect
the wired end with 4.5V DC input socket on the
set.
3 If necessary, clean the cigarette lighter socket to obtain a good electrical
contact.
4 Turn down the volume and connect the cassette adapter plug to LINE OUT/p
on the set.
P
R
O
G
v
o
D
l
B
B
p
r
o
g
shu
ffle
res
r
e
pe
u
m
at
e
all
P
O
T
S
12 V DC
M
O
D
E
4,5 V DC
R
A
M
r
a
m
/
+
5 Carefully insert the cassette adapter into the car radio’s cassette compartment.
6 Make sure the cord does not hinder your driving.
7 Decrease the volume on the set if necessary. Start playback on the set and
adjust the sound with the car radio controls.
• Always remove the voltage converter from the cigarette lighter socket
when the set is not in use.
Note: If your car radio has a LINE IN socket, it is better to use it for the
car radio connection instead of the adapter cassette. Connect the signal
lead to this LINE IN socket and to LINE OUT/p on the set.
CD PLAY
O
P
sh

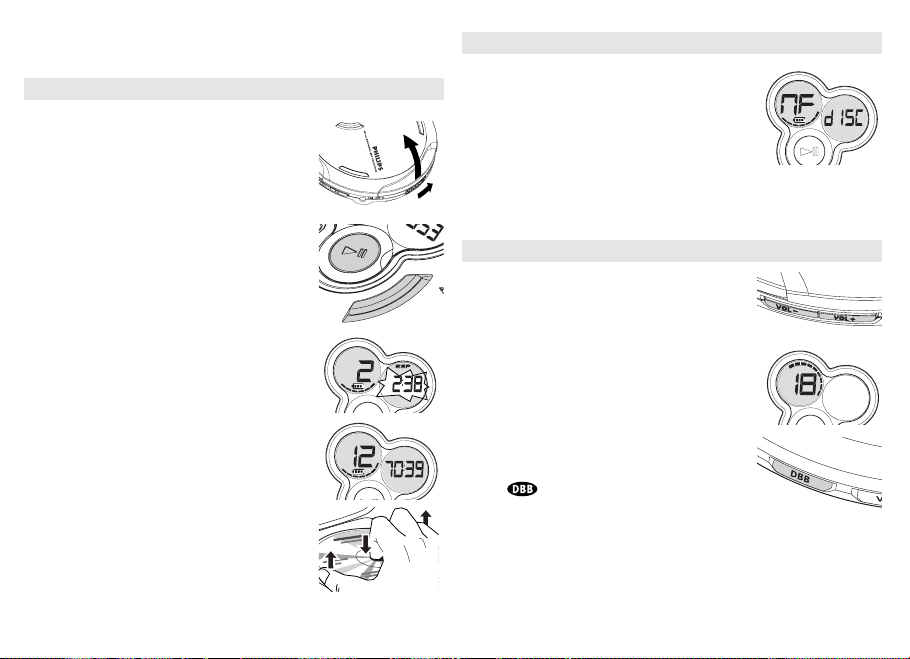

Playing a CD
This CD-player can play all kinds of Audio Discs such
as CD-Recordables and CD-Rewritables. Do not try to
play a CD-ROM, CDi, VCD, DVD or computer CD.
1 Push the OPEN 2 slider to open the player.
2 Insert an audio CD, printed side up, by pressing the
CD onto the hub.
3 Close the player by pressing the lid down.
4 Press 2; to switch the player on and start playback.
yThe current track number and elapsed playing
time are displayed.
•You can pause playback by pressing 2;.
yThe time at which playback was paused starts
flashing.
•You can continue playback by pressing 2; again.
5 Press STOP to stop playback.
yThe total number of tracks and the total playing
time of the CD are displayed.
6 Press STOP again to switch the player off.
•To remove the CD, hold it by its edge and press the
hub gently while lifting the CD.
Note: If there is no activity, the set will automatically
switch off after a while to save energy.
STOP
Playback information
• If a CD-Recordable (CD-R) or a CD-Rewritable (CD-
RW) is not recorded properly, NF dISC is
displayed, indicating that the CD has not been
finalized. In that case, use FINALIZE on your CD
recorder to complete the recording.
• When playing a CD-Rewritable (CD-RW), please note
that it takes 3–15 seconds after pressing 2; for
+
/
uffle resume
repeat all
sound reproduction to start.
• Playback will stop if you open the CD lid.
• While the CD is read, 1 --:-- flashes in the display.
Volume and bass
Volume adjustment
• Adjust the volume by using VOL
or your remote control.
−−//++
on the CD player
vol
Bass adjustment
•Press DBB to switch the bass enhancement on or
off
y is shown if the bass enhancement is
activated.
pro
FEATURES
Selecting a track and searching
Selecting a track during playback
• Briefly press ∞ or § once or several times to skip to
the current, previous or next track.
yPlayback continues with the selected track, and
the track’s number is displayed.
Selecting a track when playback is stopped
1 Briefly press ∞ or § once or several times to select
the desired track. The track number is displayed.
2 Press 2; to start CD play.
yPlayback starts with the selected track.
Searching for a passage during playback
1 Keep ∞ or § pressed to find a particular passage in
a backward or forward direction.
ySearching starts while playback continues at low
volume. After 2 seconds the search speeds up.
2 Release the button when you reach the desired passage.
yPlayback continues from this position.
Notes: – If the player is in SCAN mode (see MODE chapter), searching is not
possible.

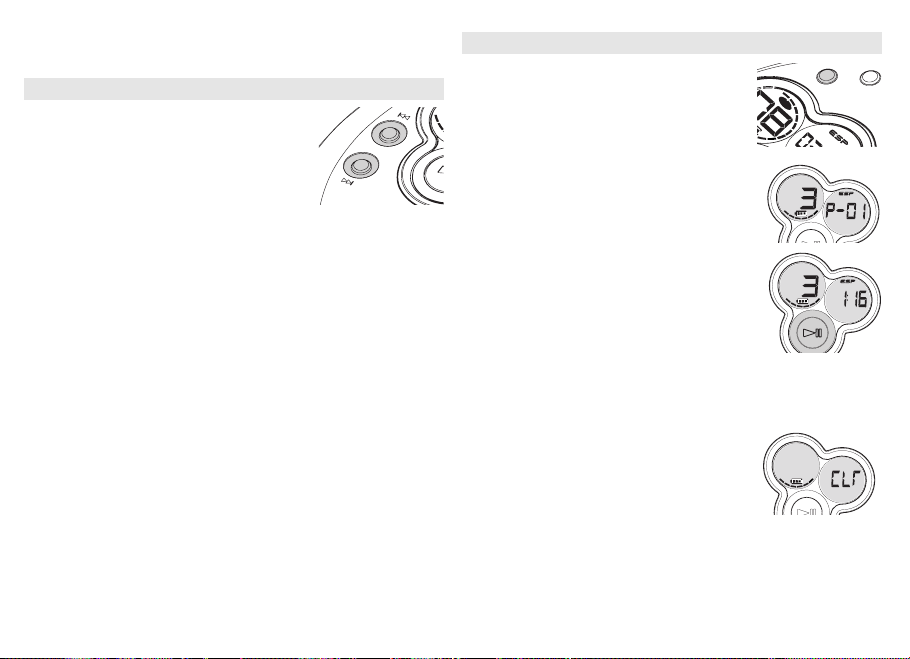

Programming track numbers
You can store up to 30 tracks to play in a program.
A single track may be stored more than once in the
program.
1 While playback is stopped, select a track with
∞ or §.
2 Press PROGRAM to store the track.
yprogram lights up; the track number
programmed and P with the total number of
stored tracks are displayed.
vol
DBB
PROGRAM
program
3 Select and store all desired tracks in this way.
4 Press 2; to start playback of your selected tracks.
yprogram is shown and playback starts.
•You can review the program by pressing PROGRAM
for more than 2 seconds.
yThe display shows all the stored tracks in
sequence.
Notes: – If you press PROGRAM and there is no track selected, SEL is
displayed.
– If you try to store more than 30 tracks, FULL is displayed.
program
Clearing the program
• While playback is stopped, press STOP to clear
program.
y CLRis displayed once, program goes off,
and the program is cleared.
Note: The program will also be cleared if the power supply is interrupted, or if
the CD-player lid is opened, or if the set switches off automatically.
program
FEATURES
Selecting different playing possibilities−MODE
It is possible to play tracks in random order, to repeat a single track or the entire
CD, and to play the first few seconds of each track.
1 Press MODE during playback as often as required in
order to activate one of the following ‘modes’. The
active mode is shown in the display.
yshuffle : All tracks of the CD are played in
random order until all of them have been played
once.
yshuffle repeat all : All tracks of the CD
are played repeatedly in random order.
yrepeat : The current track is played repeatedly.
yrepeat all : The entire CD is played repeatedly.
ySCAN: The first 10 seconds of each of the
remaining tracks are played in sequence.
2 Playback starts in the chosen mode after 2 seconds.
•To return to normal playback, press MODE repeatedly until the display shows
no active modes.
ESP / Power Save Mode
With a conventional portable CD-player you might have experienced that the music
stopped e.g. when you were jogging. The ELECTRONIC SKIP PROTECTION
prevents loss of sound caused by light vibrations and shocks. Continuous playback is
ensured. However ESP does not prevent playback interruptions during vigorous running.
It also does not protect the unit against any damage caused by dropping!
The power save mode helps to extend battery lifetime for longer playback.
• Switch the slider to ESP ON during playback to activate the shock protection.
y is shown and the protection is activated.
•To deactivate the shock protection and enter the power save mode, switch the
slider to POWER SAVE.
y goes off
PROGRAM
shuffle
MODE
repeat all

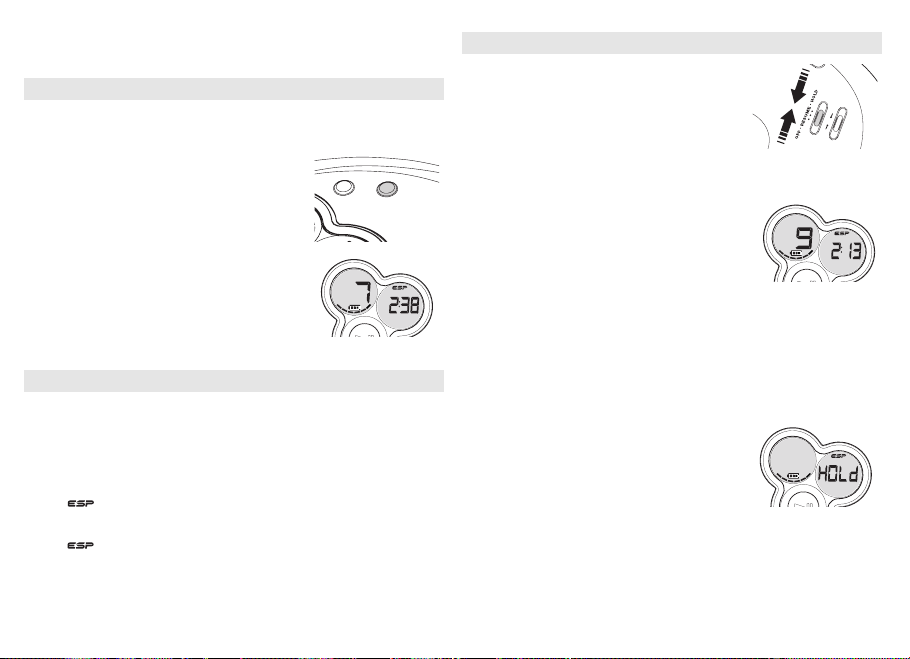

RESUME and HOLD
You can interrupt playback and continue (even after an
extended period of time) from the position where
playback stopped (RESUME) and you can lock all buttons
of the set so that no action will be executed (HOLD).
Use the OFF–RESUME–HOLD slider for these functions.
POWER SAVE
ESP ON
RESUME – continuing from where you have stopped
1 Switch the slider to RESUME during playback to activate RESUME.
yresume is shown.
2 Press STOP whenever you want to stop playback.
3 Press 2; whenever you want to resume playback.
yresume is shown and playback continues
from where you have stopped.
•To deactivate RESUME, switch the slider to OFF.
yresume goes off.
resume
HOLD – locking all buttons
This model offers a double lock function to prevent buttons from being
accidentally pressed and activated. You can choose to lock all buttons on
either your set, remote control or even both! Simply adjust the respective
HOLD slider to HOLD on or off position as desired. For example :
1 Switch the OFF–RESUME–HOLD slider to HOLD to activate HOLD on the set.
yAll buttons are locked and HOLd is shown
when you press any button.on the set If the set
is switched off, HOLd will be shown only
when 2; is pressed.
2 To deactivate HOLD, switch the slider to OFF.
Note: – If you deactivate HOLD by switching the slider
on the set to RESUME, you will be activating the RESUME function.
– No HOLd display indication is available if you have activated the
HOLD command on the remote control.
hold
resume
TROUBLESHOOTING
Troubleshooting
WARNING: Under no circumstances should you try to repair the set yourself as
this will invalidate the warranty. If a fault occurs, first check the points listed,
before taking the unit for repair. If you are unable to solve a problem by following
these hints, consult your dealer or service center.
The CD player has no power, or playback does not start
• Check that your batteries are not dead or empty, that they are inserted
correctly, that the contact pins are clean.
•Your adapter connection may be loose. Connect it securely.
• For in-car use, check that the car ignition is on. Also check player’s batteries.
The indication NO dISC is displayed
• Check that the CD is clean and correctly inserted (label-side upward).
• If your lens has steamed up, wait a few minutes for this to clear.
The indication NF dISC is displayed
• CD-RW (CD-R) was not recorded properly. Use FINALIZE on your CD-recorder.
The indication
• If HOLD is activated, then deactivate it.
• Electrostatic discharge. Disconnect power or remove batteries for a few seconds.
The CD skips tracks
• The CD is damaged or dirty. Replace or clean the CD.
•resume, shuffle or program is active. Switch off whichever is on.
HOLD is on and/or there is no reaction to controls
Troubleshooting
No sound or bad sound quality.
•PAUSE might be active. Press 2;.
• Loose, wrong or dirty connections. Check and clean connections.
•Volume might not be appropriately adjusted. Adjust the volume.
• Strong magnetic fields. Check player’s position and connections. Also keep
away from active mobile phones.
• For in-car use, check that the cassette adapter is inserted correctly, that the car
cassette player’s playback direction is correct (press autoreverse to change),
and that the cigarette lighter jack is clean. Allow time for temperature change.
CAUTION
Use of controls or adjustments or performance of
procedures other than herein may result in hazardous
radiation exposure or other unsafe operation.
Loading...
