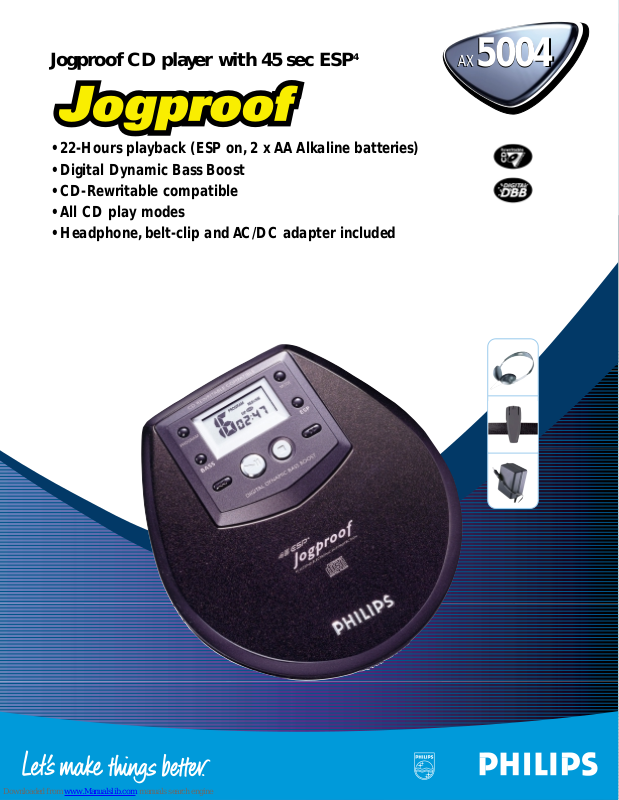

Philips AX5004, AX500417, AX5004/00, AX5004/05 Specifications
Jogproof CD player with 45 sec ESP
4
AX5004
AX5004
• 22-Hours playback (ESP on, 2 x AA Alkaline batteries)
• Digital Dynamic Bass Boost
• CD-Rewritable compatible
• All CD play modes
• Headphone, belt-clip and AC/DC adapter included
Standard product information
Amplifier/ system
• Output power (in-ear headphone)
2 x 6mW RMS
• 1-Bit D/A convertor for pure sound
reproduction
• Dynamic bass boost
• Rotary volume control
• S/N ratio
(A weighted) >100 dB
• Frequency response 20 Hz - 20 kHz
• Acoustic feedback
CD player
• 30-Track programmable,shuffle, repeat 1/all
and introscan
• Search forward/backward with sound
• Resume
• Hold
ESP - Electronic skip protection
• Electronic skip protection with 45 second
memory
LCD display
• Indications for track,time,Bass,CD functions
and battery status
Connections
• Headphone/line out Stereo,.14”
• DC in .16”,4.5V,center ‘+’
Power supply
• Batteries 2 x 1.5V,type AA cell
• Battery playing time 22 hours (ESP on,
Alkaline batteries)
• Automatic power switch-off
General
• Material High temperature
resistant plastic
• Weight .44 lbs
(excluding batteries)
• Product dimensions 1.1”L x 5.44” W x
5.04” H
• Clamshell dimensions 3.2” L x 9.6” W x 9.6” H
• Clamshell weight 2 lbs
• Mastercarton dimensions
9.8” L x 12.8” W x
11.2” H
• Mastercarton weight 6.1 lbs
• Mastercarton quantity 3
• Country of Origin China
• Warranty 12 Months OTC
Exchange
Accessories
• AC/DC adapter
• Stereo headband headphone
• Belt-clip
Jogproof
Fourth generation Electronic Skip Protection for
continuous music play with 45 second music buffer
and up to five times faster shock recovery than
conventional systems.
22-Hours playback (ESP on, 2 x AA Alkaline
batteries)
Powersaving technology extends battery playing time to
22 hours with two regular AA-size alkaline batteries .
Digital Dynamic Bass Boost
Enhances bass at low,mid and high volume, to give
deep,rich sounds.
CD-Rewritable compatible
Ensures that both CD-Recordable and CD-Rewritable
disks, made by any CD-Recorder,can be played.
All CD play modes
Let’s you enjoy various CD program modes (repeat one/
repeat all/ shuffle/ repeat shuffle/ introscan).
Headphone, belt-clip and AC/DC adapter
included
Heat resistant body
Unique composite material enables the CD player to
withstand very high temperatures.
1-Bit D/A converter
Advanced digital conversion technology ensures crystalclear sound.
Hold
Locks all buttons to prevent interruption of play or
change of program settings.
Resume
Bookmark function that ensures the CD starts precisely
from the point it was stopped.
Automatic power off
Automatically switches off the CD player at the end of
a compact disc.
CD next/ previous
Plays the next or previous track at the touch of
a button.
CD music search
Searches the CD at high speed while still producing
low-volume sound so you know exactly when to stop.
Repeat one/ all
Repeat the current track or the total CD.
Shuffle
Plays disc selection randomly,giving you each time a
new sequence of tracks.
30-track programmable
Stores up to 30 of your favorite tracks for playing
back in your order of preference.
Acoustic feedback
Confirms any key-push with friendly beep to
acknowledge that a command has been given.
UPC: 0 37849 90579 1
Master pack UPC: 1 37849 90579 8
Printed in Hong Kong 2000-12-01
Specifications subject to modification without notice
© 2000 Koninklijke Philips Electronics N.V.
All rights reserved
http://www.philipsusa.com
