Portable CD Player

PROGRAM

RESUME

ESP

PROGRAM

RESUME

ESP

DBB

PROGRAM

MODE

CD REWRITABLE COMPATIBLE

DIGITAL DYNAMIC BASS BOOST

BASS

ESP

45 SECOND ELECTRONIC SKIP PROTECTION

DIGITAL AUDIO

COMPACT

AX5002 AX5003 AX5004

No abrir, riesgo de choque eléctrico

Verifique que el voltaje de alimentación

sea el requerido para su aparato

ATENCIÓN

Para evitar el riesgo de choque eléctrico, no quite la tapa.

En caso de requerir servicio, dirijase al personal calificado.

PRECAUCIÓN - ADVERTENCIA

México

Es necesario que lea cuidadosamente su instructivo de manejo.

Descripción: Tocadiscos de CD portatil Modelo: AX 5002/01, /11, /16, AX 5003/01, /11, /16,

AX 5004/01, /11, /16

Alimentación: 110–127/220–240 V~ 50–60 Hz Consumo: 4 W (AY 3170) Importador: Philips Mexicana, S.A. de C.V. Domicilio: Norte 45, # 669, Col. Industrial Vallejo Localidad y Telefono: C.P. 02300 México D.F., Tel. 5728 42 00 Exportador: Philips Electronics Hong Kong, Ltd. País de Origen: China

Nº de Serie: ______________________________

LEA CUIDADOSAMENTE ESTE INSTRUCTIVO

ANTES DE USAR SU APARATO.

English

9 0

English

Controls .................................................6

Quick start .............................................7

Power supply...................................8–10

General information......................10–11

CD play..........................................12–13

Features.........................................14–18

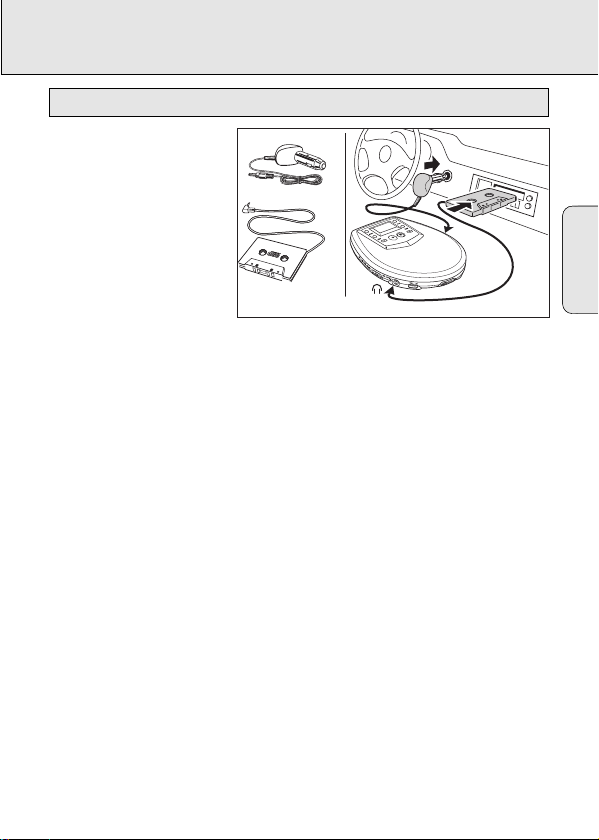

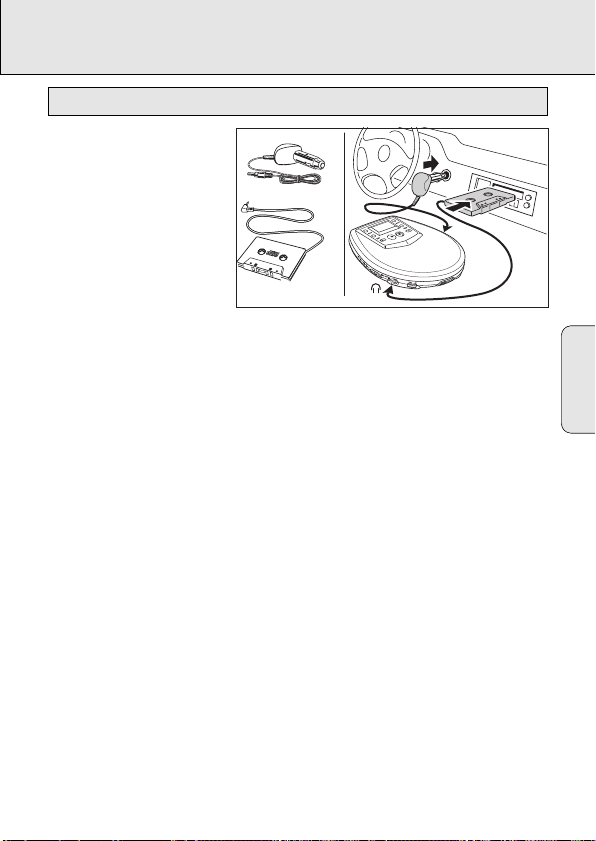

In-car connection.................................19

Troubleshooting.............................20–21

English

Français

Commandes.........................................22

Mise en service rapide........................23

Alimentation électrique ................24–26

Informations générales.................26–27

Español

Controles .............................................38

Encendido rápido.................................39

Alimentación eléctrica..................40–42

Información general......................42–43

∑

Controls ...............................................54

Quick start ...........................................55

Power supply.................................56–58

General information......................58–59

Guarantees

Polizia de garantía

Mexico.........................................70–71

Lecture CD.....................................28–29

Caractéristiques ............................30–34

Raccordement en voiture ....................35

Pannes et remèdes .......................36–37

Reproducción de un CD.................44–45

Características ..............................46–50

Conexión al automóvil.........................51

Localización de averías.................52–53

CD play..........................................60–61

Features.........................................62–66

In-car connection.................................67

Troubleshooting.............................68–69

Philips product warranty for

Australia......................................72–73

Guarantee and service for

New Zealand ....................................74

Français

Español

∑

CONTROLS, refer to the illustration on page 3

1 OPEN 2...........opens the CD lid

English

2 2;...................switches the player on, starts or pauses CD play

3 9 .....................stops CD play, clears a program or switches the player off

4 §....................skips and searches CD tracks forwards

5 ESP..................ELECTRONIC SKIP PROTECTION ensures continuous CD playback

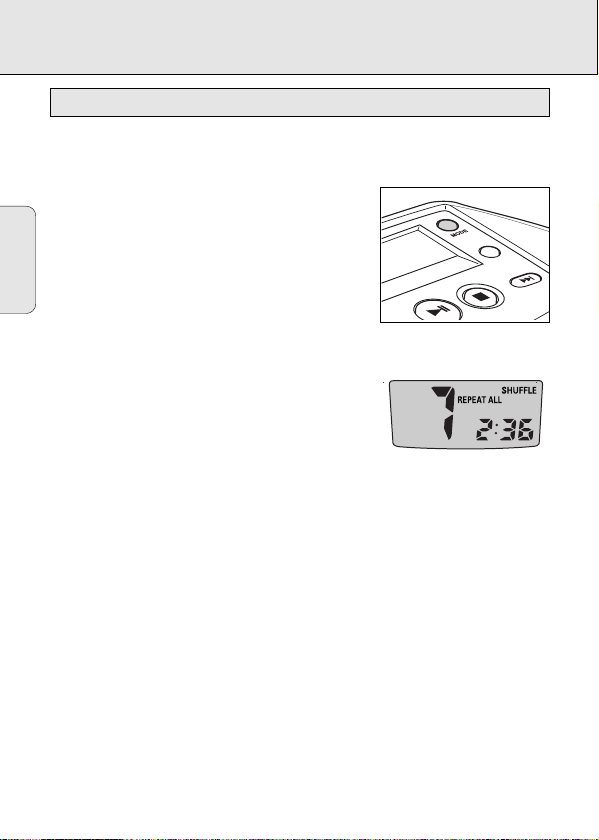

6 MODE..............selects the different playing possibilities:

7 ........................display

8 PROGRAM.......programs tracks and reviews the program

9 BASS...............switches the bass enhancement on and off. This button also

0 ∞....................skips and searches CD tracks backwards

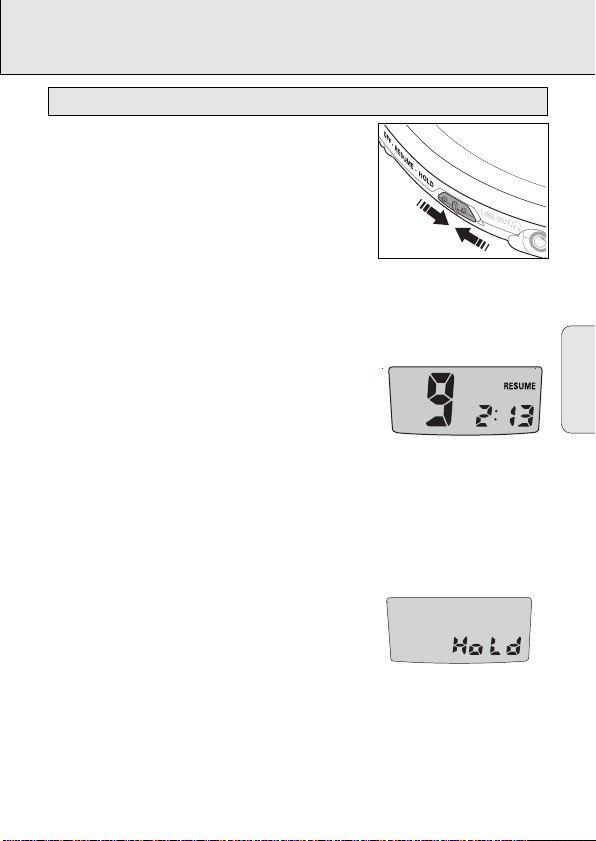

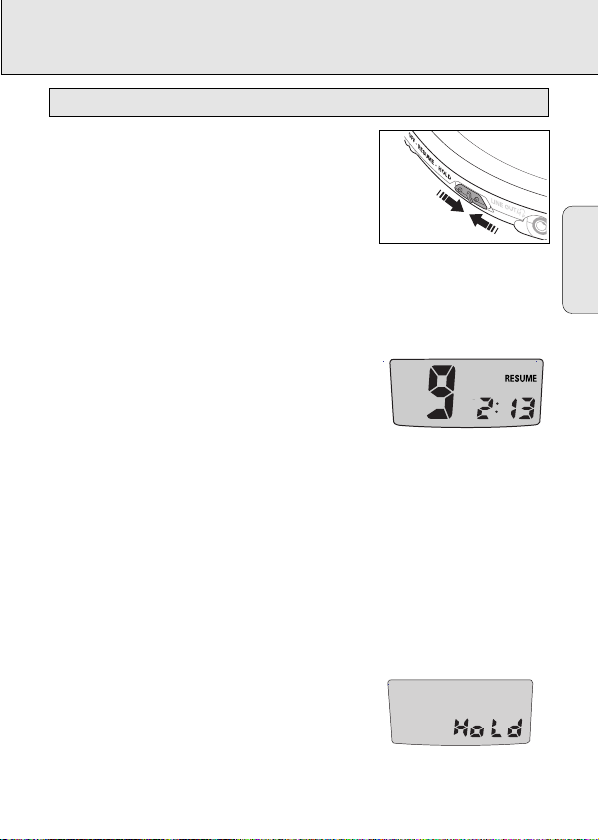

! RESUME..........stores the last position of a CD track played

HOLD...............locks all buttons

OFF ..................switches RESUME and HOLD off

@ LINE OUT/p ....3.5 mm headphone socket, socket to connect the player to another

# VOL E.........adjusts the volume

$ 4.5V DC...........socket for external power supply

% ........................typeplate

^ ........................belt clip holder

Remote control (not on all versions)

Use only the Philips AY 3767 cord remote control with your CD-player. The buttons on the remote control have the same functions as the corresponding buttons on the CD-player.

1 If necessary, press 9 once or twice until the set is switched off, 2 Firmly plug the remote control into the LINE OUT/p socket of the CD-player, and

then connect the headphones to the socket of the remote control.

3 Turn the volume down with VOL F on the remote control and set VOLE on

the CD-player to position 8.

regardless of vibrations and shocks

SHUFFLE,

SHUFFLE REPEAT ALL, REPEAT, REPEAT ALL and SCAN

switches acoustic feedback (the beep) on/off when it is pressed for more than 2 seconds

audio input of an additional appliance, remote control socket (not on all versions)

1 OPEN 2

3 CD 4 5

HOLD➟OFF

6 PLAY 7 VOLUME

!!!

AA LR6 UM3

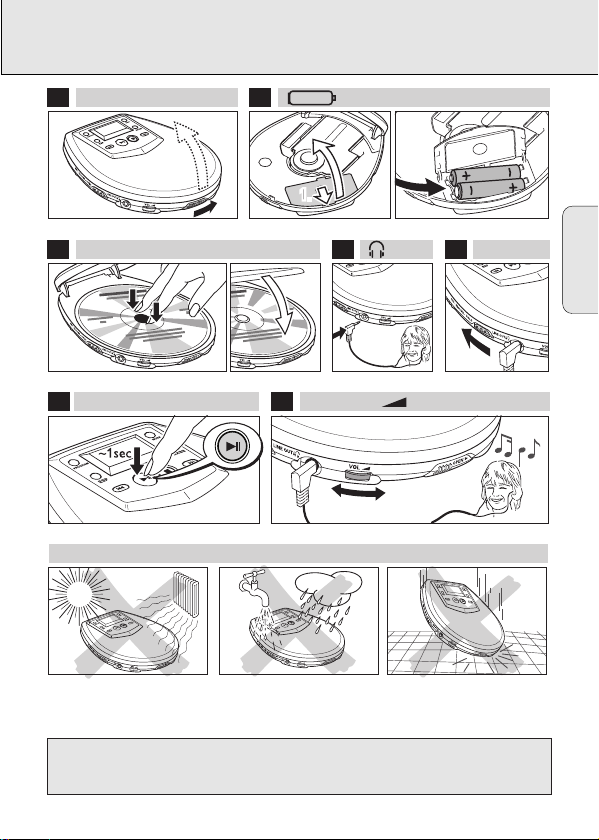

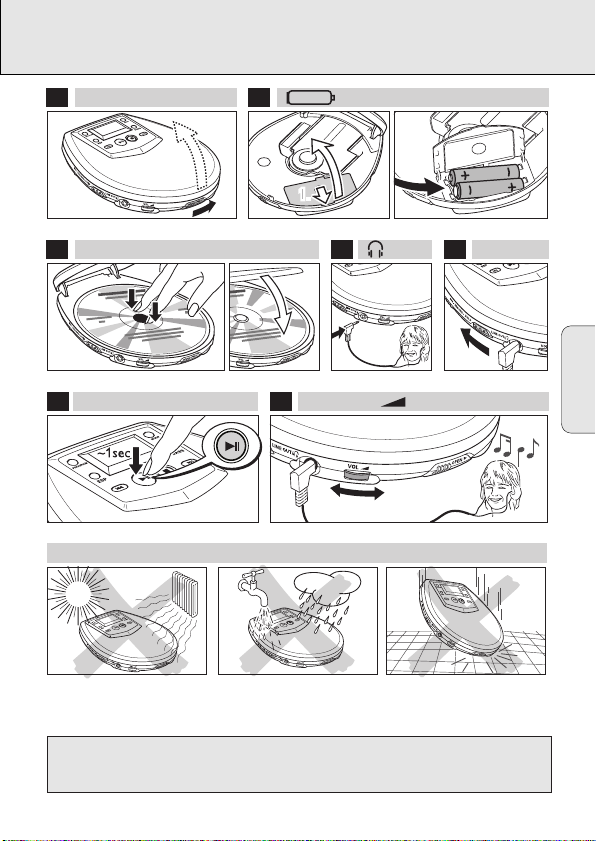

QUICK START

English

This set complies with the radio interference requirements of the

European Community.

POWER SUPPLY

Batteries (supplied or optionally available)

English

You can use the following batteries with this CD-player:

• normal batteries type LR6, UM3 or AA (preferably Philips), or

• alkaline batteries type LR6, UM3 or AA (preferably Philips).

Note: – Old and new or different types of batteries should not be used in

combination. Remove batteries if they are empty or if the player is not going to be used for a long time.

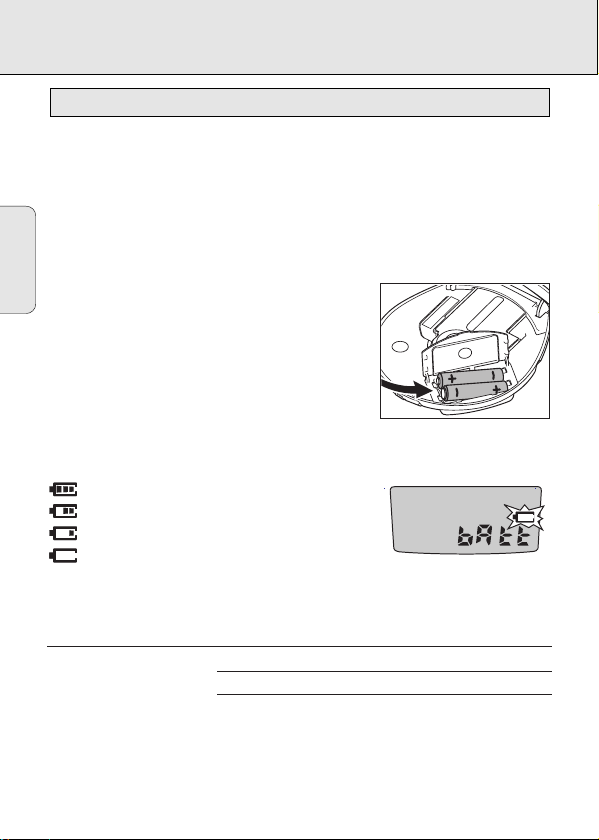

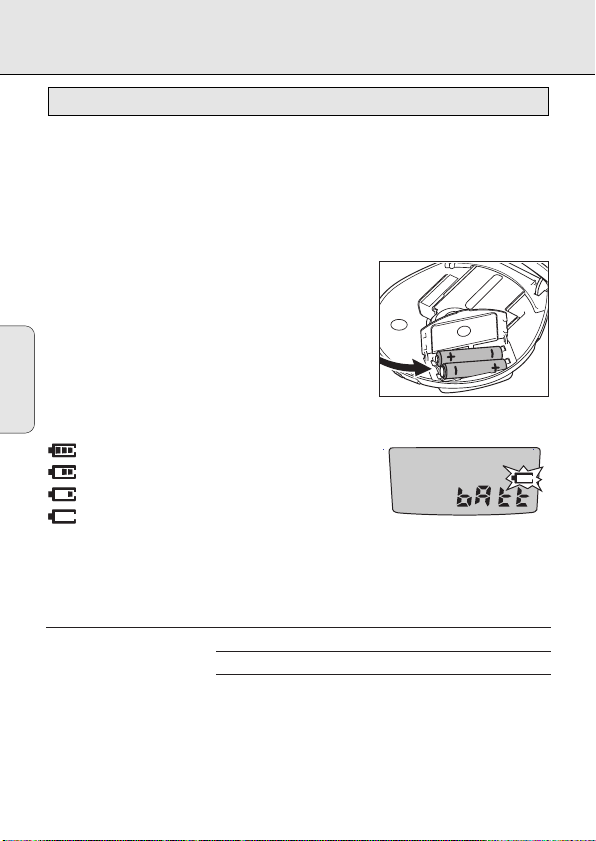

Inserting batteries 1 Push OPEN 2 to open the CD lid.

2 Open the battery compartment and insert either

2 normal or alkaline batteries, or the rechargeable NiMH battery AY 3362 (if supplied).

Battery indication

The approximate power level of your batteries is shown in the display.

Battery full Battery two-thirds full Battery one-third full Battery dead or empty. When the batteries are

dead or empty, the symbol A flashes, bAtt is displayed, and the beep tone sounds repeatedly.

Average playing time of batteries under normal conditions Battery type ESP on ESP off

Normal 7 hours 6 hours Alkaline 22 hours 19 hours Rechargeable ECO-PLUS NiMH battery 10 hours 9 hours

Batteries contain chemical substances, so they should be disposed of properly.

POWER SUPPLY

ECO-PLUS NiMH battery information (for versions supplied with

the rechargeable ECO-PLUS NiMH battery AY 3362)

Recharging works only on players supplied with the rechargeable ECO-PLUS NiMH battery AY 3362.

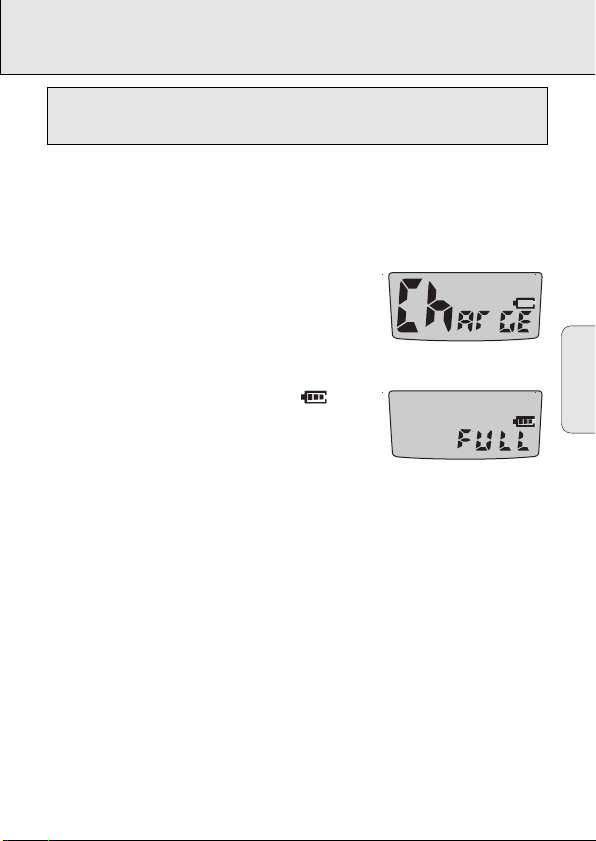

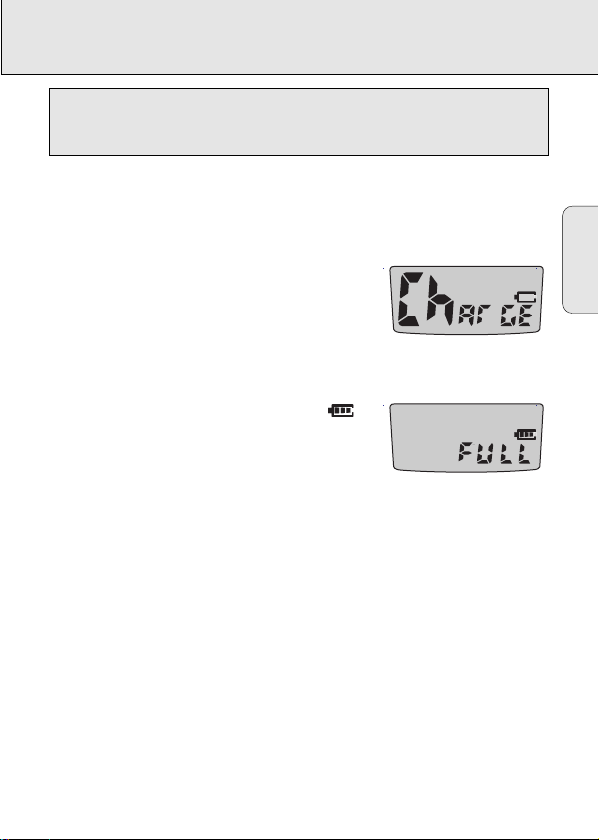

Recharging the ECO-PLUS NiMH battery on board 1 Insert the rechargeable ECO-PLUS NiMH battery AY 3362.

2 Connect the mains adapter to the 4.5V DC socket of

the player and then to the wall socket.

y A is shown and ChArGE is displayed for 5

seconds.

• Recharging stops after a maximum of 7 hours, or when you start playback. 3 When the battery is fully recharged, and

FULL appear briefly in the display, before the display switches off.

Notes: – It is normal for the batteries to become warm during recharging.

– If the batteries become too warm, recharging will be interrupted for

approximately 30 minutes and – To ensure proper recharging on board, take care that contacts are clean. – Use only the ECO-PLUS NiMH battery AY 3362.

Handling instructions

• Recharging already charged or half-charged batteries will shorten their lifetime. We therefore recommend that you let the rechargeable ECO-PLUS NiMH battery run till it is completely empty before you recharge it.

• To avoid a short circuit, do not let the battery touch any metal object.

• If the battery becomes empty soon after recharging, then either its contacts are dirty or it has reached the end of its lifetime.

Hot

is displayed.

English

POWER SUPPLY / GENERAL INFORMATION

LIFT

LOCK

RELEASE

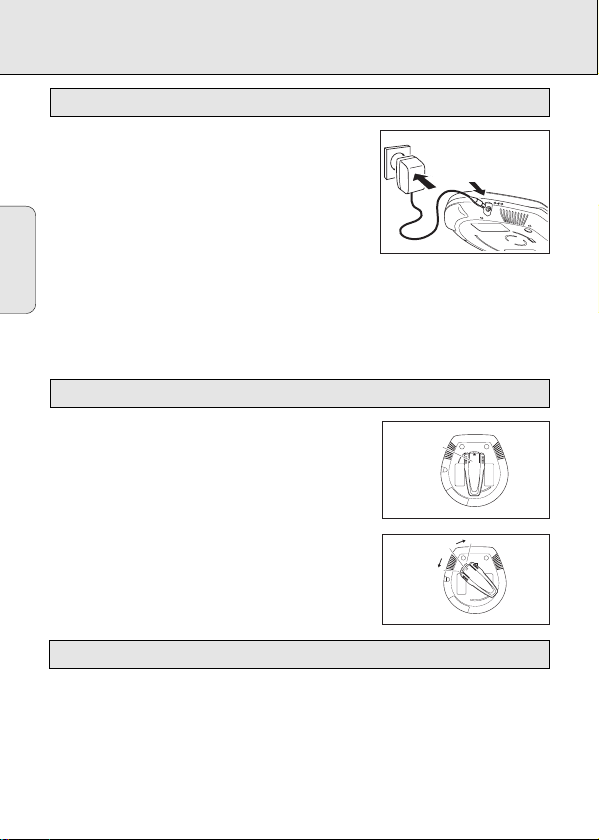

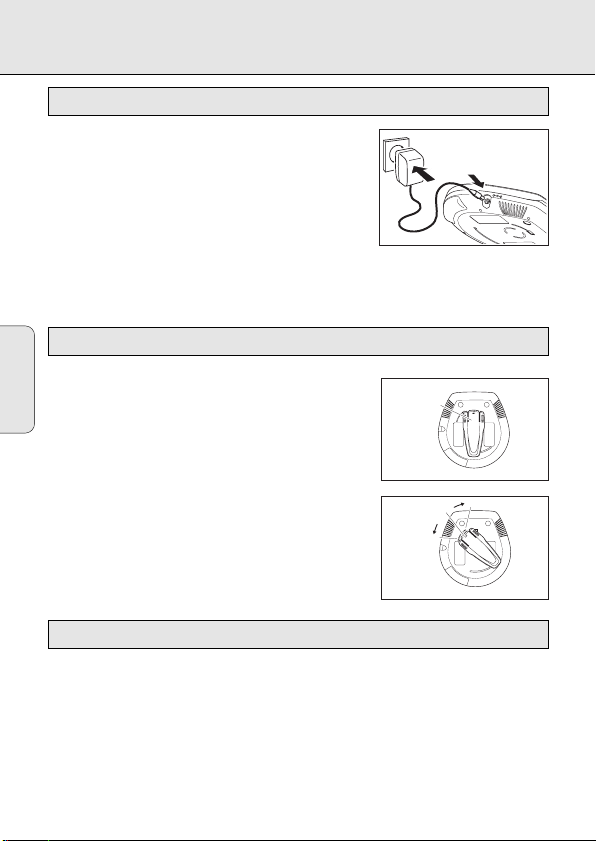

Mains adapter (supplied or optionally available)

English

Use only the AY 3170 adapter (4.5 V/300 mA direct current, positive pole to the centre pin). Any other product may damage the player.

1 Make sure that the adapter’s voltage corresponds to

the local voltage.

2 Connect the adapter to the 4.5V DC socket of the

player and to the wall socket.

Note: Always disconnect the adapter when you are not using it.

Belt Clip (not on all versions)

1 To attach the belt clip to the CD-player, position the

shaped grip (found on the back of the belt clip) so that it fits into the belt clip hole of the CD-player.

2 Turn the clip to LOCK as indicated on the set. 3 To detach, gently lift the belt clip and turn

to RELEASE as indicated on the set.

Environmental information

• All redundant packing material has been omitted. We have done our utmost to make the packaging easily separable into two mono materials: cardboard (box) and polyethylene (bags, protective foam sheet).

• Your set consists of materials which can be recycled if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packing materials, exhausted batteries and old equipment.

BELT CLIP

4.5 V

GENERAL INFORMATION

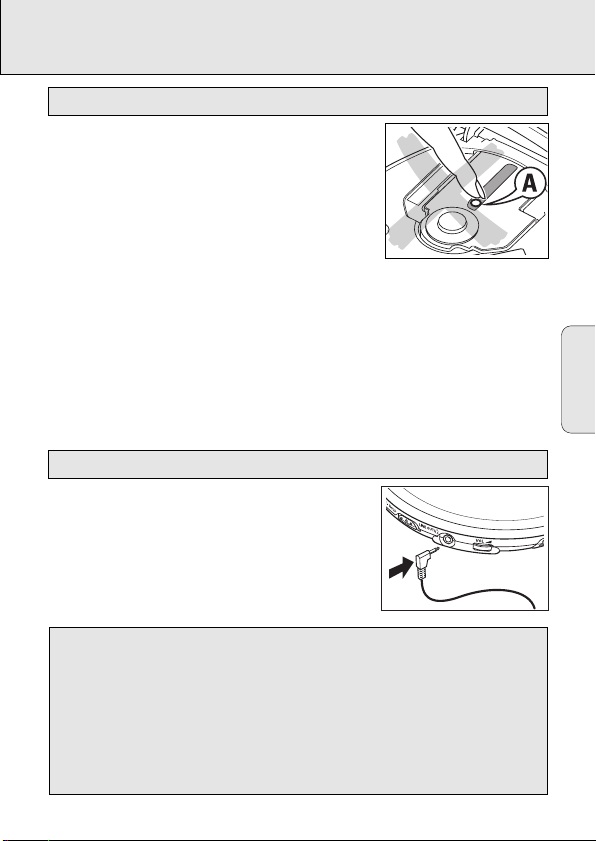

CD-player and CD handling

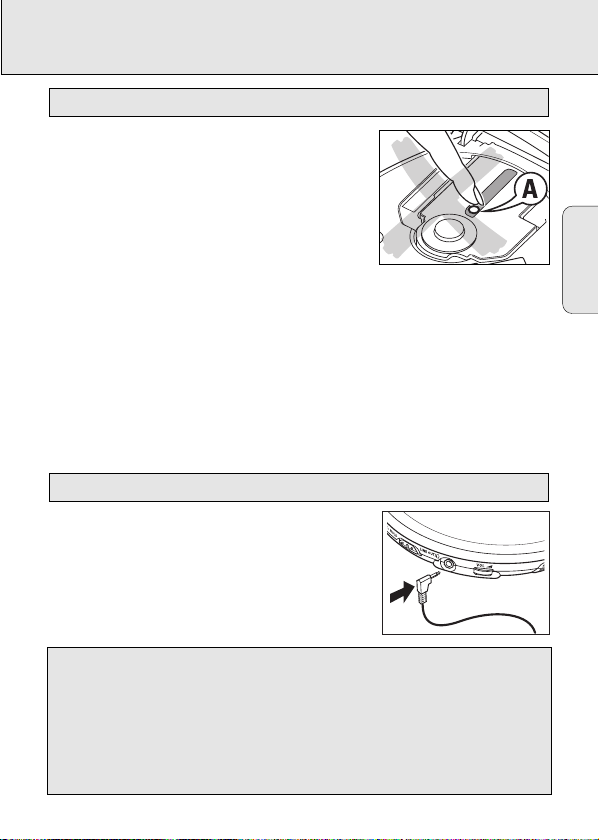

• Do not touch the lens A of the CD-player.

• Do not expose the set, batteries or CDs to humidity, rain, sand or excessive heat (caused by heating equipment or direct sunlight).

• You can clean the CD-player with a soft, slightly dampened, lint-free cloth. Do not use any cleaning agents as they may have a corrosive effect.

• To clean the CD, wipe it in a straight line from the centre towards the edge using a soft, lint-free cloth. A cleaning agent may damage the disc! Never write on a CD or attach a sticker to it.

• The lens may cloud over when the set is moved suddenly from cold to warm surroundings. Playing a CD is not possible then. Leave the CD-player in a warm environment until the moisture has evaporated.

• Active mobile phones in the vicinity of the CD-player may cause malfunctions.

• Avoid dropping the set as this may cause damage.

Headphones HE 545

• Connect the supplied headphones to the LINE OUT/p socket of the player.

Note:

LINE OUT/p

player to your HiFi system (with a signal lead) or to your car radio (with a cassette adapter or signal lead). In both cases, the volume of the player must be set to position 8.

Use your head when using headphones

Hearing safety: Do not play your headphones at a high volume. Hearing experts advise that continuous use at high volume can permanently damage your hearing.

Traffic safety: Do not use headphones while driving a vehicle. It may create a hazard and it is illegal in many countries. Even if your headphones are an open-air type designed to let you hear outside sounds, do not turn up the volume so high that you cannot hear what is going on around you.

can also be used for connecting the

English

CD PLAY

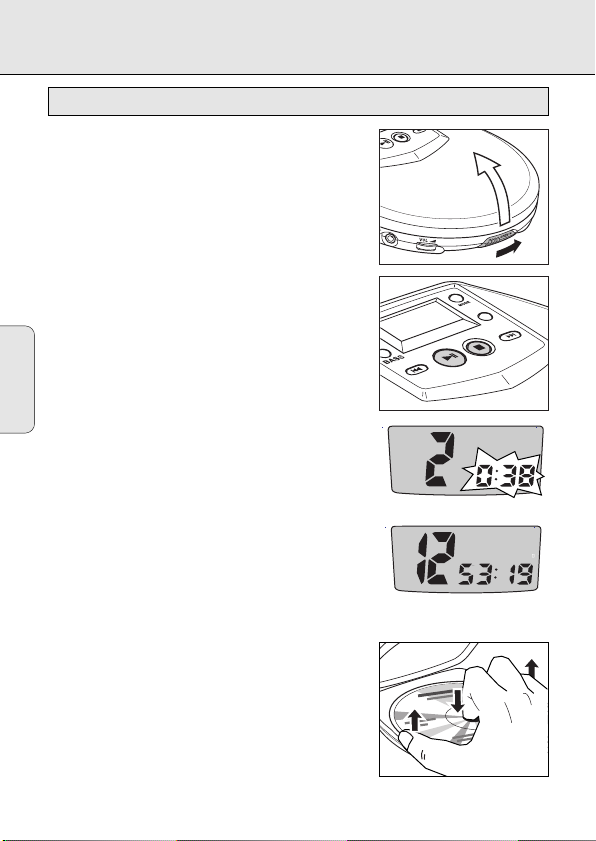

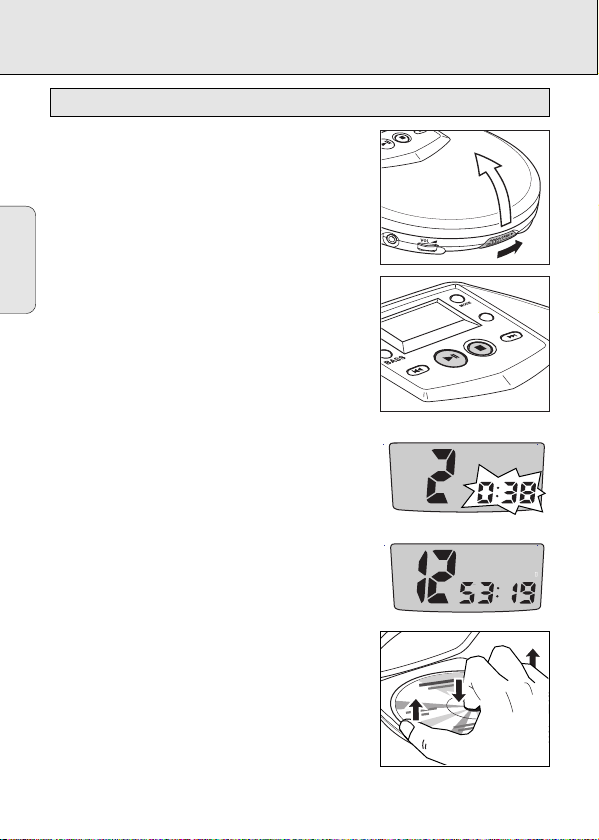

Playing a CD

English

This CD-player can play all kinds of Audio Discs such as CD-Recordables and CD-Rewritables. Do not try to play a CD-ROM, CDi, VCD, DVD or computer CD.

1 Push the OPEN 2 slider to open the player.

2 Insert an audio CD, printed side up, by pressing the

CD onto the hub.

3 Close the player by pressing the lid down.

4 Press 2; to switch the player on and start playback.

y The current track number and elapsed playing

time are displayed.

• You can pause playback by pressing 2;.

y The time at which playback was paused starts

flashing.

• You can continue playback by pressing 2; again.

5 Press 9 to stop playback.

y The total number of tracks and the total playing

time of the CD are displayed.

6 Press 9 again to switch the player off.

• To remove the CD, hold it by its edge and press the hub gently while lifting the CD.

Note: If there is no activity, the set will automatically

switch off after a while to save energy.

ESP

CD PLAY

Playback information

• If a CD-Recordable (CD-R) or a CD-Rewritable (CD-RW) is not recorded properly,

nF dISC is displayed, indicating that the CD has not been finalized. In that case, use FINALIZE on your CD recorder to complete the recording.

• When playing a CD-Rewritable (CD-RW), please note that it takes 3–15 seconds after pressing 2; for sound reproduction to start.

• Playback will stop if you open the CD lid.

• While the CD is read, 1 -:- flashes in the display.

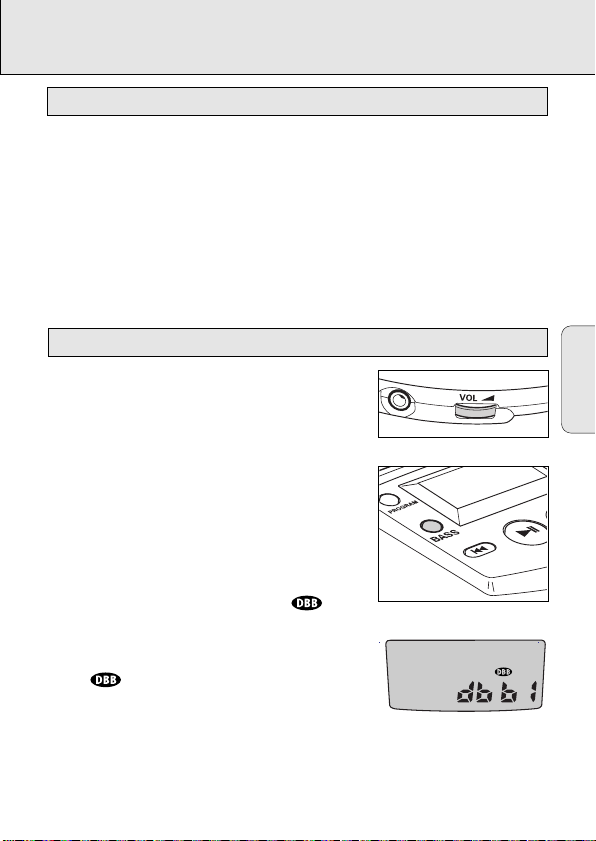

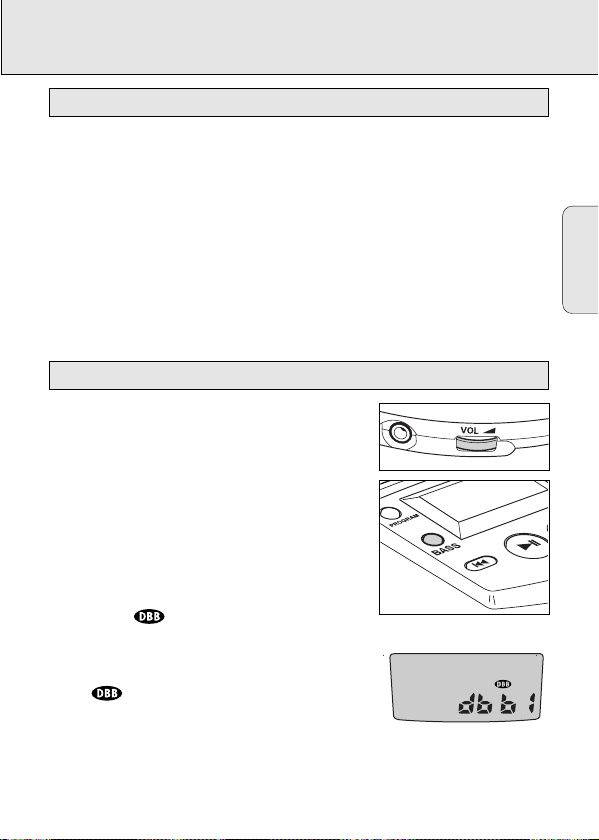

Volume and bass

Volume adjustment

• Adjust the volume by using VOL E.

Bass adjustment

You can choose between the bass enhancement levels dbb1 and dbb2.

1 Press BASS once for dbb1 and twice

for dbb2.

y dbb1 or dbb2 is displayed and

is shown.

2 To switch dbb1 or dbb2 off, press BASS

twice or once, respectively.

y goes off.

English

FEATURES

ESP

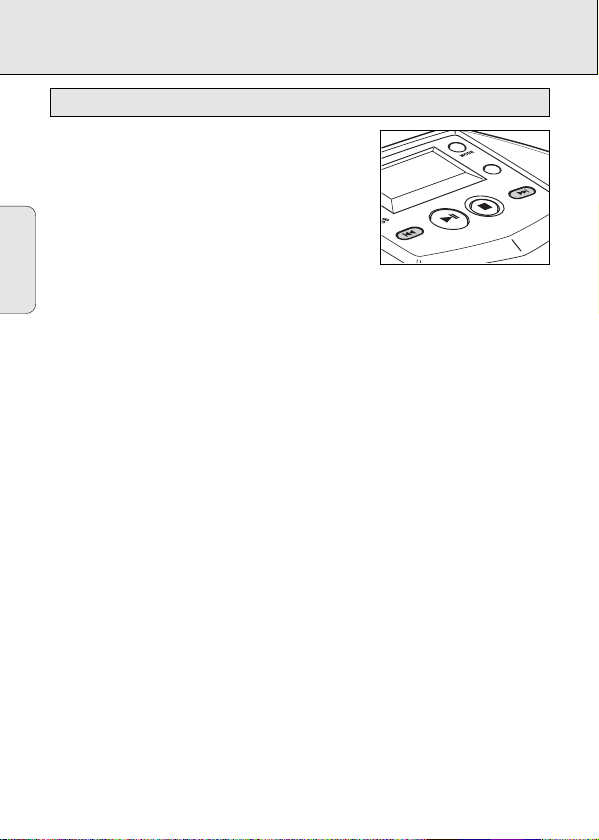

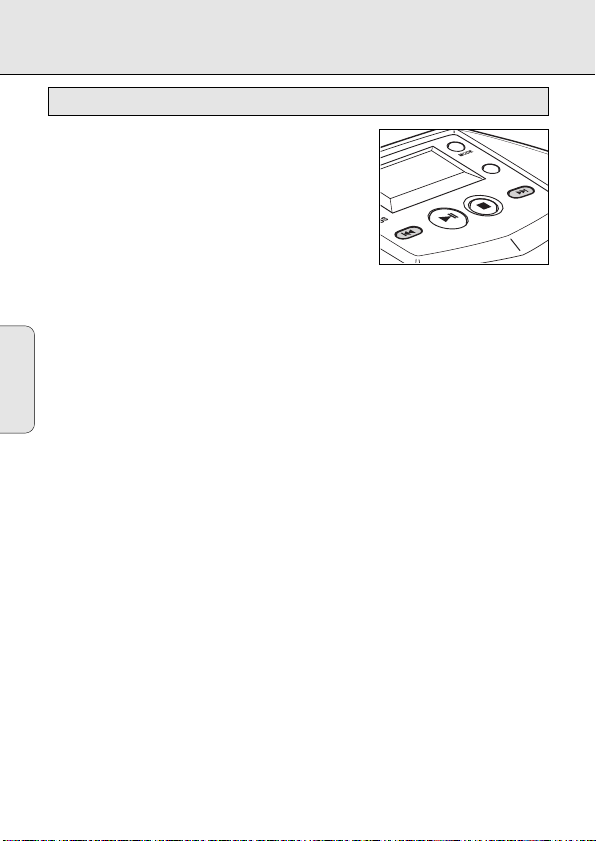

Selecting a track and searching

English

Selecting a track during playback

• Briefly press ∞ or § once or several times to skip to the current, previous or next track.

y Playback continues with the selected track, and

the track’s number is displayed.

Selecting a track when playback is stopped 1 Briefly press ∞ or § once or several times to select

the desired track. The track number is displayed.

2 Press 2; to start CD play.

y Playback starts with the selected track.

Searching for a passage during playback 1 Keep ∞ or § pressed to find a particular passage in

a backward or forward direction.

y Searching starts while playback continues at low

volume. After 2 seconds the search speeds up.

2 Release the button when you reach the desired passage.

y Playback continues from this position.

Notes: – If the player is in SCAN mode (see MODE chapter), searching is not possible.

– In SHUFFLE, SHUFFLE REPEAT ALL or REPEAT mode (see MODE chapter), or

while playing a program, searching is only possible within the particular track.

FEATURES

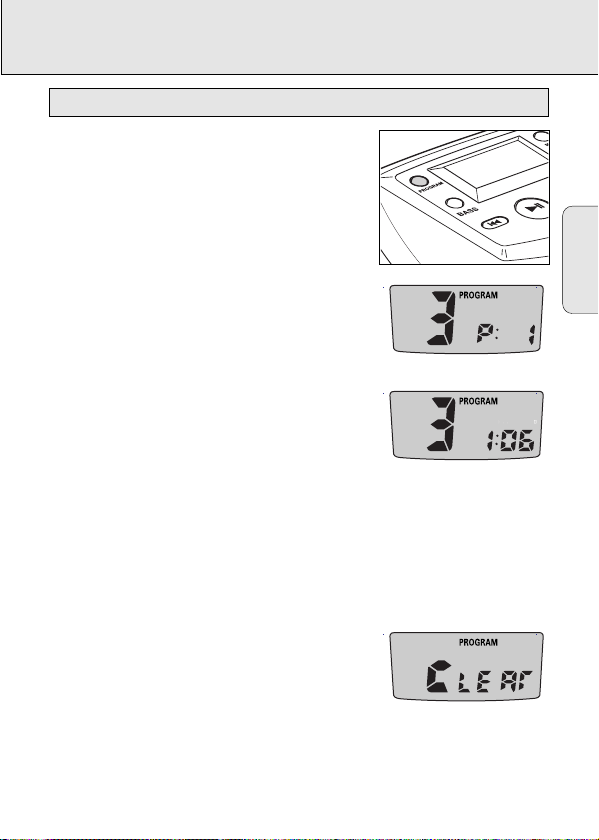

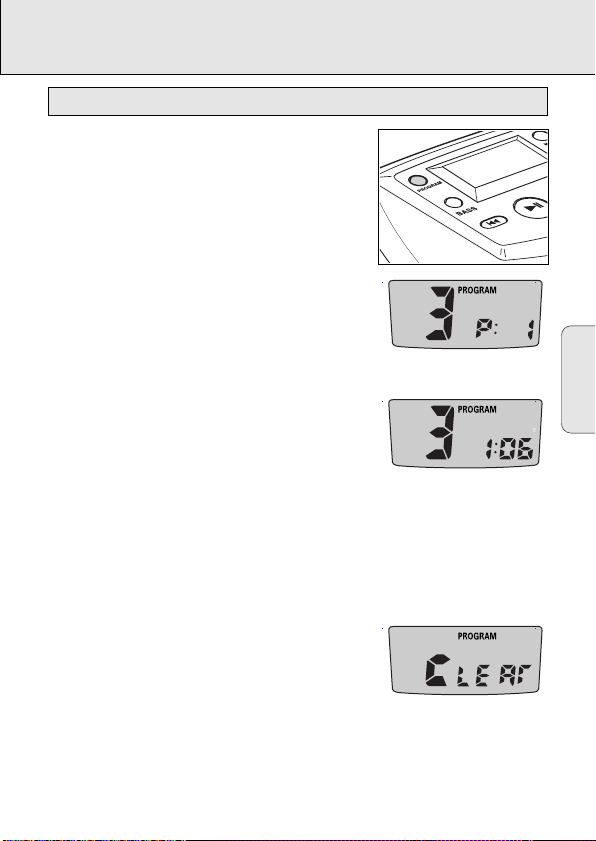

Programming track numbers

You can store up to 30 tracks to play in a program. A single track may be stored more than once in the program.

1 While playback is stopped, select a track with

∞ or §.

2 Press PROGRAM to store the track.

y PROGRAM lights up; the track number

programmed and P with the total number of stored tracks are displayed.

3 Select and store all desired tracks in this way.

4 Press 2; to start playback of your selected tracks.

y PROGRAM is shown and playback starts.

• You can review the program by pressing PROGRAM for more than 2 seconds.

y The display shows all the stored tracks in sequence.

English

Notes: – If you press

SELECt

– If you try to store more than 30 tracks,

Clearing the program

• While playback is stopped, press 9 to clear . program

y CLEAr is displayed once, PROGRAM goes off,

and the program is cleared.

PROGRAM

is displayed.

and there is no track selected,

FULL

is displayed.

Note: The program will also be cleared if the power supply is interrupted, or if the

CD-player lid is opened, or if the set switches off automatically.

FEATURES

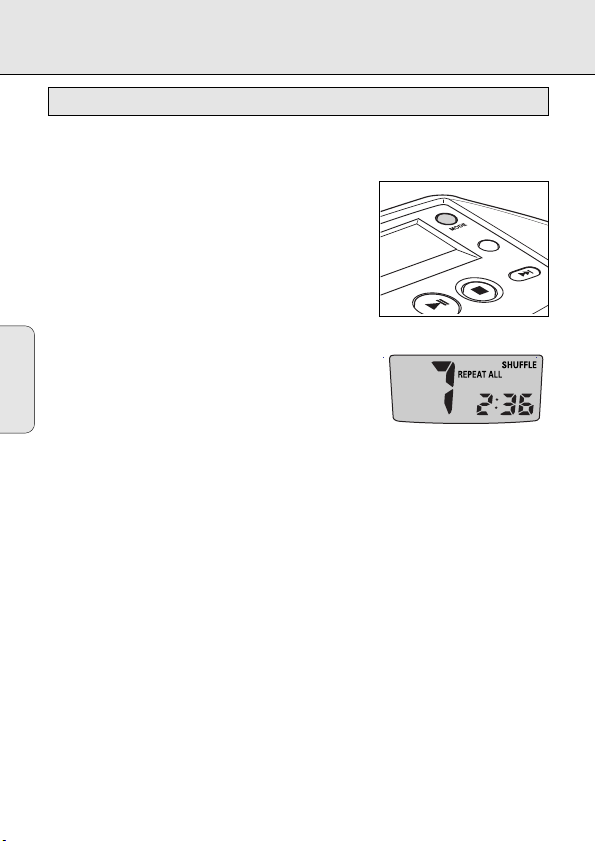

Selecting different playing possibilities – MODE

English

It is possible to play tracks in random order, to repeat a single track or the entire CD, and to play the first few seconds of each track.

1 Press MODE during playback as often as required in

order to activate one of the following ‘modes’. The active mode is shown in the display.

y SHUFFLE: All tracks of the CD are played in

random order until all of them have been played once.

y SHUFFLE REPEAT ALL: All tracks of the CD are

played repeatedly in random order.

y REPEAT: The current track is played repeatedly. y REPEAT ALL: The entire CD is played repeatedly. y SCAN: The first 10 seconds of each of the

remaining tracks are played in sequence.

2 Playback starts in the chosen mode after 2 seconds.

• To return to normal playback, press MODE repeatedly until the display shows no active modes.

ESP

FEATURES

RESUME and HOLD

You can interrupt playback and continue (even after an extended period of time) from the position where playback stopped (RESUME) and you can lock all buttons of the set so that no action will be executed (HOLD). Use the RESUME–HOLD–OFF slider for these functions.

RESUME – continuing from where you have stopped 1 Switch the slider to RESUME during playback to activate RESUME.

y RESUME is shown.

2 Press 9 whenever you want to stop playback.

3 Press 2; whenever you want to resume playback.

y RESUME is shown and playback continues from

where you have stopped.

• To deactivate RESUME, switch the slider to OFF.

y RESUME goes off.

HOLD – locking all buttons

You can lock the buttons of the set by switching the slider to HOLD. Now, when a key is pressed, no action will be executed. This is of use, for example, when transporting the player in a bag. With HOLD activated, you can avoid accidental activation of other functions.

1 Switch the slider to HOLD to activate HOLD.

y All buttons are locked. HOLD is shown when you press any button. If the set is

switched off, HOLD will be shown only when 2; is pressed.

2 To deactivate HOLD, switch the slider to OFF.

English

Note: If you deactivate

RESUME,

you will be activating the

function.

HOLD

by switching the slider to

RESUME

FEATURES

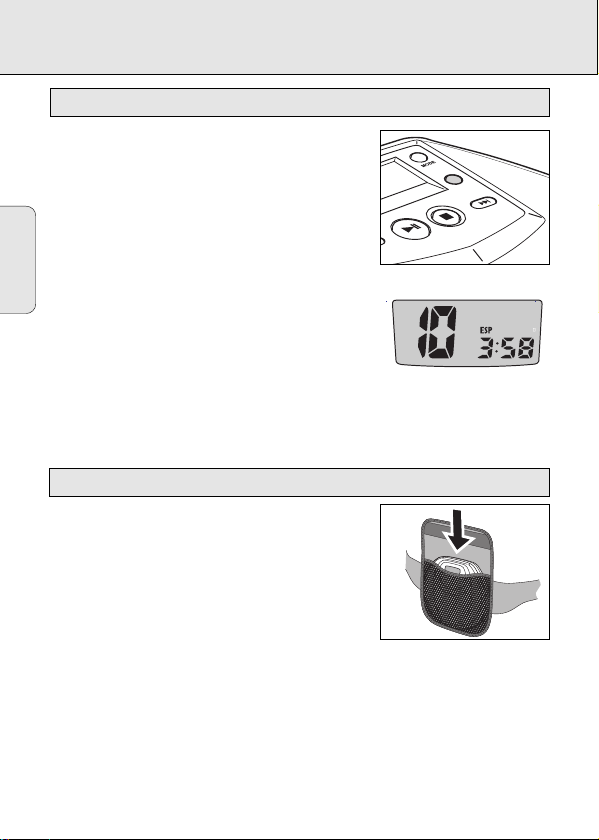

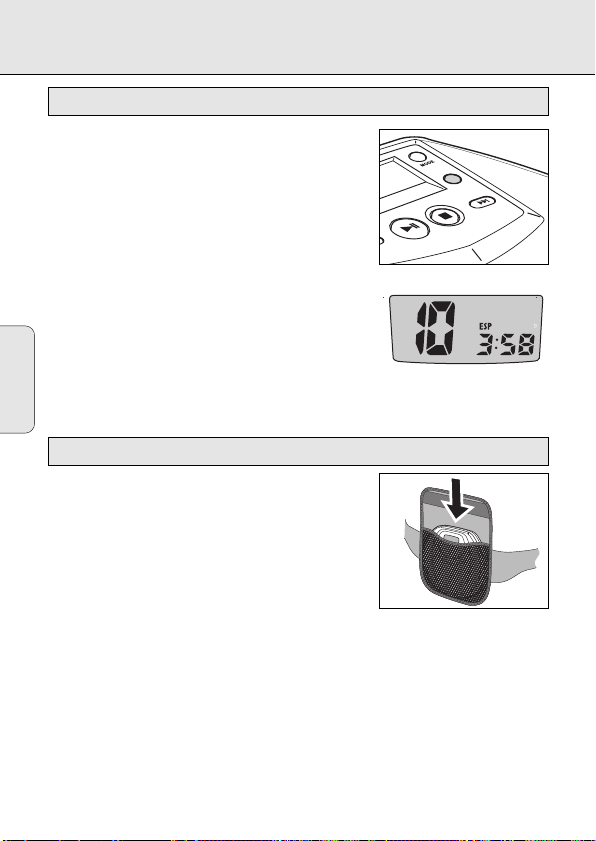

ESP

English

Conventional portable CD-players subjected to a shock or vibration during playback often skip parts of the CD. The ELECTRONIC SKIP PROTECTION (ESP) feature, with which your set is equipped, however, prevents such loss of continuity when your player is subjected to light vibrations. But ESP does not prevent playback interruptions caused by vigorous exercise. Nor does it protect against damage resulting from the player being dropped!

• Press ESP during playback to activate the skip protection.

y ESP is shown and the protection is activated.

• To deactivate the skip protection, press ESP again.

y ESP goes off and the protection is deactivated.

Pouch AY 3266 (supplied or optionally available)

The pouch enables you to conveniently carry the CD-player so you can listen to music while exercising.

1 Make sure ESP is activated.

2 Fasten the pouch belt tightly around your waist.

3 Put the CD-player into the pouch with the keys facing

away from your body, and close the flap.

ESP

Notes: – While exercising, take care that the CD-player is not hit by a limb or other

object, such as a branch or post. – Do not use the pouch if you are suffering from a skin irritation. – Do not machine-wash the pouch as it could lose shape or colour.

IN-CAR CONNECTION

4,5 V DC

DIGIT

In-car use (connections supplied or optionally available)

Only use the AY 3545 car voltage converter (4.5V, DC, positive pole to the centre pin) and the AY 3501 car cassette adapter. Any other product may damage the set.

1 Put the CD-player on a

horizontal, vibration-free and stable surface. Make sure it is in a safe place, where the player is neither a danger nor obstacle to either driver or passenger.

2 Connect the DC plug of the voltage converter to the 4.5V DC socket of the CD-

player

(only for a 12 V car battery, negative grounding)

3 Insert the voltage converter into the cigarette lighter socket. If necessary, clean the

cigarette lighter socket to obtain a good electrical contact.

4 Turn down the volume and connect the cassette adapter plug to the LINEOUT/p

socket of the CD player.

5 Carefully insert the cassette adapter into the car radio’s cassette compartment. 6 Make sure the cord does not hinder your driving. 7 Start the CD-player, set VOL E to position 8 and adjust the sound with the car

radio controls.

• Always remove the voltage converter from the cigarette lighter socket when the CD-player is not in use.

English

Note: – Avoid excessive heat from the car heating or from direct sunlight (e.g. in a

parked car in the summer).

– If your car radio has a LINE IN socket, it is better to use this instead of the

cassette adapter. Simply connect a signal lead from the of the CD-player to this LINE IN socket.

LINE OUT/p

socket

+ 43 hidden pages
