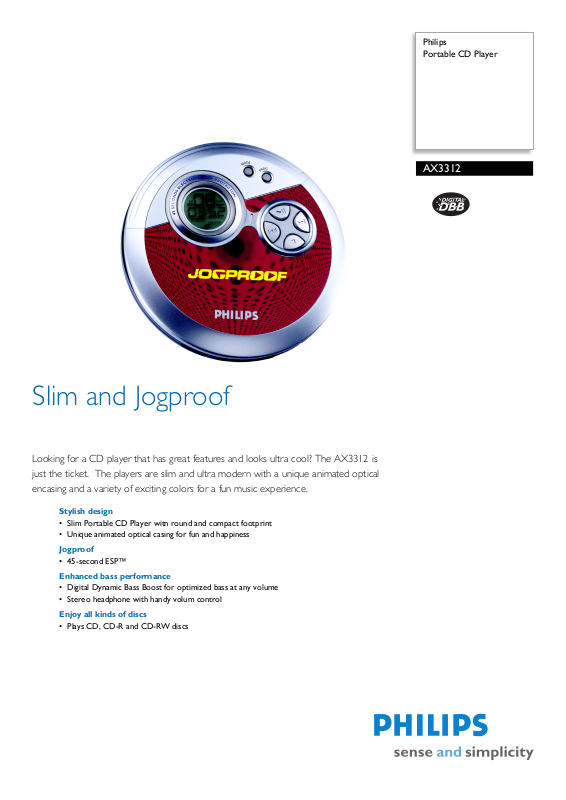

Page 1
Philips
Portable CD Player
AX3312
Slim and Jogproof
Looking for a CD player that has great features and looks ultra cool? The AX3312 is
just the ticket. The players are slim and ultra modern with a unique animated optical
encasing and a variety of exciting colors for a fun music experience.
Stylish design
• Slim Portable CD Player witn round and compact footprint
• Unique animated optical casing for fun and happiness
Jogproof
• 45-second ESP™
Enhanced bass performance
• Digital Dynamic Bass Boost for optimized bass at any volume
• Stereo headphone with handy volum control
Enjoy all kinds of discs
• Plays CD, CD-R and CD-RW discs
Page 2
Portable CD Player
AX3312/17
Specifications Product highlights
Sound
• Acoustic Feedback
• D/A converter: 1-bit
• Frequency response: 20 - 20 000 Hz
• Output Power: 2 x 5mW RMS
• Signal to noise ratio: > 85dB
• Sound Enhancement: Digital Dynamic Bass Boost
• Volume Control: digital
Audio Playback
• Playback Media: CD, CD-R, CD-RW
• Disc Playback Modes: 30-Track Programmable,
Fast Forward/Backward, Hold, Introscan, Repeat
Play, Resume Playback from stop, Shuffle Play
• Electronic Skip Protection(CD): 45
Connectivity
• DC in: 4.0 mm, 4.5V, centre +
• Headphone: 3.5 mm
• Line-out: 3,5 mm
Convenience
• Display Type: LCD
• Indications: battery status, Cd functions, DBB,
ESP, time, track
Accessories
• Headphones: SBC HS383(neckband)
• Included Accessories: User Manual
Dimensions
• Ebox dimensions (W x H x D): 0 x 0 x 0 mm
• Housing: Heat Resistant Body, Lenticular Sheet
• Master carton dimensions: 168 x 315 x 223 mm
• Master carton weight: 1.5 kg
• Master carton quantity: 3
• Packaging dimensions (W x H x D):
203
x 305 x 58 mm
• Packaging type: Clamshell
• Product dimension (WxDxH) inch:
137.5x137.5x23.3mm
• Product weight: 0.2 kg
Power
• Battery Playing Time CD: 20
• Battery type: AA, AAA, LR03, LR6, UM3, UM4
• Kind of Battery: Rechargeable
•
Round, slim and compact
Animated optical casing
45-second ESP™
Electronic Skip Protection is a convenient feature that
ensures skip-free music even when your CD player is
subjected to knocks and jolts while you're jogging or on
the move. Devices with Electronic Skip Protection have
an intelligent electronic buffer that adjusts both its
contents and laser spin speeds automatically to
guarantee uninterrupted music listening.
Digital Dynamic Bass Boost
Digital Dynamic Bass Boost is an intelligent bass booster
that delivers maximum bass enhancement at high
volumes without sound distortion and at low volumes
without compromising on bottom-end bass frequencies.
Technologically advanced electronics constantly monitor
volume and bass levels, precisely calibrating both to
prevent sound distortion, thus producing optimized
bass. Digital Dynamic Bass Boost enables the
enjoyment of superb bass performance - regardless of
the chosen volume level.
Headphone with volumn control
Plays CDs, CD-R and CD-RW
Date of issue 2007-01-15
Version: 1.0
12 NC: 9073 101 00967
© 2007 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
