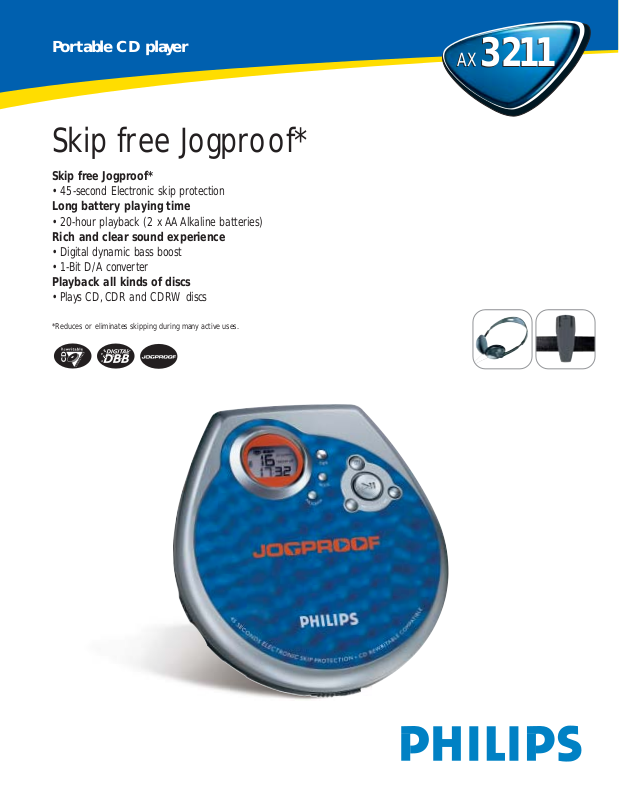

Philips AX3211 User Manual

Portable CD player

AX3211

Skip free Jogproof*

• 45-second Electronic skip protection

Long battery playing time

• 20-hour playback (2 x AA Alkaline batteries)

Rich and clear sound experience

• Digital dynamic bass boost

• 1-Bit D/A converter

Playback all kinds of discs

• Plays CD,CDR and CDRW discs

*Reduces or eliminates skipping during many active uses.

Portable CD player

AX3211

Standard product information

Amplifier/ system

• Output power (headphone) 2 x 4mW RMS

• 1-Bit D/A converter for pure sound reproduction

• Dynamic bass boost

• Rotary volume control

• S/N ratio (A weighted) >80 dB

•Frequency response 20 Hz - 20 kHz

• Audible feedback

CD player

• 30-Track programmable,shuffle, repeat one/ all and introscan

• Search forward/ backward with sound

• Resume and hold

Electronic skip protection

• Electronic skip protection with 45 second memory

LCD display

• Indications for track,time, ESP,DBB, CD functions and battery status

Connections

• Headphone/ line out stereo,0.14”

• DC in 0.16”,4.5V,center ‘+’

Power supply

• Batteries 2 x 1.5V,type

AA/LR6/UM3 cell

• Battery playing time 20 hours

(Alkaline batteries)

• Automatic power switch-off

General

• Material High temperature

resistant plastic

•Weight 0.47 lbs (excluding

batteries)

•Product dimensions 5.31” D x 4.92” W

x 1.18” H

• Clamshell dimensions 3.12” D x 8.22” W

x 11.8” H

• Master carton 8.4” D x 8.4” W dimensions x 12.3” H

• Package weight 3.3 lbs

• Master carton quantity 3

• Country of origin China

•Warranty 12 months OTC

exchange

Accessories

• Stereo headphones

• Belt-clip

45-second Electronic skip protection

Electronic skip protection detects shocks automatically and allows music play continuously with 45-second music buffer.

20-hour playback (2 x AA Alkaline batteries)

Powersaving technology extends battery playing time to 20 hours with two regular LR6-size (AA) alkaline batteries.

Digital dynamic bass boost

Enhances bass at low,mid and high volume, to give deep,r ich sounds .

CD-Rewritable compatible

Ensures that both CD-Recordable and CD-Rewritable discs, made by any CD-Recorder, can be played.

All CD program modes

Lets you enjoy various CD program modes (repeat one/ repeat all/ shuffle/ repeat shuffle/ introscan).

Heat resistant body

Unique composite material enables the CD player to withstand very high temperature.

1-Bit D/A converter

Advanced digital conversion technology ensures crystalclear sound.

Hold

Locks all buttons to prevent interruption of play or change of program settings.

Resume

Bookmark function that ensures the CD starts precisely from the point it was stopped.

Automatic power off

Automatically switches off the CD player at the end of a compact disc.

CD next/ previous

Plays the next or previous track at the touch of a button.

CD music search

Searches the CD at high speed while still producing low-volume sound so you know exactly when to stop.

Repeat one/ all

Repeat the current track or the total CD.

Shuffle

Plays disc selection randomly,giving you each time a new sequence of tracks.

30-track programmable

Stores up to 30 of your favorite tracks for playing back in your order of preference.

Audible feedback

Confirms any key-push with friendly beep to acknowledges that a command has been given.

UPC: 037849931820 Master Pack UPC:10037849931827

www.philips.com www.audio.philips.com
