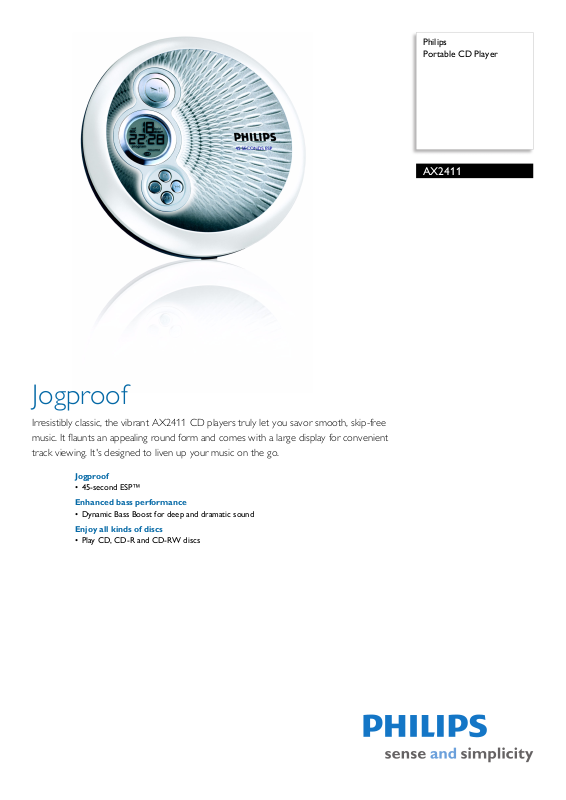

Philips AX2411/17, AX2411 Specifications

Philips
Portable CD Player

AX2411

Jogproof

Irresistibly classic, the vibrant AX2411 CD players truly let you savor smooth, skip-free
music. It flaunts an appealing round form and comes with a large display for convenient
track viewing. It's designed to liven up your music on the go.

Jogproof

• 45-second ESP™

Enhanced bass performance

• Dynamic Bass Boost for deep and dramatic sound

Enjoy all kinds of discs

• Play CD, CD-R and CD-RW discs

Portable CD Player

AX2411/17

Specifications

Sound

• D/A converter: 1-bit

• Frequency response: 20 - 20 000 Hz

• Signal to noise ratio: >82 dB

• Sound Enhancement: Dynamic Bass Boost

• Output Power: 2 x 4mW RMS

• Volume Control: digital

• Acoustic Feedback

Audio Playback

• Playback Media: CD, CD-R, CD-RW

• Disc Playback Modes: 30-Track Programmable,
ast Forward/Backward, Hold, Repeat Play,

F
Resume Playback from stop, Shuffle Play, Scan

• Electronic Skip Protection(CD): 45

Connectivity

• DC in: 4.0 mm, 4.5V, centre +

• Headphone: 3.5 mm

•Line-out: 3,5 mm

Convenience

• Display Type: LCD

• Indications: battery status, Cd functions, DBB, ESP,

me, track

ti

Accessories

• Headphones: AY3805 headphones

• Included accessories: User Manual

Dimensions

• Housing: Heat Resistant Body, Lenticular Sheet

• Master carton dimensions: 215 x 345 x 235 mm

• Master carton weight: 1.8 kg

• Master carton quantity: 3

• Packaging dimensions (W x H x D):
8 x 309 x 65 mm

20

• Packaging type: Clamshell

• Product dimensions (WxDxH): 140x140x27.5mm

• Product weight: 0.2 kg

• Product weight (lb): 0.5

Power

• Battery Playing Time CD: 20

• Battery type: AA, LR6, UM3

•

Highlights

45-second ESP™

Electronic Skip Protection is a convenient feature
that ensures skip-free music even when your CD
player is subjected to knocks and jolts while you're
jogging or on the move. Devices with Electronic Skip
Protection have an intelligent electronic buffer that
adjusts both its contents and laser spin speeds
automatically to guarantee uninterrupted music
listening.

Dynamic Bass Boost

Dynamic Bass Boost maximizes your music
enjoyment by emphasizing the bass content of the
music throughout the range of volume settings ­from low to high – at the touch of a button! Bottom­end bass frequencies usually get lost when the
volume is set at a low level. To counteract this,
Dynamic Bass Boost can be switched on to boost
bass levels, so you can enjoy consistent sound even
when you turn down the volume.

Play CDs, CD-R and CD-RW

Philips is known for making products which are
compatible with many discs available in the market.
This audio system lets you enjoy music from
CD,CD-R and CD-RW. A singe CD can store up to
10 hours of music. CD-RW (CD-Rewritable
Compatible) means that your audio system can play
both CD-Recordable (CD-R) and CD-Rewritable
(CD-RW) discs. CD-R discs are recordable once and
can be played on any audio CD player while CD-RW
discs can be recorded and rewritten multiple times
and can only be played back on compatible audio CD
players.

Issue date 2012-01-20

Version: 5.0.8

12 NC: 9073 101 01716
UPC: 0 37849 95605 2

© 2012 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.

www.philips.com
